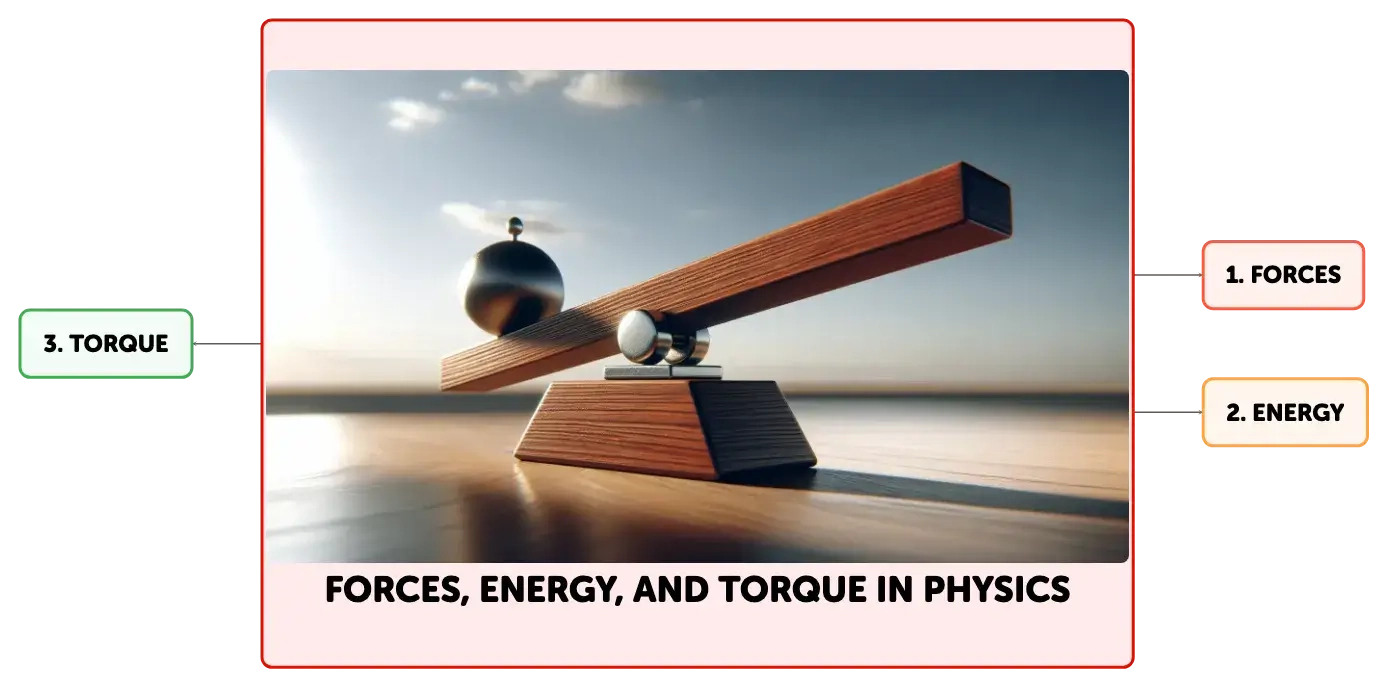

Forces, Energy, and Torque in Physics

This overview delves into the physics concepts of force, energy, and torque. Force is the interaction that causes objects to move or deform, while energy is the capacity to do work, evident in various forms like kinetic and potential. Torque, or moment of force, is the rotational influence of a force, essential for understanding mechanical equilibrium and the behavior of systems under rotational forces. The conservation of energy and the principle of moments are also discussed, highlighting their importance in physics.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of Force

Click to check the answer

Interaction causing push or pull on an object.

2

Types of Forces

Click to check the answer

Contact forces (direct interaction) and action-at-a-distance forces (e.g., gravitational, electromagnetic).

3

Effects of Forces

Click to check the answer

Initiate motion, change velocity, deform materials.

4

The ______ of ______ asserts that energy in an isolated system can't be made or annihilated, only changed.

Click to check the answer

law conservation of energy

5

Torque definition

Click to check the answer

Torque, also known as moment of force, is a vector that measures force's tendency to cause an object to rotate about an axis.

6

Torque components

Click to check the answer

Torque is determined by three factors: the magnitude of the force applied, the distance from the pivot point (lever arm), and the angle of force application.

7

Torque and rotational direction

Click to check the answer

The direction of torque dictates rotational motion direction; counterclockwise is often deemed positive.

8

Rotational Equilibrium Condition

Click to check the answer

Clockwise moments = Anticlockwise moments at pivot.

9

Applications of Moment Principle

Click to check the answer

Used in designing seesaws, balanced beams, stable structures.

10

Moment Equilibrium Indication

Click to check the answer

No rotation occurs when moments are balanced, showing equilibrium.

11

The ______ of a couple is found by multiplying the force by the ______ between the forces, and does not depend on the location of the pivot.

Click to check the answer

moment distance

12

Definition of Torque

Click to check the answer

Torque is a vector quantity representing rotational force, with magnitude and direction.

13

Torque Formula Rearrangement for Distance

Click to check the answer

Distance from pivot to force line can be found by dividing torque by force.

14

Importance of Torque in Mechanical Engineering

Click to check the answer

Torque calculation is crucial for designing and analyzing systems with rotational forces.

15

______ are interactions that may result in movement, alter speed, and reshape items.

Click to check the answer

Forces

16

______, also known as the moment of force, refers to the turning effect produced by a force.

Click to check the answer

Torque

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Optical Aberrations

Physics

Radiation Pressure

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

Physics

Spherical Aberration and its Effects on Optical Systems

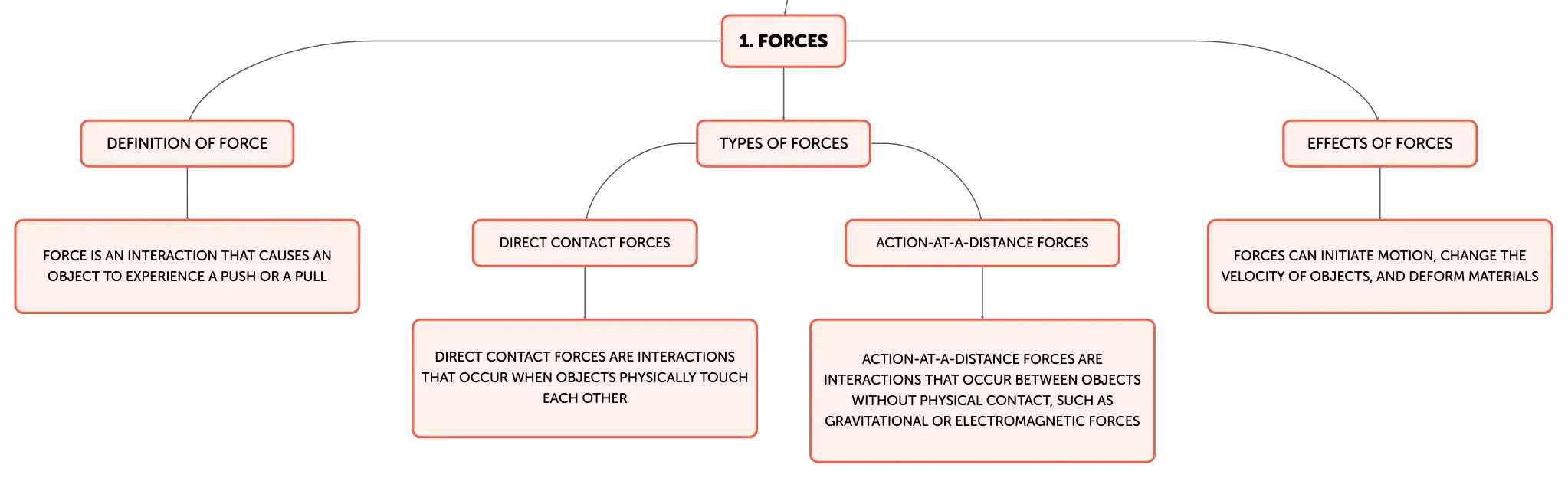

Understanding Force: Pushes and Pulls in Physics

Force, a central concept in physics, is an interaction that causes an object to experience a push or a pull. This interaction can be a direct contact force or an action-at-a-distance force, such as gravitational or electromagnetic forces. Forces are responsible for initiating motion, changing the velocity of objects (both in speed and direction), and deforming materials. For instance, when a force bends a metal rod, the rod's shape is altered; when a car accelerates, its speed increases due to the force applied by the engine.
Classic lever system with a wooden beam balanced on a central triangular fulcrum, one end dipped by a round metallic weight under a clear blue sky.

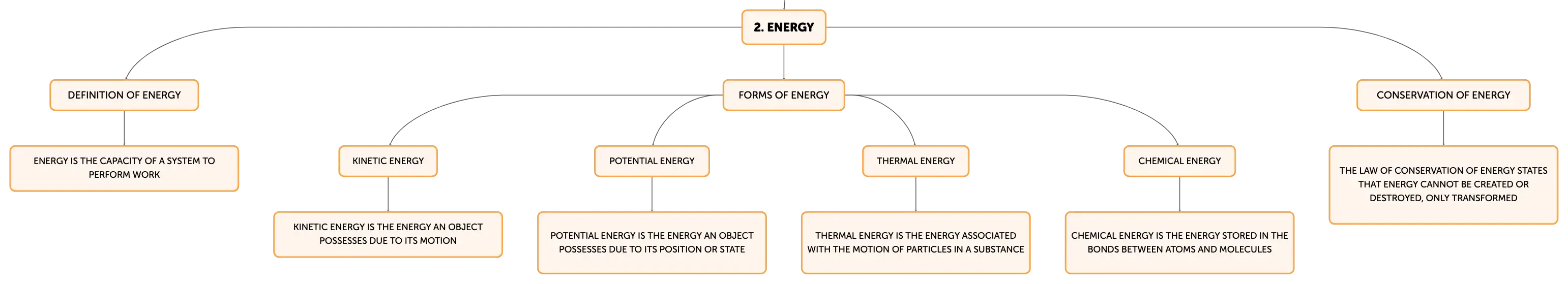

The Concept of Energy and Work

Energy is the capacity of a system to perform work, which occurs when a force causes an object to move. Work is mathematically defined as the product of the force applied to an object and the displacement of the object in the direction of the force. Energy exists in various forms, such as kinetic, potential, thermal, and chemical energy, and can be converted from one form to another. The law of conservation of energy states that in an isolated system, energy can neither be created nor destroyed, only transformed. For example, a roller coaster at the top of a hill has maximum potential energy, which is converted to kinetic energy as it descends.

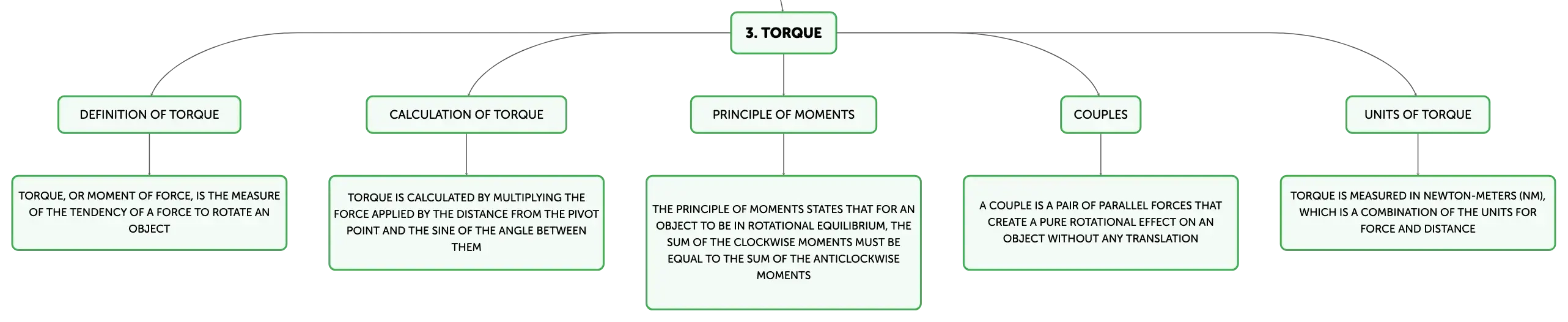

Moments and Torque: Understanding Rotational Forces

Moment of force, or torque, is the measure of the tendency of a force to rotate an object about an axis or pivot. It is a vector quantity, meaning it has both magnitude and direction. The effect of torque depends on the magnitude of the force, the distance from the pivot point (lever arm), and the angle at which the force is applied. Torque is responsible for rotational motion, such as the turning of a wheel or the spinning of a top. The direction of the torque determines the direction of the rotation, with counterclockwise rotation often considered positive.

Calculating Moments in Physics

The magnitude of a moment (torque) is calculated using the equation \( T = r \times F \times \sin(\theta) \), where \( T \) is the torque, \( r \) is the lever arm's length, \( F \) is the force applied, and \( \theta \) is the angle between the force vector and the lever arm. When the force is perpendicular to the lever arm, the sine of the angle is 1, and the equation simplifies to \( T = r \times F \). This calculation is crucial for understanding and predicting the rotational behavior of objects under the influence of various forces.

The Principle of Moments and Mechanical Equilibrium

The principle of moments states that for an object to be in rotational equilibrium, the sum of the clockwise moments about any pivot point must be equal to the sum of the anticlockwise moments. This principle is essential for maintaining balance in static systems, such as a seesaw or a balanced beam. When the moments are equal and opposite, the object will not rotate, indicating a state of equilibrium. Engineers and physicists use this principle to design stable structures and mechanical systems.

The Concept of a Couple in Physics

A couple consists of two parallel forces of equal magnitude but opposite direction, separated by a distance, creating a pure rotational effect on a body without any translation. The moment of a couple is calculated by multiplying one of the forces by the distance separating them, and it is independent of the pivot point. This concept is frequently encountered in everyday life, such as when using a wrench to turn a bolt or when steering a car. The rotational effect of a couple is crucial in systems where controlled rotation is necessary.

Units and Calculations for Moments of Force

The standard unit for measuring moments of force is the Newton-meter (Nm), which combines the units of force (Newtons) and distance (meters). Torque, as a vector quantity, has both magnitude and direction, and its calculation is essential for the design and analysis of mechanical systems involving rotational forces. To determine the distance from the pivot to the line of action of the force, one can rearrange the torque formula to solve for the distance, given the torque and the force. This is particularly important in mechanical engineering and physics.

Key Takeaways on Force and Energy in Physics

In conclusion, forces are interactions that can cause motion, change velocity, and deform objects. Energy is the capacity to do work and is conserved in isolated systems, manifesting in various forms that can be interconverted. Torque, or moment of force, is the rotational effect of a force and is calculated using specific formulas. The principle of moments ensures rotational equilibrium, while the concept of a couple describes rotational effects without translation. A thorough understanding of these principles is essential for the analysis and design of physical systems and mechanical devices.
