Database Replication

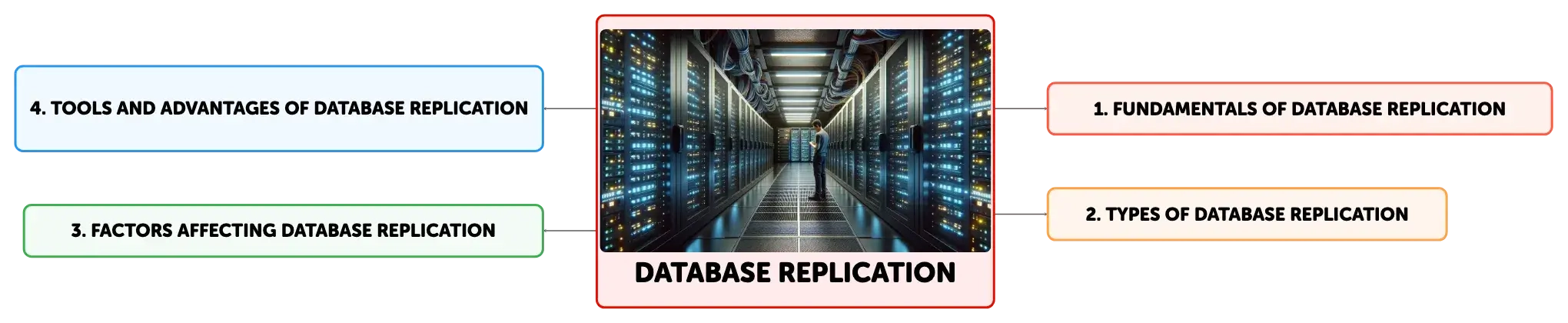

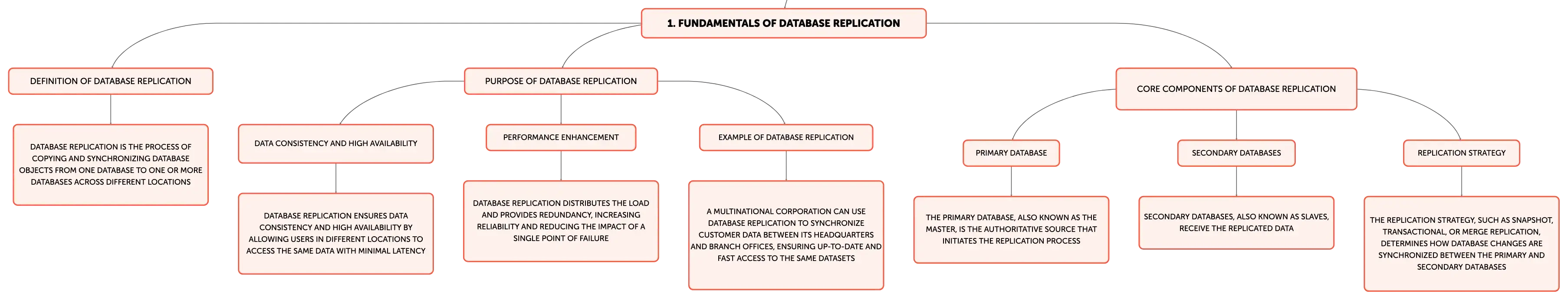

Fundamentals of Database Replication

Database replication is a fundamental technique in the field of computer science, specifically within database management. It entails the process of copying and synchronizing database objects, such as records and tables, from one database (the primary or master database) to one or more databases (secondary or slave databases) across different locations. The primary purpose of database replication is to ensure data consistency and high availability, enabling users in various locations to access the same data with minimal latency. This technique is crucial for enhancing performance by distributing the load and providing redundancy, which in turn increases reliability by reducing the impact of a single point of failure. For instance, a multinational corporation could employ database replication to synchronize customer data between its headquarters in Tokyo and its branch in Paris, ensuring that both offices have up-to-date and fast access to the same datasets.

Key Elements of Database Replication

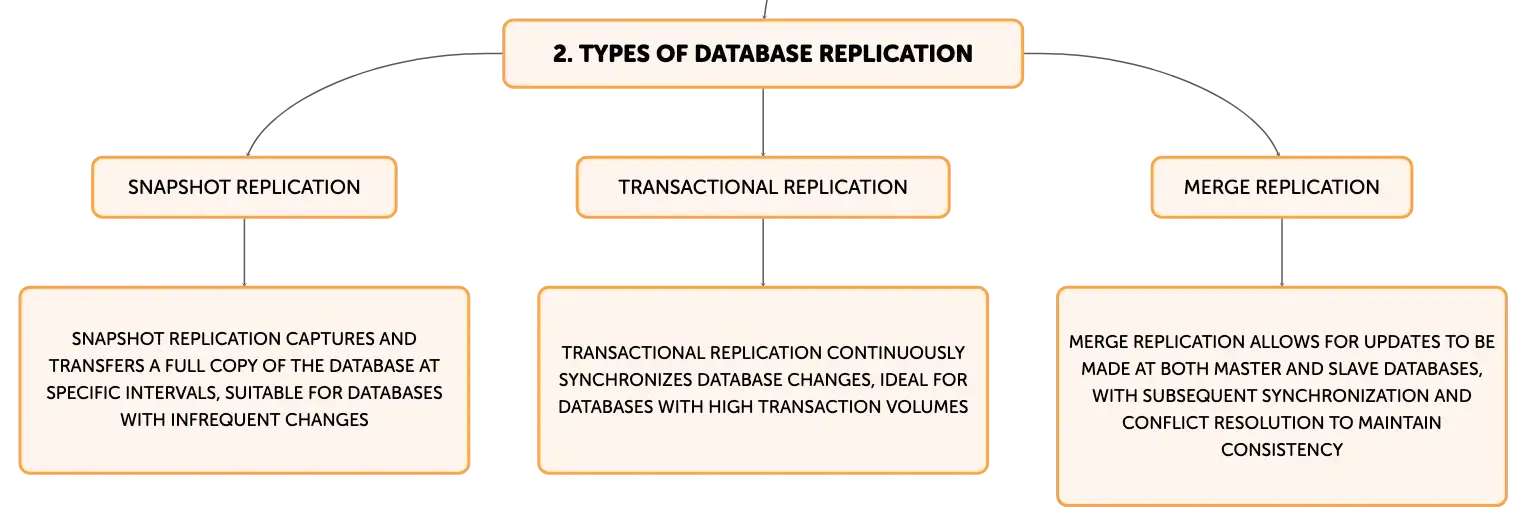

Understanding database replication requires familiarity with its core components. The primary database, also known as the master, is the authoritative source that initiates the replication process. The secondary databases, or slaves, receive the replicated data. The replication process is orchestrated by a defined replication strategy, which can be categorized into Snapshot, Transactional, or Merge Replication. Snapshot Replication captures and transfers a full copy of the database at specific intervals, which is suitable for databases that do not change frequently. Transactional Replication continuously synchronizes database changes, ensuring that each transaction committed on the master is replicated to the slaves. This is ideal for databases with high transaction volumes. Merge Replication allows for updates to be made at both master and slave databases, with subsequent synchronization and conflict resolution to maintain consistency. The selection of a replication strategy is influenced by the database's update frequency, the volume of data changes, network resources, and the acceptable level of latency.

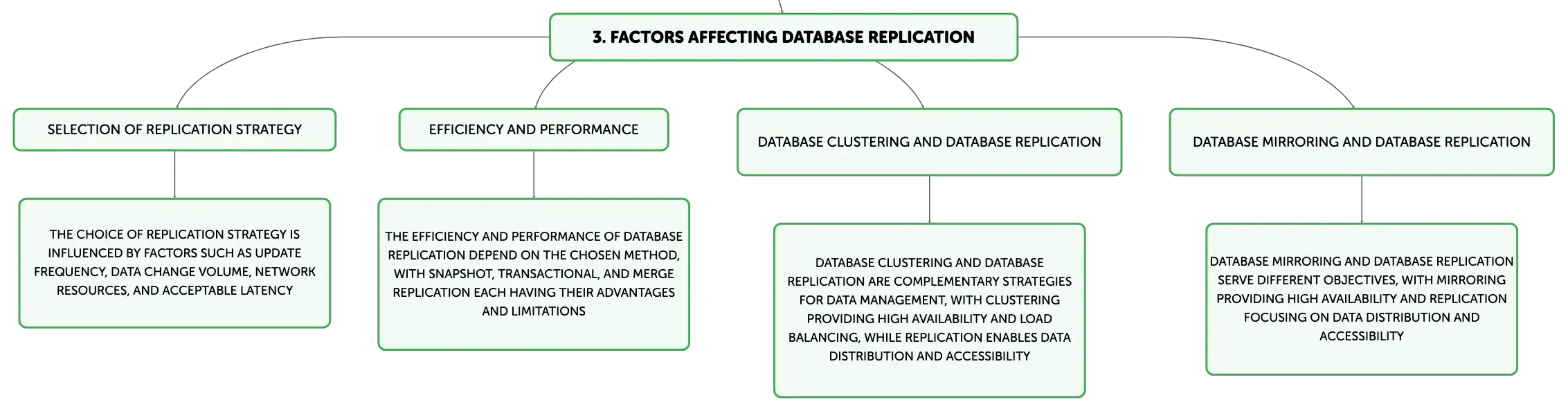

Replication Methods and Performance Considerations

The efficiency and performance of database replication are contingent on the chosen method. Snapshot Replication is simple and effective for static databases but may be less suitable for dynamic databases with frequent changes due to the potential for high resource consumption during the replication process. Transactional Replication is more resource-efficient for active databases, as it replicates only the incremental changes. However, it necessitates a reliable network connection between the master and slave databases to avoid transactional lag. Merge Replication is advantageous in environments with distributed data updates and intermittent connectivity, although it introduces complexity in conflict resolution and synchronization.

Database Clustering Compared to Replication

Database Clustering and Database Replication are distinct but complementary strategies for data management. Clustering involves the configuration of multiple database servers to operate as a single unit, providing high availability and load balancing. It is characterized by shared storage and automatic synchronization of data across the cluster nodes. In contrast, Database Replication involves creating and maintaining copies of database objects in separate databases, which may be geographically dispersed. This approach enhances data availability and allows for localized access to data, with changes propagated from the master to the slave databases according to the replication strategy.

Database Mirroring Versus Replication

Database Mirroring and Database Replication are designed to serve different objectives within the domain of data management. Database Mirroring is a high-availability solution that maintains an exact standby copy of a database on a separate server, which can be quickly activated in the event of a primary server failure. Database Replication, conversely, focuses on data distribution and accessibility, allowing for the continuous operation of slave databases that can be actively queried and updated. This not only improves data availability but also provides a mechanism for load distribution and redundancy.

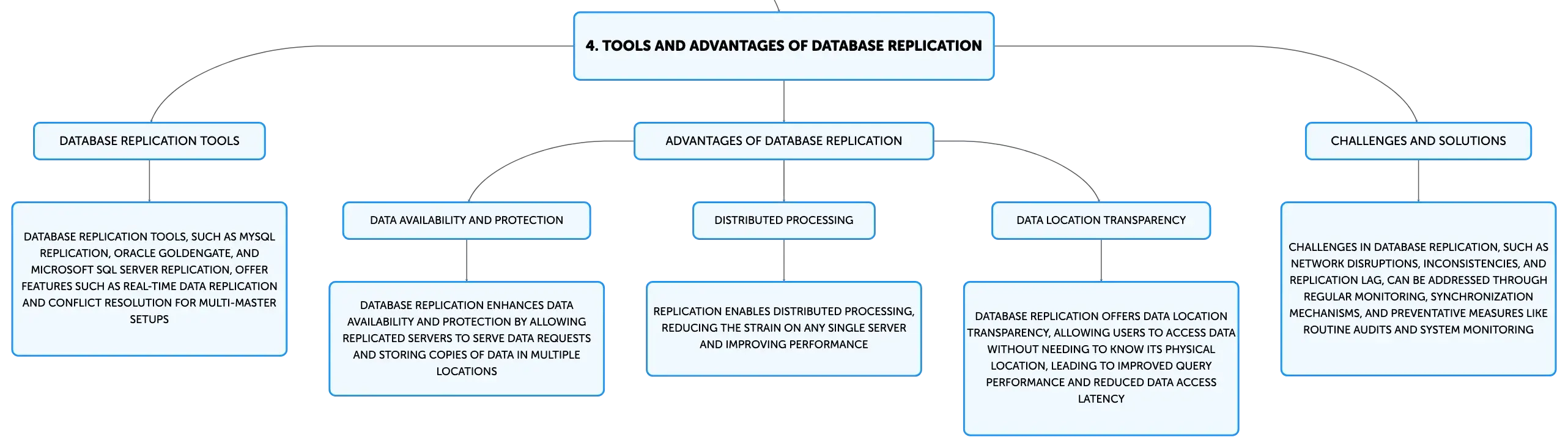

Utilizing Database Replication Tools

Database replication tools are essential for the efficient and reliable duplication and synchronization of data across multiple databases. These tools, which include MySQL Replication, Oracle GoldenGate, Microsoft SQL Server Replication, IBM InfoSphere Data Replication, and SymmetricDS, offer a range of features to accommodate different replication needs. They support functionalities such as real-time data replication, log-based change data capture, and conflict resolution for multi-master replication setups. For instance, MySQL Replication allows for the configuration of master-slave relationships through SQL commands that designate the master server and define the replication parameters, facilitating the replication process.

Benefits of Database Replication in Distributed Systems

Database replication provides several advantages in distributed database environments. It enhances data availability by allowing replicated servers to serve data requests even in the event of a server failure. It also improves data protection by storing copies of data in multiple locations, safeguarding against data loss. Replication enables distributed processing, which allows applications to distribute the workload across multiple servers, reducing the strain on any single server. Furthermore, replication offers data location transparency, enabling users to access data without needing to know its physical location, which can lead to improved query performance and reduced data access latency.

Overcoming Challenges in Database Replication

Database replication can face challenges such as network disruptions, inconsistencies between master and slave databases, and replication lag. Addressing these issues involves regular network monitoring, ensuring data consistency through robust synchronization mechanisms, and managing replication lag to minimize delays. Preventative measures, including routine database audits, load balancing, scheduled backups, and proactive system monitoring, contribute to a stable and efficient replication setup. Tools like Percona Monitoring and Management offer real-time insights into database environments, aiding in the early detection and resolution of replication-related problems.
