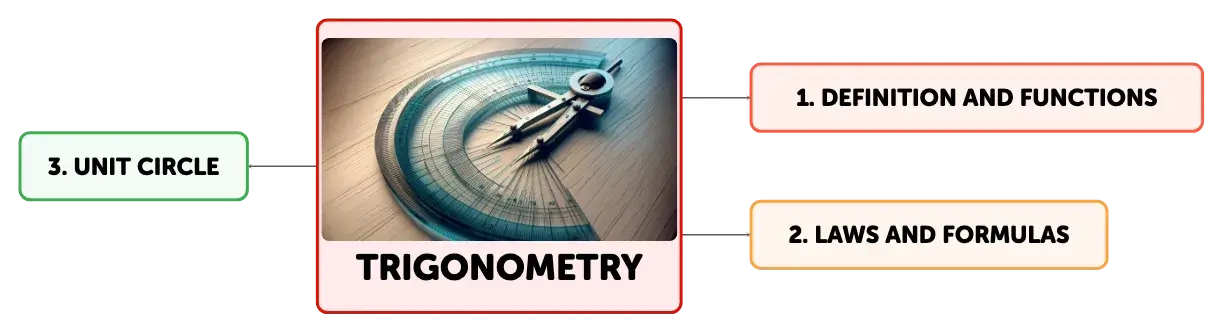

Concept Map
Algorino
Edit available
Trigonometry is a mathematical field that examines the relationships between triangle angles and sides, especially in right-angled triangles. It uses sine, cosine, and tangent functions to calculate unknown angles and distances. The mnemonic SOHCAHTOA aids in remembering these relationships, while the Laws of Sines and Cosines extend trigonometry to non-right-angled triangles. Additionally, the unit circle is a fundamental concept for understanding trigonometric functions and their periodic nature.
Summary
Outline
Fundamentals of Trigonometry in Right-Angled Triangles
Trigonometry is a branch of mathematics that explores the relationships between the angles and sides of triangles, with a focus on right-angled triangles. The primary trigonometric functions—sine (sin), cosine (cos), and tangent (tan)—express these relationships as ratios. For a given angle in a right-angled triangle, the sine function relates the length of the side opposite the angle to the length of the hypotenuse, the cosine function relates the length of the adjacent side to the hypotenuse, and the tangent function relates the length of the opposite side to the adjacent side. These functions are crucial for determining unknown angles and distances in right-angled triangles. Accurate identification of the triangle's sides as the hypotenuse, opposite, and adjacent relative to the angle of interest is essential for the correct application of trigonometric principles.Utilizing SOHCAHTOA for Triangle Calculations
The mnemonic SOHCAHTOA is an invaluable aid for recalling the definitions of the sine, cosine, and tangent functions when solving for unknown sides and angles in right-angled triangles. It encapsulates the trigonometric ratios: Sine is Opposite over Hypotenuse (SOH), Cosine is Adjacent over Hypotenuse (CAH), and Tangent is Opposite over Adjacent (TOA). To solve for a missing side or angle, one selects the appropriate trigonometric function, substitutes the known values into the corresponding ratio, and solves the equation. For angles, the inverse trigonometric functions—arcsine (sin⁻¹), arccosine (cos⁻¹), and arctangent (tan⁻¹)—are used to determine the measure of the angle from the ratio of the sides.Expanding Trigonometry to General Triangles
Trigonometry extends beyond right-angled triangles to encompass general triangles through the laws of sines and cosines. The Law of Sines is applicable when two angles and a non-included side or two sides and a non-included angle are known, allowing for the determination of unknown sides or angles. The Law of Cosines is useful for calculating a missing side when two sides and the included angle are known, or for finding an angle when all three sides are given. Correct labeling of the triangle's sides and angles as A, B, C and a, b, c (where side a is opposite angle A, and so on) is critical for the proper use of these formulas.Computing the Area of Triangles Using Trigonometry
Trigonometry offers a formula for calculating the area of any triangle when the lengths of two sides and the measure of the included angle are known. The formula, Area = (1/2)ab sin(C), where 'a' and 'b' are the lengths of the sides and 'C' is the measure of the included angle, enables the computation of the area without the need for the triangle to be right-angled. This method is particularly advantageous when the height of the triangle is not easily determined or in the case of oblique triangles.The Unit Circle and Its Role in Trigonometry
The unit circle is a central concept in trigonometry that facilitates the understanding of trigonometric functions. Defined as a circle with a radius of one unit centered at the origin of a coordinate plane, the unit circle allows for the representation of trigonometric functions as coordinates on the circle, with the x-coordinate corresponding to the cosine of an angle and the y-coordinate to the sine. This representation illustrates the periodic nature of trigonometric functions and provides insight into their values at various angles, which is essential for solving trigonometric problems and understanding the functions' behavior.Essential Concepts and Applications of Trigonometry
In conclusion, trigonometry is an indispensable mathematical tool for addressing problems involving triangles, whether they are right-angled or oblique. The fundamental trigonometric functions—sine, cosine, and tangent—and their reciprocals—cosecant, secant, and cotangent—play a vital role in determining unknown angles and side lengths. The mnemonic SOHCAHTOA helps in memorizing the relationships between these functions and the sides of a right-angled triangle. For general triangles, the Laws of Sines and Cosines are crucial. The unit circle is also a key resource for comprehending the properties of trigonometric functions. Mastery of these concepts is essential for their application in various scientific and engineering fields.
Show More

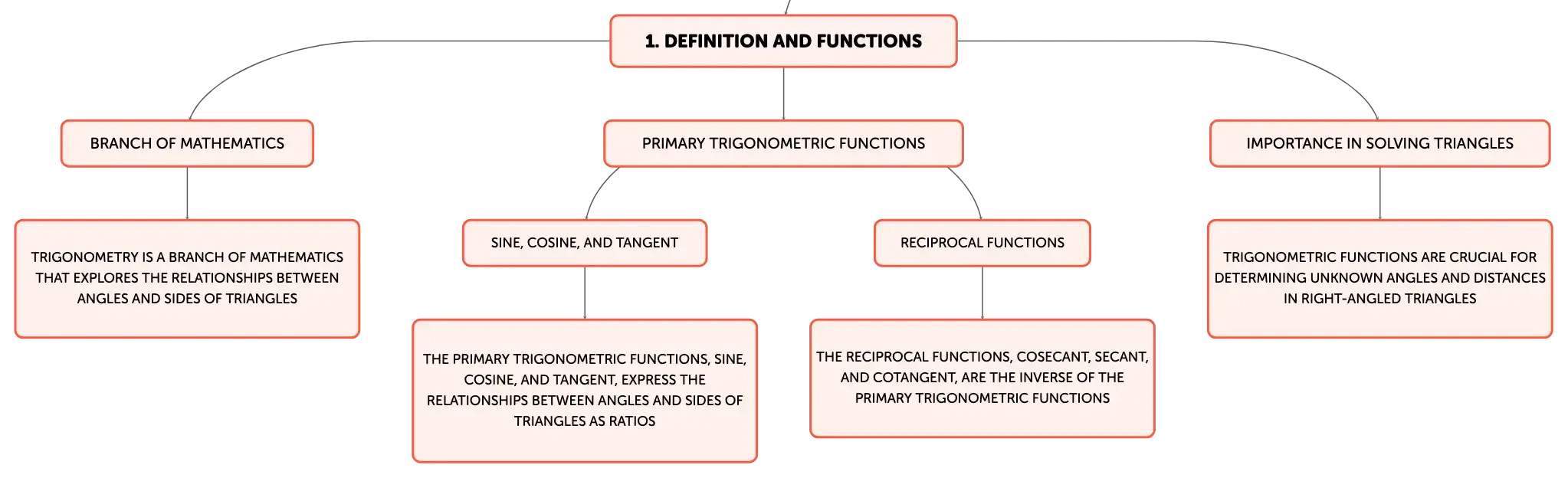

Definition and Functions
Branch of mathematics
Trigonometry is a branch of mathematics that explores the relationships between angles and sides of triangles
Primary trigonometric functions
Sine, cosine, and tangent
The primary trigonometric functions, sine, cosine, and tangent, express the relationships between angles and sides of triangles as ratios
Reciprocal functions
The reciprocal functions, cosecant, secant, and cotangent, are the inverse of the primary trigonometric functions
Importance in solving triangles
Trigonometric functions are crucial for determining unknown angles and distances in right-angled triangles

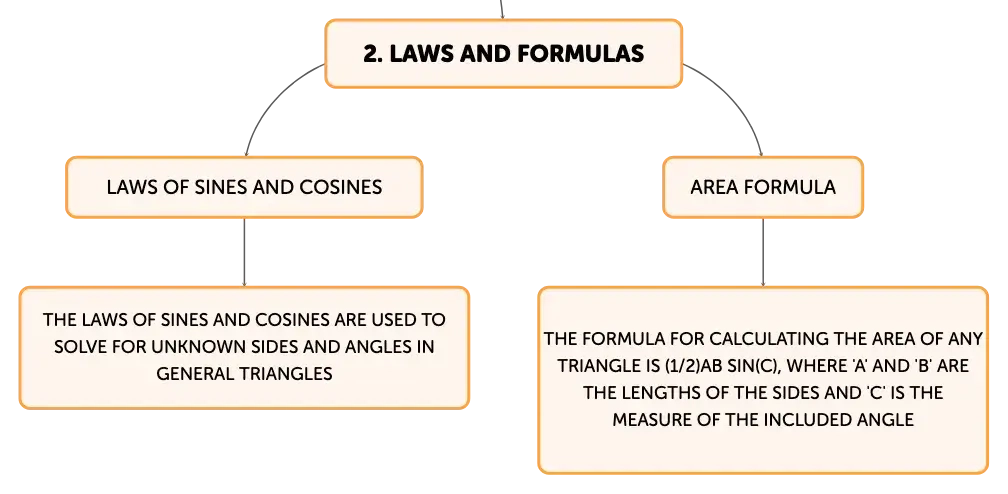

Laws and Formulas
Laws of Sines and Cosines
The Laws of Sines and Cosines are used to solve for unknown sides and angles in general triangles
Area formula
The formula for calculating the area of any triangle is (1/2)ab sin(C), where 'a' and 'b' are the lengths of the sides and 'C' is the measure of the included angle

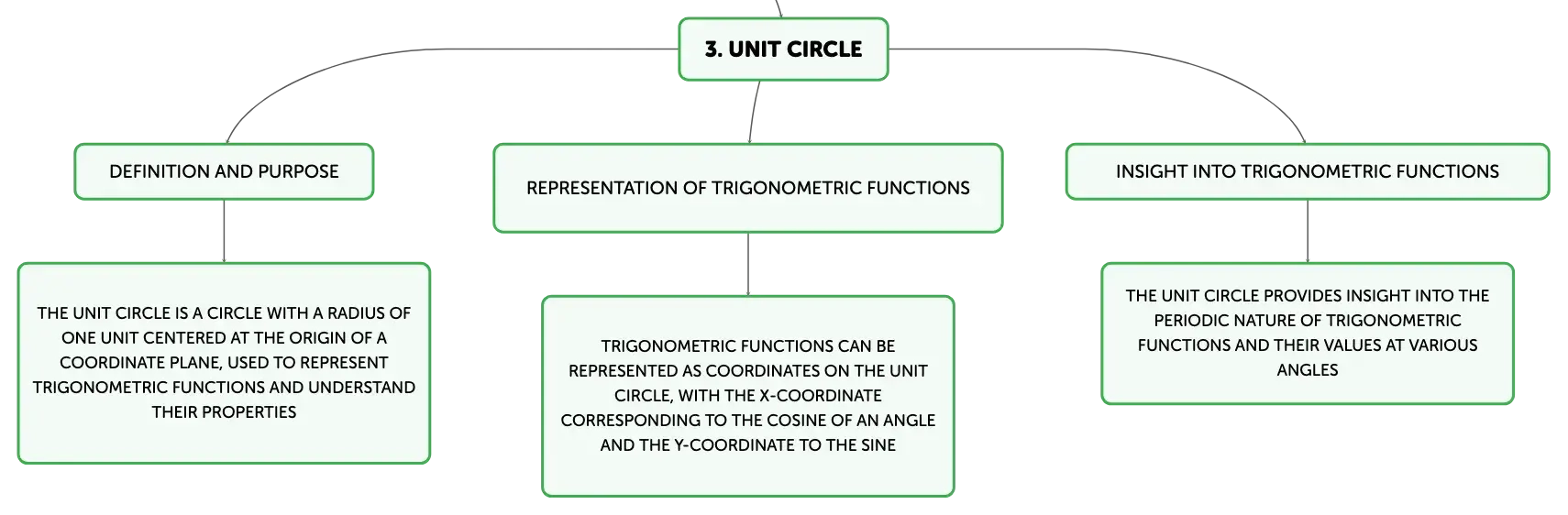

Unit Circle
Definition and Purpose
The unit circle is a circle with a radius of one unit centered at the origin of a coordinate plane, used to represent trigonometric functions and understand their properties
Representation of trigonometric functions
Trigonometric functions can be represented as coordinates on the unit circle, with the x-coordinate corresponding to the cosine of an angle and the y-coordinate to the sine
Insight into trigonometric functions
The unit circle provides insight into the periodic nature of trigonometric functions and their values at various angles
Trigonometry
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
In the study of ______, the relationships between triangle angles and sides, particularly in right-angled triangles, are examined.
Trigonometry
01
For determining unknown angles and distances in right-angled triangles, it is vital to correctly identify the sides as ______, ______, and ______.
hypotenuse
opposite
adjacent
02
Trigonometric Ratios for Sine
Sine ratio: Opposite side length over Hypotenuse length (SOH).
