Demultiplexers in Digital Systems

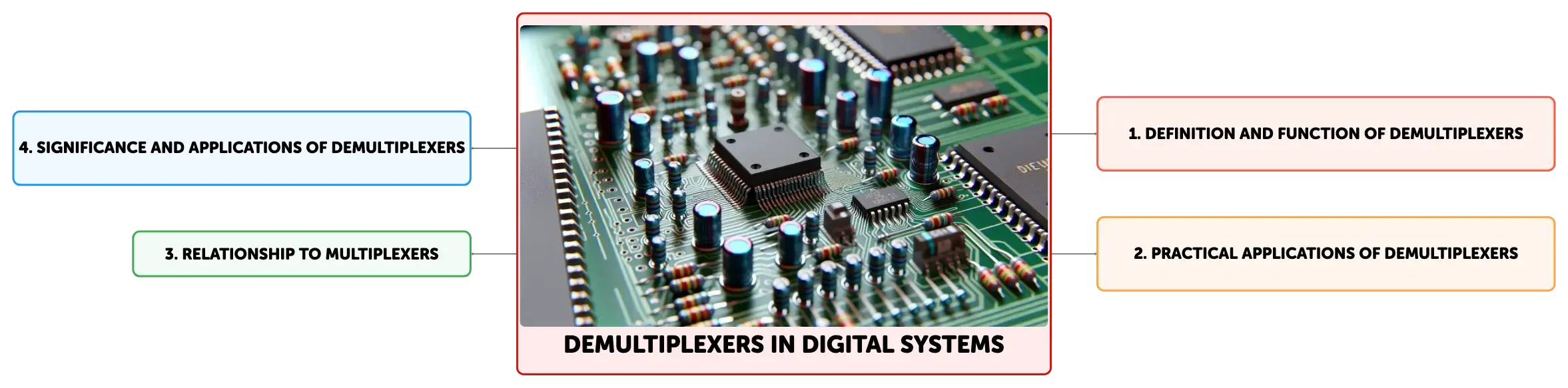

Concept Map
Demultiplexers, or DeMUX, are key components in digital circuits, channeling a single input signal to multiple outputs based on selection lines. They are vital in telecommunications for signal separation and in computing for memory addressing. The 1 to 4 DeMUX illustrates their role in efficiently managing data transmission and enhancing system performance.
Summary
Outline
Exploring the Functionality of a Demultiplexer in Digital Circuits
A Demultiplexer, often abbreviated as DeMUX, is an essential digital circuit with a single input and multiple output lines. Its primary function is to channel a single input signal to one of the many outputs, with the active output determined by a set of selection lines. The number of outputs a DeMUX can control is given by the formula \( N = 2^S \), where \( N \) represents the number of outputs and \( S \) the number of selection inputs. This device can be likened to a switch, directing the flow of data to the correct path. Demultiplexers are crucial in digital communication systems for separating combined signals back into their original, separate data streams.The 1 to 4 Demultiplexer: A Case Study
The 1 to 4 Demultiplexer serves as a practical example, illustrating the DeMUX's role in digital systems. It has one input, four outputs, and two selection lines. The state of the selection lines, represented in binary, determines which output will be active, allowing the input signal to pass through. This configuration is widely used in digital circuits and integrated circuits to control the flow of data from a single source to one of multiple destinations. It also plays a part in bidirectional communication systems, where it works alongside multiplexers to manage data transmission efficiently.Distinguishing Demultiplexers from Multiplexers
Demultiplexers and Multiplexers, or MUXes, are complementary devices in digital electronics, with similar structures but opposite functions. A MUX takes several input signals and combines them into a single output line, similar to blending various ingredients into a single dish. In contrast, a DeMUX takes one input and distributes it across multiple outputs, akin to serving a blended mixture into individual cups, each with a distinct flavor. In a MUX, the selection lines determine which input is sent to the output, whereas in a DeMUX, they select which output will receive the input.Practical Applications of Demultiplexers
Demultiplexers play a vital role in a wide array of practical applications, particularly in telecommunications and digital electronics. For example, FM radios utilize DeMUX circuits to separate the components of an FM signal, such as isolating the stereo sound from the mono audio. In computing, DeMUX circuits are essential for addressing memory cells in RAM, allowing data to be written to or read from specific locations based on the input address lines. Furthermore, in complex networking systems, DeMUXes are indispensable for routing data, decoding multiplexed signals, and directing them to their intended destinations.The Significance of Demultiplexers in Data Management and Computing
Demultiplexers are highly efficient in managing data flow, converting composite signals into discrete data segments, and ensuring precise memory allocation during data storage and retrieval processes. In contemporary computing systems, DeMUXes are crucial for directing data within cache memory of microprocessors, guiding data to the correct cache line according to the address lines. They also play a significant role in data buses, orchestrating the transfer of data between various components and directing it to the correct peripheral device based on control signals.Concluding Insights on Demultiplexers
In conclusion, Demultiplexers are indispensable components in digital systems, adept at directing a single data input to the appropriate output among many. The 1 to 4 DeMUX exemplifies their utility in controlling data flow. While they share similarities with MUXes, DeMUXes have the unique role of distributing data rather than combining it. Their applications in real-world scenarios, such as FM signal processing and memory management, highlight their significance. Demultiplexers are pivotal for effective data management and play a crucial role in enhancing the performance of modern computing systems, from improving microprocessor efficiency to managing data buses.
Show More

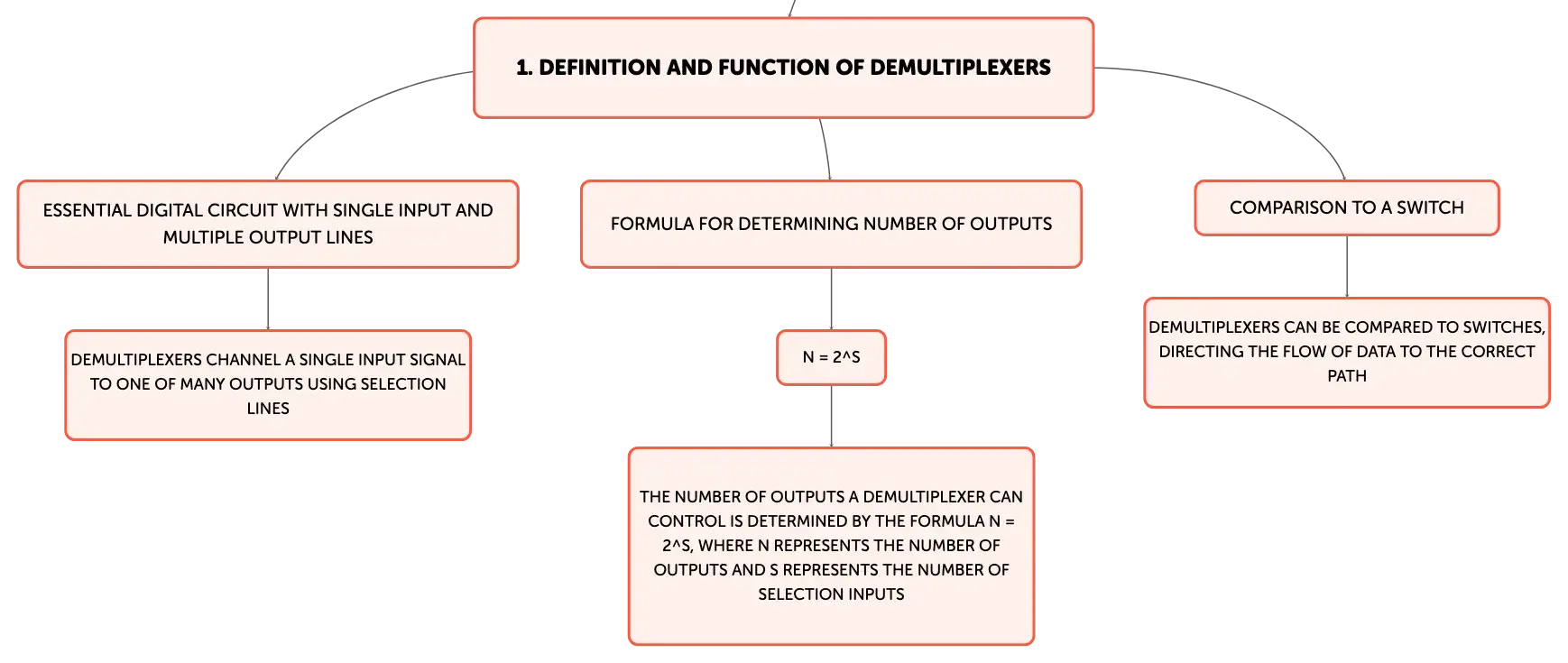

Definition and Function of Demultiplexers
Essential digital circuit with single input and multiple output lines
Demultiplexers channel a single input signal to one of many outputs using selection lines
Formula for determining number of outputs
N = 2^S
The number of outputs a Demultiplexer can control is determined by the formula N = 2^S, where N represents the number of outputs and S represents the number of selection inputs
Comparison to a switch
Demultiplexers can be compared to switches, directing the flow of data to the correct path

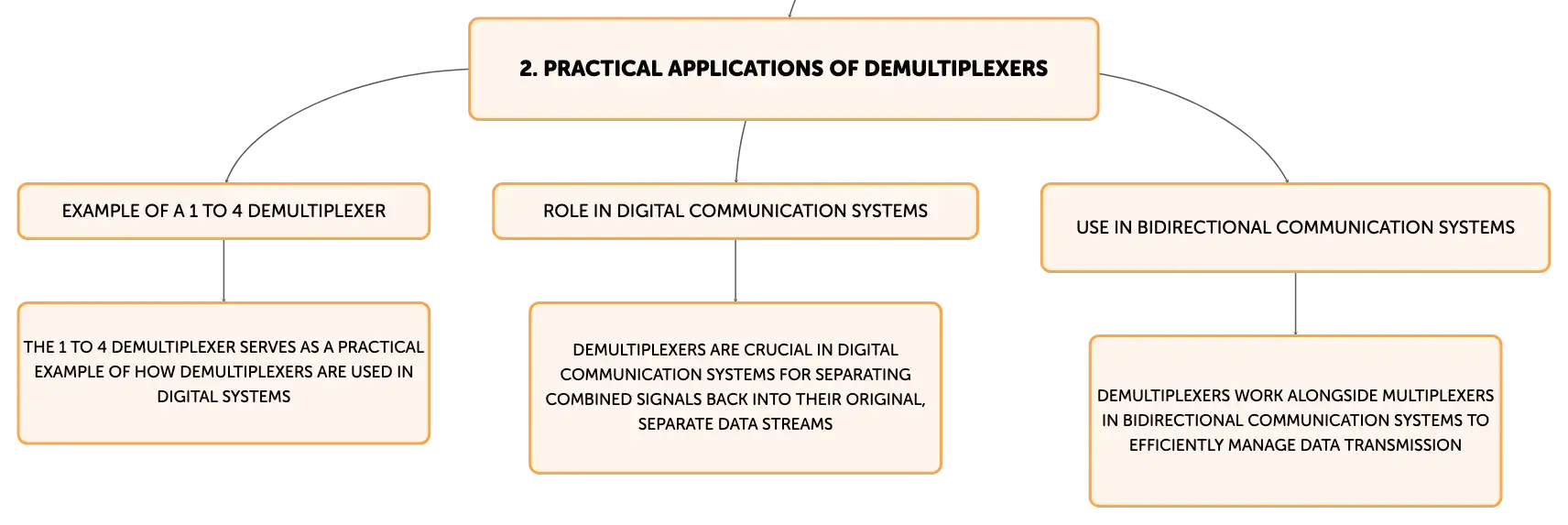

Practical Applications of Demultiplexers
Example of a 1 to 4 Demultiplexer
The 1 to 4 Demultiplexer serves as a practical example of how Demultiplexers are used in digital systems
Role in digital communication systems
Demultiplexers are crucial in digital communication systems for separating combined signals back into their original, separate data streams
Use in bidirectional communication systems
Demultiplexers work alongside multiplexers in bidirectional communication systems to efficiently manage data transmission

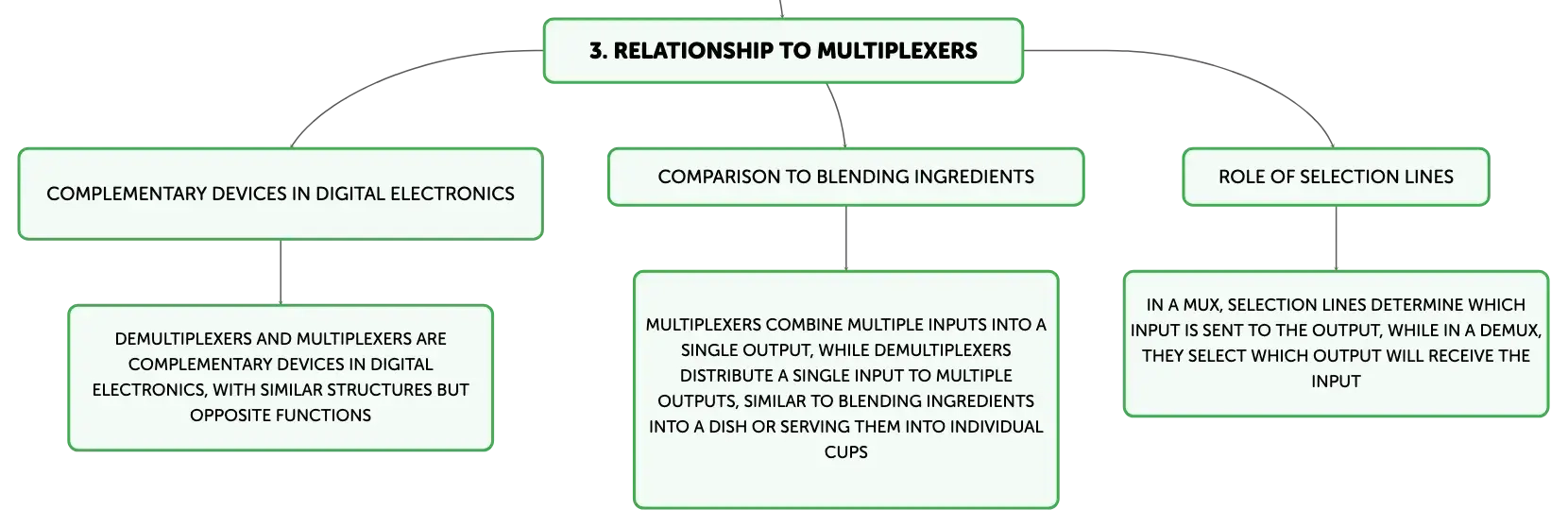

Relationship to Multiplexers
Complementary devices in digital electronics
Demultiplexers and Multiplexers are complementary devices in digital electronics, with similar structures but opposite functions
Comparison to blending ingredients
Multiplexers combine multiple inputs into a single output, while Demultiplexers distribute a single input to multiple outputs, similar to blending ingredients into a dish or serving them into individual cups
Role of selection lines
In a MUX, selection lines determine which input is sent to the output, while in a DeMUX, they select which output will receive the input

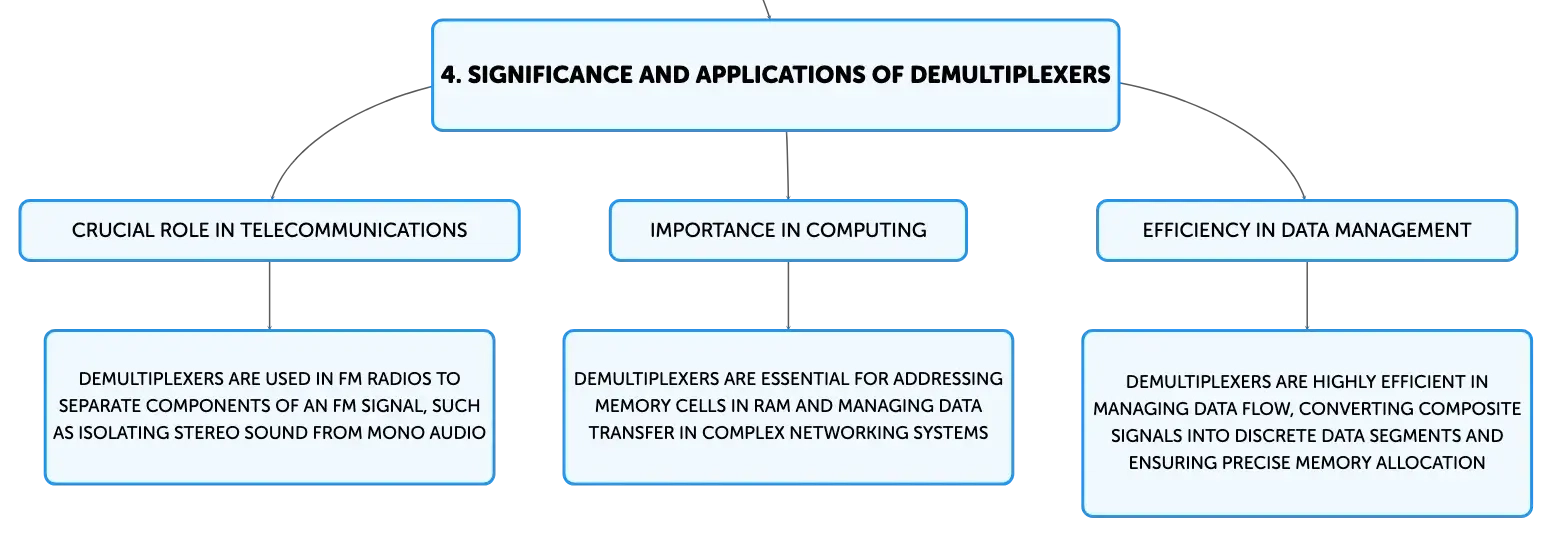

Significance and Applications of Demultiplexers
Crucial role in telecommunications
Demultiplexers are used in FM radios to separate components of an FM signal, such as isolating stereo sound from mono audio
Importance in computing
Demultiplexers are essential for addressing memory cells in RAM and managing data transfer in complex networking systems
Efficiency in data management
Demultiplexers are highly efficient in managing data flow, converting composite signals into discrete data segments and ensuring precise memory allocation
Demultiplexers in Digital Systems
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In digital communication, a DeMUX is vital for splitting ______ signals into their distinct ______ streams.
combined
data
01
1 to 4 DeMUX Input-Output Relationship
One input signal distributed to any of four outputs.
02
1 to 4 DeMUX Selection Lines Function
Two binary selection lines determine active output.
