Total Internal Reflection and its Applications
Concept Map
Total internal reflection is a key principle in optics, crucial for the functioning of endoscopes and optical fibers. It occurs when light reflects entirely within a denser medium, rather than refracting into a less dense one. This principle is harnessed in medical endoscopy to illuminate and visualize internal body structures. Additionally, optical fibers utilize this phenomenon to transmit data with high efficiency in telecommunications, making them vital for modern technology.
Summary
Outline
Principles of Total Internal Reflection
Total internal reflection is an optical phenomenon that occurs when a light ray traveling within a denser medium strikes the interface with a less dense medium at an angle greater than the critical angle for that pair of media. The critical angle is the angle of incidence above which all light is reflected back into the denser medium, rather than refracted into the less dense medium. This angle is determined by the refractive indices of the two media, with the refractive index being a measure of how much a medium slows down light relative to its speed in a vacuum. For total internal reflection to occur, the light must travel from a medium with a higher refractive index to one with a lower refractive index, and the angle of incidence must exceed the critical angle.Total Internal Reflection in Endoscopic Technology
Endoscopy is a medical technique that employs the principle of total internal reflection to visualize the interior of the human body. Endoscopes are instruments that contain optical fibers—thin strands of glass or plastic that transmit light through internal reflection. The core of an optical fiber is surrounded by cladding with a lower refractive index, ensuring that light entering the fiber at a suitable angle is reflected internally and remains confined within the core. This mechanism allows for the delivery of light to and from internal body sites, enabling clinicians to observe and diagnose conditions without invasive surgery.Applications of Optical Fibers
Optical fibers, or fiber optics, have revolutionized communication and data transmission in addition to their medical applications. They are integral to the infrastructure of telecommunications, providing pathways for the transmission of voice, video, and data signals with high bandwidth and low attenuation. The fibers act as dielectric waveguides, trapping light through the mechanism of total internal reflection. The efficiency of an optical fiber is influenced by its numerical aperture, which is a measure of the fiber's ability to collect light, defined by the maximum angle of incidence for which light can be totally internally reflected within the fiber.Determining Critical and Acceptance Angles for Optical Fibers
The critical angle and acceptance angle are key parameters in the design and use of optical fibers. Snell's law, which relates the angles of incidence and refraction at the interface between two media with different refractive indices, is used to calculate these angles. The critical angle can be found using the inverse sine (arcsin) of the ratio of the refractive indices of the cladding to the core. The acceptance angle, which is the maximum angle at which light can enter the fiber and undergo total internal reflection, is derived from the critical angle and the refractive index of the external medium, typically air. This angle is crucial for maximizing the light-gathering capability of the fiber.Propagation of Light in Optical Fibers
Within an optical fiber, light is introduced at one end and repeatedly reflects off the boundary between the core and cladding, maintaining an angle greater than the critical angle. This series of reflections allows light to propagate along the fiber with minimal signal degradation. The light emerges from the fiber with its original entry angle preserved, which is essential for the accurate transmission of information. The unique ability of optical fibers to guide light with high precision and efficiency is what makes them indispensable in fields requiring reliable light transmission, such as medical endoscopy and telecommunications.
Show More

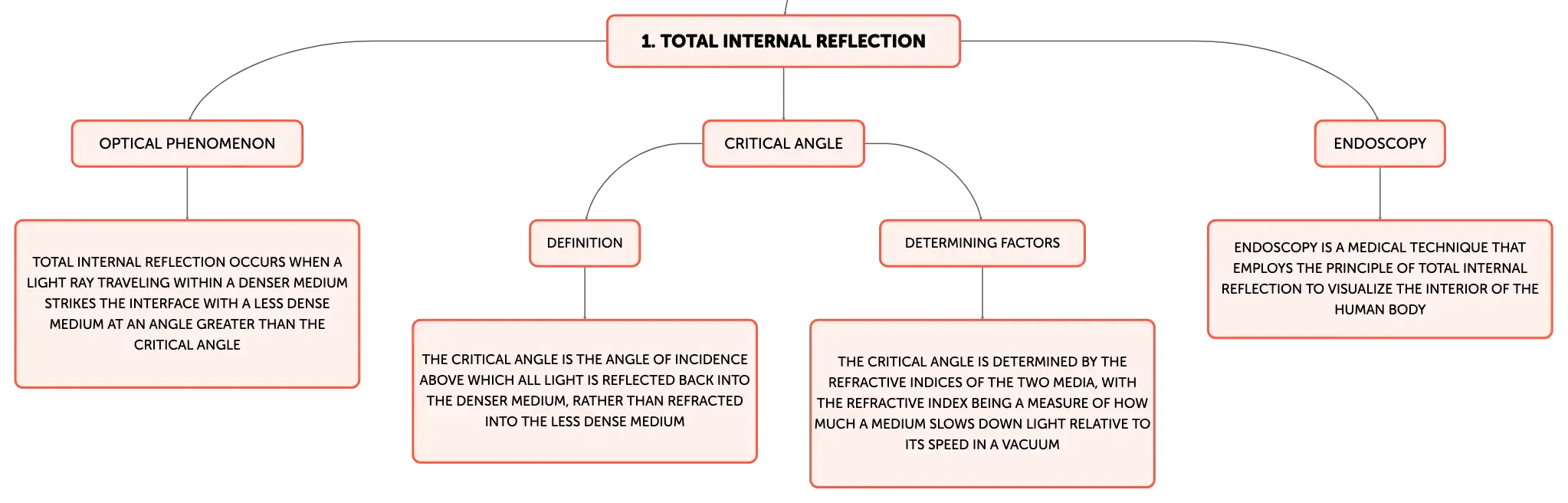

Total Internal Reflection
Optical Phenomenon
Total internal reflection occurs when a light ray traveling within a denser medium strikes the interface with a less dense medium at an angle greater than the critical angle
Critical Angle
Definition
The critical angle is the angle of incidence above which all light is reflected back into the denser medium, rather than refracted into the less dense medium
Determining Factors
The critical angle is determined by the refractive indices of the two media, with the refractive index being a measure of how much a medium slows down light relative to its speed in a vacuum
Endoscopy
Endoscopy is a medical technique that employs the principle of total internal reflection to visualize the interior of the human body

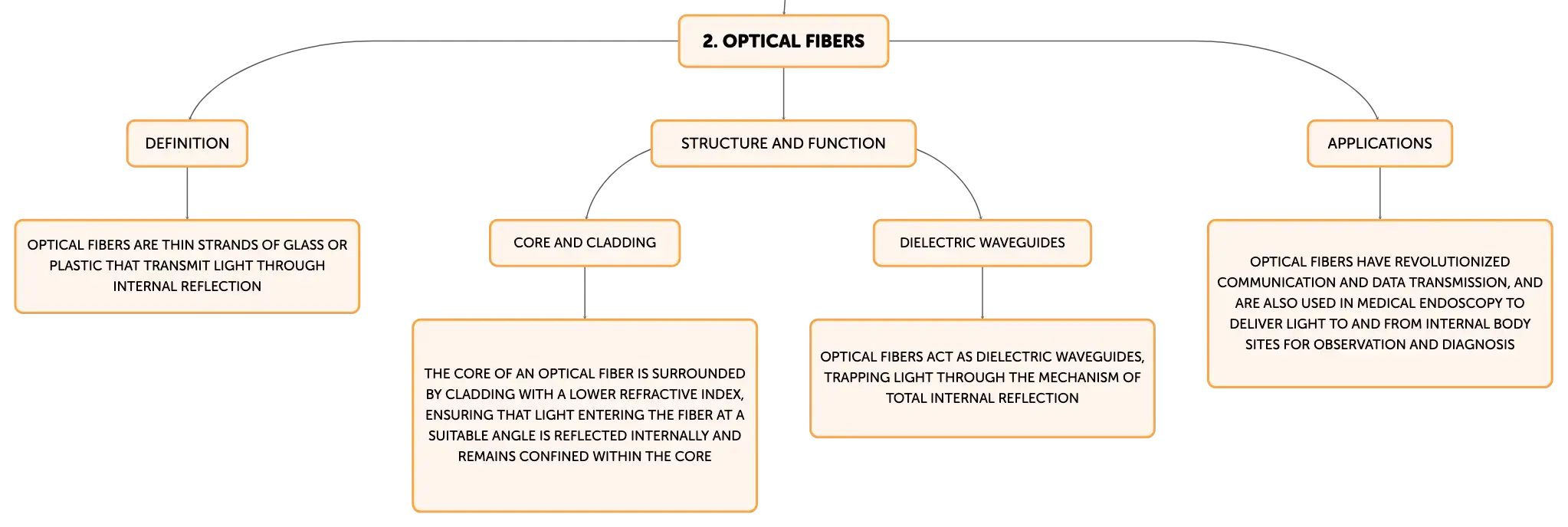

Optical Fibers
Definition
Optical fibers are thin strands of glass or plastic that transmit light through internal reflection
Structure and Function
Core and Cladding
The core of an optical fiber is surrounded by cladding with a lower refractive index, ensuring that light entering the fiber at a suitable angle is reflected internally and remains confined within the core
Dielectric Waveguides
Optical fibers act as dielectric waveguides, trapping light through the mechanism of total internal reflection
Applications
Optical fibers have revolutionized communication and data transmission, and are also used in medical endoscopy to deliver light to and from internal body sites for observation and diagnosis

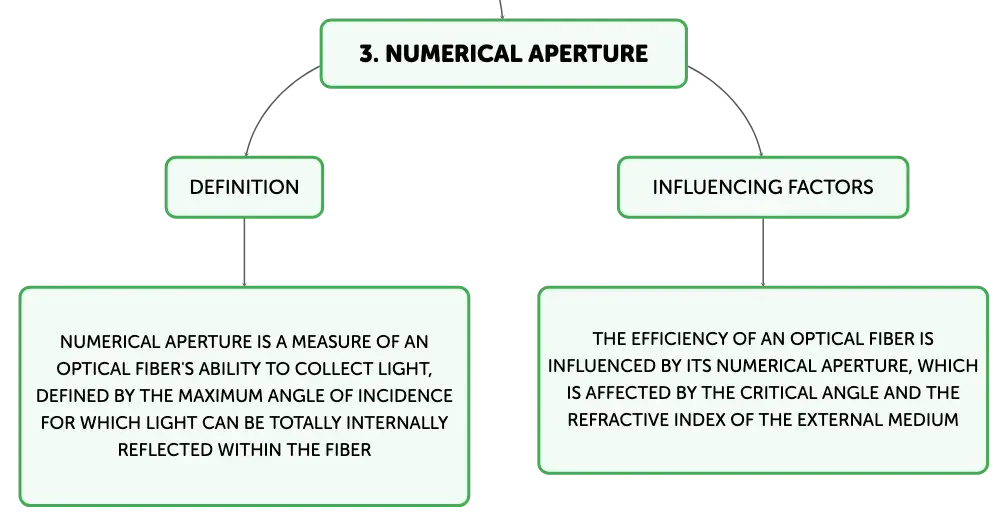

Numerical Aperture
Definition
Numerical aperture is a measure of an optical fiber's ability to collect light, defined by the maximum angle of incidence for which light can be totally internally reflected within the fiber
Influencing Factors
The efficiency of an optical fiber is influenced by its numerical aperture, which is affected by the critical angle and the refractive index of the external medium

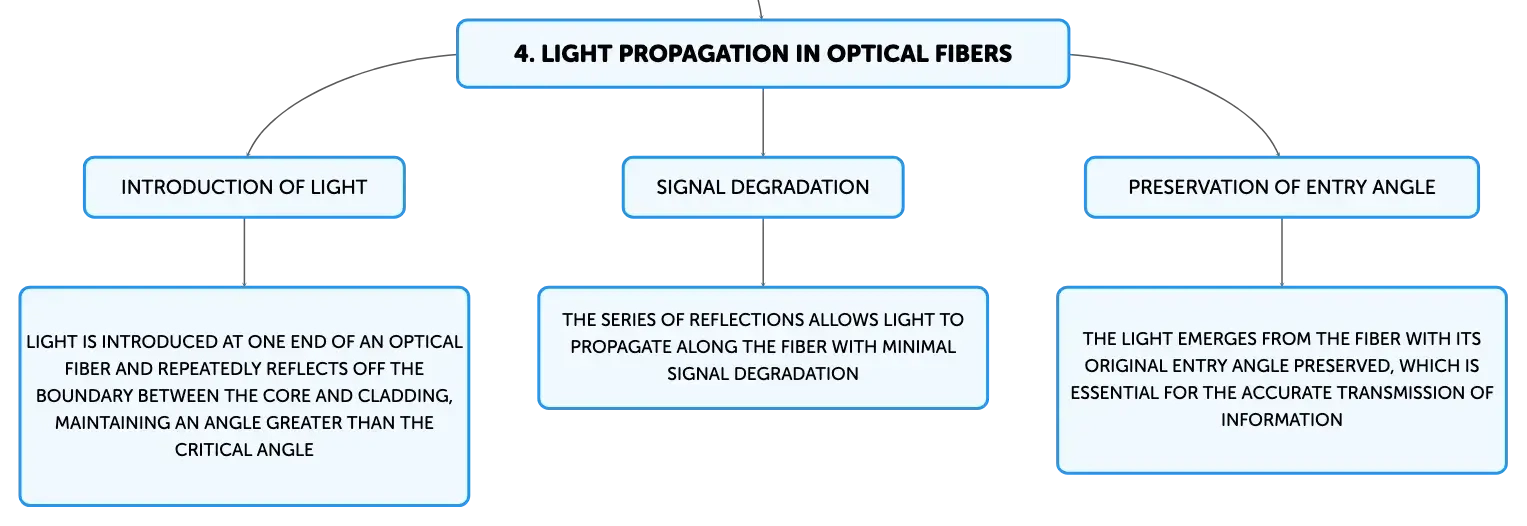

Light Propagation in Optical Fibers
Introduction of Light
Light is introduced at one end of an optical fiber and repeatedly reflects off the boundary between the core and cladding, maintaining an angle greater than the critical angle
Signal Degradation
The series of reflections allows light to propagate along the fiber with minimal signal degradation
Preservation of Entry Angle
The light emerges from the fiber with its original entry angle preserved, which is essential for the accurate transmission of information
Total Internal Reflection and its Applications
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The ______ angle is the minimum angle of incidence at which light is completely reflected within a denser medium, determined by the ______ indices of the two media.
critical
refractive
01
Endoscopy purpose
Visualizes interior of human body without invasive surgery.
02
Optical fibers role in endoscopes
Transmit light through internal reflection, aiding in visualization.
