Pinhole Cameras: Exploring Light and Image Formation

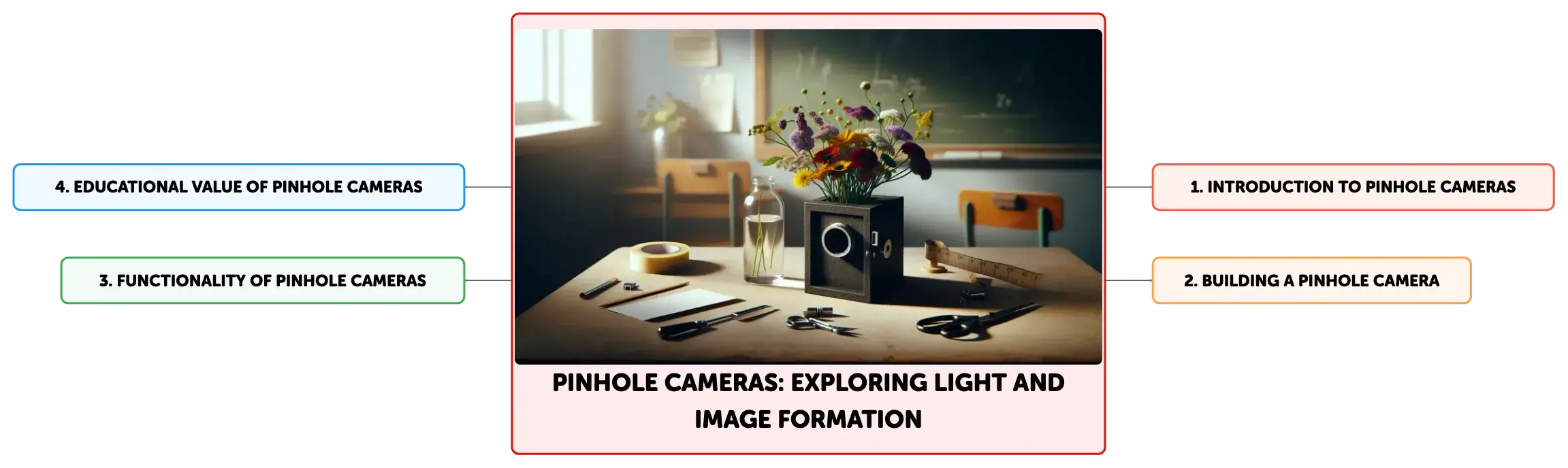

Concept Map
Exploring pinhole cameras, this overview delves into their construction, optical principles, and diverse applications. Learn how a simple aperture can capture images, the role of light in image formation, and the camera's use in education and art. Pinhole photography's infinite depth of field and its educational value in demonstrating wave optics and quantum mechanics are also highlighted.
Summary
Outline
Exploring the Fundamentals of Pinhole Cameras
A pinhole camera, also known as a camera obscura, is a basic yet fascinating optical device that captures images without a lens. Its essential elements include a darkened chamber or box, a tiny aperture or pinhole, and a surface inside the box where the image is projected. The principle of rectilinear propagation of light, which states that light travels in straight lines, is the underlying physics that enables the pinhole camera to function. Light rays from an object outside the camera enter through the pinhole and project an inverted and reversed image onto the opposite side of the box. This phenomenon illustrates the fundamental behavior of light and provides insight into the nature of image formation.Constructing a Homemade Pinhole Camera
Building a pinhole camera is an instructive project that can be completed with simple materials. Required items include a light-tight box, black paint or material to absorb internal reflections, a piece of aluminum foil for the pinhole, a sharp pin to create the aperture, translucent paper or film for the image screen, and adhesive to assemble the parts. The construction process involves blackening the interior of the box to prevent stray reflections, carefully piercing a small hole in the foil to serve as the aperture, and affixing the translucent screen on the inside wall opposite the pinhole. This activity not only teaches the principles of optics and photography but also encourages creativity and experimentation.The Optical Principles of Pinhole Cameras
The functionality of a pinhole camera is deeply rooted in optical science. The aperture size is a critical factor; a smaller pinhole produces a sharper image by allowing fewer diverging light rays from each point of the object to enter, but this also reduces the image's brightness. Conversely, a larger pinhole increases the amount of light and thus the brightness, but the image becomes blurrier due to the increased overlap of light rays. The pinhole camera exemplifies the rectilinear propagation of light, with the pinhole serving as a selective gateway that permits a specific cone of light rays from each point on the object to reach the projection surface, forming a coherent image.Diverse Uses of Pinhole Cameras
Pinhole cameras find utility in a range of applications, from artistic endeavors to scientific experiments. In the realm of photography, they are prized for their infinite depth of field, ensuring that all elements of the scene are in focus, which is particularly appealing for creating ethereal and artistic images. Engineers and architects may use pinhole cameras for technical purposes such as analyzing fluid dynamics or inspecting the interior of structures. The simplicity and reliability of pinhole cameras also make them suitable for discreet surveillance and examining hard-to-reach spaces, demonstrating their versatility across various disciplines.Pinhole Cameras as Educational Tools
Pinhole cameras are excellent educational resources for demonstrating optical phenomena. They provide a hands-on method for students to learn about the behavior of light, image formation, and the inversion of images. These devices also offer a practical way to explore wave optics, including the effects of diffraction, which occurs when light waves spread out after passing through the small aperture of the pinhole. Through the use of pinhole cameras, students can gain a deeper understanding of the wave-particle duality of light, a cornerstone concept in the study of quantum mechanics, thereby bridging the gap between theoretical physics and tangible experiences.The Intersection of Art and Science in Pinhole Photography
Pinhole cameras embody the convergence of artistic expression and scientific inquiry. They provide a simple yet profound means to investigate the properties of light and vision, allowing for the exploration of these concepts in a manner that is both accessible and engaging. The unique aesthetic of pinhole photography encourages an appreciation for the interplay between the technical aspects of light capture and the creative process of image-making. In various contexts, from casual observation to professional research, pinhole cameras highlight the complex interrelationship between light, vision, and perception, enriching our comprehension of the visual world.
Show More

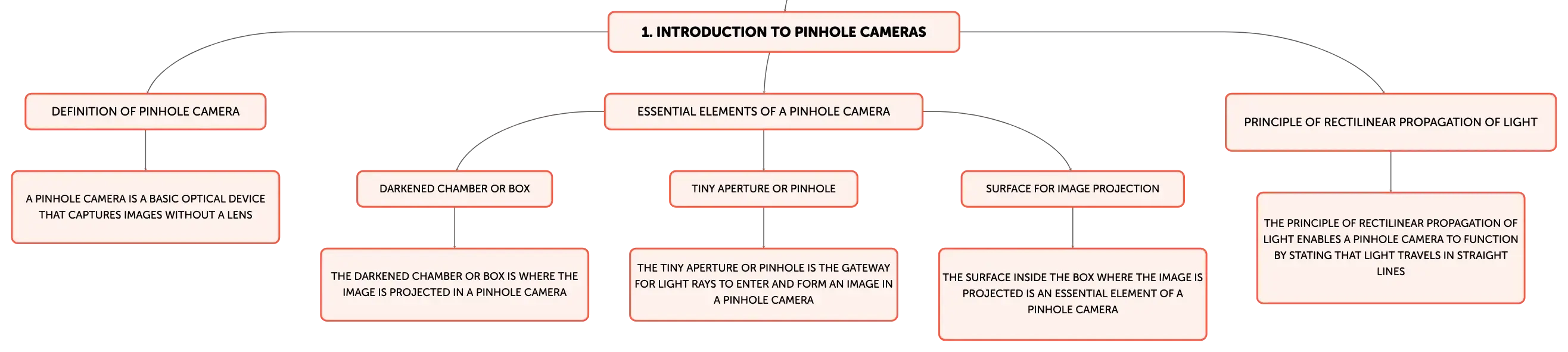

Introduction to Pinhole Cameras
Definition of Pinhole Camera
A pinhole camera is a basic optical device that captures images without a lens
Essential Elements of a Pinhole Camera
Darkened Chamber or Box
The darkened chamber or box is where the image is projected in a pinhole camera
Tiny Aperture or Pinhole
The tiny aperture or pinhole is the gateway for light rays to enter and form an image in a pinhole camera
Surface for Image Projection
The surface inside the box where the image is projected is an essential element of a pinhole camera
Principle of Rectilinear Propagation of Light
The principle of rectilinear propagation of light enables a pinhole camera to function by stating that light travels in straight lines

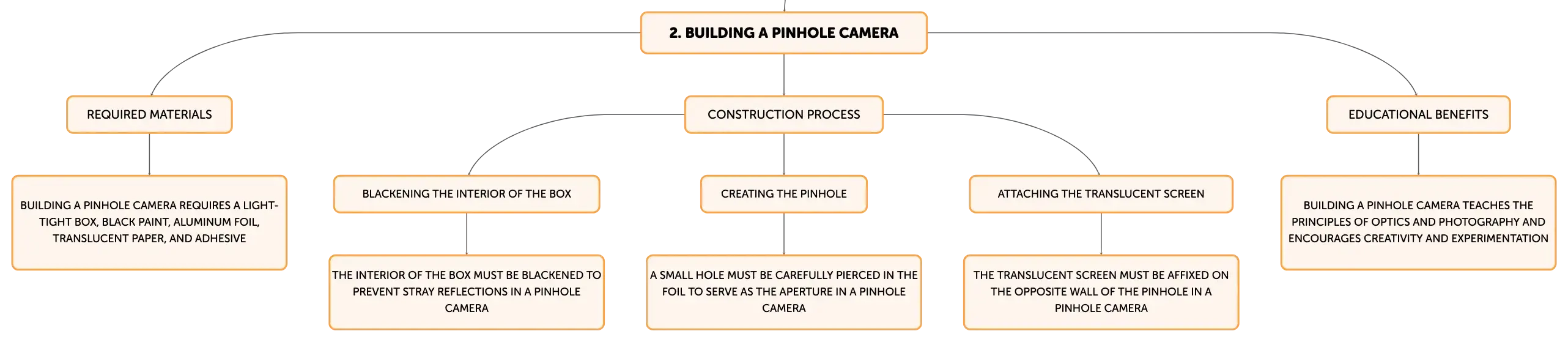

Building a Pinhole Camera
Required Materials
Building a pinhole camera requires a light-tight box, black paint, aluminum foil, translucent paper, and adhesive
Construction Process
Blackening the Interior of the Box
The interior of the box must be blackened to prevent stray reflections in a pinhole camera
Creating the Pinhole
A small hole must be carefully pierced in the foil to serve as the aperture in a pinhole camera
Attaching the Translucent Screen
The translucent screen must be affixed on the opposite wall of the pinhole in a pinhole camera
Educational Benefits
Building a pinhole camera teaches the principles of optics and photography and encourages creativity and experimentation

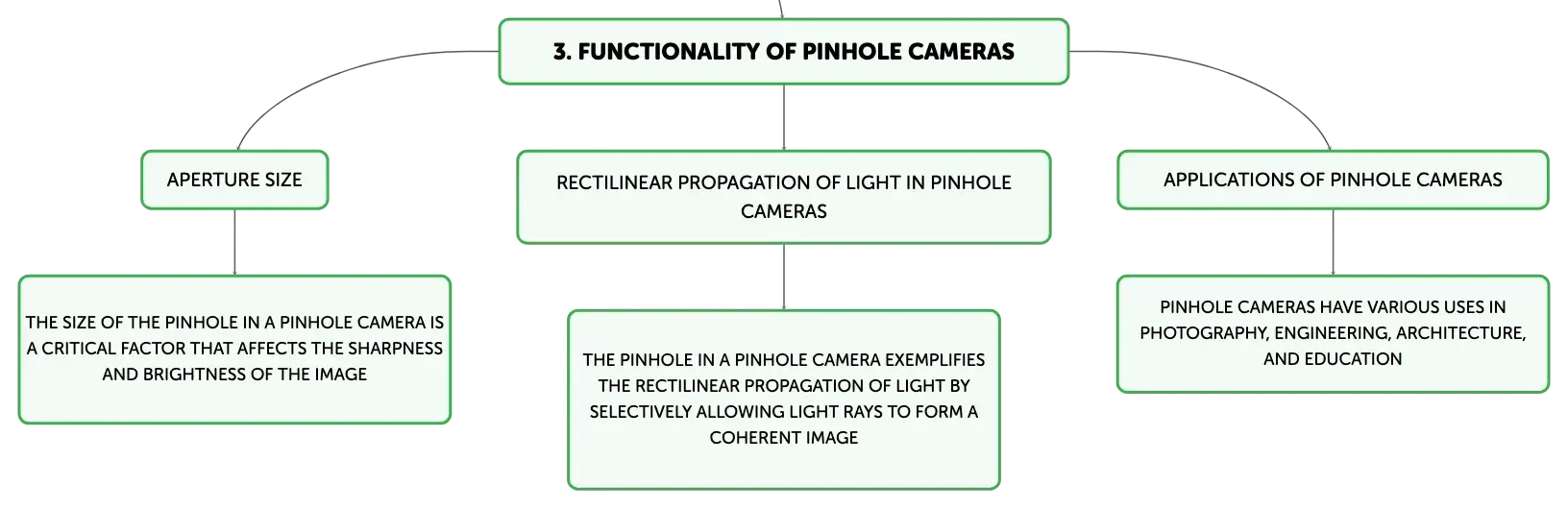

Functionality of Pinhole Cameras
Aperture Size
The size of the pinhole in a pinhole camera is a critical factor that affects the sharpness and brightness of the image
Rectilinear Propagation of Light in Pinhole Cameras
The pinhole in a pinhole camera exemplifies the rectilinear propagation of light by selectively allowing light rays to form a coherent image
Applications of Pinhole Cameras
Pinhole cameras have various uses in photography, engineering, architecture, and education

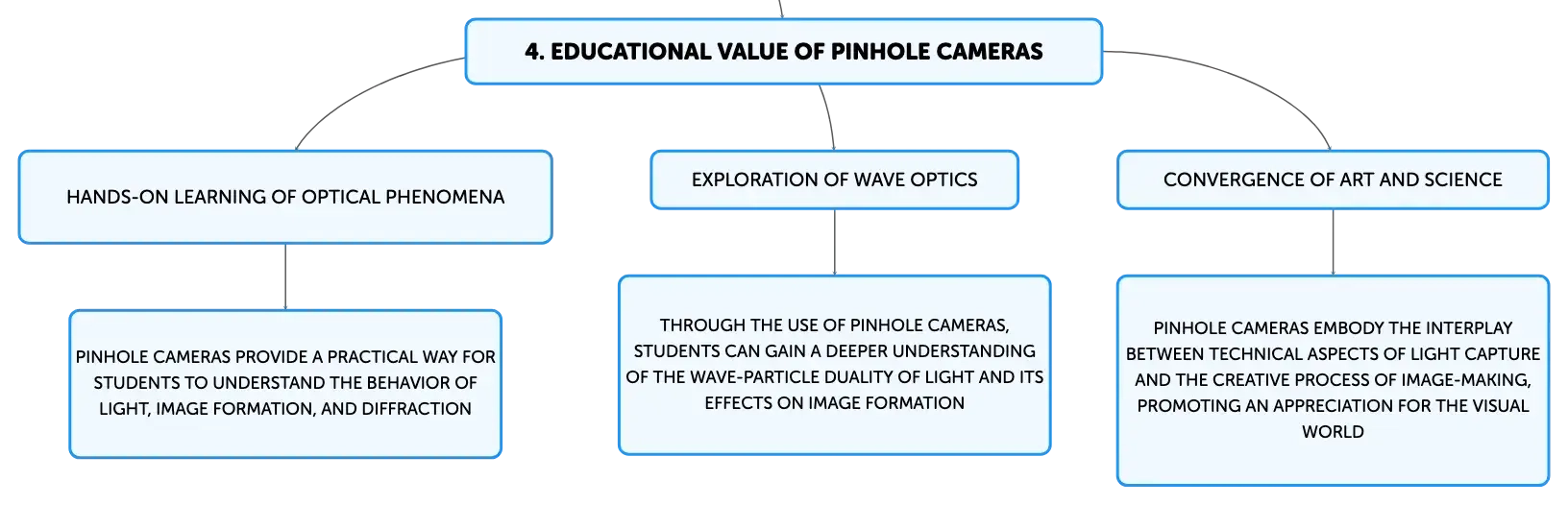

Educational Value of Pinhole Cameras
Hands-on Learning of Optical Phenomena
Pinhole cameras provide a practical way for students to understand the behavior of light, image formation, and diffraction
Exploration of Wave Optics
Through the use of pinhole cameras, students can gain a deeper understanding of the wave-particle duality of light and its effects on image formation
Convergence of Art and Science
Pinhole cameras embody the interplay between technical aspects of light capture and the creative process of image-making, promoting an appreciation for the visual world
Pinhole Cameras: Exploring Light and Image Formation
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
A ______, also known as a camera obscura, captures images without using a lens.
pinhole camera
01
Purpose of blackening interior of pinhole camera
Prevents stray reflections, enhancing image clarity.
02
Function of pinhole in pinhole camera
Acts as aperture, controlling light entry and projecting image.
