D Type Flip Flops

Introduction to D Type Flip Flops

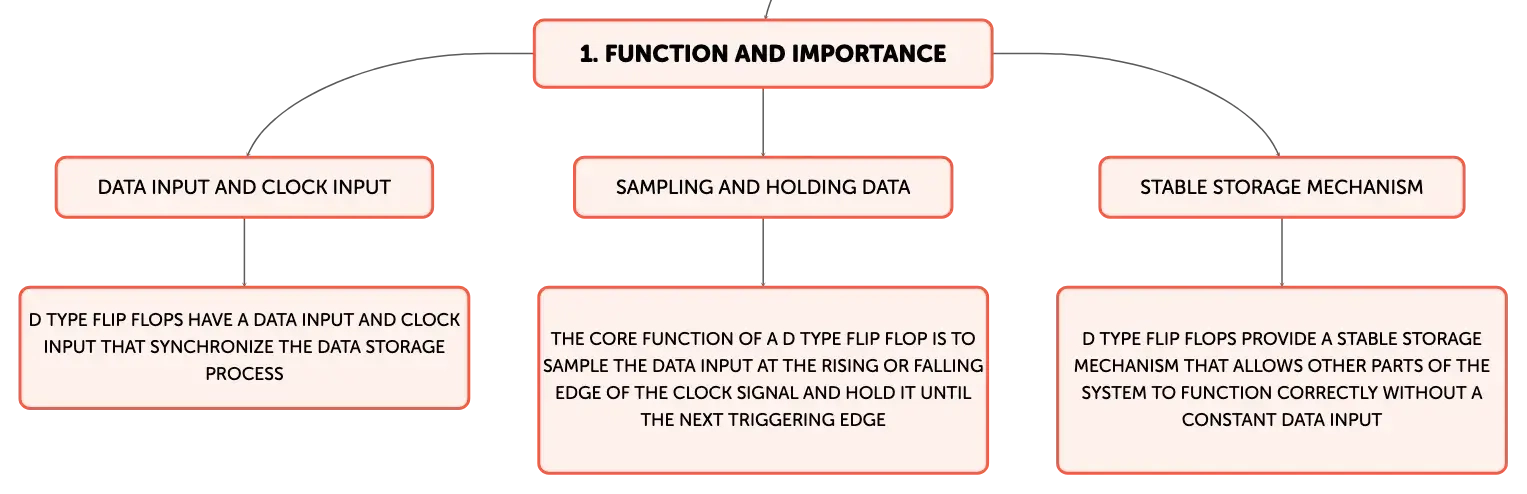

D Type Flip Flops are integral components in digital electronics, serving as the basic memory elements for storing a single bit of information. They consist of a data input, labeled 'D' for Data, and a clock input, which synchronizes the data storage process. The core function of a D Type Flip Flop is to sample the data input at the rising or falling edge of the clock signal and to hold this value until the next triggering edge of the clock. This capability is vital for digital systems, as it provides a stable storage mechanism that allows other parts of the system to function correctly without the need for a constant data input.

Varieties and Operations of D Type Flip Flops

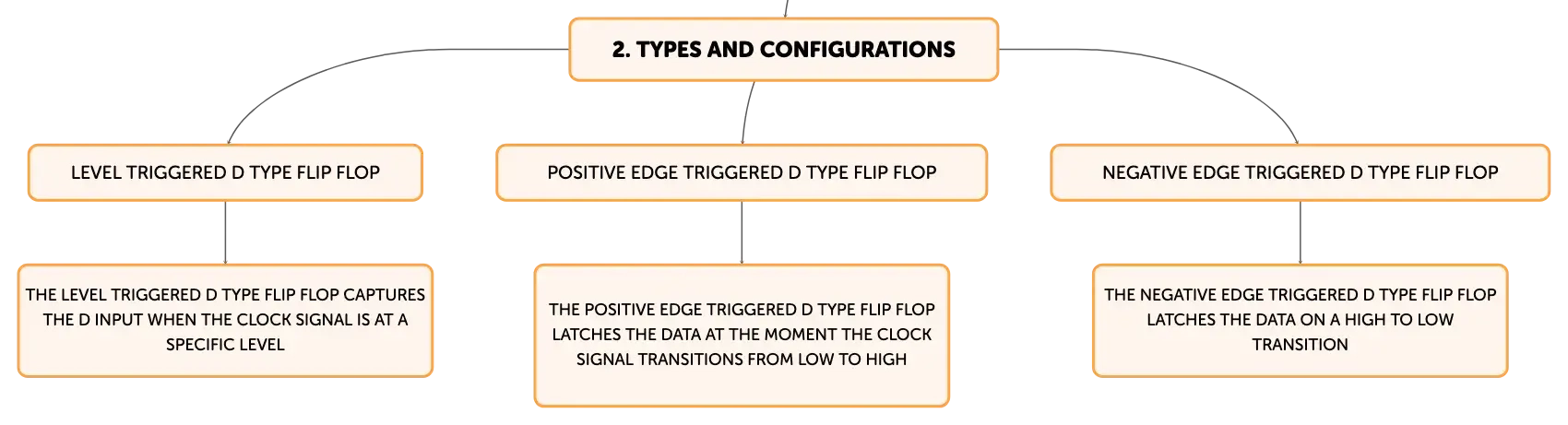

D Type Flip Flops are available in several configurations, each suited to particular applications within digital circuits. The most prevalent types include the Level Triggered D Type Flip Flop, the Positive Edge Triggered D Type Flip Flop, and the Negative Edge Triggered D Type Flip Flop. The Level Triggered version, also known as a latch, captures the D input when the clock signal is at a specific level (high or low). In contrast, the Positive Edge Triggered version latches the data at the moment the clock signal transitions from low to high, and the Negative Edge Triggered version does so on a high to low transition. These operational differences are critical for circuit designers to consider when implementing flip flops to ensure proper timing and functionality within the digital system.

Detailed Examination of the Positive Edge Triggered D Type Flip Flop

The Positive Edge Triggered D Type Flip Flop is distinguished by its precise timing characteristics. It records the D input and updates the output, denoted as 'Q', exclusively on the rising edge of the clock signal. This flip flop is constructed using a master-slave configuration, which includes a pair of cross-coupled NOR or NAND gates, and additional gating to control the input during the clock's positive edge. The output 'Q' reflects the 'D' input at the moment of the clock's rising edge, while the complementary output 'Q'' (not Q) assumes the inverse value. This flip flop is particularly useful in applications where data synchronization with the clock signal is critical for maintaining system integrity.

Internal Mechanisms of D Type Flip Flops

The operation of D Type Flip Flops is dictated by a network of logic gates that manage the binary data. A standard D Type Flip Flop includes a data input (D), two complementary outputs (Q and Q'), and a clock input (CLK). The master-slave configuration is a prevalent design, where the master section captures the input upon the arrival of the clock pulse, and the slave section reacts to the master's output as the clock pulse concludes. This two-stage approach ensures that the flip flop transitions states only during the clock signal's edge, providing a reliable mechanism for data storage and preventing glitches during data transitions.

Constructing D Type Flip Flops in Digital Systems

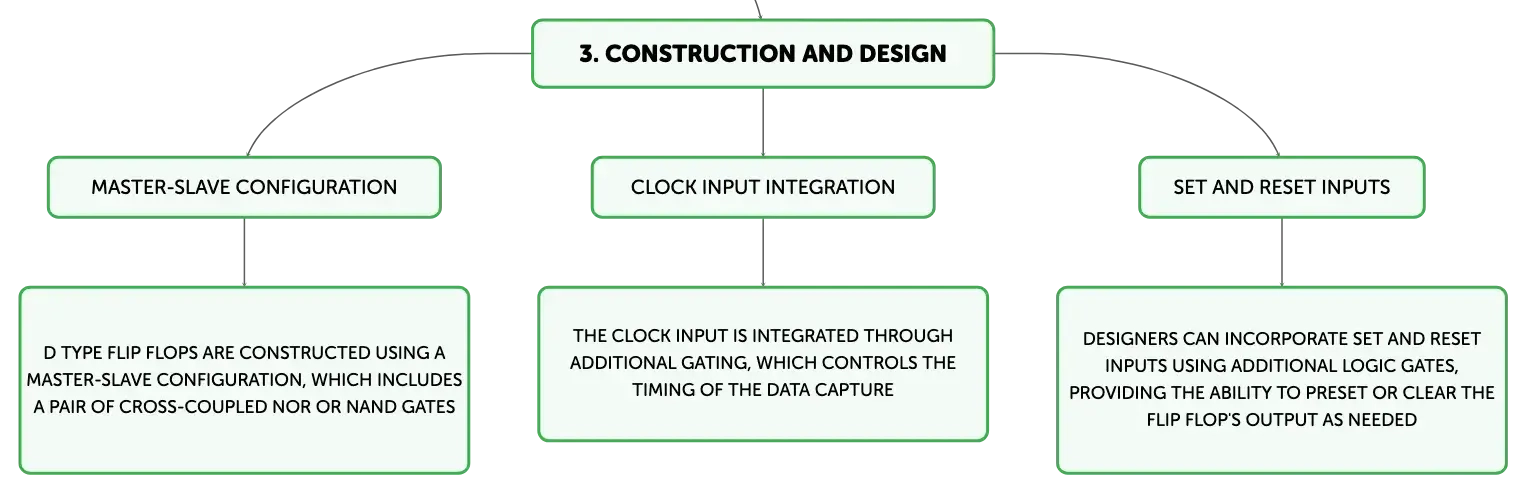

The design process for a D Type Flip Flop circuit involves a fundamental knowledge of digital logic and the use of logic gates such as NAND or NOR gates. The construction starts with the creation of an SR (Set-Reset) latch using cross-coupled gates, which is then modified by adding a gating mechanism to form the 'D' input stage. The clock input is integrated through additional gating, which controls the timing of the data capture. The resulting circuit reliably stores the state of the D input at the clock signal's triggering edge and maintains this state throughout the clock cycle. For enhanced functionality, designers can incorporate set (S) and reset (R) inputs using additional logic gates, providing the ability to preset or clear the flip flop's output as needed.

Operational Truth Table Analysis for D Type Flip Flops

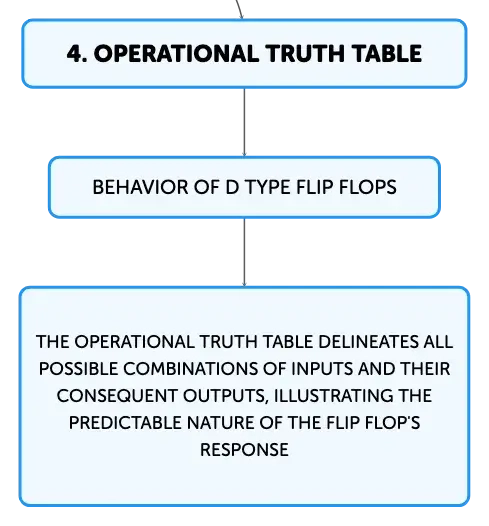

Understanding the behavior of D Type Flip Flops requires a thorough examination of their operational truth table. This table delineates all possible combinations of inputs and their consequent outputs, illustrating the predictable nature of the flip flop's response. When the clock signal is at the triggering edge, denoted by an upward or downward arrow for positive or negative edge triggering respectively, the output 'Q' mirrors the 'D' input, and 'Q'' becomes its complement. If the clock signal is inactive, the outputs retain their previous states, demonstrating the flip flop's role in preserving data. Mastery of the truth table is essential for appreciating the precise timing and data storage capabilities of D Type Flip Flops, which are indispensable in the realm of digital electronics.
