Orbital Mechanics

Orbital mechanics governs the movement of planets, moons, and comets in our Solar System. This field of physics explains the various orbits, from circular to highly elliptical, and the principles of orbital stability. Understanding these dynamics is crucial for calculating the orbital velocity of satellites and ensuring their long-term stability in space.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The study of how objects move in space due to gravity is known as ______ ______.

Click to check the answer

orbital mechanics

2

Comets may follow ______ orbits, speeding up when nearing the Sun and slowing down when moving away.

Click to check the answer

highly elliptical

3

Orbital Radius Definition

Click to check the answer

Constant distance from orbit's center to orbiting object.

4

Difference Between Speed and Velocity in Orbit

Click to check the answer

Speed constant, velocity changes due to direction shift.

5

Role of Gravitational Force in Circular Orbits

Click to check the answer

Acts as centripetal force, changing object's direction, not speed.

6

According to ______ laws of planetary motion, a body in orbit speeds up when it's closer to the central mass due to a stronger ______ pull.

Click to check the answer

Kepler's gravitational

7

Orbital Path Dependency

Click to check the answer

Celestial bodies follow distinct orbits based on mass and gravitational forces.

8

Mass Relationship in Orbits

Click to check the answer

Less massive objects typically orbit more massive ones, like Earth around the Sun.

9

Gravitational Ballet

Click to check the answer

The movement of celestial bodies in the Solar System is a complex interaction of gravity.

10

All planets in the ______ System revolve around the Sun in a ______ direction when observed from the Sun's north pole.

Click to check the answer

Solar counterclockwise

11

Moon Orbital Path Shapes

Click to check the answer

Moon orbits range from nearly circular to highly elliptical.

12

Factors Affecting Moon Orbital Speed

Click to check the answer

Moon's orbital speed varies with distance from planet and planet's mass.

13

Comet Speed Changes During Orbit

Click to check the answer

Comet speeds increase near Sun due to gravity, decrease when moving away.

14

A satellite risks falling onto the planet if its velocity is too ______, or being flung into space if it's excessively ______.

Click to check the answer

low high

15

Formula for orbital circumference

Click to check the answer

C = 2πr, where C is circumference, r is orbital radius.

16

Determining orbital radius

Click to check the answer

Orbital radius (r) is the distance from the center of the mass being orbited to the satellite.

17

Calculating orbital period

Click to check the answer

Orbital period (T) is the time taken for one complete orbit around the mass being orbited.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Properties and Applications of Light Waves

View document

Physics

Optical Aberrations

View document

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

View document

Physics

Spherical Aberration and its Effects on Optical Systems

View document

Exploring Orbital Mechanics in Our Solar System

Orbital mechanics is the branch of physics that explains how objects move under the influence of gravity in space. The paths these objects take, known as orbits, can be circular, elliptical, or even parabolic or hyperbolic in the case of some comets and other celestial objects. In our Solar System, planets, moons, asteroids, and comets all follow orbits determined by their interactions with the Sun's massive gravitational field, as well as with each other. While planets tend to have nearly circular orbits, comets often have highly elliptical orbits, which cause them to speed up significantly as they approach the Sun and slow down as they recede.
Sleek spacecraft with extended solar panels orbits a vibrant planet with swirling clouds and blue oceans, against a starry space backdrop.

The Fundamentals of Circular Orbits

In a perfectly circular orbit, an object maintains a constant distance from the body it orbits, which is the center of the circle. This distance is referred to as the orbital radius. While the speed of the object remains constant, its velocity, which is speed in a given direction, is continuously changing due to the gravitational force acting as a centripetal force. This force pulls the object toward the center of the orbit, causing it to accelerate by changing its direction of motion, not its speed. This acceleration is perpendicular to the object's velocity and keeps it moving along the circular path.

The Dynamics of Elliptical Orbits

Elliptical orbits are more common in the Solar System and are characterized by varying distances between the orbiting object and the central body, which result in changes in the object's speed throughout its orbit. When closer to the central body, the object moves faster due to the stronger gravitational pull and the conservation of angular momentum. As it moves away, the gravitational pull weakens, and the object slows down. This behavior is described by Kepler's laws of planetary motion, which provide a detailed mathematical model of the motion of bodies in elliptical orbits around a central mass.

The Varied Paths of Celestial Bodies

The Solar System's celestial bodies, including planets, moons, and comets, each follow distinct orbital paths governed by their masses and the gravitational forces exerted upon them. Generally, less massive objects orbit more massive ones, as seen with Earth's orbit around the Sun. The specific characteristics of an object's orbit—such as its period, speed, and distance from the central body—are determined by the object's mass, its initial velocity, and the mass of the body it orbits. These factors are integral to understanding the complex gravitational ballet that takes place within our Solar System.

Planetary Orbits and Kepler's Laws

The planets of the Solar System orbit the Sun in the same direction, counterclockwise as viewed from above the Sun's north pole, and their orbits are nearly coplanar, lying close to the ecliptic plane. The orbital radius of each planet dictates its orbital period—the time it takes to complete one orbit around the Sun—according to Kepler's third law of planetary motion. This law states that the square of a planet's orbital period is proportional to the cube of its average distance from the Sun, which explains why planets farther from the Sun have longer orbital periods and move at slower average speeds.

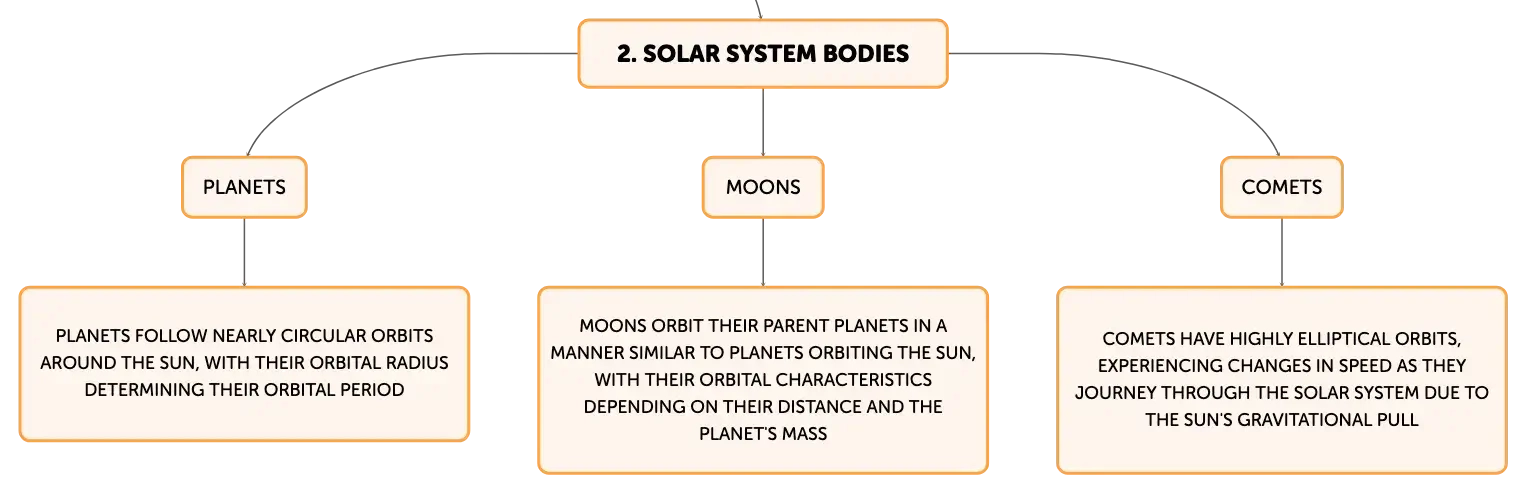

The Diverse Orbits of Moons and Comets

Moons orbit their parent planets in a manner similar to how planets orbit the Sun, with their paths ranging from nearly circular to highly elliptical. The orbital characteristics of moons, such as their period and speed, vary widely and depend on their distance from the planet and the planet's mass. Comets, with their often highly elliptical orbits, experience dramatic changes in speed as they journey through the Solar System. Their speeds increase significantly as they approach the Sun, due to the Sun's gravitational pull, and decrease as they move away, often traveling to the outer reaches of the Solar System before returning.

The Principles of Orbital Stability

Orbital stability requires that an object, such as a satellite, must have a velocity that allows it to balance the gravitational pull of the body it orbits. If the satellite's velocity is too low, it will spiral inward and potentially crash into the planet. If its velocity is too high, it may escape the planet's gravitational influence and be ejected into space. The stable orbit is achieved when the satellite's centrifugal force, due to its motion, balances the gravitational attraction, allowing it to remain in a consistent orbit. This balance is crucial for the long-term stability of satellites and is a key consideration in their design and operation.

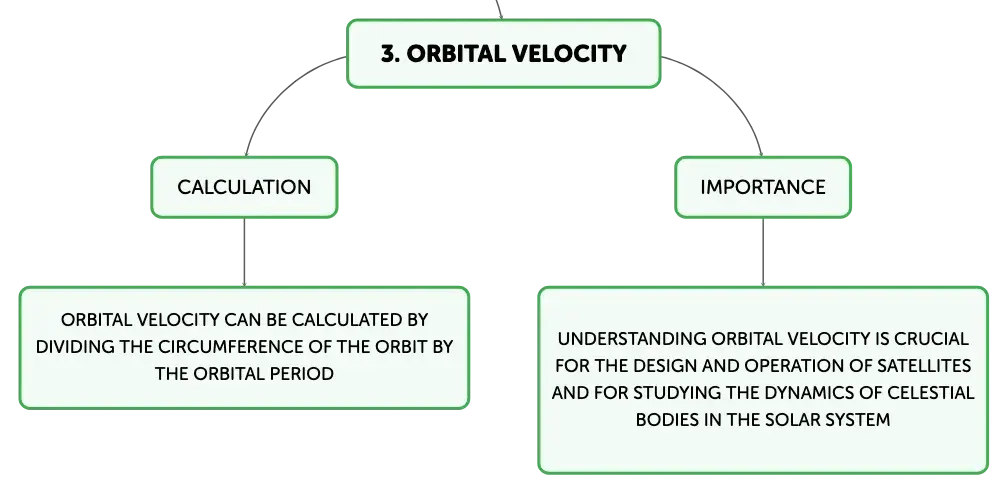

Calculating Orbital Velocity

To calculate the orbital velocity of a satellite, one must first determine the circumference of the orbit using the formula \(C = 2\pi r\), where \(C\) is the circumference and \(r\) is the orbital radius. The average orbital velocity can then be found by dividing this distance by the orbital period, \(T\), using the equation \(v_{\text{average}} = \frac{C}{T}\). This calculation provides the average speed at which the satellite travels along its orbit and is essential for understanding the timing of satellite operations and the dynamics of celestial bodies in the Solar System.
