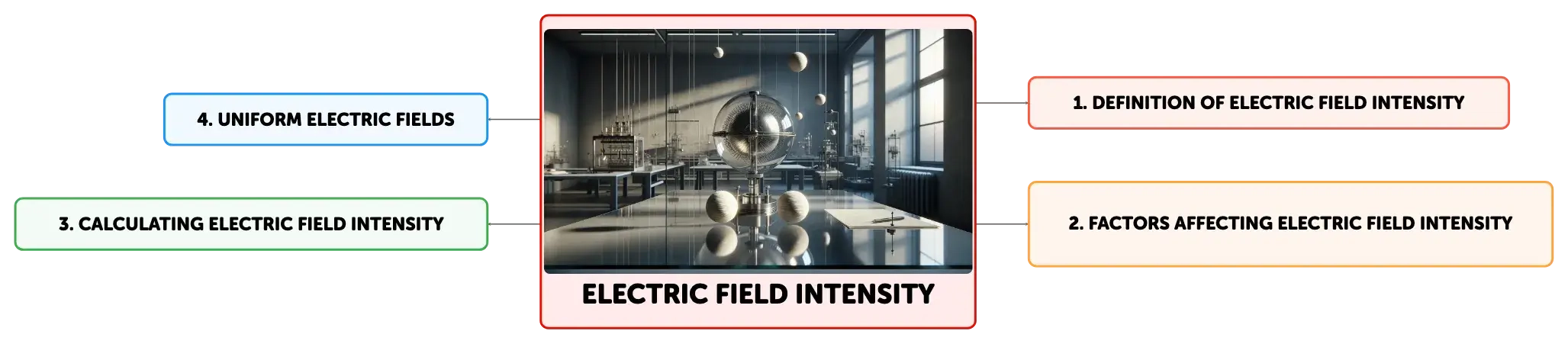

Electric Field Intensity
Electric field intensity measures the force per unit charge in an electric field, with field lines visualizing the field's direction and strength. The strength of an electric field is calculated using the formula E = F/Q, and for point charges, Coulomb's law applies. Uniform electric fields, idealized by parallel charged plates, exhibit constant field strength and influence the motion of charged particles, crucial for understanding electromagnetism.
See moreExploring Electric Field Intensity

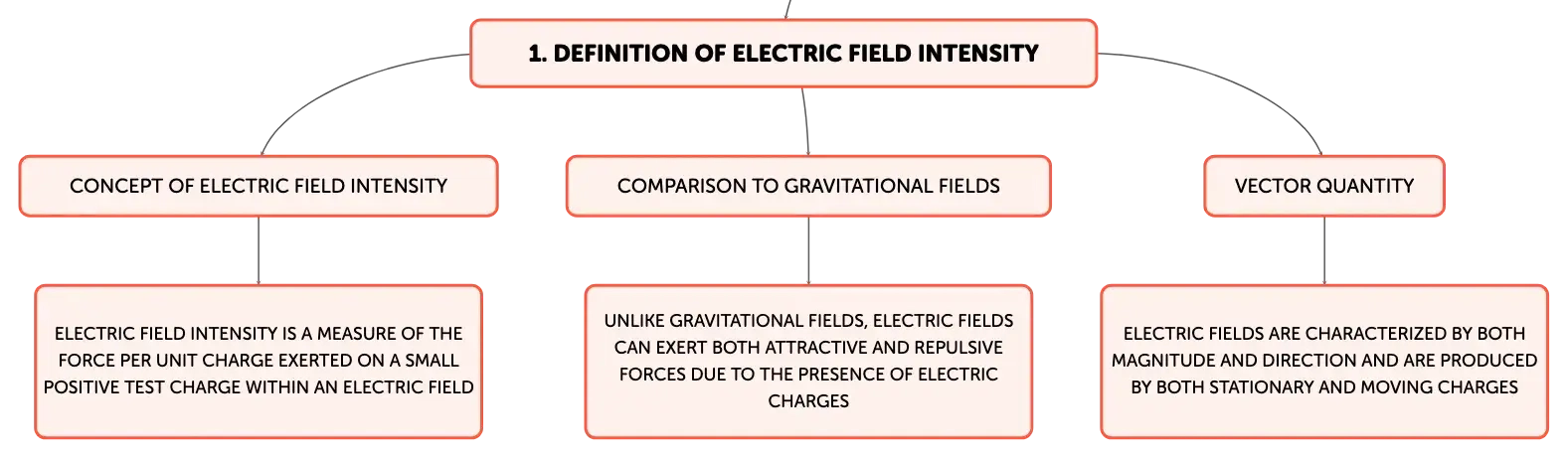

Electric field intensity, a key concept in electromagnetism, quantifies the force per unit charge exerted on a small positive test charge placed within an electric field. Electric fields, unlike gravitational fields, can exert both attractive and repulsive forces, which are a result of the presence of electric charges. These fields are vector quantities, characterized by both magnitude and direction, and are produced by both stationary and moving charges. The intensity of an electric field at a point is proportional to the density of the electric field lines at that point, with a greater density indicating a stronger field. Field lines originate from positive charges and terminate on negative charges, providing a visual representation of the field's direction and relative strength.Significance of Electric Field Lines

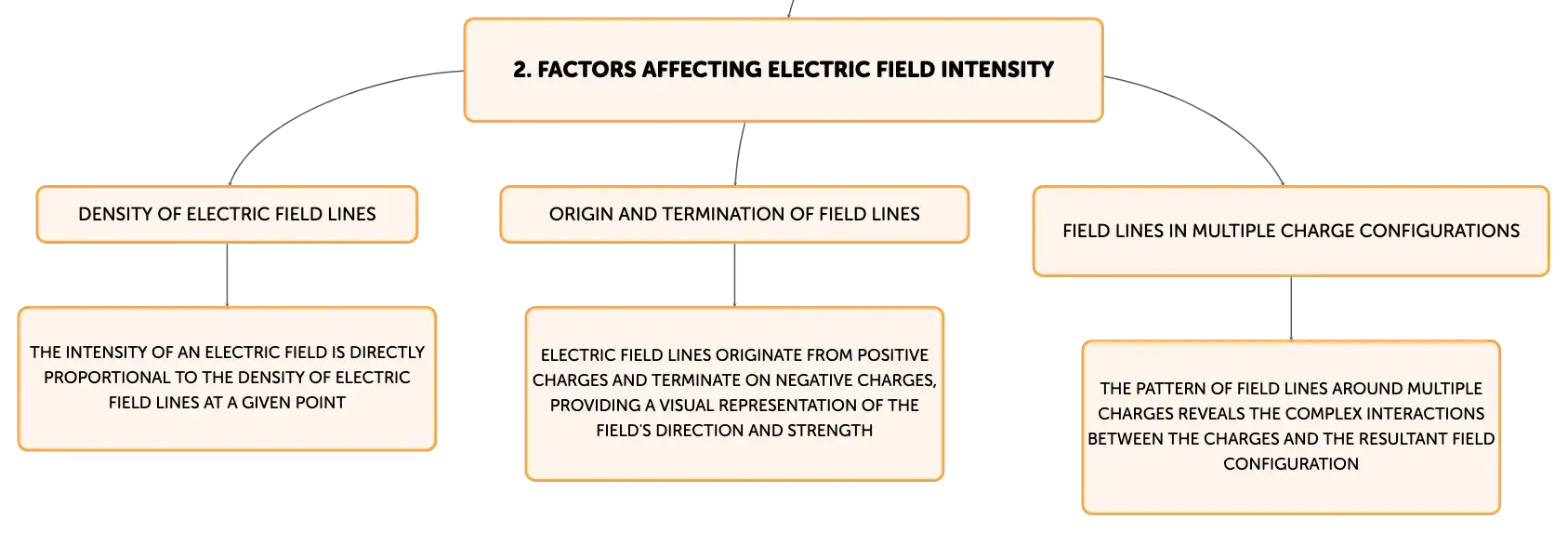

Electric field lines are an invaluable tool for visualizing electric fields and understanding the forces exerted on charges within them. These lines, which are imaginary, indicate the trajectory that a positive test charge would follow if free to move under the influence of the field. They extend from positive to negative charges, and the density of these lines is directly related to the electric field's magnitude. The pattern of field lines around multiple charges, such as in an electric dipole, reveals the complex interactions between the charges and the resultant field configuration. It is important to note that field lines never cross, as this would imply two directions of the electric field at a single point, which is not possible.Quantifying Electric Field Strength

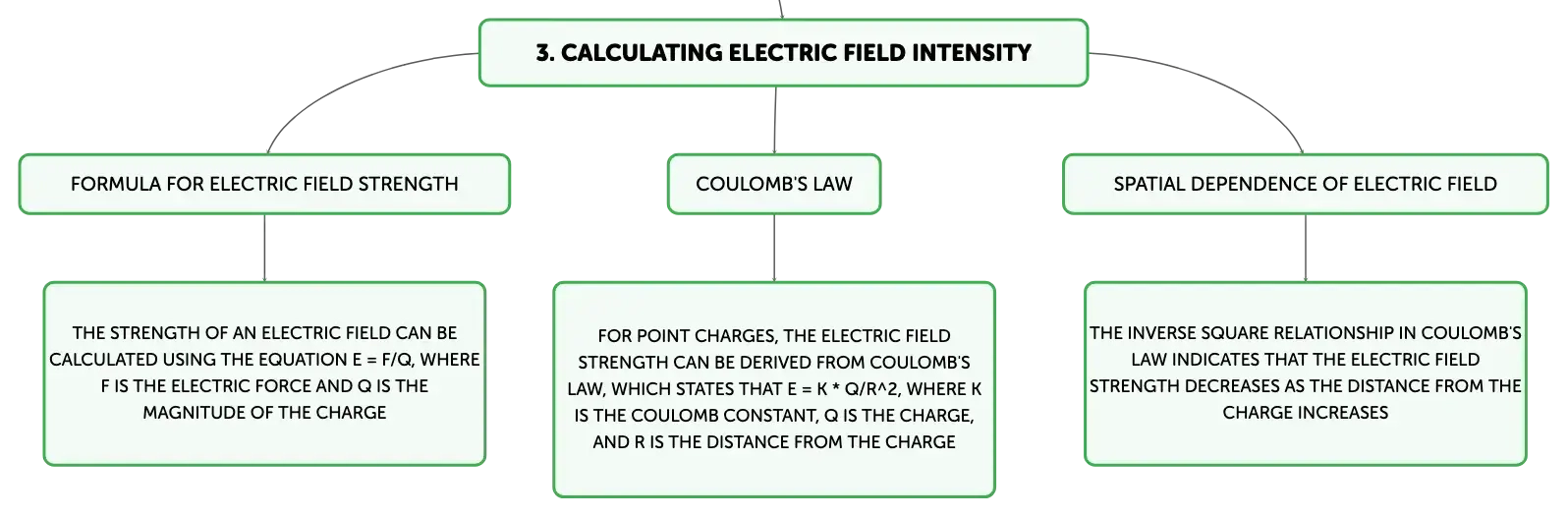

The strength of an electric field (E) is calculated by the equation E = F/Q, where F is the electric force in Newtons acting on a charge, and Q is the magnitude of the charge in Coulombs. This formula allows for the determination of electric field strength at any point in space. For point charges, the electric field strength can be derived from Coulomb's law: E = k * Q/r^2, where k is the Coulomb constant (approximately 8.99 x 10^9 Nm^2/C^2), Q is the charge, and r is the radial distance from the charge. The inverse square relationship indicates that the field strength decreases as the distance from the charge increases, emphasizing the field's spatial dependence.Characteristics of Uniform Electric Fields

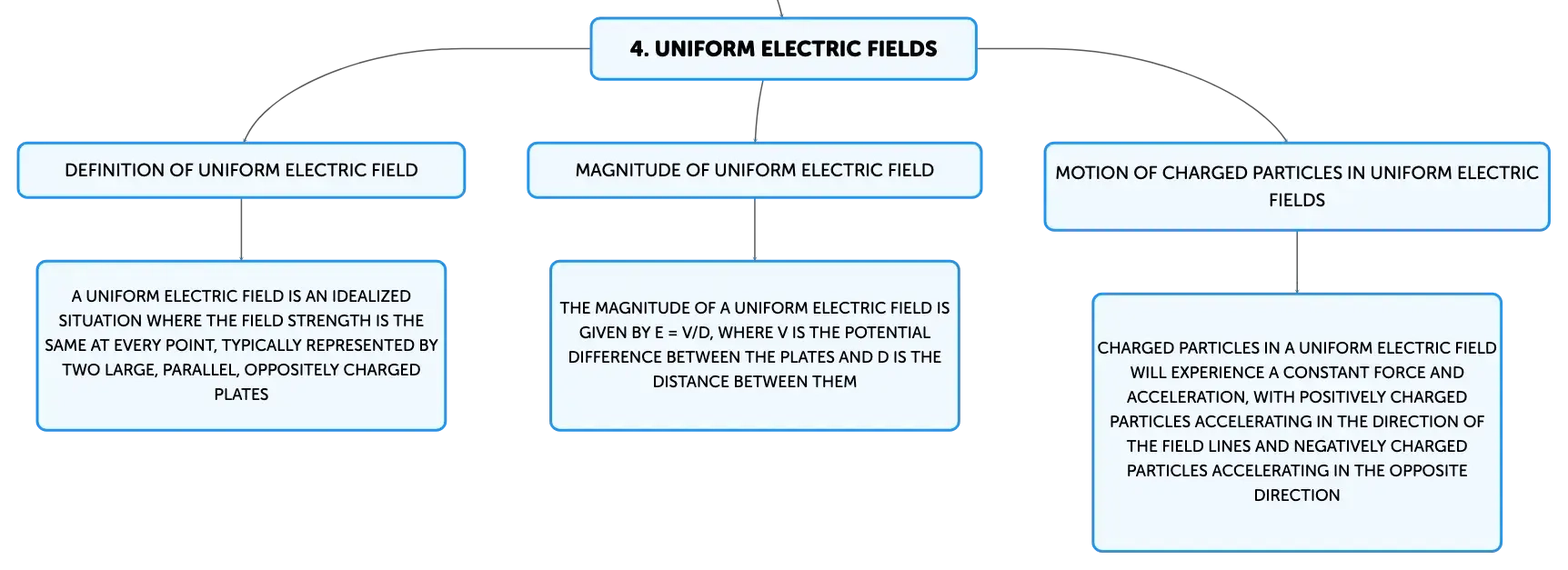

In a uniform electric field, the field strength is the same at every point, which is an idealized situation typically represented by two large, parallel, oppositely charged plates. The electric field lines in such a field are equidistant and parallel, indicating a constant field strength. The magnitude of a uniform electric field is given by E = V/d, where V is the potential difference between the plates in volts, and d is the distance between the plates in meters. A test charge within a uniform electric field experiences a constant force, and thus a constant acceleration, regardless of its position between the plates.Motion of Charged Particles in a Uniform Electric Field
The dynamics of a charged particle in a uniform electric field are determined by the charge's interactions with the field. A positively charged particle, upon entering the field perpendicularly, will be accelerated in the direction of the electric field lines, tracing a parabolic path if initially moving horizontally. A negatively charged particle will accelerate in the direction opposite to the field lines. The motion of charged particles in electric fields is fundamental to the operation of devices such as particle accelerators and cathode ray tubes, and it is also a key concept in the study of electromagnetism and electric forces.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In electromagnetism, the ______ per unit charge measures the force on a small positive test charge within an electric field.
Click to check the answer
2
Purpose of electric field lines
Click to check the answer
3
Origin and termination of electric field lines
Click to check the answer
4
Relation between line density and field magnitude
Click to check the answer
5
The formula to calculate the intensity of an electric field is ______ = ______ / ______, where the force is measured in Newtons and the charge in Coulombs.
Click to check the answer
6
Representation of a uniform electric field
Click to check the answer
7
Electric field lines in a uniform field
Click to check the answer
8
Magnitude of a uniform electric field (formula)
Click to check the answer
9
In electric fields, the movement of charged particles is crucial for the functioning of ______ and ______.
Click to check the answer
