Dielectric materials are crucial insulators in technology, with applications in capacitors, insulation, and energy storage. They are characterized by their dielectric constant and strength, which determine their ability to store electrical energy and withstand high voltages. Factors affecting these properties include intrinsic material characteristics, manufacturing imperfections, and environmental conditions. The choice of dielectric material impacts the efficiency and safety of electronic devices and systems.
Summary
Outline
Dielectric Materials: Fundamentals and Importance
Dielectric materials are electrical insulators that are pivotal in a multitude of applications, including capacitors, insulating barriers, and energy storage systems. These materials are characterized by their inability to conduct electric current and encompass a variety of substances such as ceramics, plastics, and glass. In the realm of physics, understanding the dielectric properties—specifically the dielectric constant (relative permittivity) and dielectric strength—is crucial for comprehending their operational mechanisms in different technological contexts. The dielectric constant quantifies a material's capacity to store electrical energy within an electric field, whereas dielectric strength denotes the maximum electric field intensity that a material can endure before undergoing electrical breakdown.Essential Dielectric Properties: Constant and Strength
The dielectric constant, a dimensionless measure, indicates how a dielectric material can polarize in response to an applied electric field, effectively diminishing the field's strength within the material. A higher dielectric constant signifies enhanced polarizability, which translates to greater capacitance in components such as capacitors. Conversely, dielectric strength represents the peak electric field that a dielectric can withstand before ionization occurs, causing it to become conductive. This attribute is vital for insulation materials, as it determines their capability to prevent electrical discharges and safeguard against electrical risks.Determinants of Dielectric Properties
The dielectric constant and strength of a material are contingent upon a combination of intrinsic, extrinsic, and environmental factors. Intrinsic factors encompass the material's inherent polarizability and the distribution of its electron clouds, both of which influence its reaction to electric fields. Extrinsic factors, such as impurities and structural imperfections resulting from manufacturing processes, can modify these dielectric properties. Environmental influences, including temperature and pressure, also affect the dielectric constant and strength, with temperature generally causing a reduction in the dielectric constant and pressure having a tendency to increase it.Dielectrics in Capacitors and Electrical Insulation
Dielectric materials are essential for the construction and functionality of capacitors, where they serve to enhance energy storage within a compact space. The choice of a dielectric for capacitors is predicated on its dielectric constant, which directly impacts the device's overall capacitance. In the context of insulation, dielectric strength is the critical parameter, ensuring that the material can tolerate high voltages without failure. For instance, tantalum pentoxide, which boasts a high dielectric constant and strength, is optimal for creating small, high-performance capacitors used in compact electronics like smartphones.Dielectric Constant: Comparative Values and Material Choice
The selection of a dielectric material for particular applications necessitates careful consideration of its dielectric constant. Various materials, including air, water, paper, and quartz, possess distinct dielectric constants that render them suitable for specific purposes. Materials with lofty dielectric constants, such as barium titanate, are typically employed in scenarios that demand substantial energy storage. Conversely, materials with lower dielectric constants are favored for high-frequency applications due to their reduced energy storage capabilities.Evaluating Dielectric Strength for Insulation
Dielectric strength is a paramount consideration when determining the appropriateness of a material for insulation purposes. Substances like diamond and specialized rubbers, which exhibit high dielectric strengths, are utilized in demanding insulation applications, including high-voltage switchgear. On the other hand, materials with low dielectric strengths, such as ordinary water, are unsuitable for insulating roles in electrical contexts due to their propensity to conduct electricity under high-voltage conditions.Calculating Capacitance and Energy Storage in Dielectrics
The capacitance of a dielectric is calculated by considering its dielectric constant, the surface area of the capacitor plates, and the separation between them. An increased dielectric constant augments the capacitance, enabling the capacitor to hold a larger charge. The potential energy stored within a dielectric is likewise dependent on its capacitance and the voltage applied across the capacitor. Utilizing materials with higher dielectric constants allows for the maximization of stored potential energy for a given voltage, enhancing the efficiency of energy storage devices.Selecting Dielectric Materials for Diverse Applications
Dielectric materials find extensive use in fields such as electronics, electrical insulation, energy storage, and signal processing. Their applications span from capacitors and insulators to printed circuit boards and sensing devices. In selecting a dielectric material, considerations such as the dielectric constant, strength, loss tangent, temperature stability, and mechanical robustness must be taken into account to ensure superior performance and dependability in the intended application. These criteria assist engineers in choosing the most appropriate materials to optimize the functionality and safety of electronic devices and systems.
Show More
Introduction to Dielectric Materials
Definition of Dielectric Materials

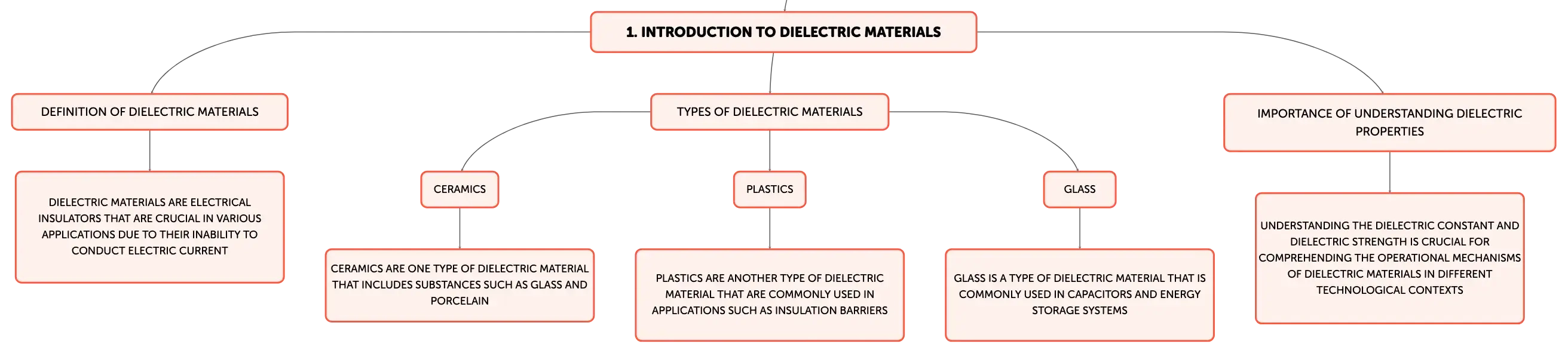

Dielectric materials are electrical insulators that are crucial in various applications due to their inability to conduct electric current
Types of Dielectric Materials
Ceramics
Ceramics are one type of dielectric material that includes substances such as glass and porcelain
Plastics
Plastics are another type of dielectric material that are commonly used in applications such as insulation barriers
Glass
Glass is a type of dielectric material that is commonly used in capacitors and energy storage systems
Importance of Understanding Dielectric Properties
Understanding the dielectric constant and dielectric strength is crucial for comprehending the operational mechanisms of dielectric materials in different technological contexts
Dielectric Constant
Definition of Dielectric Constant
The dielectric constant is a dimensionless measure that quantifies a material's capacity to store electrical energy within an electric field
Impact of Dielectric Constant on Material Properties
Polarizability
A higher dielectric constant signifies enhanced polarizability, resulting in greater capacitance in components such as capacitors
Capacitance
The dielectric constant directly impacts the overall capacitance of a device, making it a crucial factor in material selection for capacitors
Frequency Applications
Materials with lower dielectric constants are favored for high-frequency applications due to their reduced energy storage capabilities
Dielectric Strength
Definition of Dielectric Strength
Dielectric strength denotes the maximum electric field intensity that a material can endure before undergoing electrical breakdown
Importance of Dielectric Strength in Insulation
Dielectric strength is a critical parameter for insulation materials, as it determines their capability to prevent electrical discharges and safeguard against electrical risks
Factors Affecting Dielectric Strength
Intrinsic Factors
The material's inherent polarizability and the distribution of its electron clouds can affect its dielectric strength
Extrinsic Factors
Impurities and structural imperfections resulting from manufacturing processes can modify the dielectric strength of a material
Environmental Influences
Temperature and pressure can also affect the dielectric strength of a material, with temperature generally causing a reduction and pressure tending to increase it
Applications of Dielectric Materials
Capacitors
Dielectric materials are essential for the construction and functionality of capacitors, where they serve to enhance energy storage within a compact space
Insulation
Dielectric strength is a paramount consideration in selecting a material for insulation purposes, ensuring its ability to tolerate high voltages without failure
Material Selection for Specific Applications
Capacitors
The dielectric constant is a crucial factor in selecting a material for capacitors, with different materials possessing distinct dielectric constants suitable for specific purposes
Insulation
Dielectric strength is a critical consideration in choosing a material for insulation, with substances like diamond and specialized rubbers being utilized in demanding applications
Other Applications
Dielectric materials find extensive use in fields such as electronics, energy storage, and signal processing, with considerations such as temperature stability and mechanical robustness also being important in material selection
