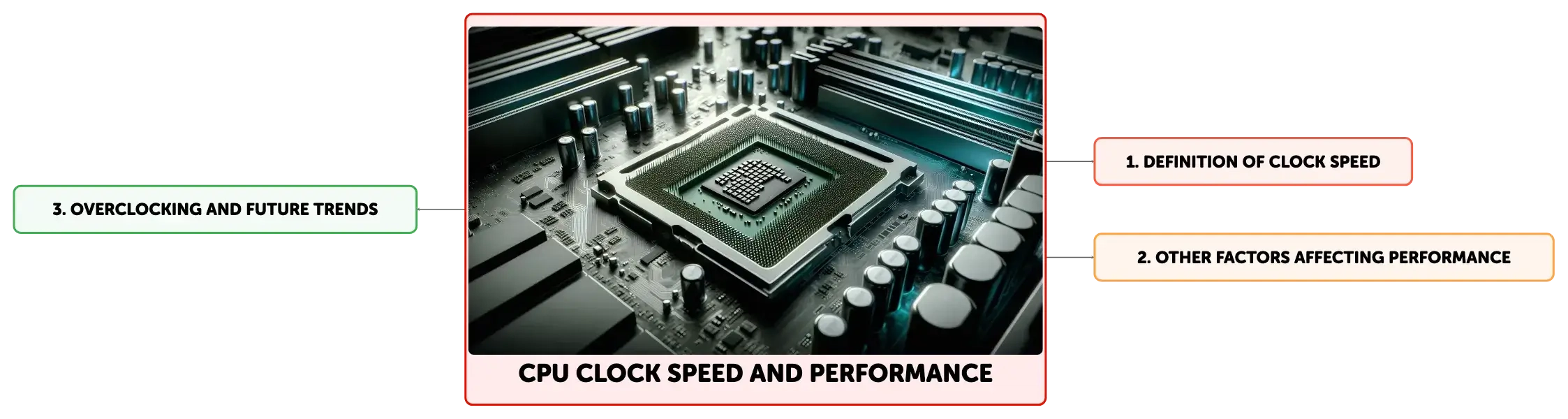

CPU Clock Speed and Performance

Exploring CPU clock speed's role in computing performance, this overview discusses how factors like architecture, core count, and IPC rate influence a CPU's efficiency. It also delves into the effects of overclocking and the historical progression of processing speeds, highlighting the balance needed for optimal computing.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______ of a CPU, also known as the computer's brain, is measured in ______ and indicates the number of processing cycles per second.

Click to check the answer

clock speed Hertz (Hz)

2

CPU Clock Speed Unit

Click to check the answer

Measured in Hertz (Hz); 1 Hz equals one cycle per second.

3

1 GHz Processing Capability

Click to check the answer

1 GHz CPU can handle one billion instructions per second.

4

Factors Affecting CPU Performance

Click to check the answer

Performance influenced by core count, threads, architecture, and specs.

5

The overall system performance can be limited by other parts like the ______ and the ______, which may cause bottlenecks.

Click to check the answer

RAM GPU

6

Overclocking benefits for specific tasks

Click to check the answer

Enhances performance for gaming, multimedia editing.

7

Overclocking's impact on thermal output

Click to check the answer

Increases heat production; requires advanced cooling solutions.

8

Overclocking and CPU warranty implications

Click to check the answer

May void manufacturer's warranty; proceed with caution.

9

The initial clock speed of the ______ in 1971 was a mere 740 KHz, a stark contrast to today's processors.

Click to check the answer

Intel 4004

10

CPU Core Count Importance

Click to check the answer

More cores enable parallel processing, increasing performance for multi-threaded tasks.

11

Architectural Efficiency in CPUs

Click to check the answer

Refers to how well a CPU uses its resources to perform tasks; a more efficient architecture delivers better performance.

12

Instructions Per Cycle (IPC) Significance

Click to check the answer

IPC rate measures instructions a CPU executes per cycle; higher IPC indicates a more efficient, capable processor.

13

Computer scientists aim to enhance performance by ______ and ______.

Click to check the answer

overclocking multithreading

14

Risks of Overclocking

Click to check the answer

Overclocking can improve CPU speed but may cause overheating, instability, and reduce lifespan.

15

Bottlenecking in Computing

Click to check the answer

Occurs when one component slows down system performance; balanced hardware ensures efficiency.

16

Factors Beyond Clock Speed

Click to check the answer

CPU performance also depends on architecture, core count, power efficiency, and IPC rate.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

Computer Memory

View document

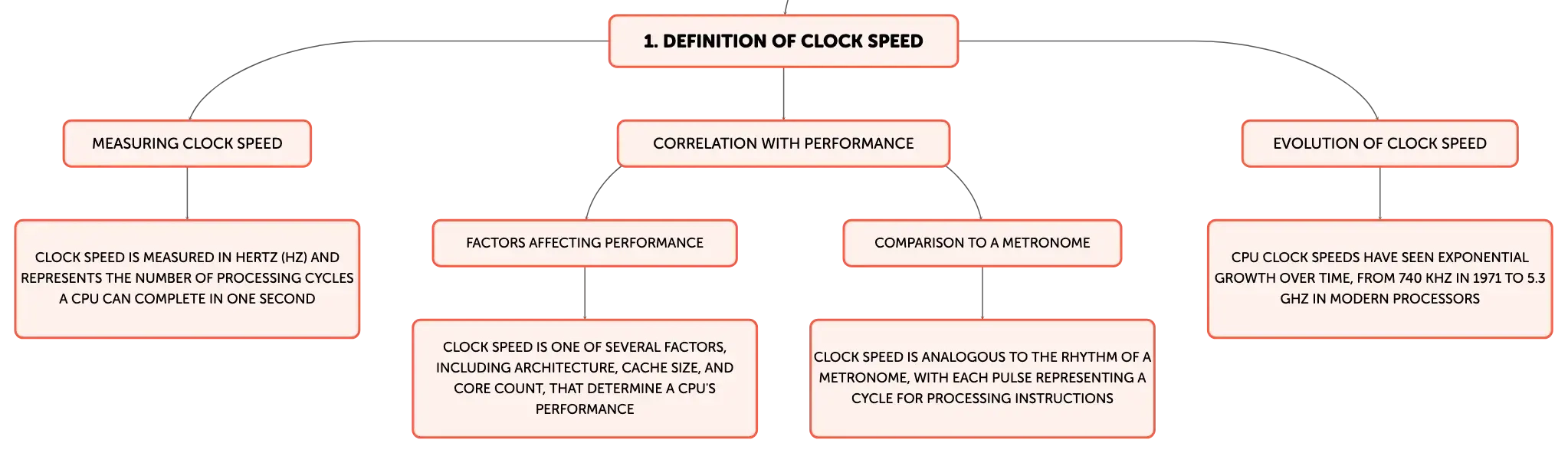

Exploring the Significance of CPU Clock Speed

Clock speed is a pivotal measure in computing that quantifies the operational frequency of a Central Processing Unit (CPU), the brain of a computer. Expressed in Hertz (Hz), this metric denotes the number of processing cycles a CPU can complete in one second. A higher clock speed generally correlates with the ability to perform more instructions within a given time, potentially leading to improved computational performance. However, clock speed alone does not define a CPU's performance; it is one of several factors, including the processor's architecture, cache size, and core count, that collectively determine processing efficiency.

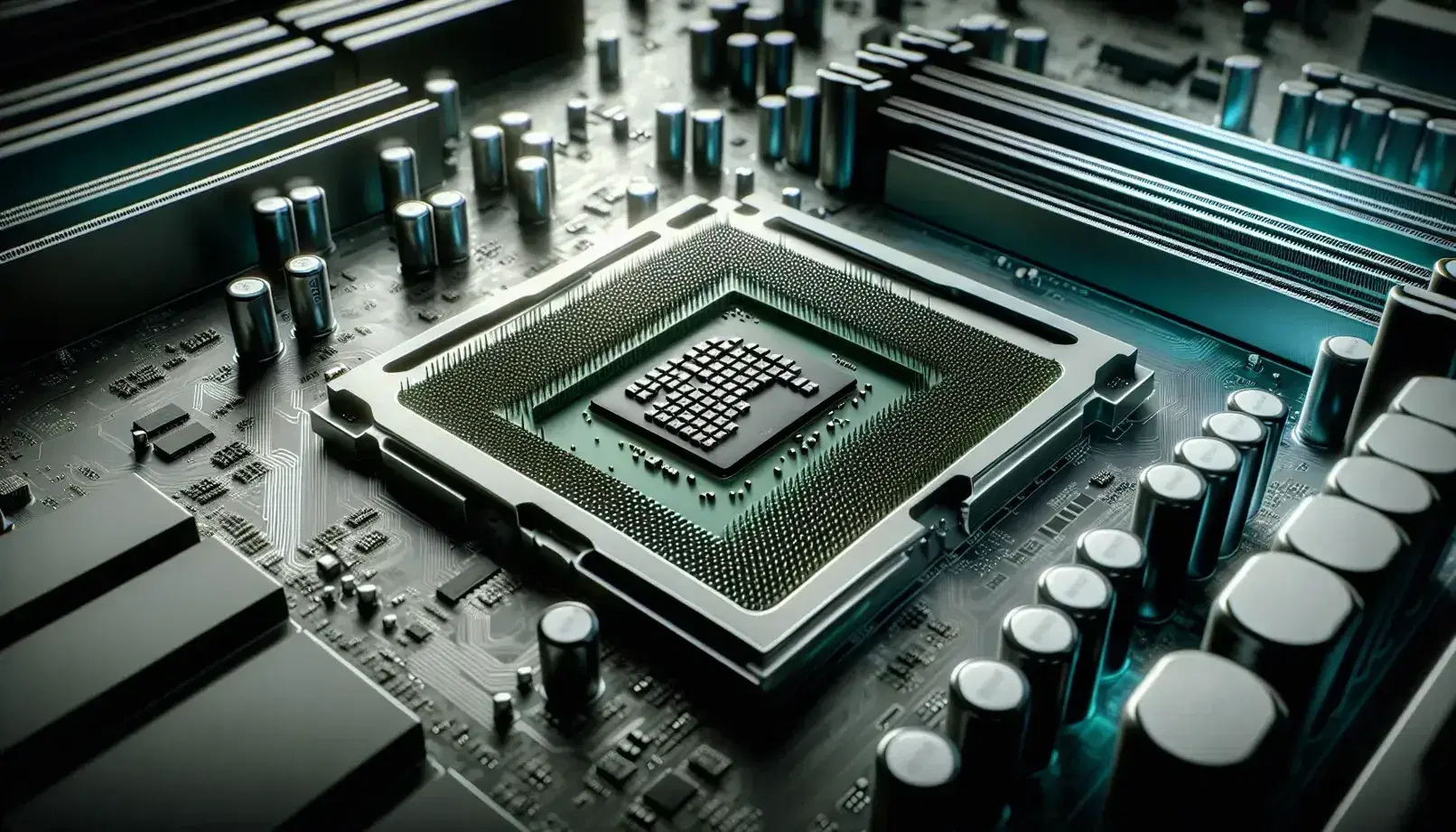

Close-up of a motherboard with processor installed in the socket, RAM module and metal capacitors, circuit boards in green and silver.

The Influence of Clock Speed on CPU Functionality

The clock speed of a CPU, often referred to as the clock rate, is analogous to the rhythm of a metronome for a computer, with each pulse signifying a cycle for processing instructions. A CPU with a clock speed of 1 Hertz can process one instruction per second, whereas one with a clock speed of 1 Gigahertz (GHz) can handle a billion instructions per second. This rate is comparable to the pace at which a factory operates, dictating the speed of production. Nonetheless, CPUs with the same clock speeds can exhibit different performance levels due to variations in their number of cores, threads, architectural design, and other technical specifications.

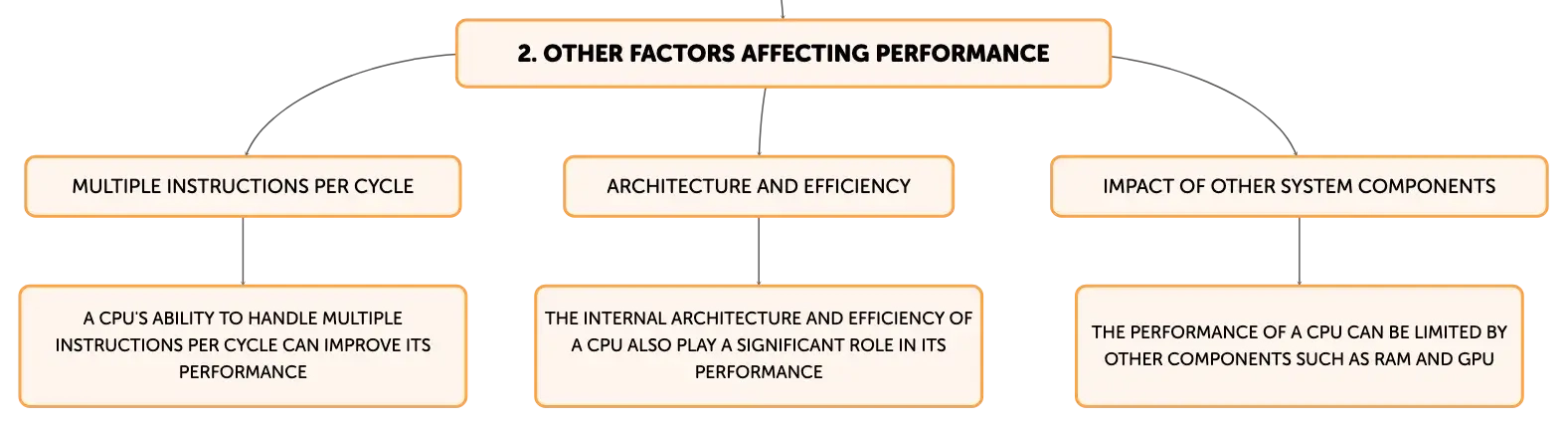

Additional Determinants of CPU Performance

Beyond clock speed, several other factors are instrumental in shaping CPU performance. These include the processor's ability to handle multiple instructions per cycle, the sophistication and efficiency of its internal architecture, and the capacity of its cache memory. Moreover, the performance of the entire system can be constrained by other components, such as the Random Access Memory (RAM) and the Graphics Processing Unit (GPU). If these components are suboptimal, they can create bottlenecks that prevent the CPU from reaching its maximum operational capacity.

The Effects of Overclocking on CPU Operations

Overclocking involves the practice of pushing a CPU's clock speed beyond the manufacturer's specified limits to enhance computational performance. This technique can be advantageous for demanding tasks like gaming or multimedia editing. However, overclocking also increases thermal output, which can lead to hardware damage if not managed with appropriate cooling mechanisms. It is crucial to recognize that overclocking may invalidate the CPU's warranty and should be undertaken with caution and technical understanding.

Historical Progression of CPU Clock Speeds

The evolution of CPU clock speeds over time reflects remarkable technological progress. From the modest 740 KHz of the Intel 4004 in 1971 to the impressive base and boost clock speeds of 3.7 GHz and 5.3 GHz in the Intel Core i9-10900K, CPUs have seen exponential growth in processing speeds. These advancements are not confined to clock speeds alone; they also encompass significant improvements in processor architectures, energy efficiency, and the integration of multiple processing cores, all contributing to the enhanced capabilities of contemporary CPUs.

Comparing Clock Speed with Other Performance Indicators

Clock speed is a significant but not exclusive indicator of a CPU's computing performance. A comprehensive assessment of a CPU's capabilities should also take into account the number of processing cores, the architectural efficiency, energy consumption, and the performance of other system components. The Instructions Per Cycle (IPC) rate is another essential metric, indicating the number of instructions a CPU can execute in a single cycle. A higher IPC rate signifies a more efficient processor, capable of handling more tasks with each clock cycle.

Future Directions and Innovations in Clock Speed Technology

The pursuit of higher computing speeds has led computer scientists to explore advanced techniques related to clock speed, such as performance optimization through overclocking and multithreading. Future trends in clock speed technology must address challenges like heat management and energy efficiency. Innovations in cooling systems, power-saving strategies, and the potential of emerging fields such as quantum computing and artificial intelligence hold promise for the continued evolution of CPU clock speeds and overall performance.

Key Insights on CPU Clock Speed and Performance

To conclude, clock speed is an essential but not solitary measure of a CPU's performance, indicative of the rate at which it processes instructions. While overclocking can offer performance gains, it carries inherent risks. The concept of bottlenecking underscores the significance of harmonious system component performance. In evaluating a CPU, it is imperative to consider not just clock speed but also architecture, core count, power efficiency, and IPC rate to ensure a balanced and optimal computing experience.
