Integral Geometry

Integral geometry is a mathematical field that examines shape properties invariant under transformations like rotations and translations. It uses integration to evaluate these properties, differing from classical geometry's focus on local traits. Originating from the work of Blaschke, Poincaré, and Klein, it's now pivotal in computer vision, robotics, and medical imaging, particularly with the Radon Transform's role in CT scans.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of Integral Geometry

Click to check the answer

Math discipline studying shape properties invariant under rotations, translations using integration.

2

Applications of Integral Geometry

Click to check the answer

Used in computer vision, robotics, medical imaging to understand global shape aspects.

3

Integral vs. Classical Geometry Focus

Click to check the answer

Integral geometry focuses on global properties via integration, classical on local properties.

4

______ geometry uses integration to study geometric invariants affected by transformation groups.

Click to check the answer

Integral

5

The ______ formula in integral geometry allows for calculating a curve's length by integrating over intersecting lines.

Click to check the answer

Crofton

6

Integral Geometry: Original Focus

Click to check the answer

Initially concentrated on static geometric analysis.

7

Integral Geometry: Evolution Over Time

Click to check the answer

Shifted from static to dynamic study of shapes, spaces relationships.

8

Integral Geometry: Application in Science

Click to check the answer

Crucial in medical imaging for reconstructing images from partial data.

9

In the field of ______ ______ (CT), the ______ transform and its inverse play a crucial role by reconstructing images from projection data.

Click to check the answer

computerized tomography Radon

10

Integral Geometry Basic Application

Click to check the answer

Computing area within curves, volume of shapes by integrating over lines, planes.

11

Radon Transform Purpose

Click to check the answer

Reconstructs cross-sectional images from projections, crucial in CT scan analysis.

12

Impact of Integral Geometry on Diagnostics

Click to check the answer

Enables non-invasive procedures, revolutionizing medical diagnostic techniques.

13

For novices, initial problems may include determining the size of basic ______ figures through integral techniques.

Click to check the answer

geometric

14

More experienced individuals might use ______'s formula to calculate a ______'s length within integral geometry.

Click to check the answer

Crofton curve

15

Definition of Integral Geometry

Click to check the answer

Field merging geometry, algebra, analysis to solve spatial problems.

16

Role of Integral Geometry in Medical Imaging

Click to check the answer

Improves techniques for visualizing internal body structures non-invasively.

17

Impact of Integral Geometry on Computer Vision

Click to check the answer

Enhances algorithms for image recognition and 3D reconstruction.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Linear Systems: Modeling and Solving Complex Relationships

View document

Mathematics

Parametric Equations and Integration

View document

Mathematics

Trigonometry: Exploring Angles and Sides of Triangles

View document

Mathematics

Rearrangement in Mathematics

View document

Exploring the Fundamentals of Integral Geometry

Integral geometry is a mathematical discipline that focuses on the study of properties of shapes that are invariant under transformations such as rotations and translations. It employs integration techniques to evaluate these properties across various spaces, distinguishing itself from classical geometry, which often concentrates on local properties. Integral geometry is instrumental in addressing complex geometrical problems and has practical applications in diverse areas including computer vision, robotics, and medical imaging, where understanding the global aspects of shapes is crucial.
Collection of geometric shapes with a white sphere, red cone, cyan cylinder, yellow cube, and green pyramid on a black surface, showcasing light and shadow interplay.

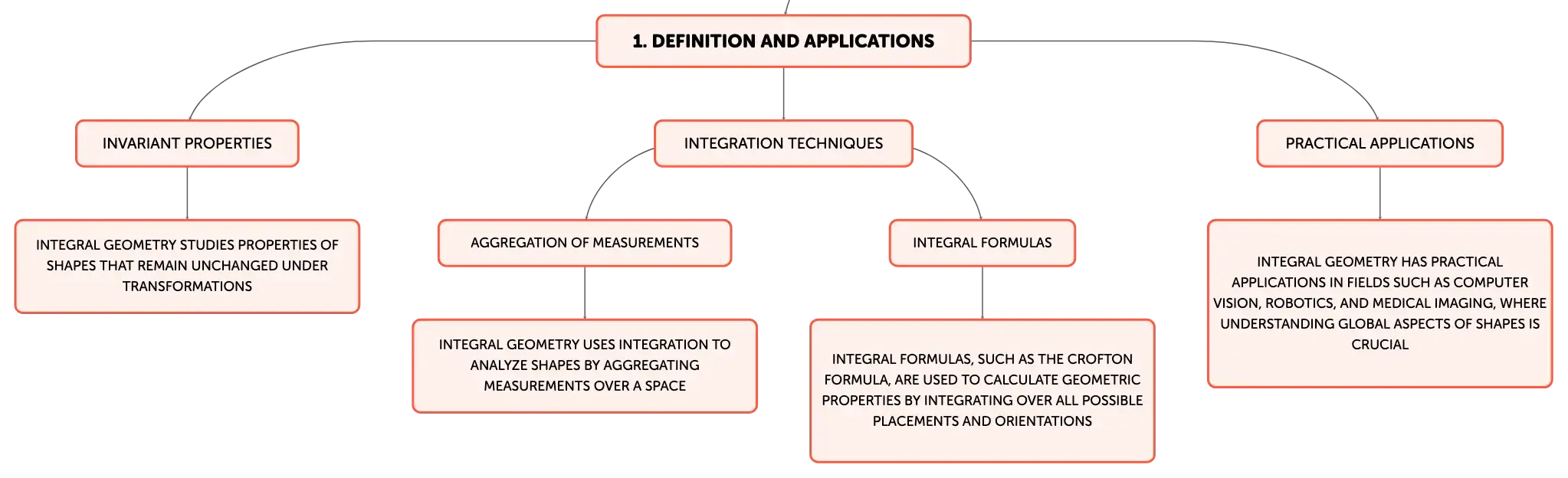

Defining Integral Geometry and Its Key Concepts

Integral geometry is concerned with the study of geometric invariants under the action of transformation groups, utilizing integration as a fundamental tool. It involves aggregating geometric measurements over a space to analyze shapes comprehensively. For example, integral geometry can be used to calculate the volume or area of a shape by considering all possible placements and orientations within a space. A notable technique is the use of integral formulas, such as the Crofton formula, to determine the length of a curve by integrating over all lines that intersect it, offering a unique approach compared to direct measurements.

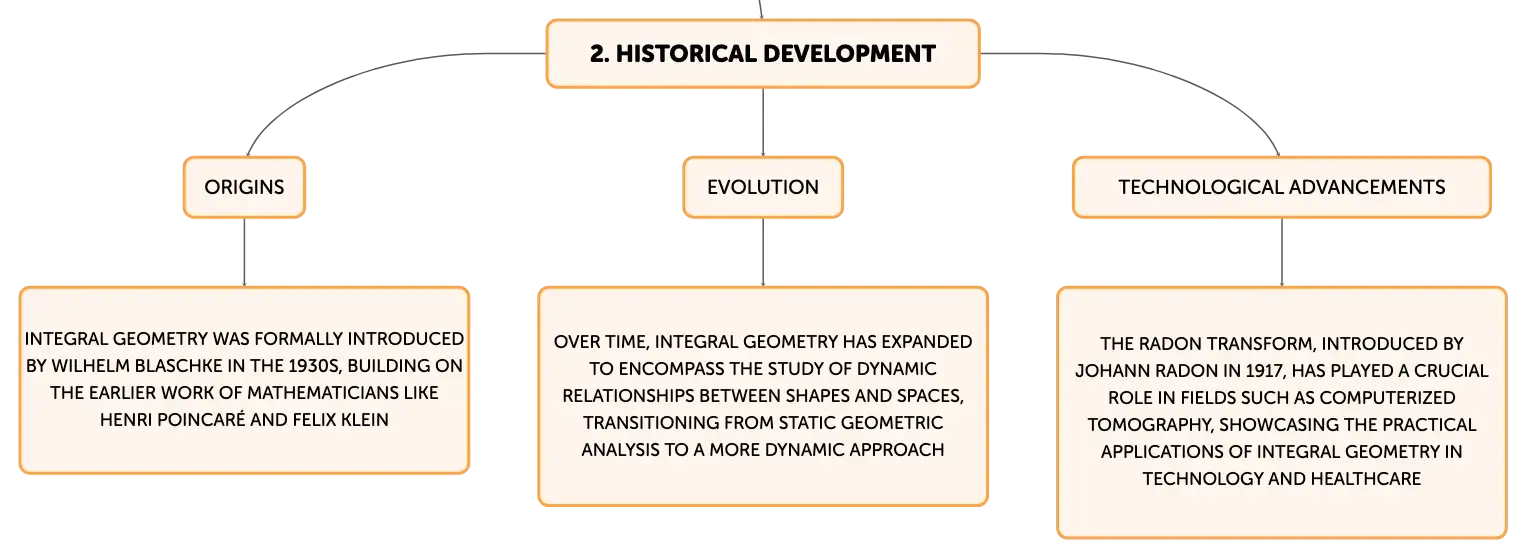

The Historical Development of Integral Geometry

The concept of integral geometry was formally introduced by Wilhelm Blaschke in the 1930s, building on the earlier work of mathematicians like Henri Poincaré and Felix Klein, who studied transformation groups. Over time, integral geometry has expanded to encompass the study of dynamic relationships between shapes and spaces, transitioning from static geometric analysis to a more dynamic approach. This progression has enhanced the utility of integral geometry in various scientific fields, such as medical imaging, where it plays a critical role in reconstructing images from incomplete projection data.

The Significance of the Radon Transform in Integral Geometry

The Radon transform, introduced by Johann Radon in 1917, is a transformative concept in integral geometry. It provides a method for reconstructing a function on \( \mathbf{R}^n \) from its integrals over specific manifolds, like lines or planes. The Radon transform and its inverse are particularly important in the realm of computerized tomography (CT), where they are used to reconstruct images from projection data, showcasing the practical applications of integral geometry in technology and healthcare.

Real-World Applications and Advanced Uses of Integral Geometry

Integral geometry is exemplified through practical exercises such as computing the area within a curve or the volume of intricate shapes by integrating over intersecting lines or planes. These foundational examples pave the way for more sophisticated applications. In medical imaging, for instance, the Radon Transform is employed to reconstruct cross-sectional images from CT scans by processing X-ray measurements. This technique has become a cornerstone in non-invasive diagnostic procedures, transforming the field of medical diagnostics.

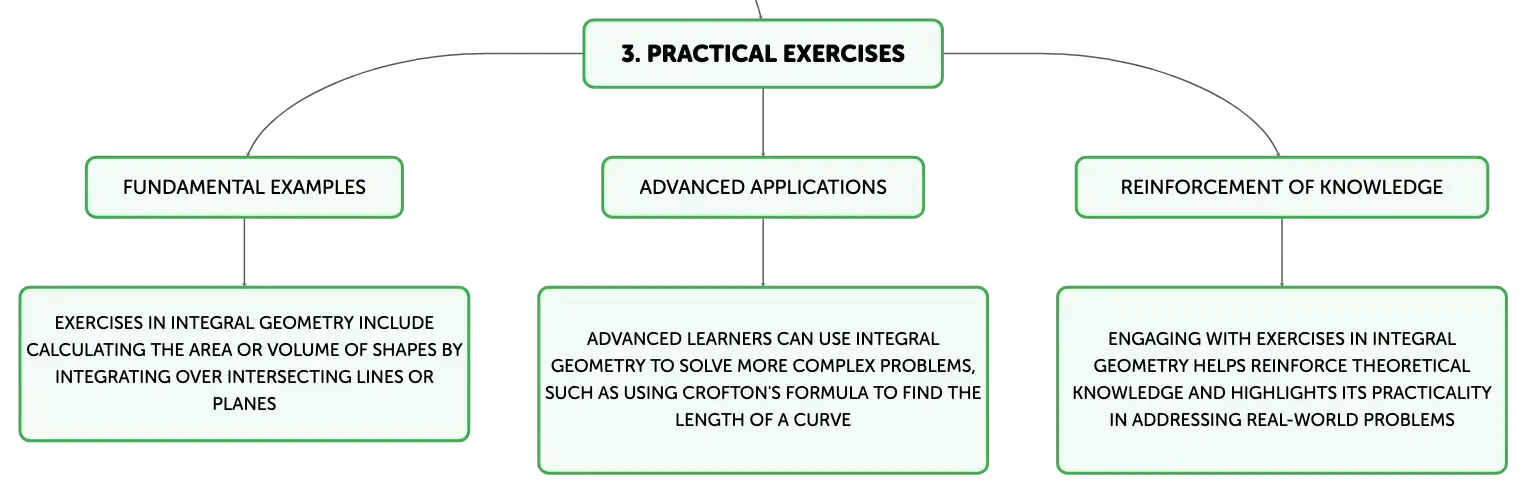

Enhancing Comprehension Through Integral Geometry Exercises

Engaging with exercises in integral geometry is essential for reinforcing the theoretical knowledge acquired. Beginners may start with problems involving the calculation of simple geometric figures using integral methods, while advanced learners might tackle problems using Crofton's formula to find the length of a curve. These exercises not only illustrate the practicality of integral geometry but also underscore its importance in addressing both theoretical and real-world problems.

The Multidisciplinary Reach and Influence of Integral Geometry

Integral geometry is an interdisciplinary field that merges aspects of geometry, algebra, and analysis to solve complex spatial problems. It also intersects with geometric probability, contributing to the field of stochastic geometry and spatial statistics. The applications of integral geometry extend to various sectors, impacting medical imaging, astrophysics, and computer vision. Its capacity to address intricate spatial challenges underscores the significant role that theoretical mathematics plays in practical and industrial contexts, highlighting the far-reaching effects of mathematical innovation.
