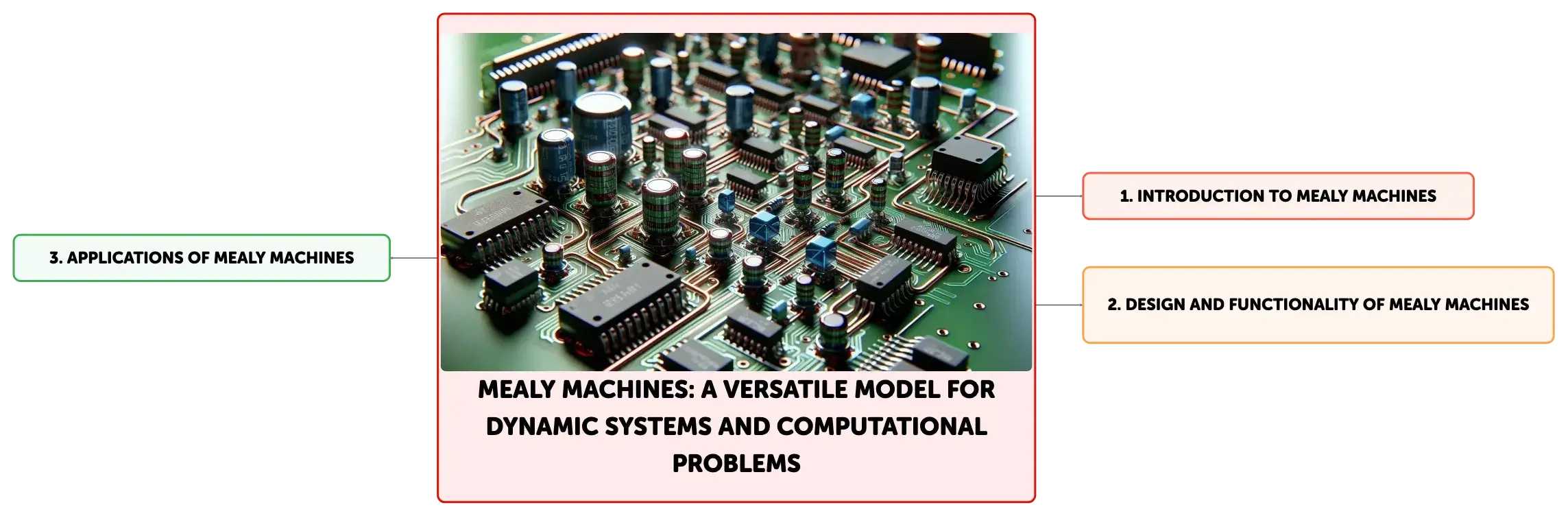

Concept Map
Mealy Machines are finite state machines that produce outputs based on current states and inputs. Developed by George H. Mealy in 1955, they are essential in computer science for designing dynamic systems and solving computational problems. These machines are defined by a six-tuple, including states, input/output symbols, transition and output functions, and an initial state. They are used in sequence detectors, error correction, embedded systems, and more, showcasing their versatility in both theoretical and practical applications.
Summary
Outline
Exploring the Fundamentals of Mealy Machines
Mealy Machines, conceptualized by George H. Mealy in 1955, are a class of finite state machines crucial to the field of computer science and digital logic design. These machines are characterized by their ability to produce outputs that are determined by both the current state and the current input, unlike Moore machines, which base their outputs solely on the current state. A Mealy Machine is formally defined by a six-tuple, which includes a finite set of states (Q), a set of input symbols (Σ), a set of output symbols (Ω), a transition function (δ: Q × Σ → Q), an output function (λ: Q × Σ → Ω), and an initial state (q0 ∈ Q). This structure enables the Mealy Machine to process sequences of inputs and generate corresponding outputs, making it an effective model for simulating dynamic systems and addressing complex computational problems.Components and Dynamics of Mealy Machines
A comprehensive understanding of Mealy Machines requires familiarity with their components and dynamics. The finite set of states (Q) encapsulates all the conceivable statuses the machine can assume. The input alphabet (Σ) comprises the set of symbols that the machine can read, and the output alphabet (Ω) contains the symbols that the machine can produce. The state transition function (δ) maps each combination of the current state and input to a subsequent state, while the output function (λ) defines the output for each pair of current state and input. The operation of a Mealy Machine is a cyclic process where it reads an input symbol, transitions to a new state as per δ, and emits an output as determined by λ. This cycle is repeated for each input symbol, with the state transitions and outputs being influenced by the history of inputs and states.Real-World and Theoretical Applications of Mealy Machines
Mealy Machines are employed in a variety of theoretical and practical contexts. In the realm of theoretical computer science, they serve as the foundation for designing systems such as sequence detectors, error detection and correction mechanisms, and converters for various coding schemes. These applications underscore the machine's capability to manage intricate operations with efficiency. In practical scenarios, Mealy Machines are instrumental in the functioning of embedded systems, including traffic signal controllers, digital communication protocols, and consumer electronics, where they govern state transitions in response to environmental inputs or user interactions. The versatility of Mealy Machines in these diverse applications demonstrates their significance and adaptability in addressing real-world computational challenges.Designing a Mealy Machine
The design of a Mealy Machine is a methodical process that begins with a clear definition of the problem or system to be modeled. This involves identifying the necessary states, input and output alphabets, and then formulating the state transition and output functions. The transition function (δ) is crafted to map each state-input pair to the appropriate next state, while the output function (λ) is designed to determine the corresponding output for each state-input combination. To construct an effective Mealy Machine, it is important to focus on creating a simple and clear design, thoroughly testing the machine to ensure it behaves as intended, and iterating the design as needed to refine its operation.The Role of State Transitions in Mealy Machines
State transitions are pivotal to the operation of Mealy Machines, dictating the machine's response to input stimuli. These transitions are directed by the state transition function (δ), which is responsible for the machine's adaptability and responsiveness. Each state-input pair is mapped to a specific next state by δ, ensuring that the machine's behavior aligns with the system it is intended to model. Mastery of state transitions is essential for the effective deployment of Mealy Machines in computational tasks and for a deeper appreciation of their significance within the broader context of automata theory.Mealy Machines in the Context of Automata Theory
Mealy Machines hold a prominent position in automata theory, which is a foundational area of theoretical computer science that examines the properties and capabilities of abstract machines. These finite state machines are distinguished by their output-generating behavior, which is contingent on both the current state and the input received. This attribute allows Mealy Machines to be more state-efficient than their Moore machine counterparts, often requiring fewer states for equivalent functionality. In automata theory, Mealy Machines are represented through state diagrams that visually illustrate the states, inputs, outputs, and transitions, aiding in the comprehension and analysis of their behavior. The significance of Mealy Machines in automata theory is reflected in their contributions to the development of programming languages, compilers, and artificial intelligence, showcasing their extensive applicability and educational importance.
Show More

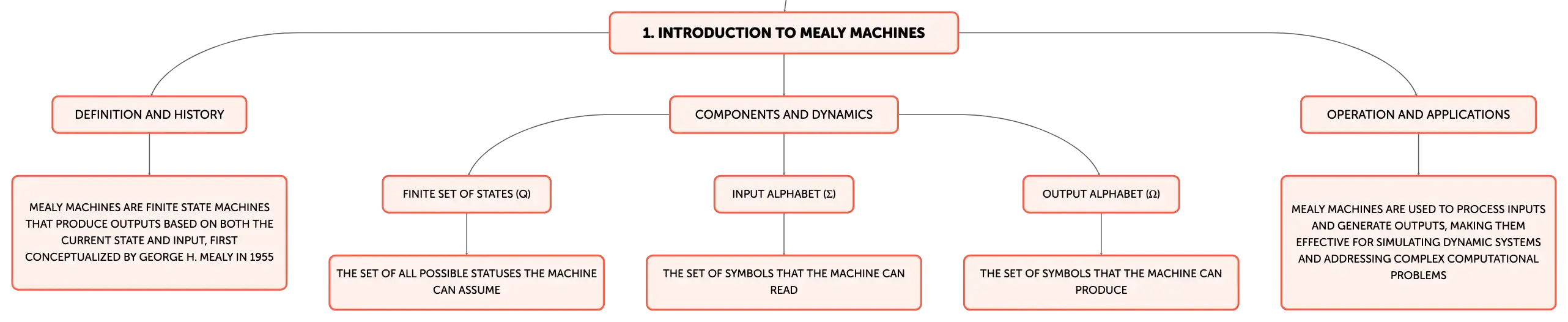

Introduction to Mealy Machines
Definition and History
Mealy Machines are finite state machines that produce outputs based on both the current state and input, first conceptualized by George H. Mealy in 1955
Components and Dynamics
Finite Set of States (Q)
The set of all possible statuses the machine can assume
Input Alphabet (Σ)
The set of symbols that the machine can read
Output Alphabet (Ω)
The set of symbols that the machine can produce
Operation and Applications
Mealy Machines are used to process inputs and generate outputs, making them effective for simulating dynamic systems and addressing complex computational problems

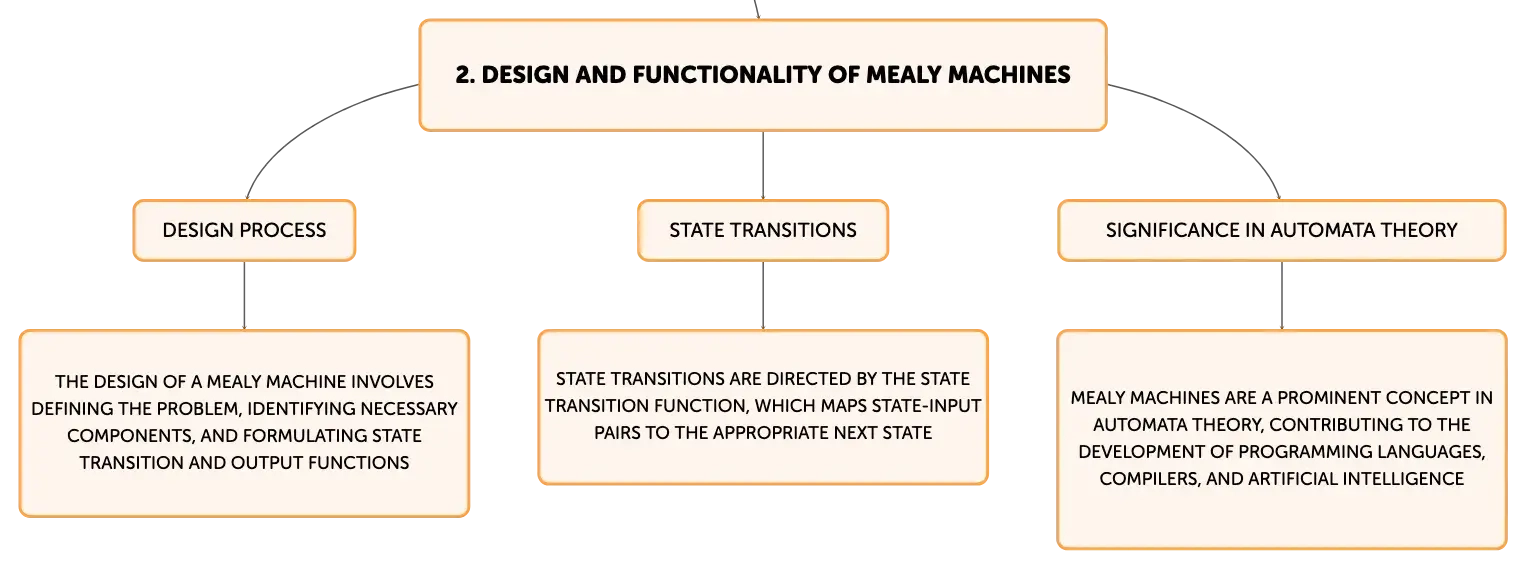

Design and Functionality of Mealy Machines
Design Process
The design of a Mealy Machine involves defining the problem, identifying necessary components, and formulating state transition and output functions
State Transitions
State transitions are directed by the state transition function, which maps state-input pairs to the appropriate next state
Significance in Automata Theory
Mealy Machines are a prominent concept in automata theory, contributing to the development of programming languages, compilers, and artificial intelligence

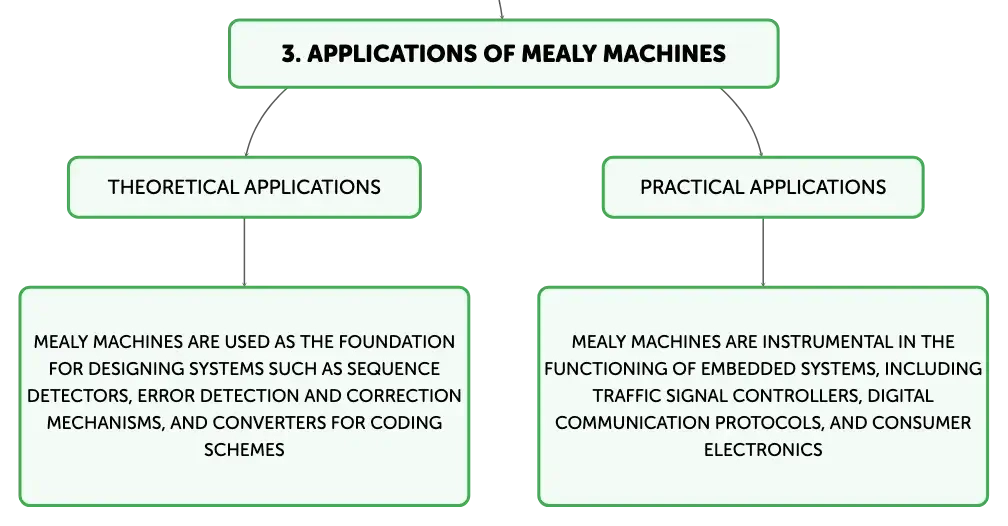

Applications of Mealy Machines
