The Central Processing Unit (CPU): The Heart of Computer Operations
The Central Processing Unit (CPU) is the principal component of a computer system, responsible for interpreting and executing program instructions as well as performing data processing tasks. It is the pivotal element that allows a computer to run software and perform essential functions. The CPU carries out a range of operations, including arithmetic calculations, logical decisions, and managing the flow of information to various peripherals. Its efficiency in executing the fetch, decode, and execute cycles is critical to the overall performance of the computer.Core Components of the CPU
The CPU consists of several key components that work together to process instructions: the Arithmetic Logic Unit (ALU), the Control Unit (CU), and a set of registers. The ALU executes arithmetic and logical operations, while the CU directs the sequence of data processing and the interaction between the CPU and memory. Registers are small, fast storage locations that hold data and instructions temporarily, allowing for rapid access and manipulation during the execution of tasks.Determinants of CPU Performance
CPU performance is influenced by a variety of factors that determine how efficiently it can process instructions. Clock speed, measured in gigahertz (GHz), indicates the frequency at which the CPU operates and processes instructions. Multiple cores in a CPU enable parallel processing, increasing the amount of work that can be done simultaneously. Cache memory, a small and fast type of volatile computer memory, provides the CPU with quick access to frequently used data and instructions. The instruction set architecture (ISA) determines the set of operations the CPU can perform and affects how software is written for the processor.Illustrating CPU Functionality with Diagrams
Function diagrams are valuable educational tools that depict the CPU's structure and operational processes. These diagrams typically represent the ALU, CU, registers, and the buses that facilitate data transfer within the CPU and between the CPU and other system components. By examining function diagrams, students can visualize the dynamic flow of data and instructions, gaining a clearer understanding of how the CPU functions and interacts with other parts of the computer system.The Fetch-Decode-Execute Cycle: The CPU's Instruction Processing Sequence
The Fetch-Decode-Execute Cycle is the core sequence of steps the CPU follows to process instructions. During the fetch step, the CPU retrieves an instruction from the computer's memory. The decode step involves the CU interpreting the instruction and preparing the necessary operations. Finally, in the execute step, the CPU carries out the instruction, which may involve calculations by the ALU, data transfer to or from memory, or operations on data stored in registers. This repetitive cycle is essential for the CPU to process instructions accurately and efficiently.The Role of CPU Components in Program Execution
Each component within the CPU has a specific role in the execution of programs. The ALU handles all arithmetic and logical operations required by the program instructions. The CU oversees the Fetch-Decode-Execute Cycle, coordinating the correct sequencing and execution of instructions. Registers provide a fast-access storage area for temporary data and instructions that are actively being processed. The harmonious operation of these components is crucial for the rapid and correct processing of instructions, which in turn affects the overall performance and stability of the computer system.Conclusion: Grasping CPU Functionality
To conclude, the CPU is a sophisticated and essential component of computer systems, tasked with executing instructions and processing data. Its performance hinges on the design and efficiency of its internal components, including the ALU, CU, and registers, as well as external factors such as clock speed, core count, and cache size. A thorough understanding of the CPU's structure, its components, and the Fetch-Decode-Execute Cycle provides insight into the inner workings of computer architecture. This knowledge is fundamental for comprehending how computers execute a wide array of tasks, from basic computations to complex software applications.
Show More

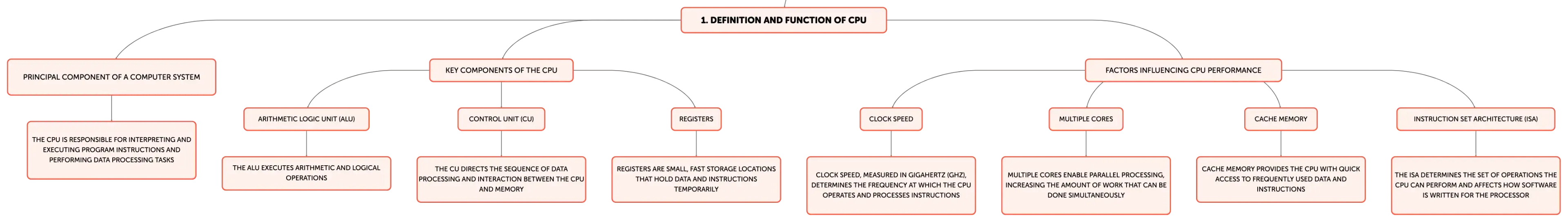

Definition and Function of CPU
Principal component of a computer system
The CPU is responsible for interpreting and executing program instructions and performing data processing tasks
Key components of the CPU
Arithmetic Logic Unit (ALU)
The ALU executes arithmetic and logical operations
Control Unit (CU)
The CU directs the sequence of data processing and interaction between the CPU and memory
Registers
Registers are small, fast storage locations that hold data and instructions temporarily
Factors influencing CPU performance
Clock speed
Clock speed, measured in gigahertz (GHz), determines the frequency at which the CPU operates and processes instructions
Multiple cores
Multiple cores enable parallel processing, increasing the amount of work that can be done simultaneously
Cache memory
Cache memory provides the CPU with quick access to frequently used data and instructions
Instruction set architecture (ISA)
The ISA determines the set of operations the CPU can perform and affects how software is written for the processor

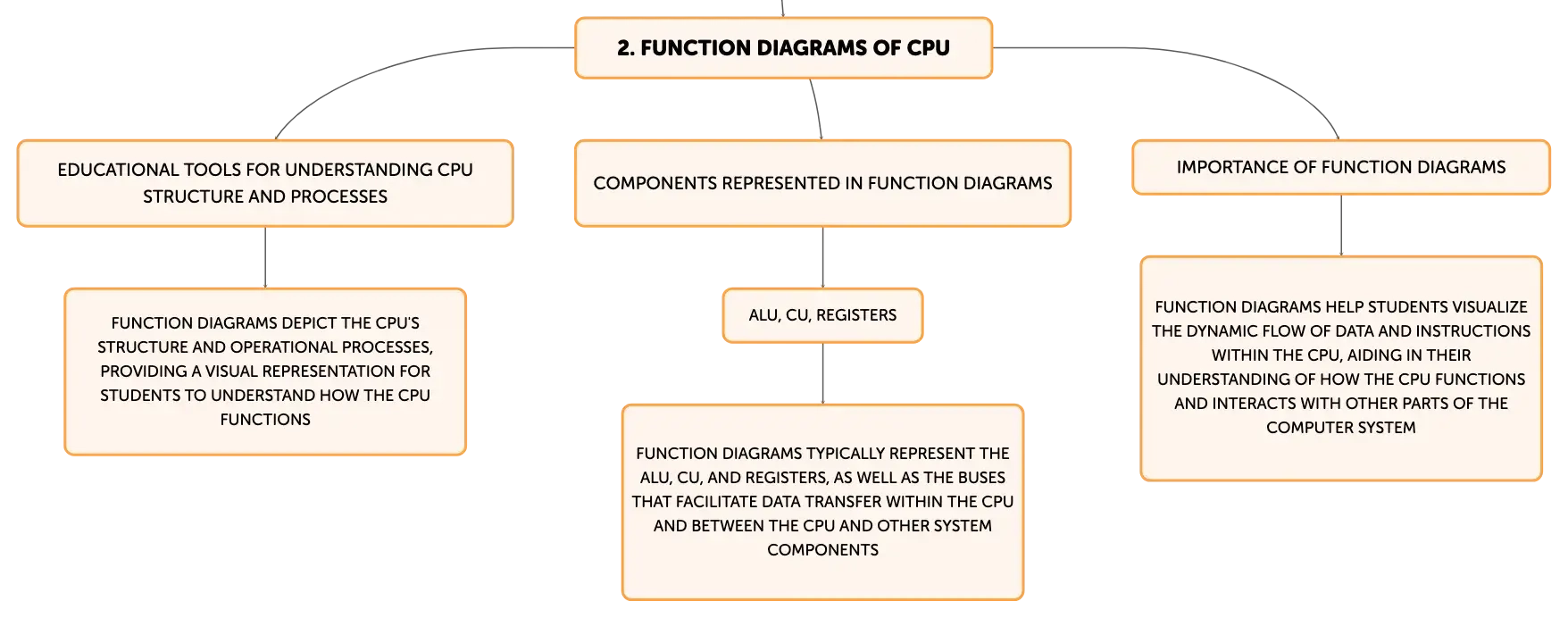

Function Diagrams of CPU
Educational tools for understanding CPU structure and processes
Function diagrams depict the CPU's structure and operational processes, providing a visual representation for students to understand how the CPU functions
Components represented in function diagrams
ALU, CU, registers
Function diagrams typically represent the ALU, CU, and registers, as well as the buses that facilitate data transfer within the CPU and between the CPU and other system components
Importance of function diagrams
Function diagrams help students visualize the dynamic flow of data and instructions within the CPU, aiding in their understanding of how the CPU functions and interacts with other parts of the computer system

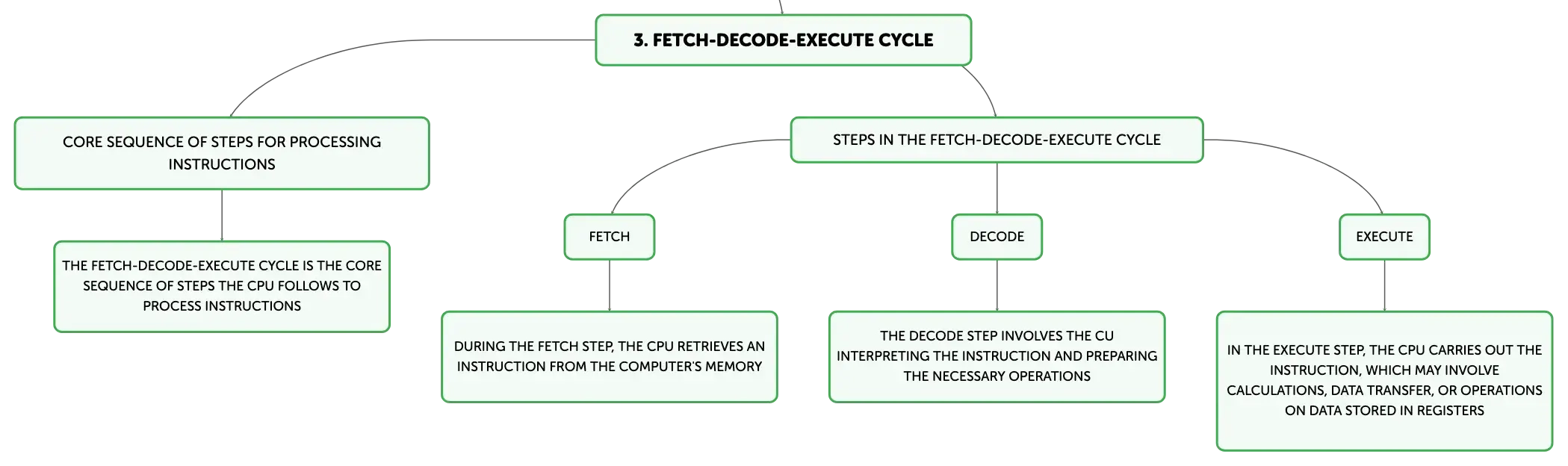

Fetch-Decode-Execute Cycle
Core sequence of steps for processing instructions
The Fetch-Decode-Execute Cycle is the core sequence of steps the CPU follows to process instructions
Steps in the Fetch-Decode-Execute Cycle
Fetch
During the fetch step, the CPU retrieves an instruction from the computer's memory
Decode
The decode step involves the CU interpreting the instruction and preparing the necessary operations
Execute
In the execute step, the CPU carries out the instruction, which may involve calculations, data transfer, or operations on data stored in registers

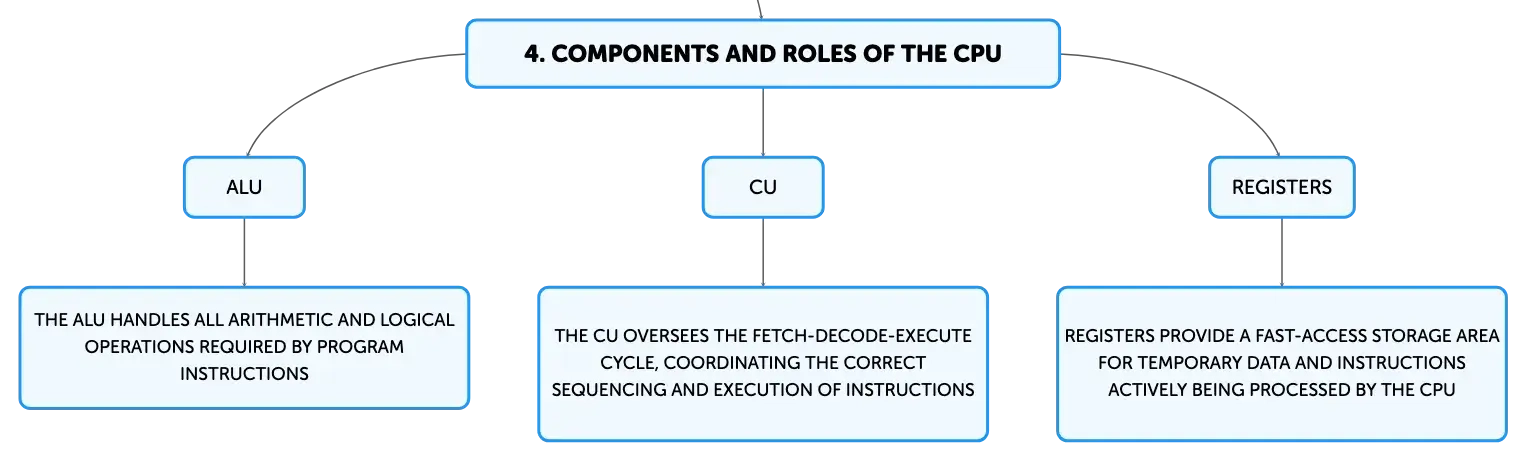

Components and Roles of the CPU
ALU
The ALU handles all arithmetic and logical operations required by program instructions
CU
The CU oversees the Fetch-Decode-Execute Cycle, coordinating the correct sequencing and execution of instructions
Registers
Registers provide a fast-access storage area for temporary data and instructions actively being processed by the CPU
