The Oblique Ray Method in Optics

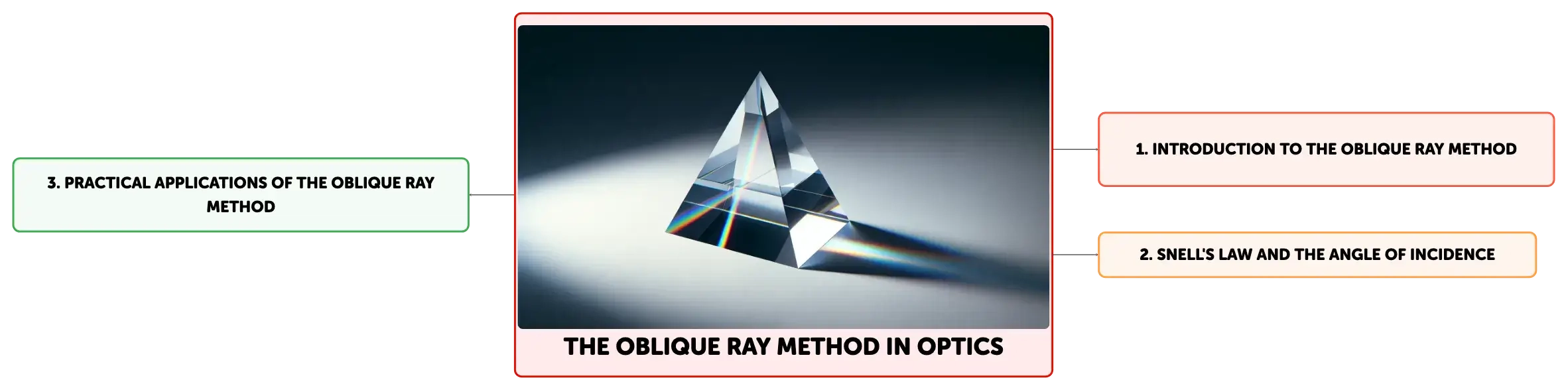

Concept Map
The Oblique Ray Method is a pivotal technique in optics for analyzing how light rays interact with materials at non-perpendicular angles. It relies on Snell's Law to predict light behavior during refraction, reflection, and diffraction. This method is essential for designing optical devices like lenses and mirrors, and for understanding light transmission in optical fibers, impacting fields from microscopy to telecommunications.
Summary
Outline
Understanding the Oblique Ray Method in Optical Studies
The Oblique Ray Method is an essential analytical technique in optics, the branch of physics that examines light's properties and interactions. This method is crucial for understanding how light rays engage with various materials when incident at oblique angles, which is fundamental to the study of refraction, reflection, and diffraction. Utilizing the Oblique Ray Method allows for accurate predictions of light behavior in diverse situations, ranging from simple mirror reflections to the intricate transmission of light through optical fibers in communication networks.Core Principles of the Oblique Ray Method
The Oblique Ray Method is grounded in the fundamental laws of light behavior during medium transitions. According to Snell's Law, when light traverses from one medium to another at an angle other than perpendicular, it changes direction. Snell's Law is mathematically expressed as \( n_1 \sin(\theta_1) = n_2 \sin(\theta_2) \), where \( n_1 \) and \( n_2 \) represent the refractive indices of the two media, and \( \theta_1 \) and \( \theta_2 \) are the angles of incidence and refraction, respectively. Mastery of Snell's Law is vital for employing the Oblique Ray Method to calculate the precise angles of refraction or reflection, making it an indispensable tool in optical research and applications.Impact of the Angle of Incidence in the Oblique Ray Method
The angle of incidence plays a pivotal role in the Oblique Ray Method, dictating the behavior of light upon interacting with surfaces. This angle, defined as the measure between the incoming ray and the normal to the surface at the point of incidence, determines the path of light—whether it will be refracted, reflected, or totally internally reflected. The Law of Reflection, which posits that the angle of incidence is equal to the angle of reflection, is one of the principles that can be analyzed using the Oblique Ray Method. The angle of incidence is not only crucial for applying Snell's Law but is also key to predicting light's behavior in a multitude of optical devices.Practical Applications of the Oblique Ray Method
The Oblique Ray Method has a wide array of practical applications, demonstrating its significance in the field of physics. It is instrumental in designing optical components such as lenses and mirrors, which are central to the functionality of instruments like microscopes, telescopes, and cameras. The method also aids in calculating the focal lengths of these components. In telecommunications, the behavior of light within optical fibers is of paramount importance, and the Oblique Ray Method offers the theoretical foundation necessary for understanding and enhancing these complex systems.Snell's Law and Its Role in Light Refraction Analysis
Snell's Law is the linchpin of the Oblique Ray Method, providing the mathematical relationship between the angles of incidence and refraction for light crossing the interface between two isotropic media. This law is vital for comprehending light refraction, the deviation of light's path as it enters a medium with a different optical density. By applying Snell's Law, the Oblique Ray Method facilitates the analysis and prediction of light's behavior during refraction, serving as a powerful tool in the field of optics.Conclusion: The Integral Value of the Oblique Ray Method in Optics
The Oblique Ray Method stands as a fundamental analytical instrument in optics, enhancing our understanding of light's interactions with different media. Relying on Snell's Law and the concept of the angle of incidence, it offers a systematic methodology for elucidating optical phenomena. The method's applications span from theoretical research to the development of technological innovations, underscoring its utility in both academic and industrial contexts. Proficiency in the Oblique Ray Method deepens one's knowledge of physics and facilitates advancements in the exploration and practical use of optical principles.
Show More

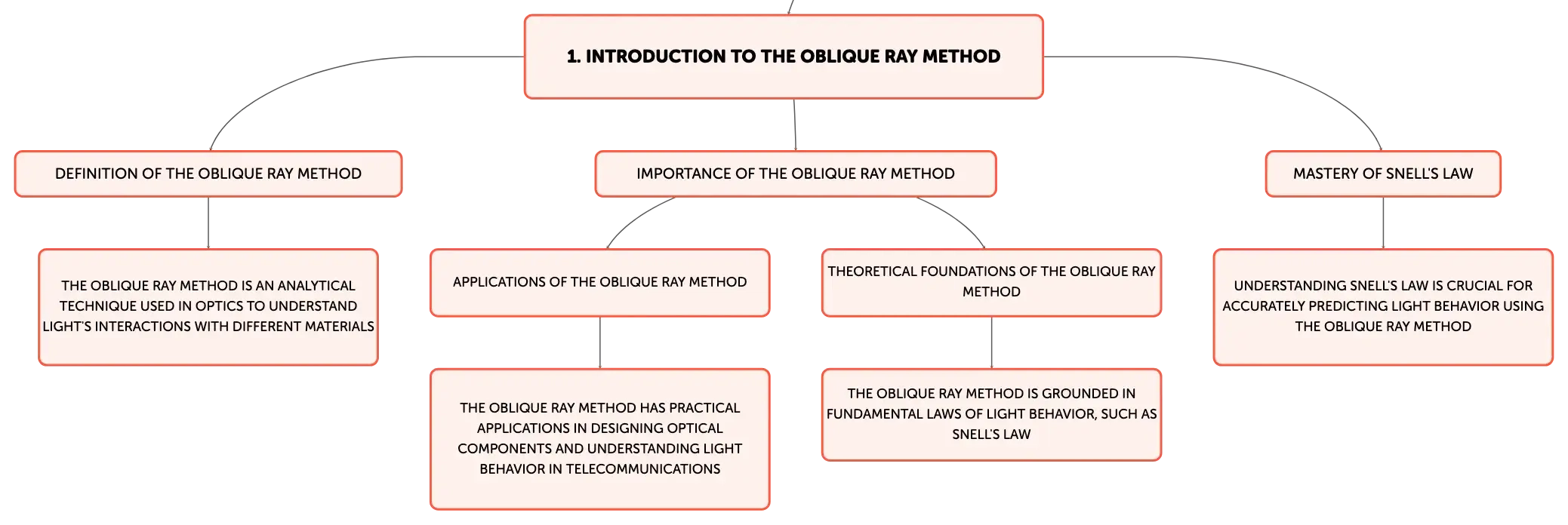

Introduction to the Oblique Ray Method
Definition of the Oblique Ray Method
The Oblique Ray Method is an analytical technique used in optics to understand light's interactions with different materials
Importance of the Oblique Ray Method
Applications of the Oblique Ray Method
The Oblique Ray Method has practical applications in designing optical components and understanding light behavior in telecommunications
Theoretical Foundations of the Oblique Ray Method
The Oblique Ray Method is grounded in fundamental laws of light behavior, such as Snell's Law
Mastery of Snell's Law
Understanding Snell's Law is crucial for accurately predicting light behavior using the Oblique Ray Method

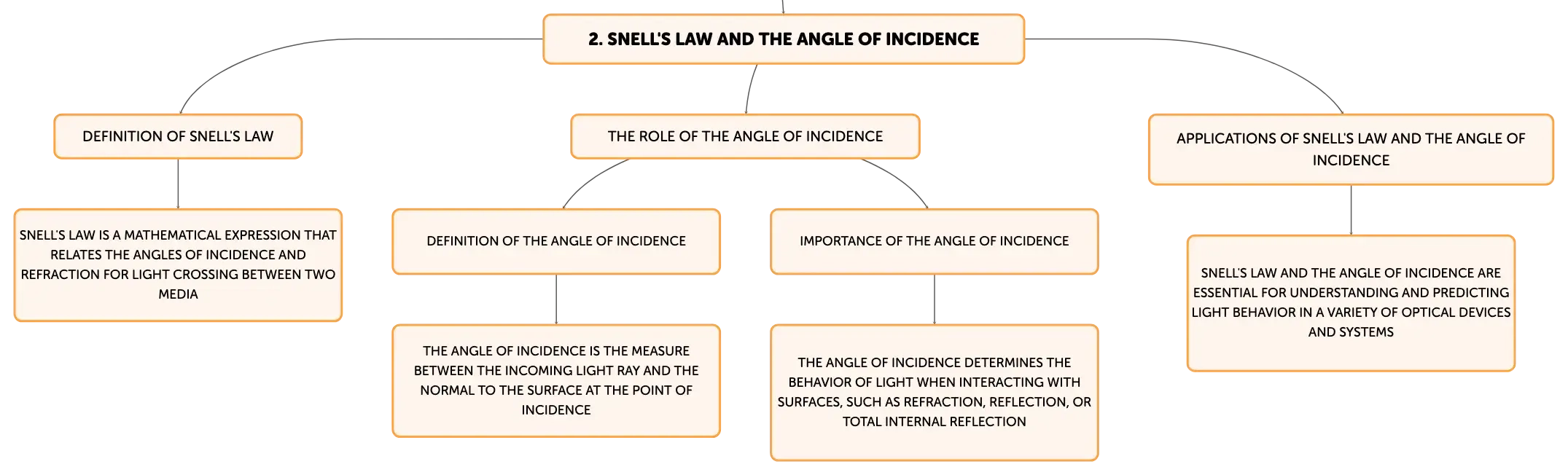

Snell's Law and the Angle of Incidence
Definition of Snell's Law
Snell's Law is a mathematical expression that relates the angles of incidence and refraction for light crossing between two media
The Role of the Angle of Incidence
Definition of the Angle of Incidence
The angle of incidence is the measure between the incoming light ray and the normal to the surface at the point of incidence
Importance of the Angle of Incidence
The angle of incidence determines the behavior of light when interacting with surfaces, such as refraction, reflection, or total internal reflection
Applications of Snell's Law and the Angle of Incidence
Snell's Law and the angle of incidence are essential for understanding and predicting light behavior in a variety of optical devices and systems
Practical Applications of the Oblique Ray Method
Designing Optical Components
The Oblique Ray Method is instrumental in designing lenses and mirrors for instruments like microscopes, telescopes, and cameras
Calculating Focal Lengths
The Oblique Ray Method aids in calculating the focal lengths of optical components
Understanding Light Behavior in Telecommunications
The Oblique Ray Method provides the theoretical foundation for understanding and improving light behavior in optical fibers used in telecommunications
