Orthogonal Groups: Symmetries in Geometric Spaces

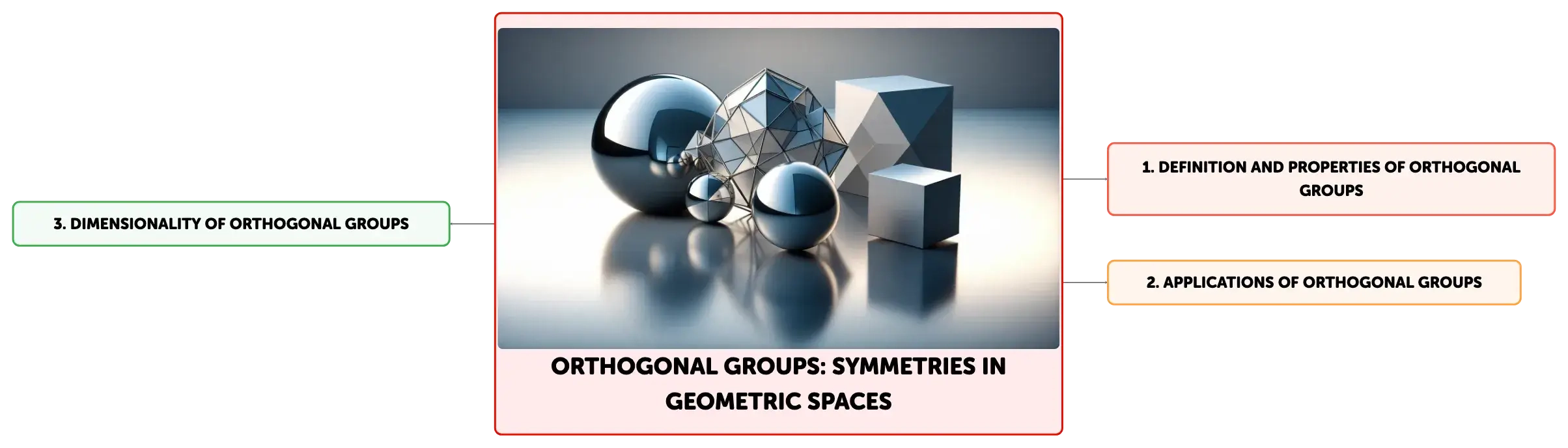

Concept Map
Orthogonal groups, denoted as O(n), are central to understanding geometric symmetries, preserving vector lengths and angles in space. Special orthogonal groups, or SO(n), maintain orientation and are key in fields like robotics and quantum mechanics. The dimensionality of these groups indicates the degrees of freedom in transformations, essential for applications in computer graphics and numerical linear algebra.
Summary
Outline
Exploring the Fundamentals of Orthogonal Groups
Orthogonal groups, symbolized as O(n), play a pivotal role in the study of symmetries within geometric spaces. These groups are composed of all n-by-n orthogonal matrices, where 'n' signifies the dimensionality of the space under consideration. An orthogonal matrix Q is defined by the condition that its transpose Q^T, when multiplied by Q, yields the identity matrix I, satisfying the equation Q^TQ = I and QQ^T = I. This defining property ensures that orthogonal transformations preserve the Euclidean length of vectors and the angles between them, making these groups fundamental in fields such as linear algebra, physics, and engineering. Orthogonal groups are not only theoretical constructs but also have practical implications in disciplines like quantum mechanics, where they describe symmetries of physical systems, and in computer graphics, where they are used to manipulate images and models.The Intersection of Orthogonal Groups with Geometry and Algebra
Orthogonal groups serve as a crucial link between the realms of algebra and geometry, enhancing our comprehension of spatial transformations. These groups are characterized by their ability to conserve the dot product of vectors, a property that is essential for maintaining the geometric integrity of space under transformations like rotations and reflections. The invariance of the dot product under orthogonal transformations implies that vector lengths and the angles between vectors are preserved, which is indispensable in fields that require the conservation of shape and orientation. For instance, in computer graphics, this property allows for the accurate rendering and manipulation of three-dimensional objects without distortion, ensuring that the visual representation of objects remains true to their original form.Distinguishing Special Orthogonal Groups and Their Applications
A subset of orthogonal groups is the special orthogonal groups, denoted by SO(n), which consist of orthogonal matrices with a determinant of +1. This determinant condition is crucial as it signifies that the transformations preserve not only distances and angles but also the orientation of the space. The group SO(2), for example, encompasses matrices corresponding to rotations within a two-dimensional plane. The group SO(3) is of particular interest as it represents all possible rotations in three-dimensional space, excluding reflections. Special orthogonal groups are central to the study of rotational symmetries and are extensively applied in various technological and scientific domains, such as robotics, where they guide the articulation of joints, and in quantum mechanics, where they describe the rotational states of particles.The Dimensionality and Degrees of Freedom in Orthogonal Groups
The dimension of an orthogonal group O(n) is a vital concept that denotes the number of independent parameters necessary to specify a transformation within the group. This dimension is given by the formula (n(n-1))/2, which corresponds to the degrees of freedom available in an n-dimensional orthogonal transformation. For example, the orthogonal group O(3) has a dimension of 3, indicating that three independent parameters, typically represented as Euler angles, are needed to fully describe a rotation in three-dimensional space. Understanding the dimensionality of orthogonal groups is essential, as it not only sheds light on the structure and properties of these groups but also has practical implications for the computational efficiency of algorithms used in various applications, such as computer graphics for simulating rotations and in numerical linear algebra for solving systems of equations.Visualizing and Utilizing Orthogonal Groups
The visualization and representation of orthogonal groups are integral to grasping the transformations they represent and applying them in practical contexts. These visual representations translate complex algebraic concepts into tangible geometric forms, facilitating a more intuitive understanding of the subject matter. When visualizing an orthogonal group, one can envision a coordinate system in which objects are rotated or reflected while maintaining the distances between points and the overall shape of the objects. This property is crucial in fields such as physics, where the symmetries of space and time are foundational concepts, and in computer graphics, where precise modeling of object orientations is critical. Thus, the graphical representation of orthogonal groups is not only a powerful educational tool but also a means to explore and apply mathematical principles in a wide array of scientific and technological fields.
Show More

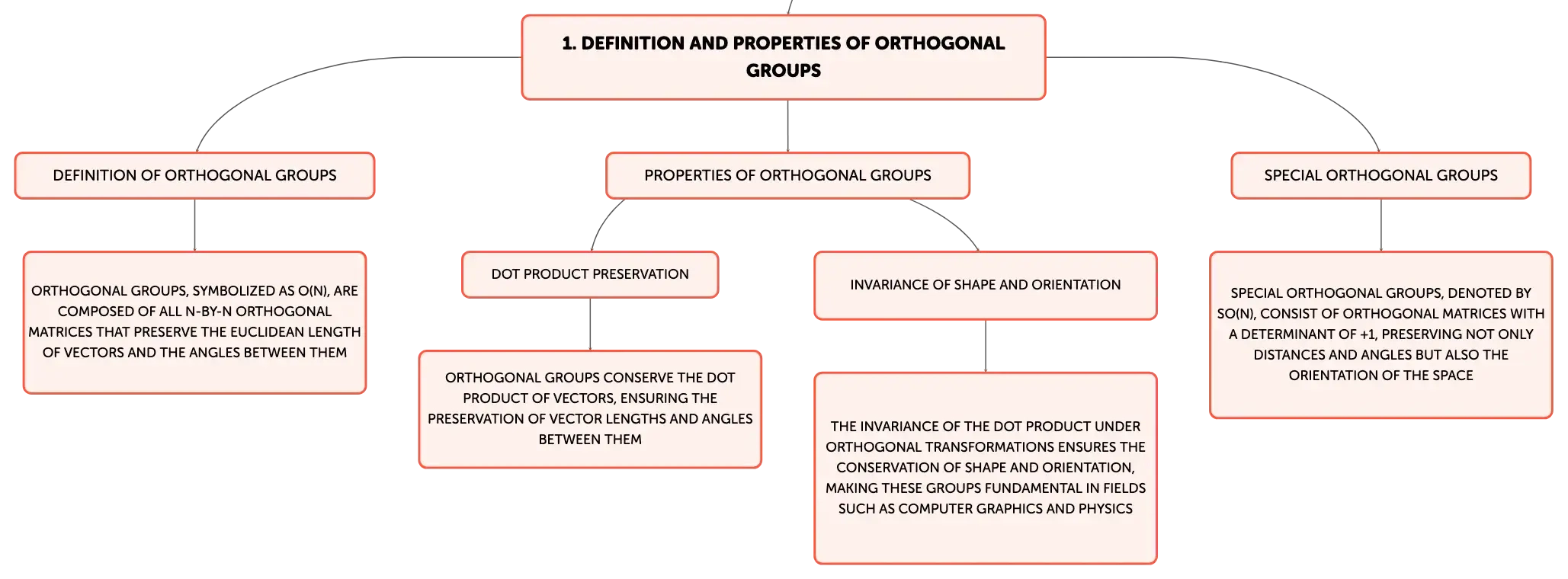

Definition and Properties of Orthogonal Groups
Definition of Orthogonal Groups
Orthogonal groups, symbolized as O(n), are composed of all n-by-n orthogonal matrices that preserve the Euclidean length of vectors and the angles between them
Properties of Orthogonal Groups
Dot Product Preservation
Orthogonal groups conserve the dot product of vectors, ensuring the preservation of vector lengths and angles between them
Invariance of Shape and Orientation
The invariance of the dot product under orthogonal transformations ensures the conservation of shape and orientation, making these groups fundamental in fields such as computer graphics and physics
Special Orthogonal Groups
Special orthogonal groups, denoted by SO(n), consist of orthogonal matrices with a determinant of +1, preserving not only distances and angles but also the orientation of the space

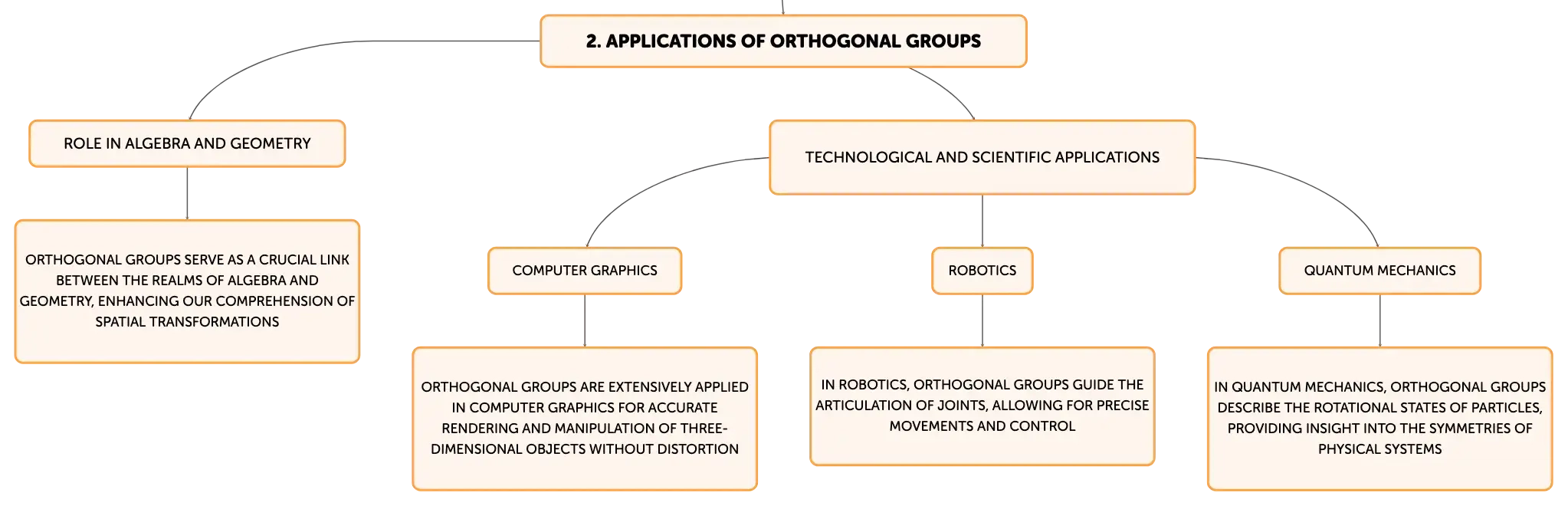

Applications of Orthogonal Groups
Role in Algebra and Geometry
Orthogonal groups serve as a crucial link between the realms of algebra and geometry, enhancing our comprehension of spatial transformations
Technological and Scientific Applications
Computer Graphics
Orthogonal groups are extensively applied in computer graphics for accurate rendering and manipulation of three-dimensional objects without distortion
Robotics
In robotics, orthogonal groups guide the articulation of joints, allowing for precise movements and control
Quantum Mechanics
In quantum mechanics, orthogonal groups describe the rotational states of particles, providing insight into the symmetries of physical systems

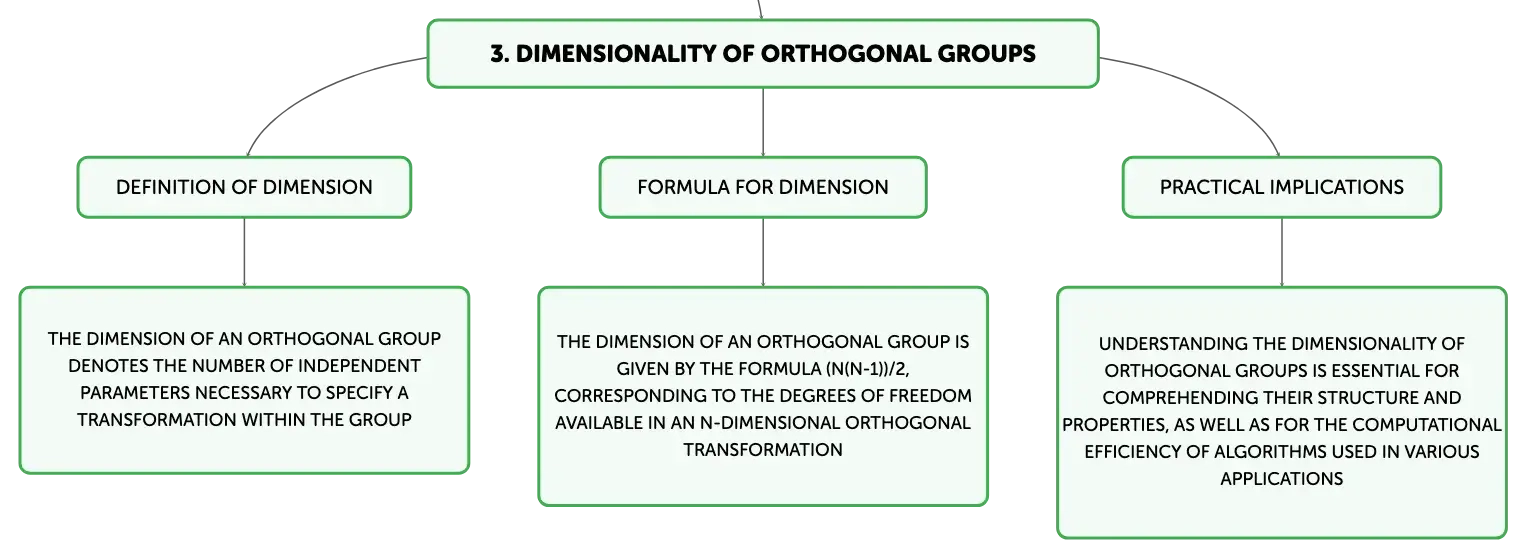

Dimensionality of Orthogonal Groups
Definition of Dimension
The dimension of an orthogonal group denotes the number of independent parameters necessary to specify a transformation within the group
Formula for Dimension
The dimension of an orthogonal group is given by the formula (n(n-1))/2, corresponding to the degrees of freedom available in an n-dimensional orthogonal transformation
Practical Implications
Understanding the dimensionality of orthogonal groups is essential for comprehending their structure and properties, as well as for the computational efficiency of algorithms used in various applications
Orthogonal Groups: Symmetries in Geometric Spaces
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Symbol for Orthogonal Groups
O(n) represents Orthogonal Groups, indicating symmetries in n-dimensional spaces.
01
Orthogonal Matrix Effect on Vectors
Orthogonal matrices preserve Euclidean length and angles between vectors.
02
Applications of Orthogonal Groups
Used in quantum mechanics for system symmetries and in computer graphics for image/model manipulation.
