Run Length Encoding (RLE)

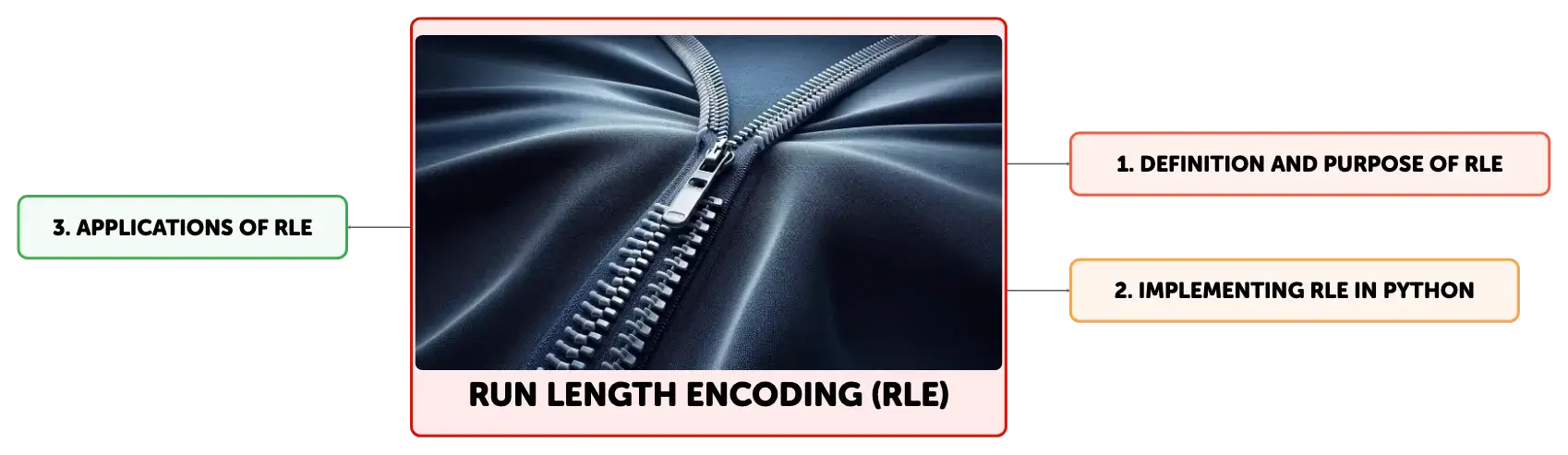

Concept Map
Run Length Encoding (RLE) is a data compression method that simplifies long sequences of repeated values into pairs of run lengths and values. It's efficient for data with repetitive patterns, such as binary data and JPEG images, and is used in digital photography, medical imaging, and more. While RLE is excellent for certain types of data, it may not suit datasets with high variability.
Summary
Outline
Exploring the Basics of Run Length Encoding
Run Length Encoding (RLE) is a simple yet effective data compression technique that excels when applied to data containing long sequences of repeated values. It compresses data by replacing these sequences with pairs that indicate the number of repetitions (the run length) and the repeated value itself. For example, the string "AAABBBCC" would be encoded as "3A3B2C" in RLE format. This method is particularly efficient for data with extensive repetitive patterns, as it can significantly reduce the amount of space needed for storage. However, RLE may not be the best choice for data with few repetitions, as it can sometimes increase the size of the data instead of reducing it.Implementing Run Length Encoding Using Python
Python is a programming language well-suited for implementing Run Length Encoding due to its clear syntax and powerful standard libraries. To encode data using RLE in Python, one typically initializes a variable to hold the encoded result and iterates through the input, counting consecutive occurrences of each element. When a new element is encountered, the count and the element are added to the result. A Python function for RLE would efficiently process the input string, tallying consecutive characters and forming the encoded output by combining the count with the corresponding character. This algorithm has a linear time complexity, O(n), which means it can process data in a time proportional to the size of the input, making it quite efficient for large datasets.Binary Run Length Encoding for Streamlined Data Storage
Binary Run Length Encoding is a specialized form of RLE designed for binary data, which consists of only two possible values: 0 and 1. This technique is highly effective for compressing long sequences of identical binary digits by representing them with pairs of the run length and the digit itself. Binary RLE is most efficient when the data contains extended runs of either 0s or 1s, but it is less effective for data with frequent alternations between 0s and 1s, which can lead to an increase in the encoded data size. This encoding method is particularly beneficial in scenarios such as binary image compression, where it can substantially reduce the amount of storage needed.Reversing Run Length Encoding: The Decompression Process
Decompressing data that has been encoded with Run Length Encoding involves reversing the encoding process to restore the original data. This is done by reading the encoded pairs and reproducing each value the specified number of times. In Python, this can be done succinctly with list multiplication. The decompression process is generally quick and straightforward, with a time complexity of O(n), similar to the encoding process. As RLE is a lossless compression technique, it ensures that the original data can be perfectly reconstructed. However, the efficiency of both compression and decompression with RLE is greatest when the original data contains substantial sequences of repeating values.The Integral Function of Run Length Encoding in JPEG Compression
In the realm of JPEG image compression, Run Length Encoding plays a pivotal role. JPEG images, commonly used for digital photography on the web, utilize a lossy compression algorithm that incorporates several steps, including RLE. Following the application of a Discrete Cosine Transform (DCT) to the image, which produces a matrix of frequency coefficients, RLE is employed to encode the sequences of zero coefficients that often appear between non-zero coefficients or at the end of a block. This encoding is represented by a two-part code indicating the number of consecutive zeros and the subsequent non-zero coefficient's amplitude. An end-of-block (EOB) symbol is also used to denote the end of a block's coefficients, further optimizing the compression. While similar to traditional RLE, JPEG's implementation is tailored to the specific patterns of zero coefficients and is combined with Huffman coding for additional compression efficiency.The Versatile Applications and Benefits of Run Length Encoding
Run Length Encoding is utilized in a variety of fields, extending beyond JPEG image compression to include bitmap graphics, medical imaging, thematic mapping, and fax transmission. Its straightforward, lossless nature makes it an invaluable tool for applications that demand accurate data reproduction. RLE is beneficial for reducing data sizes, which can lead to more efficient storage and transmission of data. Although not a method of encryption, the compression process can offer a degree of data obfuscation, providing a basic level of security. The effectiveness of RLE is contingent upon the data's regularity and homogeneity; it may not be the optimal choice for highly varied or random datasets.
Show More

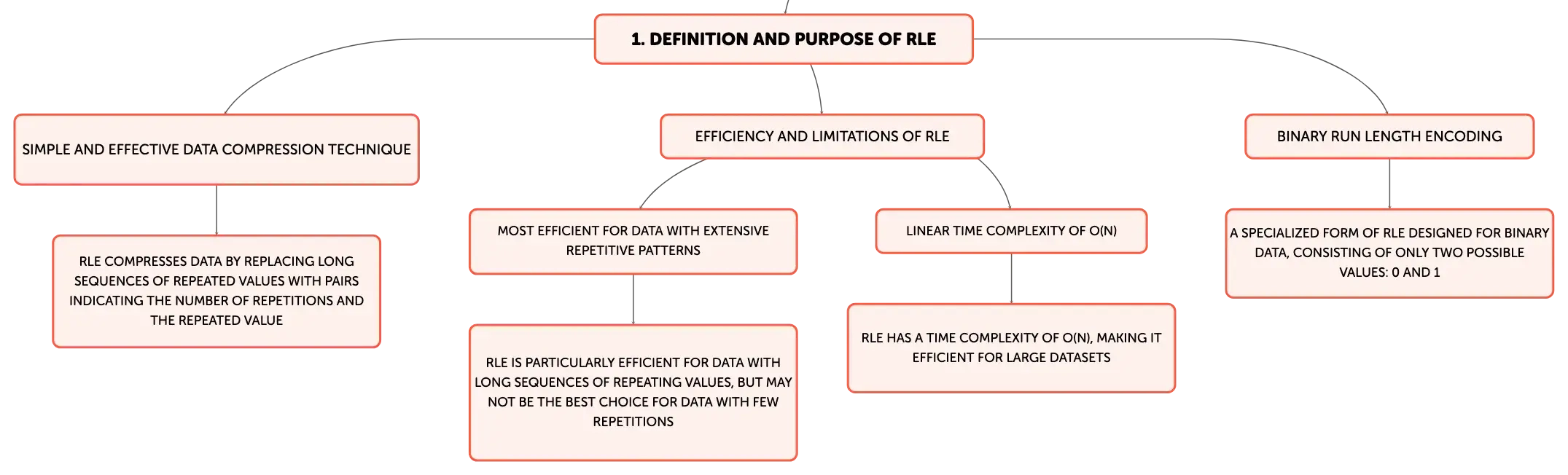

Definition and Purpose of RLE
Simple and effective data compression technique
RLE compresses data by replacing long sequences of repeated values with pairs indicating the number of repetitions and the repeated value
Efficiency and limitations of RLE
Most efficient for data with extensive repetitive patterns
RLE is particularly efficient for data with long sequences of repeating values, but may not be the best choice for data with few repetitions
Linear time complexity of O(n)
RLE has a time complexity of O(n), making it efficient for large datasets
Binary Run Length Encoding
A specialized form of RLE designed for binary data, consisting of only two possible values: 0 and 1

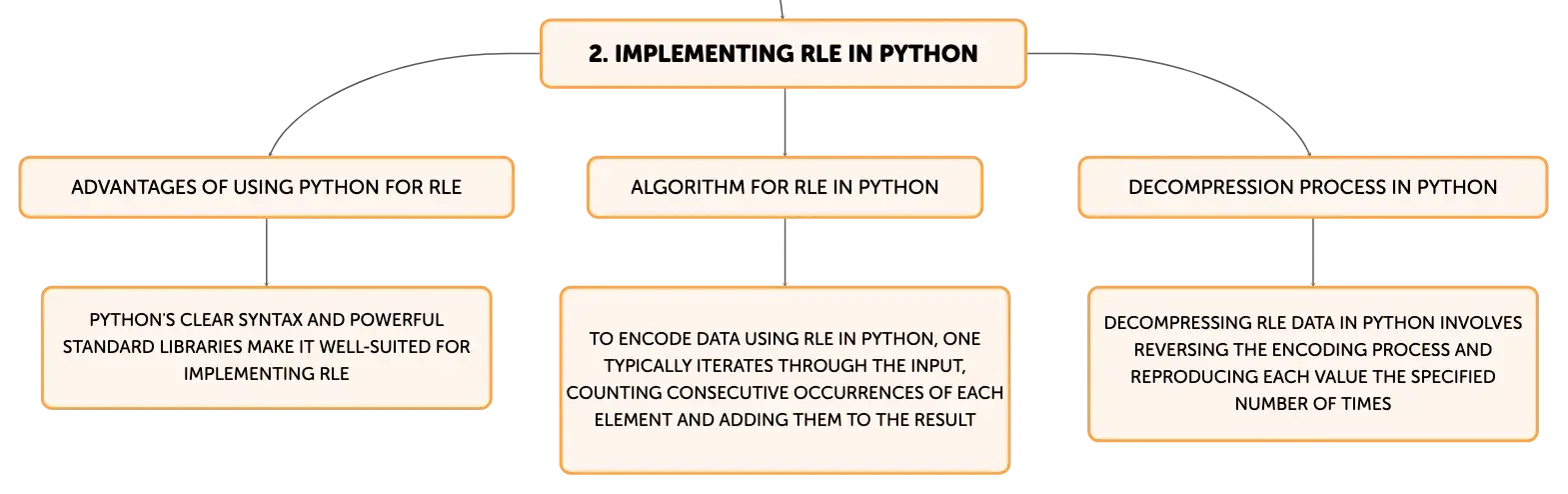

Implementing RLE in Python
Advantages of using Python for RLE
Python's clear syntax and powerful standard libraries make it well-suited for implementing RLE
Algorithm for RLE in Python
To encode data using RLE in Python, one typically iterates through the input, counting consecutive occurrences of each element and adding them to the result
Decompression process in Python
Decompressing RLE data in Python involves reversing the encoding process and reproducing each value the specified number of times

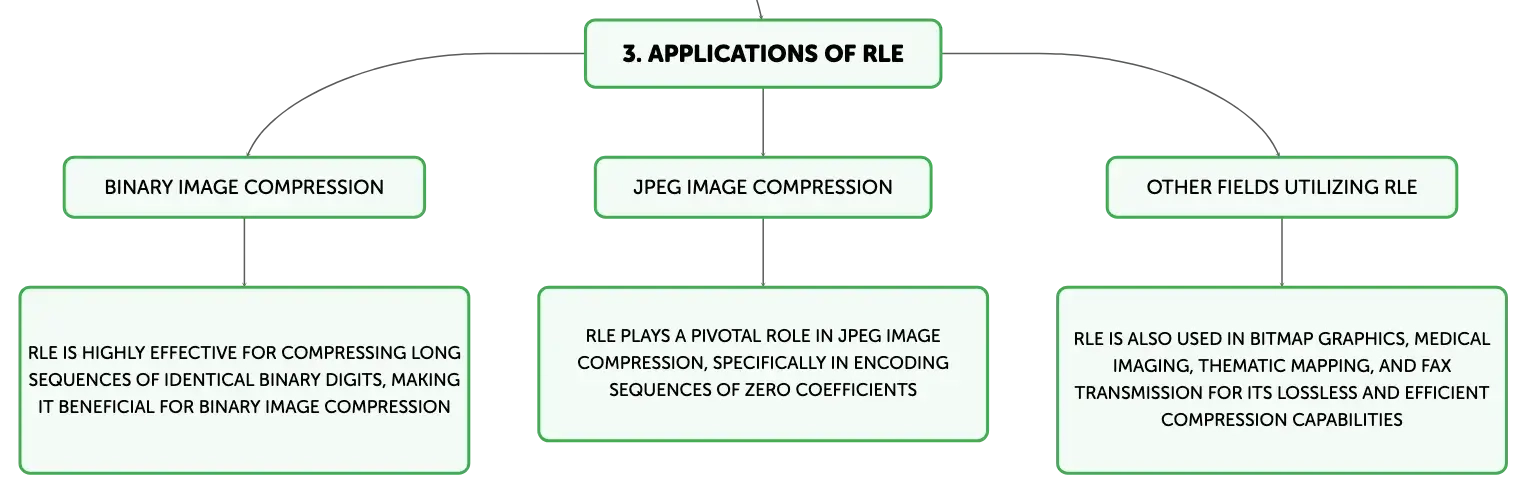

Applications of RLE
Binary image compression
RLE is highly effective for compressing long sequences of identical binary digits, making it beneficial for binary image compression
JPEG image compression
RLE plays a pivotal role in JPEG image compression, specifically in encoding sequences of zero coefficients
Other fields utilizing RLE
RLE is also used in bitmap graphics, medical imaging, thematic mapping, and fax transmission for its lossless and efficient compression capabilities
Run Length Encoding (RLE)
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
RLE Basic Principle
Replaces sequences of repeated values with count and value.
01
RLE Example Encoding
String 'AAABBBCC' becomes '3A3B2C'.
02
RLE Inefficiency Scenario
Not suitable for data with few repetitions; may increase size.
