Power, Efficiency, and Energy Usage in Physics

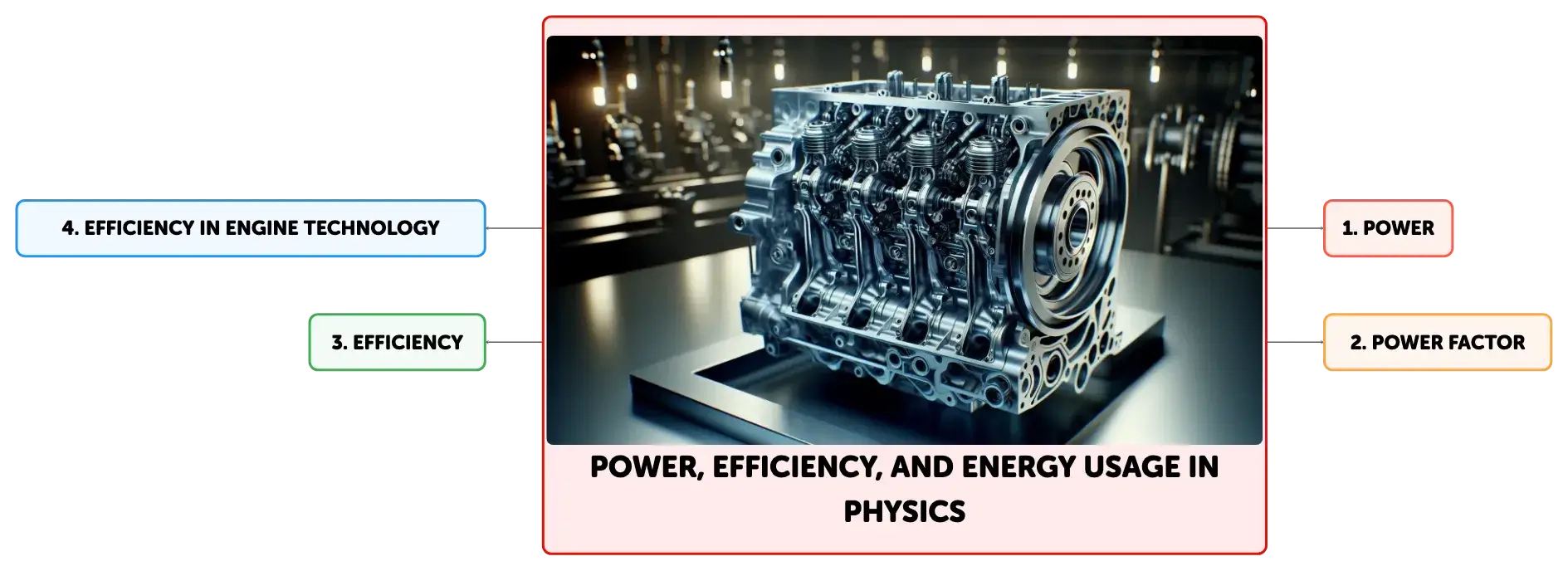

Concept Map
Exploring the concept of power in physics, this overview discusses its calculation, role in motion, and energy transfer. It delves into real-world applications, such as vehicle performance and climbing inclines, and extends to electrical engineering with the power factor's importance. Efficiency in energy systems and engines is also examined, highlighting the relationship between energy input and useful output, and the implications for energy conservation.
Summary
Outline
Defining Power in Physics
Power is a key concept in physics, representing the rate at which work is done or energy is conveyed over a period of time. It is quantified by the equation P = W/Δt, where P is power, W is work, and Δt is the time interval. Work is calculated as the product of force (F) and displacement (x), which leads to an alternative formula for power: P = F · x/Δt. In the context of motion, power is also associated with force and velocity (v), as velocity is displacement per unit of time. The equation P = F · v is used to calculate power, where force is in newtons (N), velocity in meters per second (m/s), and power in watts (W).Power Calculations in Real-World Examples
Power calculations are essential in practical applications, such as determining the performance of a vehicle. For instance, an 800 kg car moving on a flat surface with a power output of 5 kW, while overcoming a frictional resistance of 130 N, can have its acceleration calculated using Newton's second law and the power formula. Similarly, the time it takes for a 50 kg student to climb a 10 m ramp at a 5 m elevation with a constant power output of 1.3 kW can be determined by resolving the gravitational force into components along the incline and using the power equation. These examples demonstrate how power is a crucial factor in analyzing motion and energy usage.Power Factor in Electrical Engineering
The power factor is a critical measure in electrical engineering, reflecting the efficiency with which an electrical system converts input power to useful output work. It is the ratio of real power, which does work and is measured in kilowatts (kW), to apparent power, the total power in the circuit measured in kilovolt-amperes (kVA). The power factor, ranging from -1 to 1, indicates the phase relationship between voltage and current. A power factor of 1 means all the power is used effectively, while a power factor less than 1 indicates inefficiencies due to reactive power, which is necessary for the operation of inductive loads but does not perform work.The Principle of Efficiency in Energy Systems
Efficiency, symbolized by the Greek letter η (eta), is a measure of an energy system's effectiveness in utilizing energy. It is defined as the ratio of useful output energy to the input energy, represented by the equation η = Pout/Pin, where Pout is the output power and Pin is the input power, both in watts (W). Efficiency values are always less than one (or 100%) because real-world systems experience energy losses due to factors like friction and heat dissipation. High efficiency is indicative of minimal energy waste and is a key parameter in assessing the performance of various systems, including engines and electrical appliances.Engine Performance: Power and Efficiency
In engine technology, power refers to the engine's output capability, while efficiency measures how effectively the engine converts fuel energy into mechanical work. The thermal efficiency of an engine is determined by dividing the brake power, which is the usable power output, by the power input calculated from the fuel's calorific value and the rate of fuel consumption. This efficiency is a vital indicator of an engine's performance, as it shows the proportion of fuel energy that is transformed into useful work rather than being lost as heat or other inefficiencies.Concluding Insights on Power and Efficiency
To conclude, power is the rate of doing work or transferring energy, and it can be computed through various formulas depending on the scenario. The power factor is an important concept in electrical systems, indicating the efficiency of power usage. Efficiency quantifies the fraction of input energy that is effectively utilized for its intended purpose. Both power and efficiency are indispensable metrics for evaluating the performance of mechanical and electrical systems, with significant implications for energy conservation and optimization of resources.
Show More

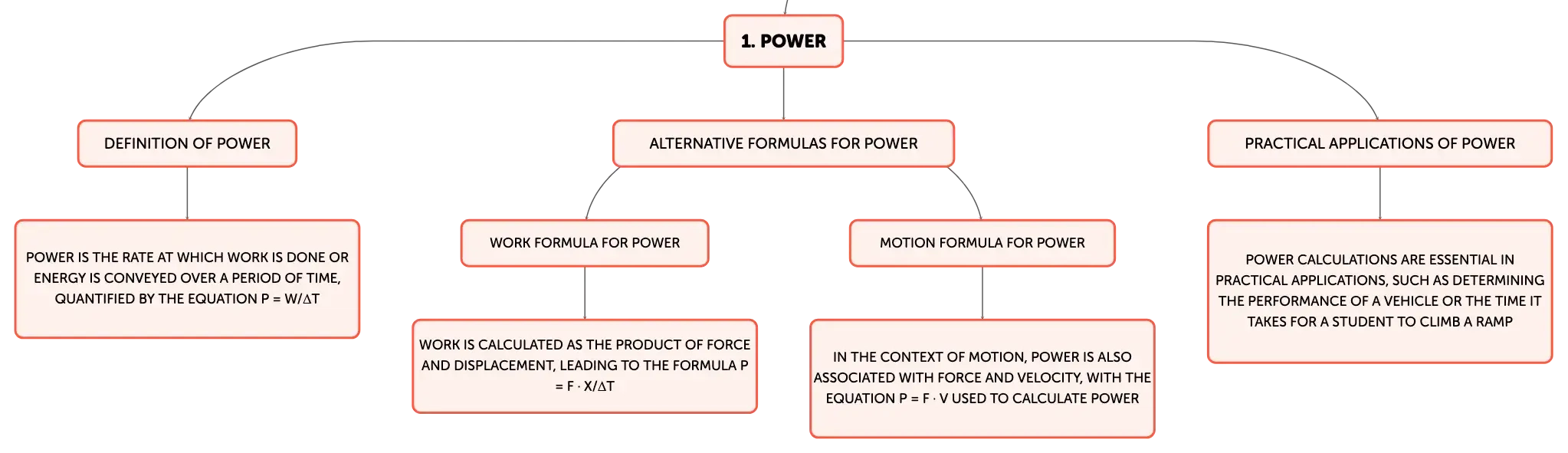

Power
Definition of Power
Power is the rate at which work is done or energy is conveyed over a period of time, quantified by the equation P = W/Δt
Alternative Formulas for Power
Work Formula for Power
Work is calculated as the product of force and displacement, leading to the formula P = F · x/Δt
Motion Formula for Power
In the context of motion, power is also associated with force and velocity, with the equation P = F · v used to calculate power
Practical Applications of Power
Power calculations are essential in practical applications, such as determining the performance of a vehicle or the time it takes for a student to climb a ramp

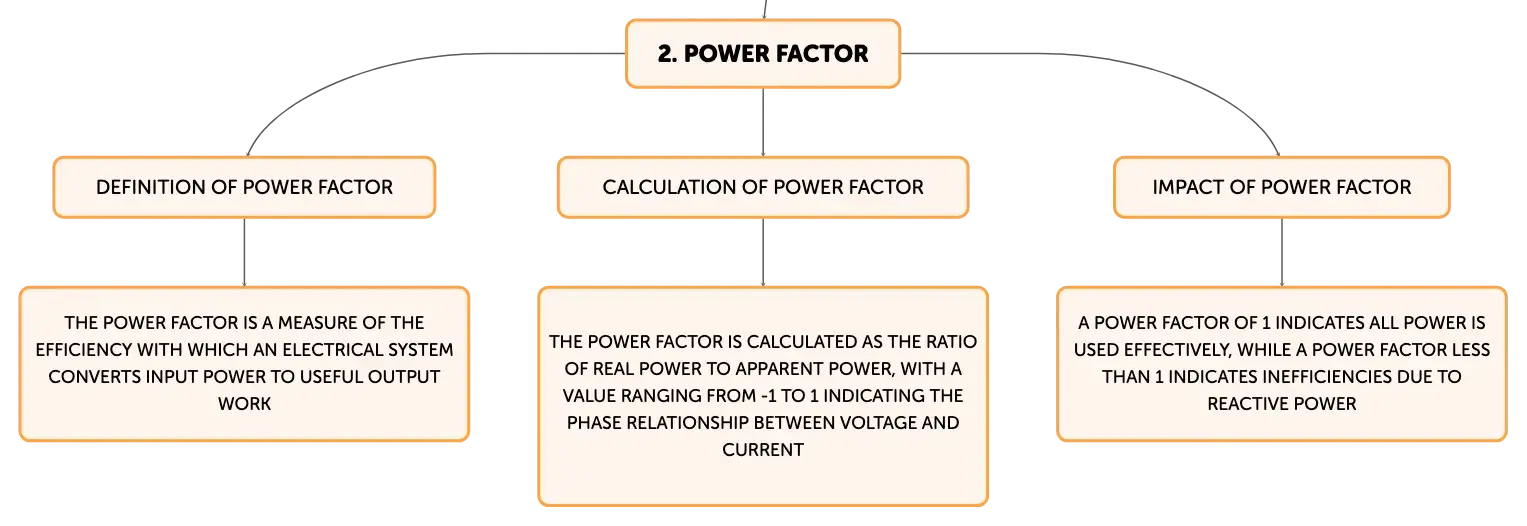

Power Factor
Definition of Power Factor
The power factor is a measure of the efficiency with which an electrical system converts input power to useful output work
Calculation of Power Factor
The power factor is calculated as the ratio of real power to apparent power, with a value ranging from -1 to 1 indicating the phase relationship between voltage and current
Impact of Power Factor
A power factor of 1 indicates all power is used effectively, while a power factor less than 1 indicates inefficiencies due to reactive power

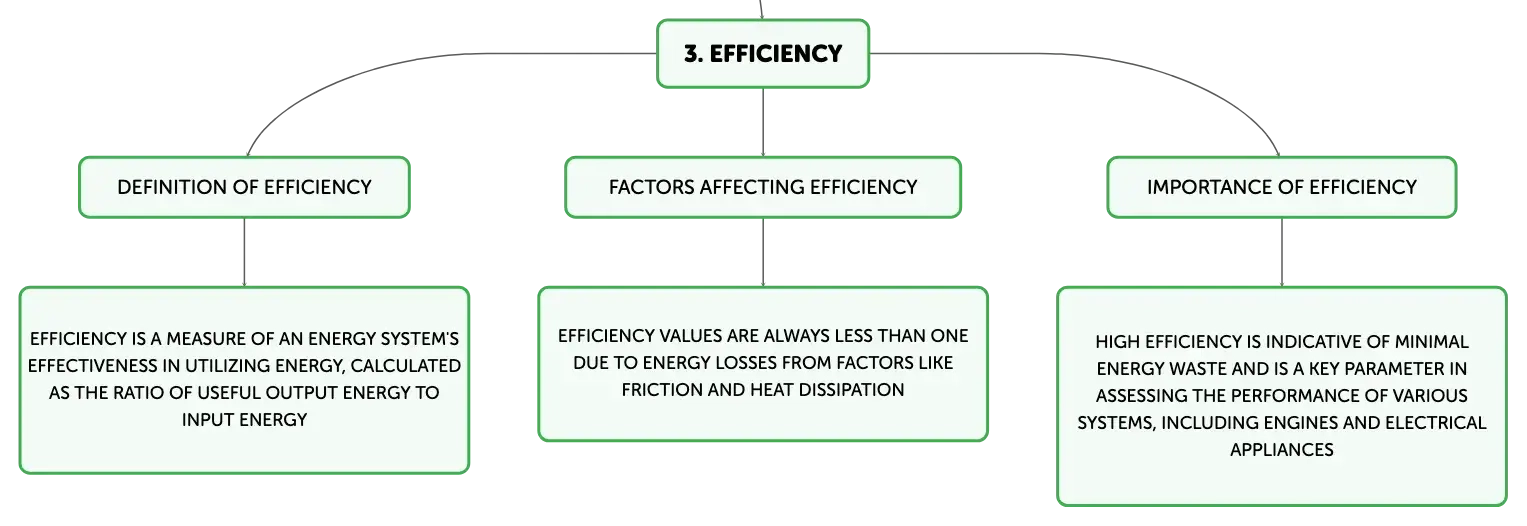

Efficiency
Definition of Efficiency
Efficiency is a measure of an energy system's effectiveness in utilizing energy, calculated as the ratio of useful output energy to input energy
Factors Affecting Efficiency
Efficiency values are always less than one due to energy losses from factors like friction and heat dissipation
Importance of Efficiency
High efficiency is indicative of minimal energy waste and is a key parameter in assessing the performance of various systems, including engines and electrical appliances

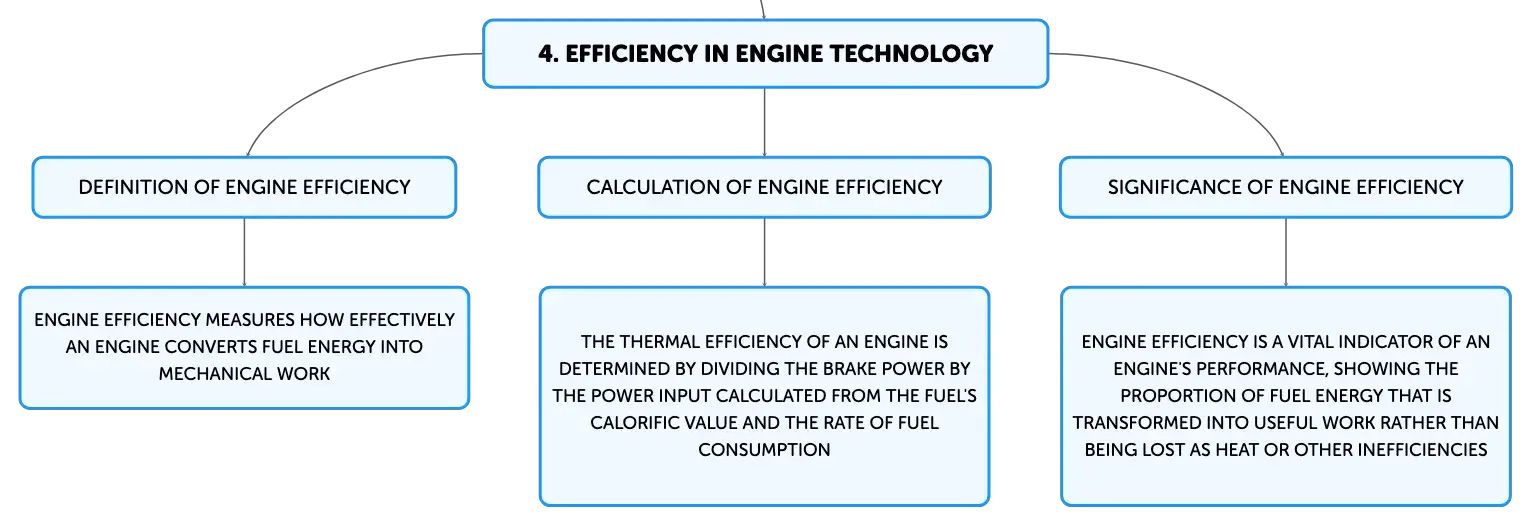

Efficiency in Engine Technology
Definition of Engine Efficiency
Engine efficiency measures how effectively an engine converts fuel energy into mechanical work
Calculation of Engine Efficiency
The thermal efficiency of an engine is determined by dividing the brake power by the power input calculated from the fuel's calorific value and the rate of fuel consumption
Significance of Engine Efficiency
Engine efficiency is a vital indicator of an engine's performance, showing the proportion of fuel energy that is transformed into useful work rather than being lost as heat or other inefficiencies
Power, Efficiency, and Energy Usage in Physics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Power-Work-Time Equation
P = W/Δt; Power (P) equals work (W) divided by time interval (Δt).
01
Work Calculation
Work (W) equals force (F) times displacement (x); W = F · x.
02
Power-Force-Velocity Relationship
P = F · v; Power (P) equals force (F) times velocity (v).
