Polarization: A Physical Phenomenon
Concept Map
Polarization in physics refers to the directional properties of oscillations in electromagnetic waves, such as light. It can be linear or circular and is observed in phenomena like glare reduction through polarized sunglasses. Polarization affects light propagation and is utilized in various technologies, including LCDs, telecommunications, and 3D cinema, as well as by animals for navigation.
Summary
Outline
The Phenomenon of Polarization in Physics
Polarization is a physical phenomenon that pertains to the directional properties of the oscillations in electromagnetic waves, such as light. When light is unpolarized, its electric field oscillates in multiple, random directions perpendicular to the direction of propagation. Polarized light, however, has electric field oscillations that are restricted to a single plane. This effect can be observed in daily life through the use of polarized sunglasses, which block horizontally polarized light to reduce glare from horizontal surfaces like water or roads. Polarization can occur through various mechanisms, including reflection at Brewster's angle, refraction, and scattering by atmospheric particles.Principles and Types of Polarization
Polarization can be induced by different processes such as reflection, refraction, and scattering. When light reflects off a surface at Brewster's angle, the reflected light is completely polarized parallel to the surface. Refraction occurs when light enters a new medium at an angle, causing it to bend and potentially altering its polarization state. Scattering by small particles in the atmosphere can also polarize light. There are primarily two types of polarization: linear and circular. Linear polarization is characterized by the electric field oscillating in a single plane, while circular polarization occurs when the electric field rotates in a circular manner around the direction of propagation, creating a helical pattern. Circular polarization can be right-handed or left-handed, depending on the rotation direction.Interactions of Polarized Light with Matter
Polarized light interacts with materials in unique ways that can be described by examining the polarization state, optical activity, and absorption characteristics. Polarizers are materials that can filter light waves to allow only certain directions of polarization to pass through. Optical activity is exhibited by certain chiral substances that can rotate the plane of polarization of linearly polarized light; this property is exploited in scientific techniques such as polarimetry. Additionally, polarized light can be selectively absorbed by materials depending on their dielectric properties, which is a principle used in the design of polarizing filters and dielectric mirrors.Polarization Effects on Light Propagation
The polarization of light has significant implications for its propagation, influencing phenomena such as reflection, refraction, interference, and diffraction. At the Brewster angle, the reflected light is completely polarized, while the transmitted light may be partially polarized. In interference, the superposition of light waves with different polarization states can affect the resulting intensity pattern. While polarization does not inherently change the pattern of diffraction, the efficiency of diffraction gratings can depend on the polarization of the incident light, particularly in the case of birefringent materials.Polarization in Technological and Communication Applications
The concept of polarization is integral to numerous technological and communication applications. In imaging, polarizing filters are used to reduce glare and enhance contrast. Liquid Crystal Displays (LCDs) rely on the manipulation of polarized light to control the visibility of pixels, directly affecting display quality. In the realm of telecommunications, polarization multiplexing allows for the transmission of multiple signals over the same frequency channel, increasing bandwidth and reducing cross-talk. Polarization is also critical in radar and antenna technology for target differentiation, and in optical fiber communications to mitigate Polarization Mode Dispersion (PMD), which can degrade signal quality and data transmission rates.Everyday and Natural Occurrences of Polarization
Polarization is a concept that extends beyond physics into everyday experiences and natural phenomena. Polarized lenses in sunglasses are a common application, reducing glare from reflective surfaces to improve visual comfort and clarity. In the entertainment industry, polarization is used in 3D cinema technology to deliver different images to each eye, creating a sense of depth. In the natural world, certain animals, such as bees and ants, use the polarization patterns of the sky for navigation. Additionally, some marine animals, like the mantis shrimp, have specialized vision that detects polarization, aiding them in detecting prey and navigating their environment. These instances highlight the widespread influence of polarization in both human technology and the natural world.
Show More

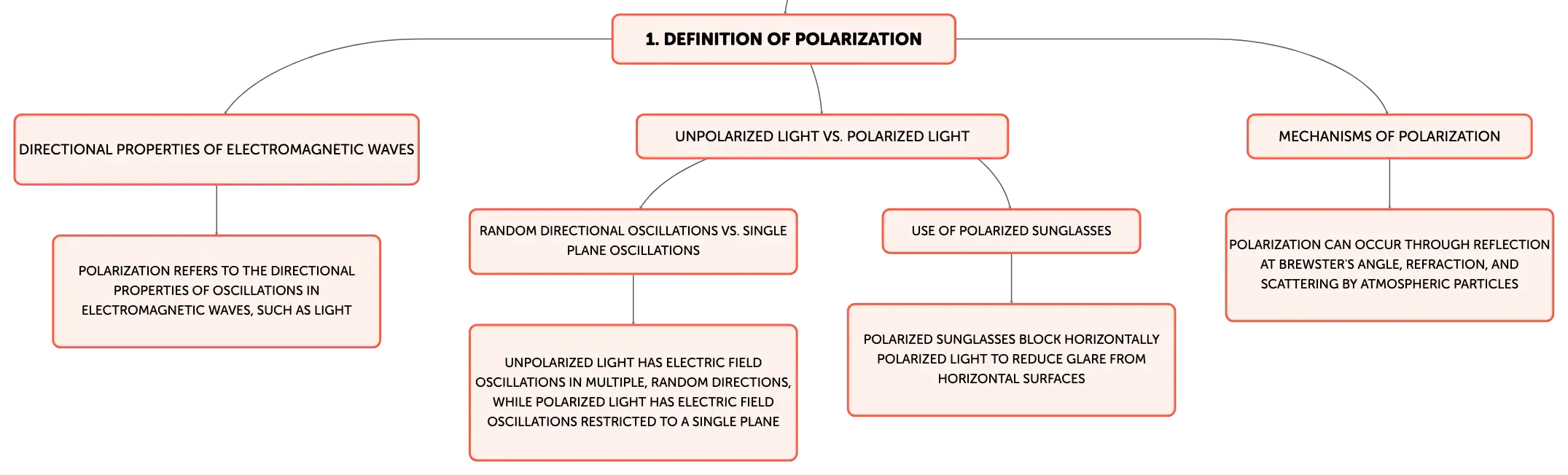

Definition of Polarization
Directional Properties of Electromagnetic Waves
Polarization refers to the directional properties of oscillations in electromagnetic waves, such as light
Unpolarized Light vs. Polarized Light
Random Directional Oscillations vs. Single Plane Oscillations
Unpolarized light has electric field oscillations in multiple, random directions, while polarized light has electric field oscillations restricted to a single plane
Use of Polarized Sunglasses
Polarized sunglasses block horizontally polarized light to reduce glare from horizontal surfaces
Mechanisms of Polarization
Polarization can occur through reflection at Brewster's angle, refraction, and scattering by atmospheric particles

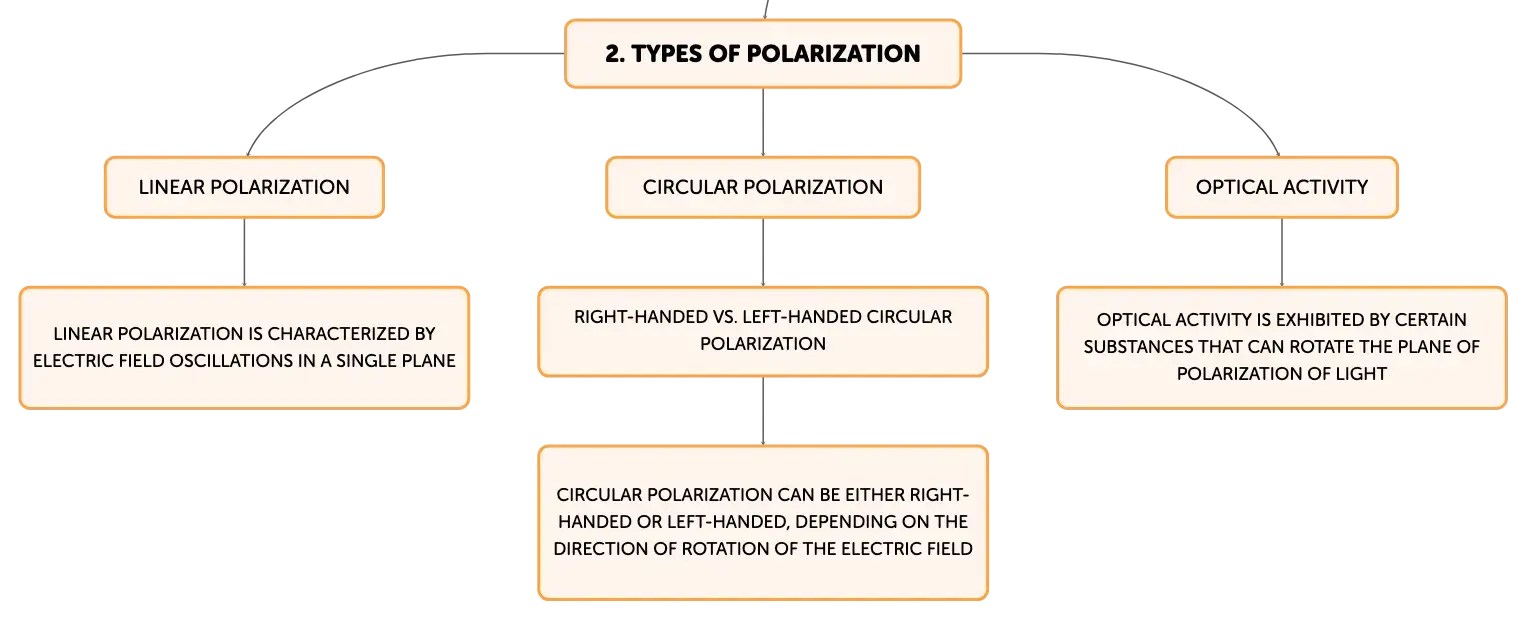

Types of Polarization
Linear Polarization
Linear polarization is characterized by electric field oscillations in a single plane
Circular Polarization
Right-Handed vs. Left-Handed Circular Polarization
Circular polarization can be either right-handed or left-handed, depending on the direction of rotation of the electric field
Optical Activity
Optical activity is exhibited by certain substances that can rotate the plane of polarization of light

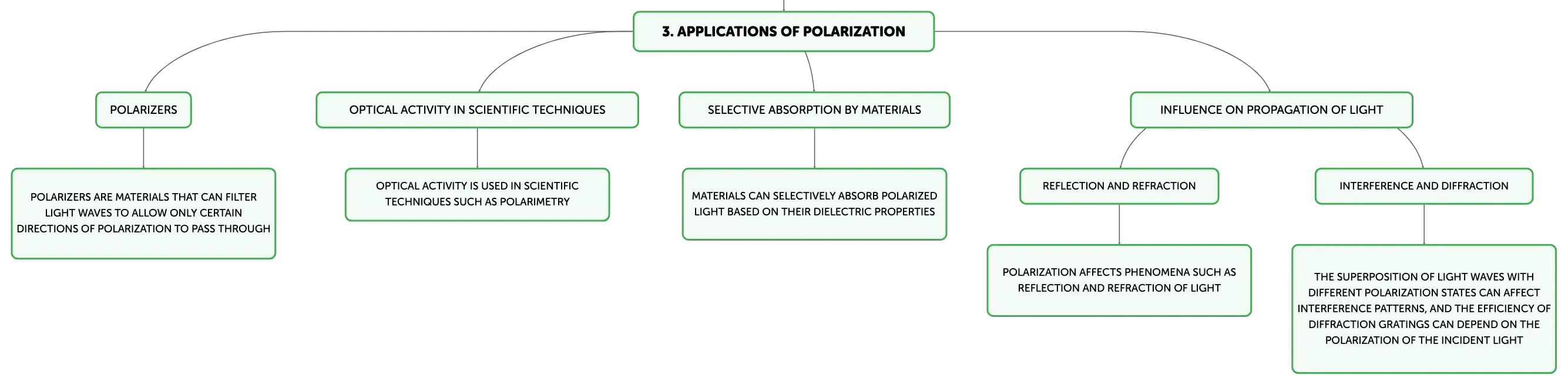

Applications of Polarization
Polarizers
Polarizers are materials that can filter light waves to allow only certain directions of polarization to pass through
Optical Activity in Scientific Techniques
Optical activity is used in scientific techniques such as polarimetry
Selective Absorption by Materials
Materials can selectively absorb polarized light based on their dielectric properties
Influence on Propagation of Light
Reflection and Refraction
Polarization affects phenomena such as reflection and refraction of light
Interference and Diffraction
The superposition of light waves with different polarization states can affect interference patterns, and the efficiency of diffraction gratings can depend on the polarization of the incident light

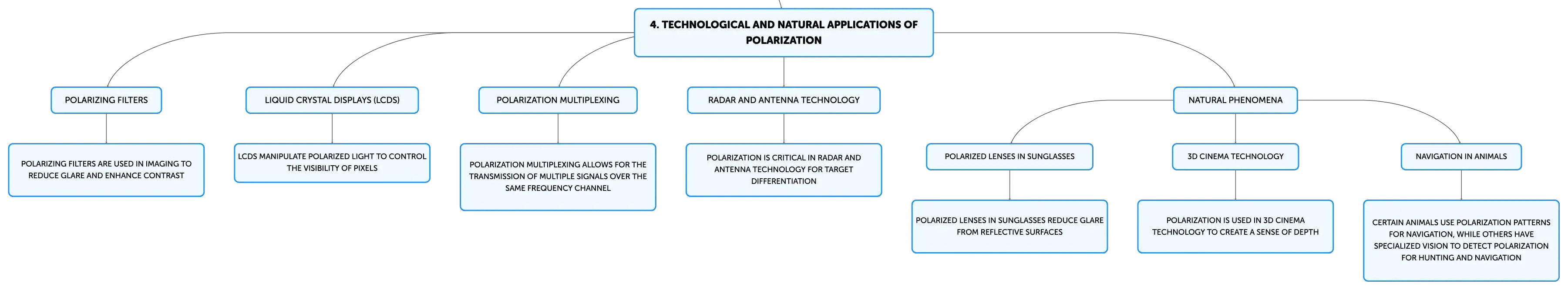

Technological and Natural Applications of Polarization
Polarizing Filters
Polarizing filters are used in imaging to reduce glare and enhance contrast
Liquid Crystal Displays (LCDs)
LCDs manipulate polarized light to control the visibility of pixels
Polarization Multiplexing
Polarization multiplexing allows for the transmission of multiple signals over the same frequency channel
Radar and Antenna Technology
Polarization is critical in radar and antenna technology for target differentiation
Natural Phenomena
Polarized Lenses in Sunglasses
Polarized lenses in sunglasses reduce glare from reflective surfaces
3D Cinema Technology
Polarization is used in 3D cinema technology to create a sense of depth
Navigation in Animals
Certain animals use polarization patterns for navigation, while others have specialized vision to detect polarization for hunting and navigation
Polarization: A Physical Phenomenon
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Polarized sunglasses are designed to block ______ polarized light to diminish glare from surfaces like water.
horizontally
01
Brewster's angle effect on polarization
At Brewster's angle, reflected light is fully polarized parallel to the surface.
02
Impact of refraction on light's polarization
Refraction can alter light's polarization when it bends entering a new medium.
