The Factory Pattern in Object-Oriented Programming

The Factory Pattern is a cornerstone of object-oriented design, streamlining object creation and promoting maintainable code. It allows developers to produce objects through a common interface, fostering a decoupled and adaptable system architecture. This pattern is key in various applications, from GUI libraries to document editors, and is crucial for managing complexity in large-scale software projects.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Factory Pattern instantiation logic exposure

Click to check the answer

Hides object creation logic from client, using factory methods instead.

2

Factory Pattern object creation complexity

Click to check the answer

Simplifies complex creation, allows dynamic and adaptable object instantiation.

3

Factory Pattern subclass interface implementation

Click to check the answer

Subclasses implement a common interface's factory method for object creation.

4

The ______ Pattern is crucial in software development, as it allows systems to be detached from the actual creation process of their objects.

Click to check the answer

Factory

5

Adopting the ______ Pattern can lead to less interdependency among classes, more reusable code, and better scalability in software projects.

Click to check the answer

Factory

6

Factory Pattern Purpose

Click to check the answer

Manages object creation, centralizes instantiation logic for objects with common interface.

7

Factory Pattern Benefit

Click to check the answer

Simplifies system architecture, decouples object creation from usage, enhances modularity.

8

Factory Pattern in GUI Libraries

Click to check the answer

Widget Factory creates OS-specific widgets like buttons, text fields, checkboxes.

9

______, known for its focus on object-oriented principles, is ideal for the ______ Pattern.

Click to check the answer

Java Factory

10

Factory Pattern: Centralization Benefit

Click to check the answer

Centralizes object creation, simplifying code management and adaptability.

11

Factory Pattern: Separation of Concerns

Click to check the answer

Isolates object creation, enhancing code readability and testability.

12

Factory Pattern: Abstraction Level

Click to check the answer

Introduces abstraction, simplifying object creation management in large projects.

13

The ______ Pattern is also known as the Simple Factory and is used for creating a single object.

Click to check the answer

Factory

14

The ______ Factory Pattern allows the creation of related or dependent objects without specifying their concrete classes.

Click to check the answer

Abstract

15

Adhering to the open/closed principle, the ______ Factory Pattern enables adding new product families without changing existing code.

Click to check the answer

Abstract

16

Purpose of Factory Method Pattern

Click to check the answer

Encapsulates object creation to enhance flexibility and scalability of applications.

17

Role of Abstract Base Class/Interface in Factory Method

Click to check the answer

Defines a factory method that subclasses implement to create specific objects.

18

Impact of Factory Method on Client Code

Click to check the answer

Client code remains unchanged when new object types are introduced, simplifying maintenance and extension.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Secondary Storage in Computer Systems

View document

Understanding the Factory Pattern in Object-Oriented Design

The Factory Pattern is a design pattern in object-oriented programming that facilitates the creation of objects without exposing the instantiation logic to the client and refers to the use of a factory method to deal with the problem of creating objects without having to specify the exact class of the object that will be created. This pattern is particularly useful when the object creation process is complex, or when it needs to be dynamic and adaptable to changing environments. It promotes a coding style that relies on using a common interface for all subclasses, with each subclass implementing the factory method to create its respective object. This allows for the decoupling of client code from the actual classes that implement the objects, leading to more maintainable and flexible codebases.
Modern workspace for programming with monitor, wireless keyboard, precision mouse, green plant and bookcase with unlabeled manuals.

The Role and Benefits of the Factory Pattern in Software Engineering

The Factory Pattern plays a significant role in software engineering by enabling a system to be independent of how its objects are created, composed, and represented. It introduces a layer of abstraction that encapsulates the creation of objects, allowing systems to be more modular and extensible. The benefits of using the Factory Pattern include reducing the coupling between classes, increasing code reusability, and improving the scalability of the software. By coding to an interface rather than to a specific class, developers can introduce new object types without altering existing code, thus adhering to the open/closed principle. This pattern is instrumental in enhancing the robustness and flexibility of software systems.

Practical Applications and Real-World Examples of the Factory Pattern

The Factory Pattern is prevalent in many real-world applications, providing a way to manage and create objects in a controlled manner. For example, a Document Editor may use a Document Factory to create different types of documents like spreadsheets, word processors, or presentations without knowing the details of how each document is created. In GUI libraries, a Widget Factory might be used to create different types of widgets such as buttons, text fields, and checkboxes, depending on the underlying operating system. These practical applications demonstrate the Factory Pattern's ability to simplify system architecture by centralizing the creation of objects that share a common theme or interface.

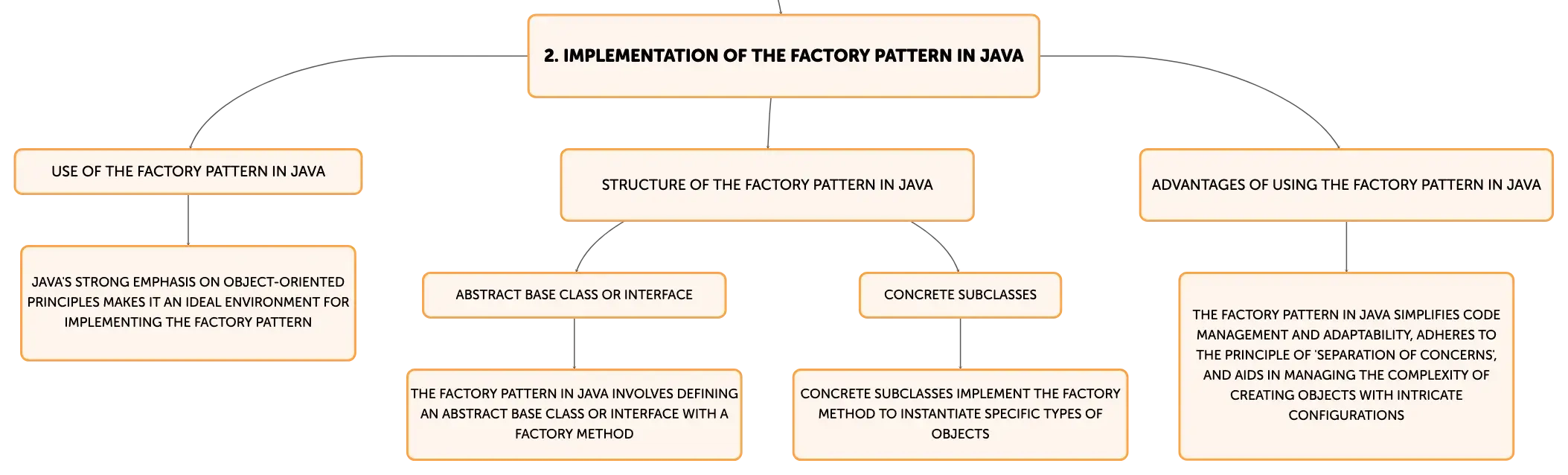

Exploring the Factory Pattern in Java Programming

Java, with its strong emphasis on object-oriented principles, provides an excellent environment for implementing the Factory Pattern. In Java, the pattern is often used to manage the creation of objects that share a common superinterface or superclass. A typical implementation involves a Factory class that defines a method for creating objects, while subclasses of the Factory class override this method to instantiate objects of specific types. This abstraction of the creation process allows Java developers to write code that is independent of the actual instantiation of objects, which can lead to more robust and maintainable applications.

Advantages and Management of Complexity in the Factory Pattern

The Factory Pattern offers several advantages, including the centralization of the object creation process, which can simplify code management and adaptability. It adheres to the principle of 'separation of concerns' by isolating the object creation responsibility into a single class or method, thus enhancing code readability and testability. The pattern also aids in managing the complexity of creating objects with intricate configurations by encapsulating the construction logic within a factory method. While the Factory Pattern introduces a level of abstraction that may initially seem complex, it ultimately serves to simplify the management of object creation in large-scale software projects, reducing the cognitive load on developers and the potential for errors.

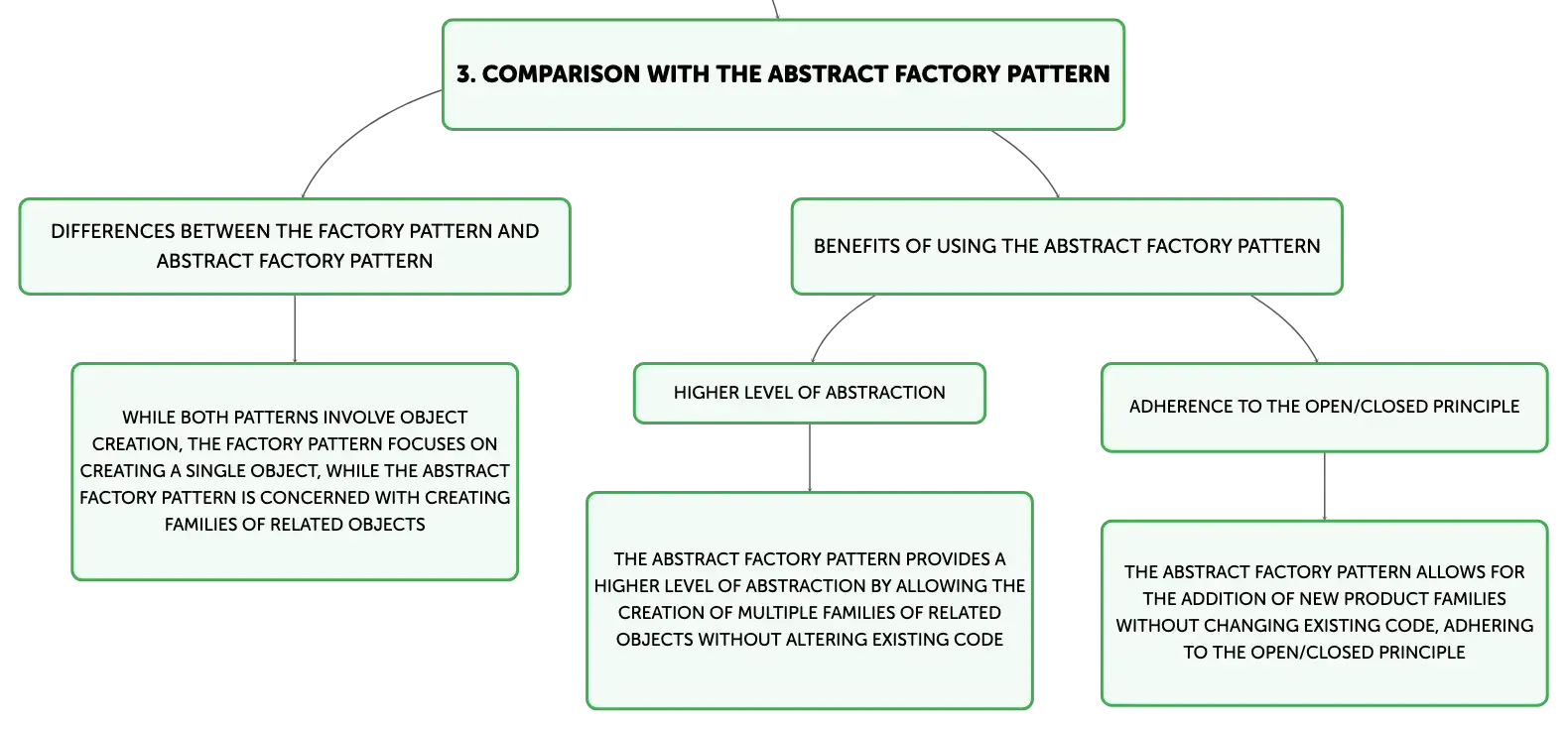

Distinguishing Between Factory and Abstract Factory Patterns

It is important to distinguish between the Factory Pattern and the Abstract Factory Pattern, as they address object creation in different contexts. The Factory Pattern, also known as the Simple Factory, focuses on creating a single object, whereas the Abstract Factory Pattern is concerned with creating families of related or dependent objects without specifying their concrete classes. The Abstract Factory Pattern provides an interface for creating a suite of related objects, which is particularly useful when a system needs to be configured with one of multiple families of products. By enabling the addition of new product families without altering existing code, the Abstract Factory Pattern adheres to the open/closed principle and offers a higher level of abstraction than the simple Factory Pattern.

Implementing the Factory Method Design Pattern

To implement the Factory Method Design Pattern, developers must first identify a common interface for the objects that need to be created. An abstract base class or interface is then defined with a factory method. Concrete subclasses implement this factory method to instantiate the desired object. This encapsulation of the creation process within a method allows the subclasses to decide which class to instantiate, while the client code remains unaware of the specific class details. This pattern enhances the application's flexibility and scalability by allowing new object types to be introduced without changing the client code. Proper implementation of the Factory Method Pattern can lead to a well-organized codebase that is easier to manage and extend.
