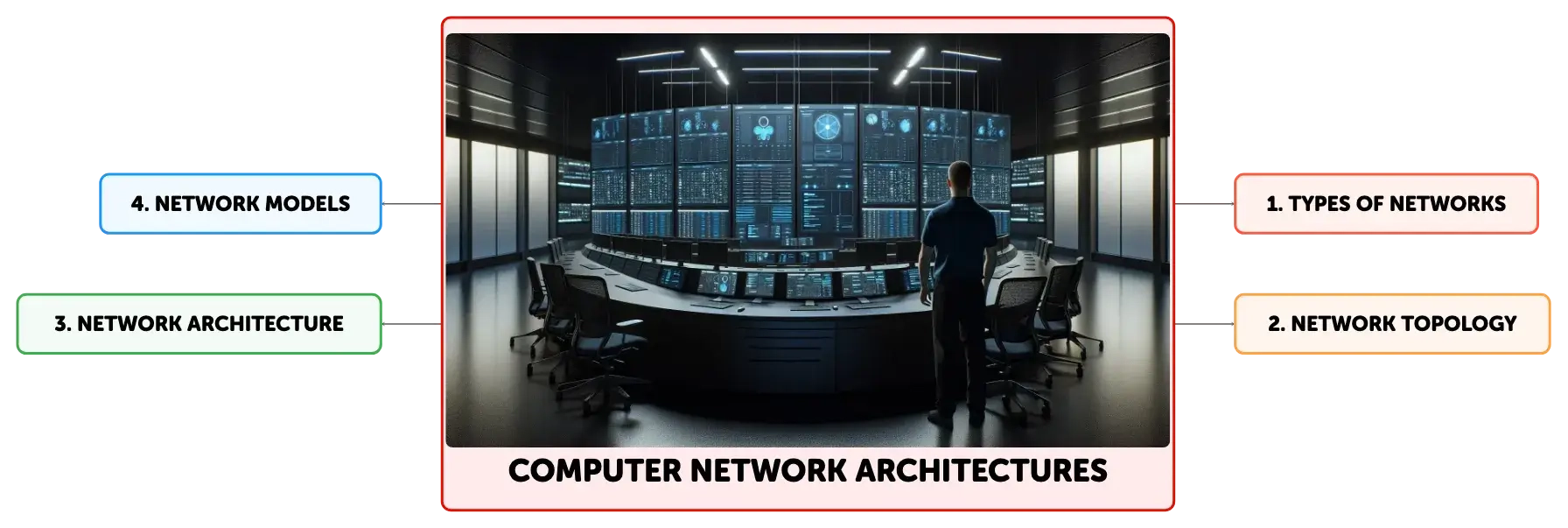

Computer Network Architectures

The main topic of the text is the classification and understanding of different computer network types, their topologies, and architectures. It covers the scale and protocols of networks like PAN, LAN, and WAN, and explains the impact of network topologies on performance. The text also delves into network architectures, comparing peer-to-peer and client/server models, and discusses the OSI and TCP/IP models' roles in networking.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ (______) are used for individual use and often employ ______ technology within a 10-meter range.

Click to check the answer

Personal Area Networks PAN Bluetooth

2

A ______ (______) typically connects devices in a home or office using ______ or ______ technology.

Click to check the answer

Local Area Network LAN Ethernet Wi-Fi

3

______ (______) encompass large geographical areas, potentially connecting different cities or countries, through a mix of public and private networks.

Click to check the answer

Wide Area Networks WAN

4

Define Network Topology

Click to check the answer

Network topology is the layout of elements in a computer network, including nodes and links, and can be physical or logical.

5

Difference between Physical and Logical Topology

Click to check the answer

Physical topology is the actual spatial arrangement of network devices, while logical topology shows how data flows, regardless of physical layout.

6

Examples of Common Network Topologies

Click to check the answer

Star topology has nodes connected to a central hub, bus topology has a common communication line, ring topology connects devices in a circle, and mesh topology has multiple interconnections for data paths.

7

The two main types of ______ architectures are ______ and ______.

Click to check the answer

network Peer-to-Peer (P2P) Client/Server

8

PAN Connectivity Methods

Click to check the answer

Connects personal devices like computers, smartphones, tablets using Bluetooth or USB.

9

LAN Purpose

Click to check the answer

Facilitates resource sharing like files, printers among users in a single building or campus.

10

Difference between MAN and WAN

Click to check the answer

MAN spans cities or large campuses connecting LANs; WAN covers regions to global, linking multiple LANs, MANs.

11

The goal of the OSI model is to ensure ______ of different communication systems through standard protocols.

Click to check the answer

interoperability

12

The ______ model, with its four layers, has been fundamental in the development of the internet.

Click to check the answer

Transmission Control Protocol/Internet Protocol (TCP/IP)

13

OSI Model Layers

Click to check the answer

7-layer framework: Physical, Data Link, Network, Transport, Session, Presentation, Application.

14

TCP/IP Model Layers

Click to check the answer

4-layer structure: Link, Internet, Transport, Application.

15

Importance of Interoperability

Click to check the answer

Ensures diverse systems communicate effectively; critical for network design and maintenance.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

The Importance of Bits in the Digital World

View document

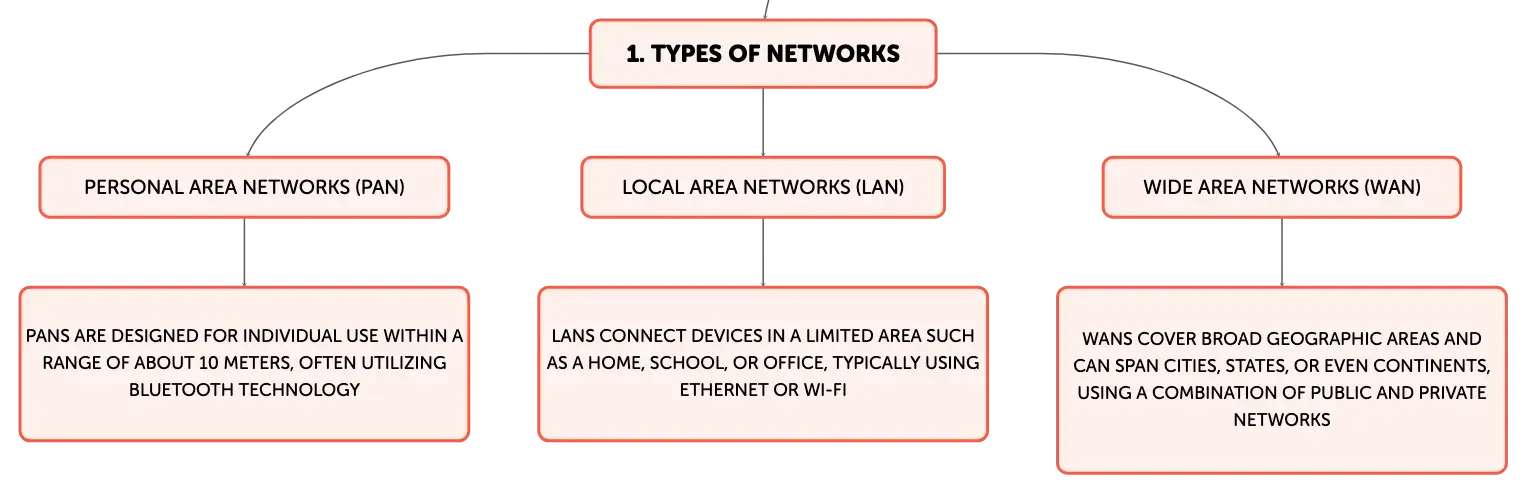

Understanding Computer Network Types and Their Classifications

Computer networks are essential for facilitating communication between various computing devices, and they are classified based on their scale, the number of connected users, and the protocols used to manage data transmission. The most common types of networks include Personal Area Networks (PAN), which are designed for individual use within a range of about 10 meters, often utilizing Bluetooth technology; Local Area Networks (LAN), which connect devices in a limited area such as a home, school, or office, typically using Ethernet or Wi-Fi; and Wide Area Networks (WAN), which cover broad geographic areas and can span cities, states, or even continents, using a combination of public and private networks. An example of a LAN is a network within a corporate office, where computers, printers, and servers are interconnected to share resources and information.
Network operations center with curved desk and monitor, technician in blue polo shirt interacts with screens, soft lighting from video panels.

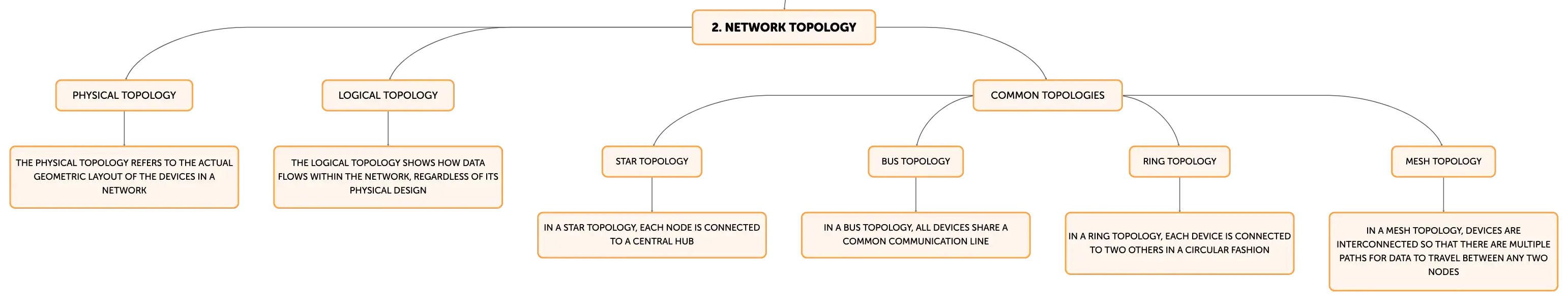

Exploring Network Topologies and Their Impact

Network topology is the arrangement of various elements (links, nodes, etc.) of a computer network. Essentially, it is the topological structure of a network and may be depicted physically or logically. The physical topology refers to the actual geometric layout of the devices, while the logical topology shows how data flows within the network, regardless of its physical design. Common topologies include the star topology, where each node is connected to a central hub; the bus topology, where all devices share a common communication line; the ring topology, where each device is connected to two others in a circular fashion; and the mesh topology, where devices are interconnected so that there are multiple paths for data to travel between any two nodes. The choice of topology directly affects the network's performance and reliability, and thus must be chosen carefully to meet specific needs.

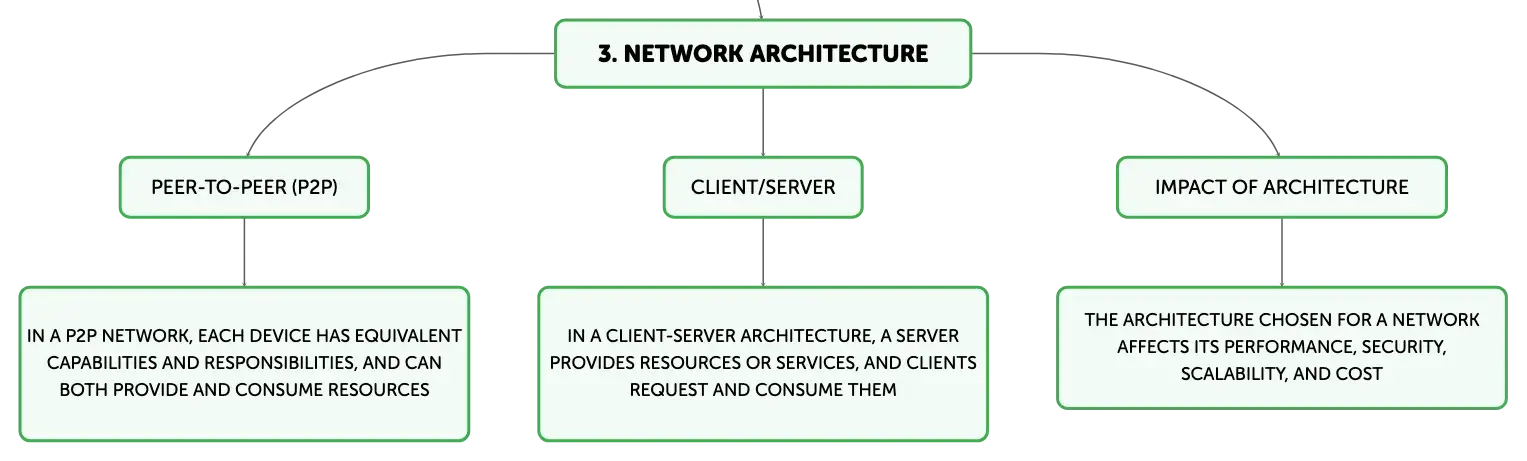

Network Architectures: Peer-to-Peer and Client/Server Models

Network architecture refers to the design of a computer network; it is a framework for specifying the physical and logical layout of the network's components. The two predominant types of network architectures are Peer-to-Peer (P2P) and Client/Server. In a P2P network, each device, or "peer," has equivalent capabilities and responsibilities, and can both provide and consume resources. This contrasts with the Client/Server model, where a server provides resources or services, and clients request and consume them. The architecture chosen for a network affects its performance, security, scalability, and cost. For instance, a client-server architecture may centralize data storage and application services, simplifying maintenance and enhancing security.

Categories of Computer Networks and Their Applications

Computer networks can be categorized by their size and the methods they use to connect different devices. Personal Area Networks (PAN) typically serve an individual's workspace, connecting personal devices such as computers, smartphones, and tablets, often through Bluetooth or USB. Local Area Networks (LAN) are used within a single building or campus and are ideal for sharing resources like files and printers among local users. Metropolitan Area Networks (MAN) span a larger area than LANs, often encompassing a city or a large campus, and are used to connect several LANs together. Wide Area Networks (WAN) cover the largest areas, extending over regions, countries, or even globally, connecting multiple LANs and MANs. The internet is the most extensive WAN, comprising countless networks around the world. Each network type is designed to support specific application scenarios, from individual use in PANs to extensive, multinational communications in WANs.

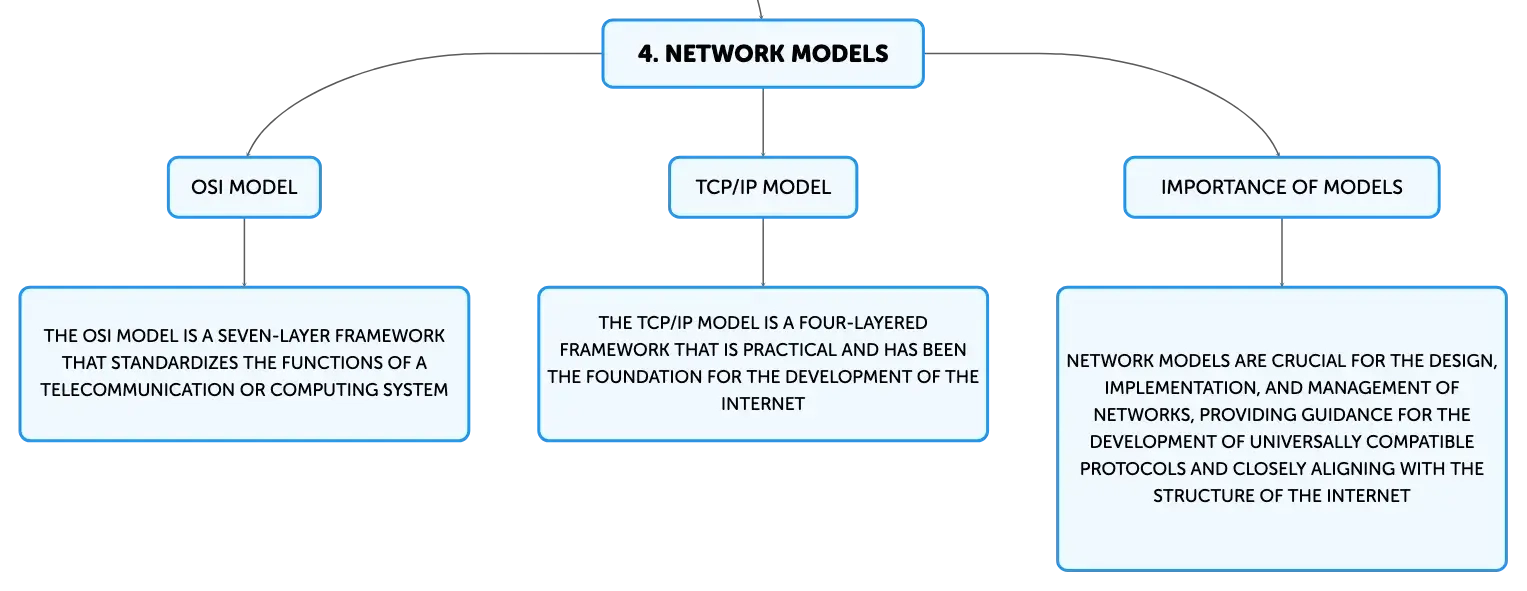

The Role of Network Models in Computer Networking

Network models are conceptual frameworks that describe the functions of a network's various layers. The Open Systems Interconnection (OSI) model is a seven-layer framework that standardizes the functions of a telecommunication or computing system without regard to its underlying internal structure and technology. Its goal is the interoperability of diverse communication systems with standard communication protocols. The Transmission Control Protocol/Internet Protocol (TCP/IP) model, on the other hand, is a four-layered framework that is practical and has been the foundation for the development of the internet. Both models are crucial for the design, implementation, and management of networks, with the OSI model providing guidance for the development of universally compatible networking protocols and the TCP/IP model being closely aligned with the structure of the internet and its protocols.

Evolution and Comparison of Computer Network Architectures

The evolution of computer network architectures has been marked by a transition from centralized mainframe computing to distributed network systems. The OSI model's seven-layer architecture provides a comprehensive set of protocols that ensure interoperability between diverse systems, while the TCP/IP model's four-layer structure is the backbone of the internet, facilitating global connectivity. These models are compared based on criteria such as scalability, performance, security, and reliability, with each model having its own strengths and weaknesses. Understanding these models is essential for network professionals to design and maintain networks that are robust, efficient, and secure, and to ensure they can adapt to ongoing technological changes and the evolving needs of users.
