Group Velocity and Its Applications

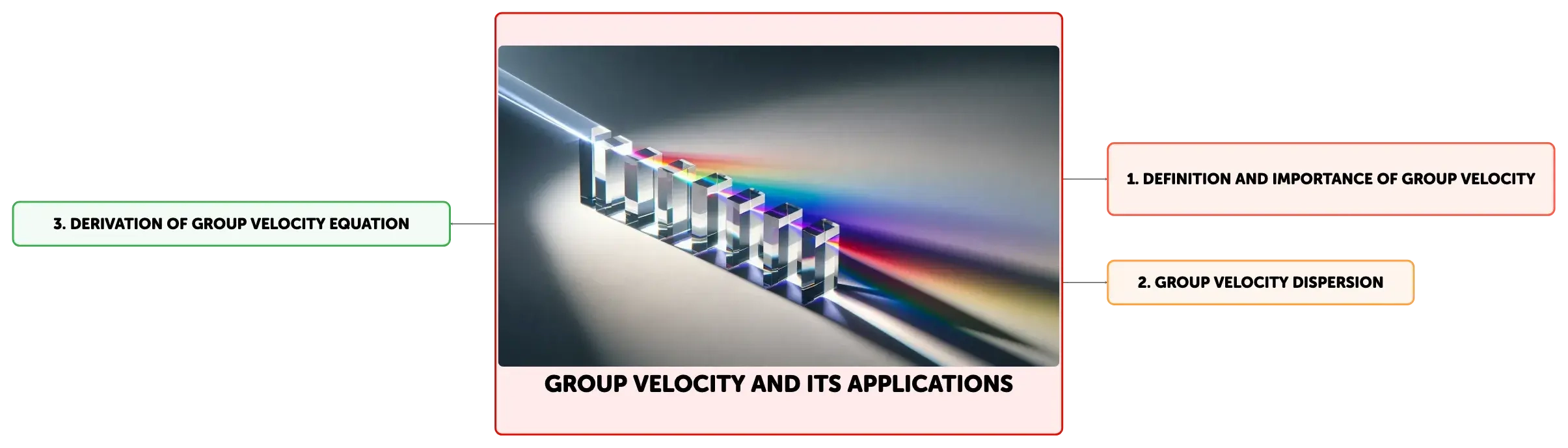

Concept Map
Group velocity is a fundamental concept in wave physics, indicating the speed at which a wave packet's shape travels through a medium. It differs from phase velocity, which is the speed of individual wave crests. Understanding group velocity is crucial for analyzing energy and information transmission in various fields, including telecommunications, fiber optics, and seismology. The text delves into the mathematical derivation of group velocity and its practical applications in everyday technology.
Summary
Outline
Exploring the Concept of Group Velocity in Wave Physics
Group velocity is a central concept in the study of wave physics, representing the speed at which the overall shape of a wave's amplitudes—termed a 'wave packet' or 'wave group'—propagates through a medium. It is mathematically defined as the rate of change of the wave's angular frequency with respect to its wave number, which is given by the equation \( v_{g} = \frac{d\omega}{dk} \). Comprehending group velocity is essential for understanding the transmission of energy and information in various media, as it is distinct from phase velocity—the speed at which individual wave crests travel.Differentiating Group Velocity from Phase Velocity
Group velocity and phase velocity are two important but different characteristics of wave motion. Group velocity concerns the speed of the envelope of the wave group, while phase velocity is the speed at which the phase of the wave—specifically, the position of the peaks and troughs—propagates. The phase velocity is determined by the equation \( v_{p} = \frac{\omega}{k} \). In dispersive media, where waves of different frequencies travel at different speeds, these velocities can differ markedly, resulting in a complex dispersion relationship that affects how the wave evolves over time and space.Understanding Group Velocity Dispersion and Its Implications
Group velocity dispersion (GVD) occurs when the group velocity changes with frequency, leading to the dispersion of a wave packet as its constituent frequencies travel at different speeds. This dispersion is quantified by the second derivative of the angular frequency with respect to the wave number, denoted as \( GVD = \frac{d^2\omega}{dk^2} \). GVD has significant implications in fields such as telecommunications and fiber optics, where it can cause signal distortion and must be managed to ensure the integrity of data transmission.The Role of Group Velocity in Wave Propagation and Communication
The concept of group velocity is crucial in the analysis of wave propagation across various domains, including optical, radio, and seismic waves. In optical fibers, group velocity determines the rate at which light pulses, and thus information, are transmitted. In radio communication, it influences the range and speed of signal transmission. For seismic waves, group velocity provides insights into the speed and direction of energy travel, which is vital for understanding geological events.Practical Applications of Group Velocity in Everyday Technology
Group velocity has practical applications that extend into technologies we encounter daily. In the realm of telecommunications, it affects the speed and efficiency of data transmission through fiber optic cables. In radio communication, group velocity impacts the clarity and reach of broadcast signals. Moreover, in the field of acoustics, the group velocity of sound waves influences the timbre of musical instruments, such as the flute, where dispersion affects the arrival times of different harmonics, contributing to the instrument's characteristic sound.Case Studies Highlighting the Importance of Group Velocity
Case studies in various fields underscore the importance of group velocity. In seismology, the analysis of seismic wave group velocities helps determine the location and intensity of earthquakes. In optical communications, controlling group velocity can lead to more consistent light pulse transmission, which is crucial for high-speed internet connections. These instances highlight the diverse applications of group velocity in scientific research and technological innovation.Deriving the Group Velocity Equation: A Mathematical Perspective
The derivation of the group velocity equation is an insightful exercise in wave theory. It begins with the general wave equation and examines a wave packet composed of the superposition of two closely related waves. By applying trigonometric identities, one can isolate the envelope function that travels with the group velocity. The resulting expression, \( v_{g} = \frac{d\omega}{dk} \), encapsulates the propagation speed of the wave packet and is a fundamental tool for analyzing wave motion in different media.Concluding Insights on Group Velocity in Wave Physics
In conclusion, group velocity is a pivotal parameter in the physics of waves, distinguishing the collective movement of wave amplitudes from the motion of individual wave crests. Its mathematical formulation and the associated concept of group velocity dispersion are critical for a comprehensive understanding of wave propagation in various environments. The practical significance of group velocity in telecommunications, seismology, and acoustics underscores its wide-ranging impact on both technology and scientific inquiry.
Show More

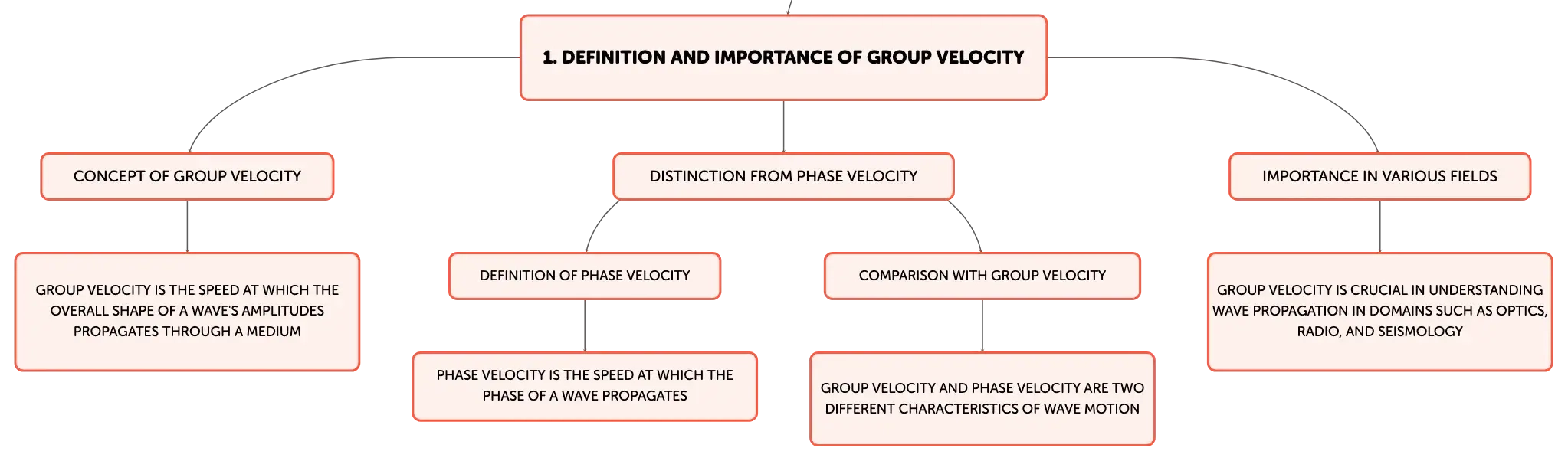

Definition and Importance of Group Velocity
Concept of Group Velocity
Group velocity is the speed at which the overall shape of a wave's amplitudes propagates through a medium
Distinction from Phase Velocity
Definition of Phase Velocity
Phase velocity is the speed at which the phase of a wave propagates
Comparison with Group Velocity
Group velocity and phase velocity are two different characteristics of wave motion
Importance in Various Fields
Group velocity is crucial in understanding wave propagation in domains such as optics, radio, and seismology

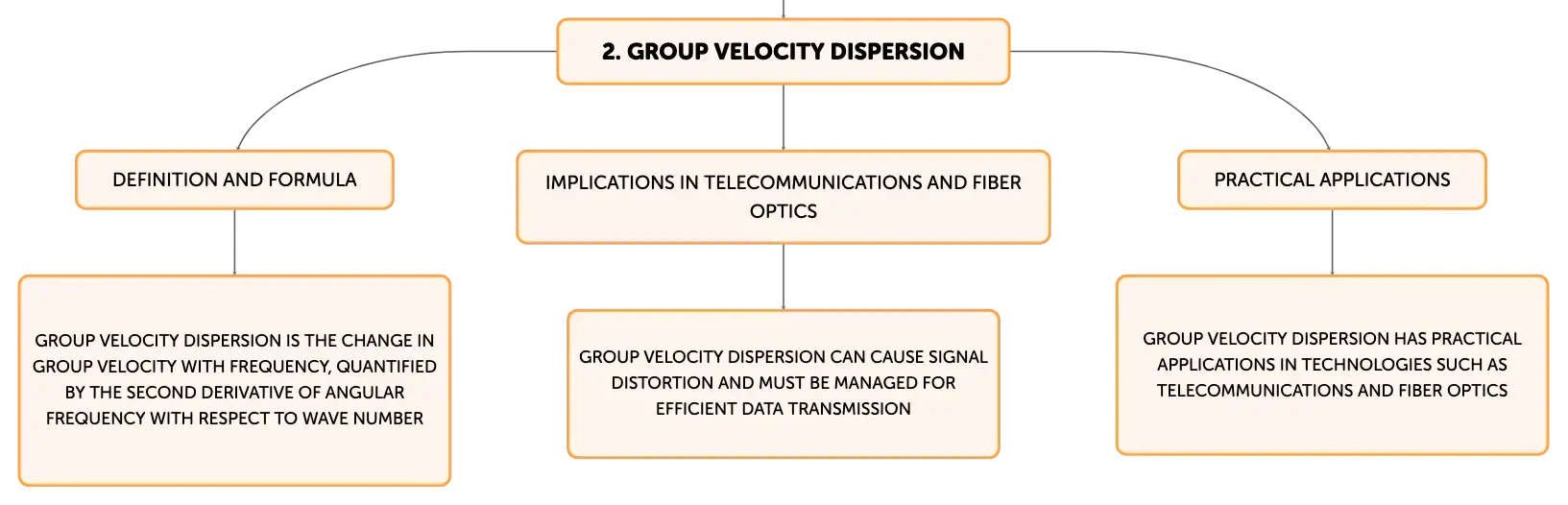

Group Velocity Dispersion
Definition and Formula
Group velocity dispersion is the change in group velocity with frequency, quantified by the second derivative of angular frequency with respect to wave number
Implications in Telecommunications and Fiber Optics
Group velocity dispersion can cause signal distortion and must be managed for efficient data transmission
Practical Applications
Group velocity dispersion has practical applications in technologies such as telecommunications and fiber optics

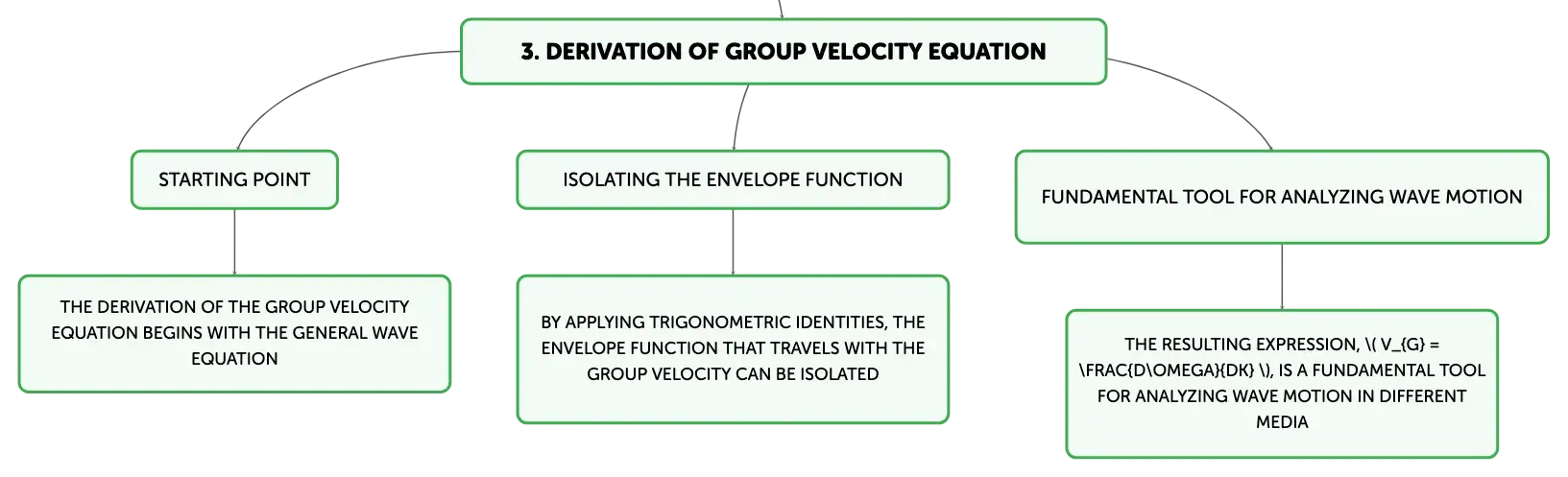

Derivation of Group Velocity Equation
Starting Point
The derivation of the group velocity equation begins with the general wave equation
Isolating the Envelope Function
By applying trigonometric identities, the envelope function that travels with the group velocity can be isolated
Fundamental Tool for Analyzing Wave Motion
The resulting expression, \( v_{g} = \frac{d\omega}{dk} \), is a fundamental tool for analyzing wave motion in different media
Group Velocity and Its Applications
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Definition of group velocity
Speed of wave group envelope propagation.
01
Definition of phase velocity
Speed at which wave phase, peaks and troughs, propagates.
02
Phase velocity equation
v_p = ω/k, where v_p is phase velocity, ω is angular frequency, and k is wave number.
