The Hertzsprung-Russell Diagram: A Tool for Understanding Stars

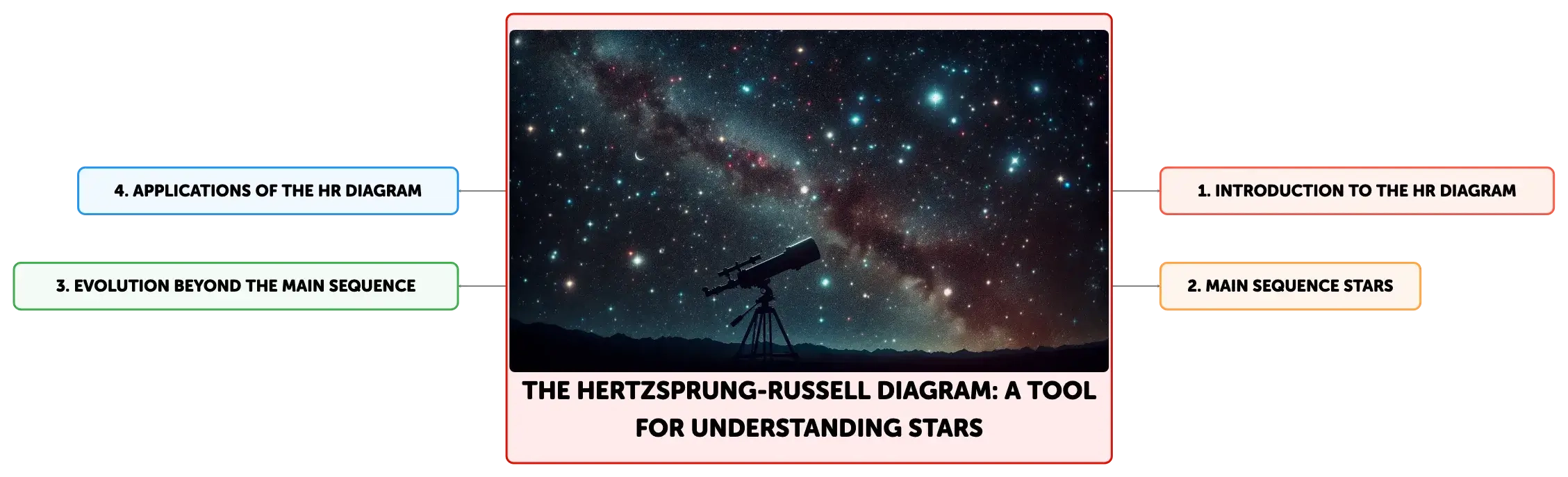

Concept Map
The Hertzsprung-Russell Diagram (HR Diagram) is a fundamental astrophysical tool for mapping star characteristics such as luminosity and temperature. It reveals the stages of stellar evolution, from the main sequence to the final stages of white dwarfs, neutron stars, or black holes. The diagram also helps in classifying stars, studying their evolution, and estimating distances, providing insights into the age and formation of star clusters and galaxies.
Summary
Outline
Exploring the Hertzsprung-Russell Diagram
The Hertzsprung-Russell Diagram, or HR Diagram, is a pivotal tool in the field of astrophysics that maps the characteristics of stars. It is a two-dimensional graph where stars are plotted according to their absolute magnitude or luminosity against their spectral class or effective temperature. The x-axis typically shows temperature decreasing from left to right, with hotter stars on the left and cooler stars on the right. The y-axis represents luminosity, increasing upwards. The HR Diagram is crucial for understanding the various stages of stellar evolution, from the main sequence phase to the final stages as white dwarfs, neutron stars, or black holes.The Main Sequence and Stellar Evolution
Dominating the HR Diagram is the Main Sequence, a continuous and distinctive band of stars that runs from the upper left (hot, luminous stars) to the lower right (cool, less luminous stars). A star's position on the Main Sequence is determined by its mass, with more massive stars being hotter and more luminous. This sequence represents the stage in a star's life where it is fusing hydrogen into helium in its core, a phase that lasts for most of a star's lifetime. The classification of stars along the Main Sequence helps astronomers understand their size, mass, and stage in the stellar lifecycle.Giants, Supergiants, and White Dwarfs
The HR Diagram also identifies stars that have evolved beyond the Main Sequence. Red giants and supergiants, which are in the late stages of their evolution, occupy the region above the Main Sequence. These stars have exhausted their hydrogen fuel and are now fusing heavier elements in their cores or shells. Below the Main Sequence, we find white dwarfs, which are the remnants of low to intermediate-mass stars that have shed their outer layers and no longer undergo fusion. The positions of these stars on the HR Diagram help astronomers to trace their evolutionary paths and predict future changes in their properties.The Position of the Sun in the HR Diagram
The Sun is a G-type Main Sequence star, commonly referred to as a yellow dwarf, and is situated roughly in the middle of the HR Diagram. This central position indicates that the Sun is in a stable phase of its life, efficiently converting hydrogen to helium through nuclear fusion. Based on its current stage, the Sun is expected to remain on the Main Sequence for several billion more years before it expands into a red giant and eventually sheds its outer layers to become a white dwarf.Applications of the HR Diagram in Astrophysics
The HR Diagram is a versatile tool in astrophysics, employed for various purposes including the classification of stars, the study of stellar evolution, and the estimation of distances to stars. It also provides insights into the age and formation history of star clusters and galaxies. By examining the distribution of stars within the diagram, astronomers can deduce the processes that drive stellar evolution and the dynamics of galactic development.Insights into Stellar Composition and Galactic Dynamics
Beyond temperature and luminosity, the HR Diagram can shed light on the chemical composition of stars, their potential for hosting habitable planets, and the influence of nearby supernovae on stellar pollution. The diagram can also reveal information about binary star systems, including mass transfer events and the conditions that may lead to the formation of black holes. These insights are invaluable for understanding the complex interactions within galaxies and the lifecycle of stars.The Continuing Evolution of HR Diagrams in Astronomy
HR Diagrams have become increasingly sophisticated, now incorporating additional data such as metallicity, stellar mass, and detailed spectral analysis. This evolution reflects the growing complexity of astrophysical research and the need for more comprehensive data to understand stellar phenomena. As the field of astrophysics progresses, HR Diagrams will continue to be integrated with new technologies and datasets, improving their precision and expanding their role in unraveling the mysteries of star formation, evolution, and the broader cosmic lifecycle.
Show More

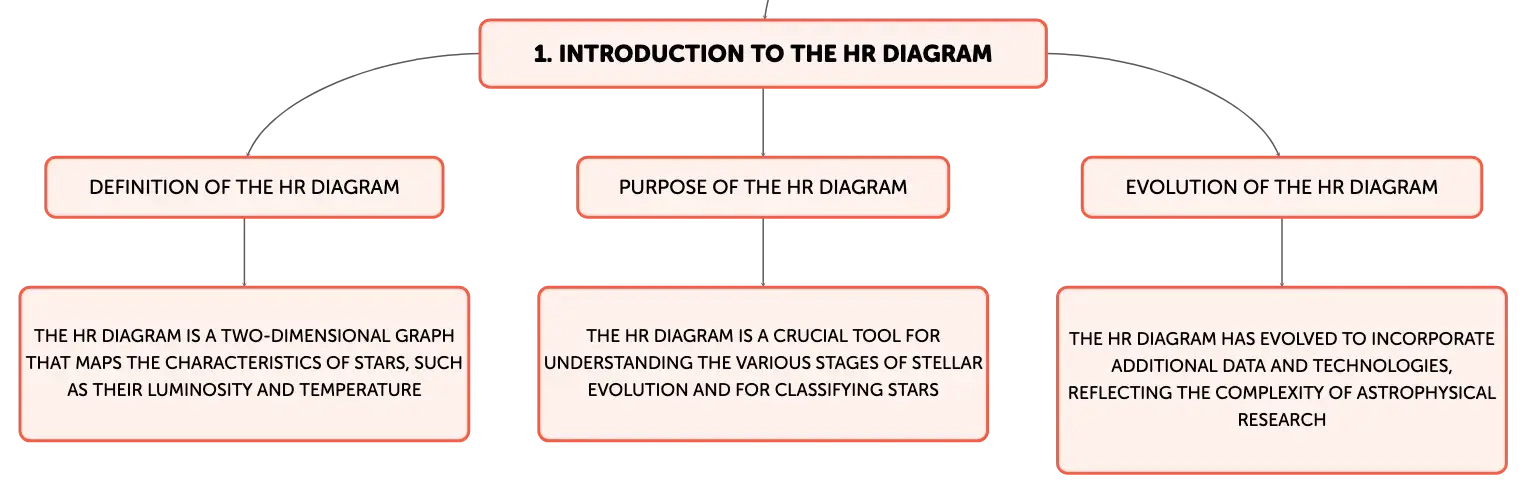

Introduction to the HR Diagram
Definition of the HR Diagram
The HR Diagram is a two-dimensional graph that maps the characteristics of stars, such as their luminosity and temperature
Purpose of the HR Diagram
The HR Diagram is a crucial tool for understanding the various stages of stellar evolution and for classifying stars
Evolution of the HR Diagram
The HR Diagram has evolved to incorporate additional data and technologies, reflecting the complexity of astrophysical research

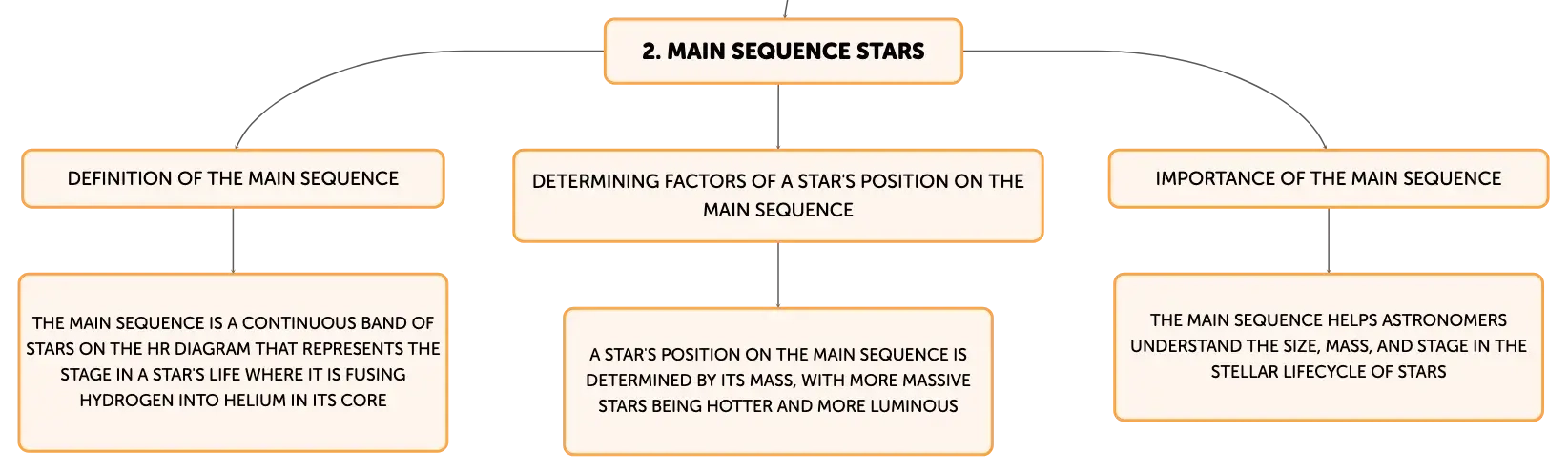

Main Sequence Stars
Definition of the Main Sequence
The Main Sequence is a continuous band of stars on the HR Diagram that represents the stage in a star's life where it is fusing hydrogen into helium in its core
Determining Factors of a Star's Position on the Main Sequence
A star's position on the Main Sequence is determined by its mass, with more massive stars being hotter and more luminous
Importance of the Main Sequence
The Main Sequence helps astronomers understand the size, mass, and stage in the stellar lifecycle of stars

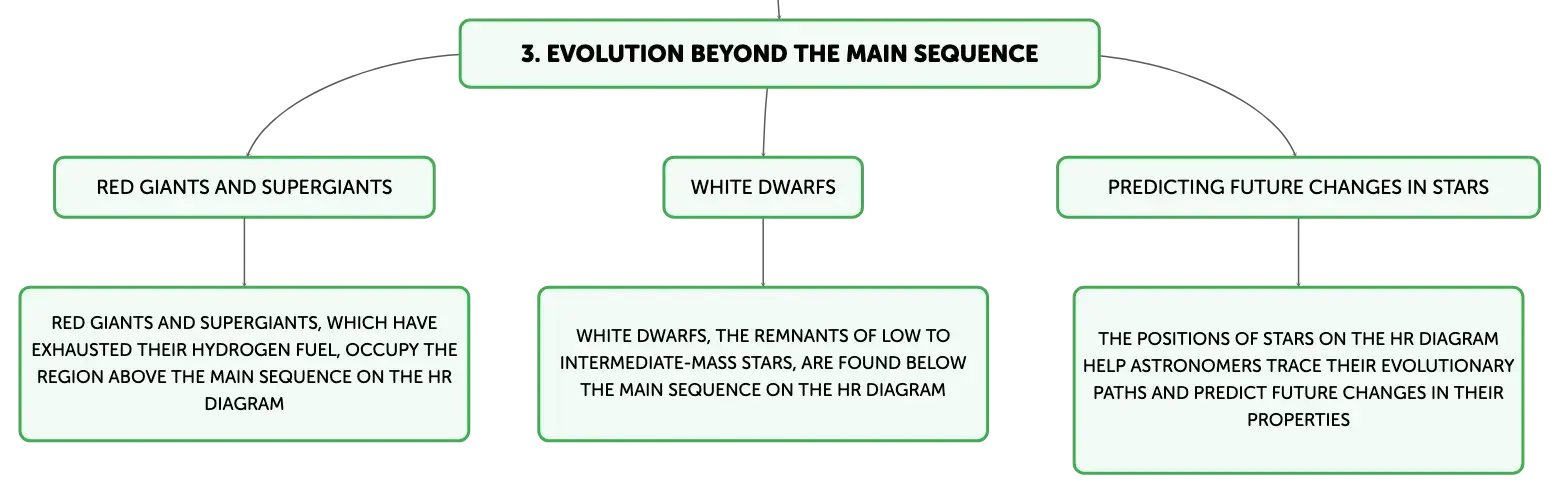

Evolution Beyond the Main Sequence
Red Giants and Supergiants
Red giants and supergiants, which have exhausted their hydrogen fuel, occupy the region above the Main Sequence on the HR Diagram
White Dwarfs
White dwarfs, the remnants of low to intermediate-mass stars, are found below the Main Sequence on the HR Diagram
Predicting Future Changes in Stars
The positions of stars on the HR Diagram help astronomers trace their evolutionary paths and predict future changes in their properties

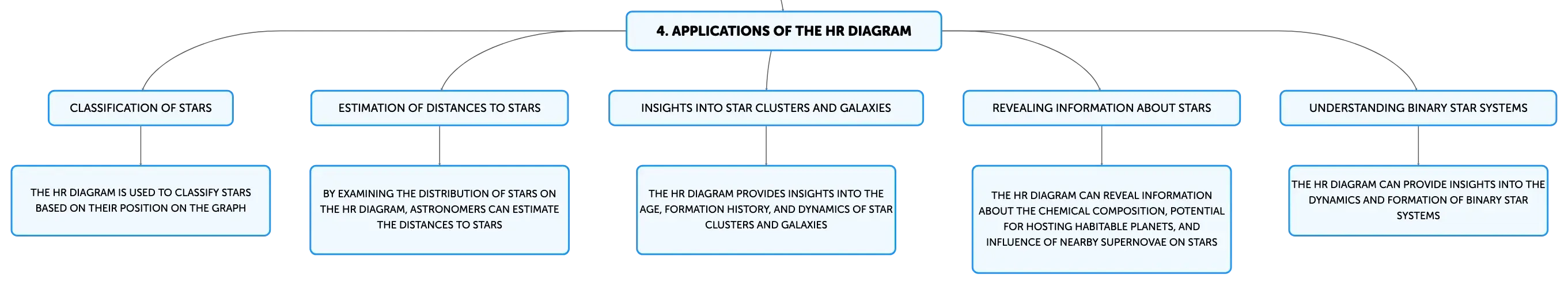

Applications of the HR Diagram
Classification of Stars
The HR Diagram is used to classify stars based on their position on the graph
Estimation of Distances to Stars
By examining the distribution of stars on the HR Diagram, astronomers can estimate the distances to stars
Insights into Star Clusters and Galaxies
The HR Diagram provides insights into the age, formation history, and dynamics of star clusters and galaxies
Revealing Information about Stars
The HR Diagram can reveal information about the chemical composition, potential for hosting habitable planets, and influence of nearby supernovae on stars
Understanding Binary Star Systems
The HR Diagram can provide insights into the dynamics and formation of binary star systems
The Hertzsprung-Russell Diagram: A Tool for Understanding Stars
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
HR Diagram Axes Interpretation
X-axis: star temperature decreases left to right; Y-axis: luminosity increases bottom to top.
01
HR Diagram Main Sequence Phase
Main sequence: stars fuse hydrogen into helium; diagonal band from top-left (hot, luminous) to bottom-right (cool, dim).
02
HR Diagram Final Stages of Stars
Final stages: stars evolve into white dwarfs, neutron stars, or black holes; locations vary on diagram.
