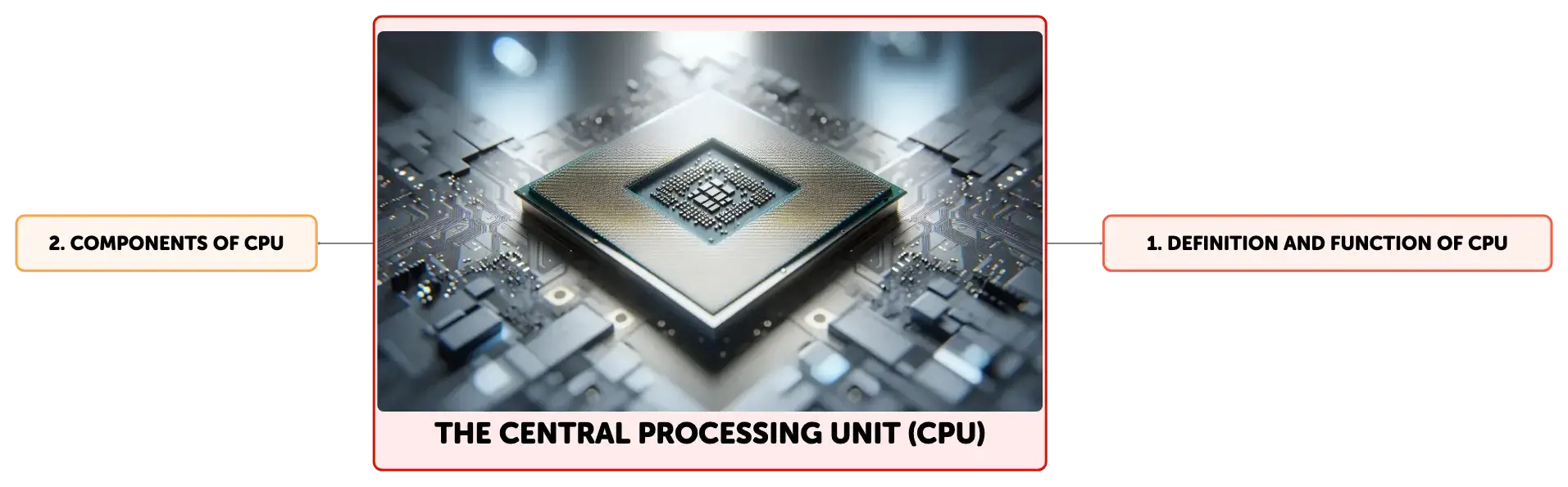

The Central Processing Unit (CPU)

Exploring the Central Processing Unit (CPU), the brain of the computer, which executes instructions and manages data flow. Key components include the Control Unit (CU), Arithmetic Logic Unit (ALU), registers for quick data access, buses for data transmission, and the CPU cache for efficient data retrieval. Understanding these elements reveals how they contribute to a computer's processing power and speed.

See more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

A computer's performance heavily relies on the ______ and ______ of the CPU.

Click to check the answer

architecture speed

2

Role of Control Unit in CPU

Click to check the answer

Manages execution of instructions, directs other components.

3

Function of Arithmetic Logic Unit

Click to check the answer

Performs mathematical and logical operations.

4

Purpose of CPU Registers

Click to check the answer

Provides quick access to data and instructions for the processor.

5

The Control Unit is vital for maintaining the correct sequence and timing of CPU operations, as well as handling ______ and error detection.

Click to check the answer

branching

6

ALU role in CPU performance

Click to check the answer

Directly impacts processing power and overall computer speed.

7

ALU arithmetic operations

Click to check the answer

Handles addition, subtraction, multiplication, division.

8

ALU logical and bitwise operations

Click to check the answer

Performs comparisons and manipulates individual bits.

9

The ______ keeps track of the next instruction's address, while the ______ contains the instruction being executed.

Click to check the answer

program counter (PC) instruction register (IR)

10

Types of CPU buses

Click to check the answer

Data bus, address bus, control bus - each carries different types of signals within and outside CPU.

11

Function of data bus

Click to check the answer

Carries actual data between CPU components and between CPU and other hardware.

12

Impact of bus width on performance

Click to check the answer

Wider buses can transfer more data simultaneously, increasing data transfer speed and system performance.

13

To optimize performance, cache systems utilize ______ protocols and ______ algorithms, which are crucial for minimizing memory delays.

Click to check the answer

cache coherence replacement

14

CPU Component: Control Unit

Click to check the answer

Directs operations within the CPU, managing the execution of instructions by coordinating other components.

15

CPU Component: Arithmetic Logic Unit (ALU)

Click to check the answer

Performs mathematical computations and logical operations, fundamental for processing data and executing instructions.

16

CPU Component: Registers

Click to check the answer

Provides rapid access storage for immediate use by the CPU, holding data that is being processed or instructions that are being executed.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Understanding Processor Cores

View document

Exploring the Central Processing Unit (CPU)

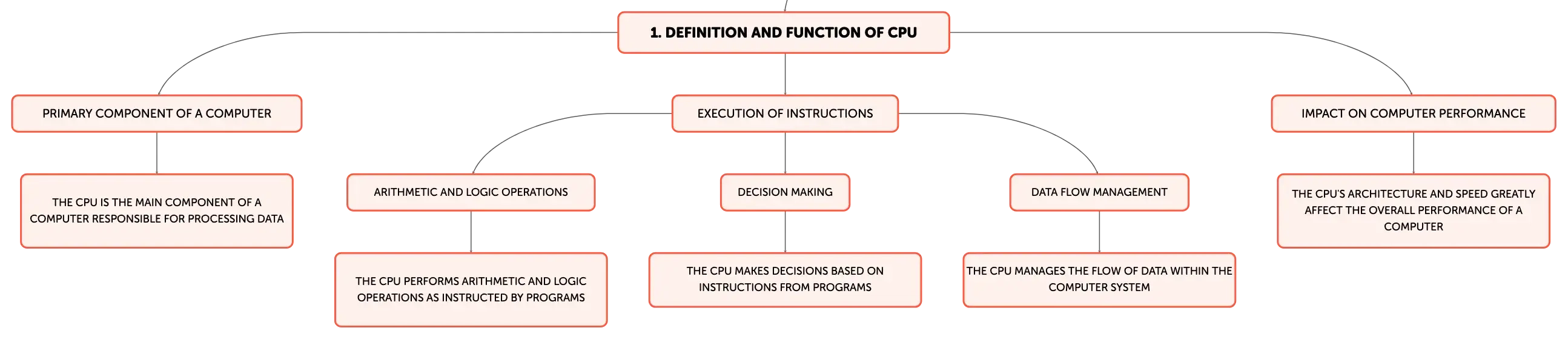

The Central Processing Unit (CPU) is the primary component of a computer that performs most of the processing inside a computer. To understand the CPU is to understand the very basics of computer operation. It executes instructions from programs, performing arithmetic and logic operations, making decisions, and managing data flow within the system. The CPU's architecture and speed are critical determinants of a computer's performance. Over the years, CPUs have undergone significant advancements, leading to increases in their speed, efficiency, and the complexity of tasks they can handle.

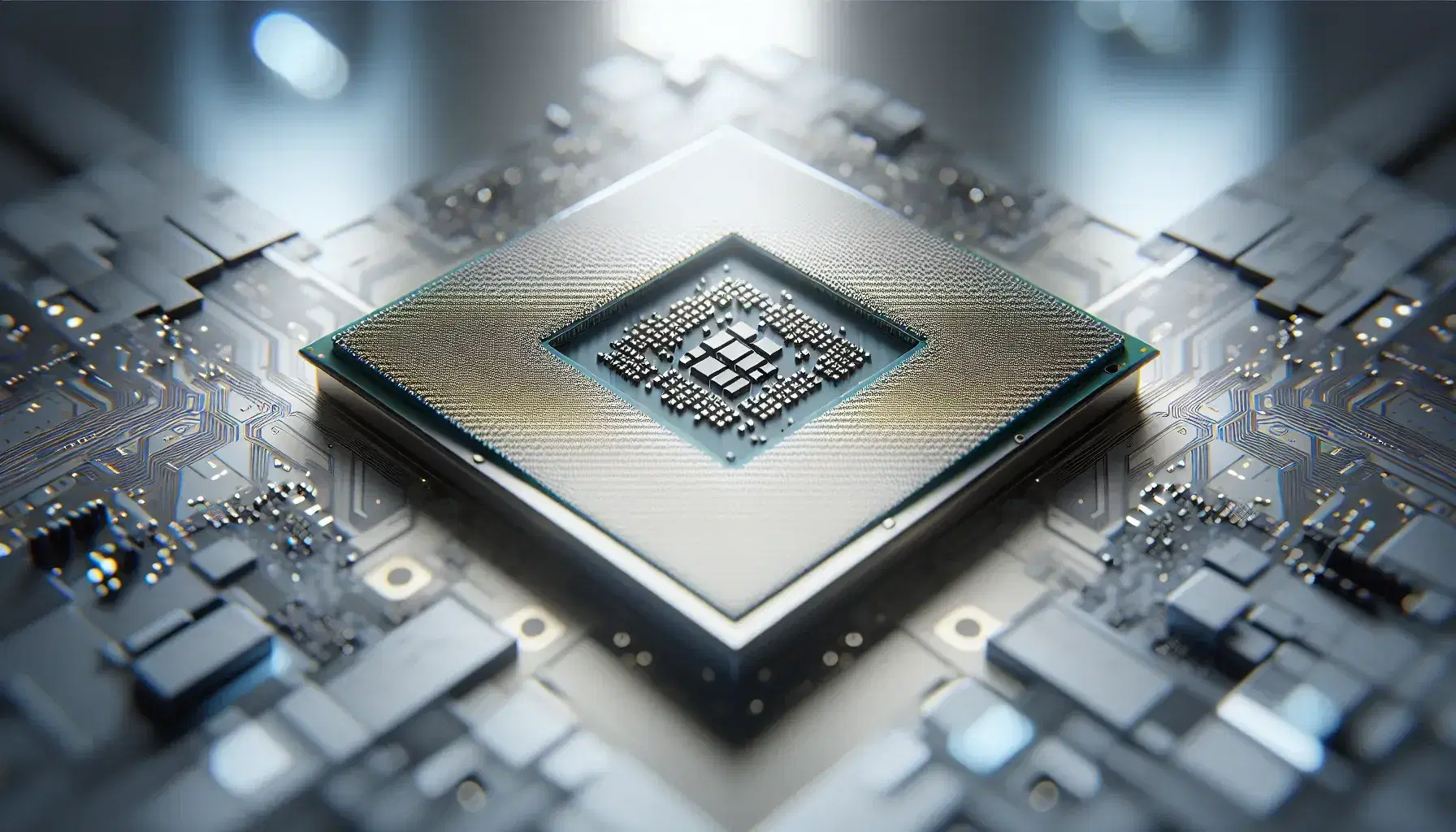

Close-up of a modern, unmarked CPU processor with gold connectors and a blurred background in blue and white tones suggesting an advanced technological environment.

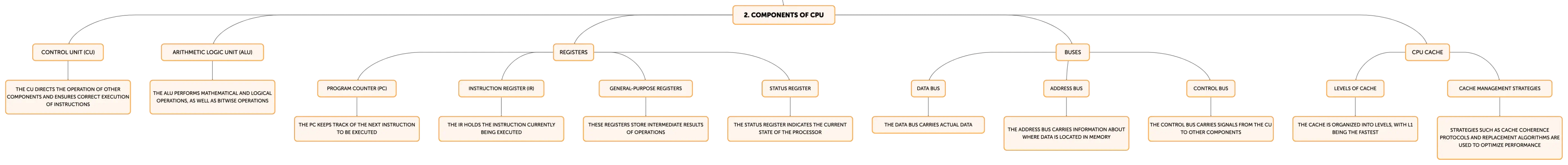

Core Elements of the CPU and Their Functions

The CPU consists of several integral parts, each with a distinct role in processing information. The Control Unit (CU) manages the execution of instructions by directing the operation of the other components. The Arithmetic Logic Unit (ALU) is responsible for carrying out mathematical and logical operations. Registers are small storage locations within the CPU that provide quick access to data and instructions that the processor needs imminently. The CPU cache is a special high-speed memory that stores frequently accessed data to expedite processing. Lastly, buses are the communication systems that transmit data between the CPU, memory, and other hardware components.

The Control Unit: Orchestrating CPU Operations

The Control Unit (CU) is the component of the CPU that acts as the conductor for all operations. It fetches instructions from the computer's memory, decodes them to determine their meaning, and executes them by signaling the appropriate parts of the CPU and coordinating the flow of data. The CU ensures that the CPU's operations are carried out in the correct order and at the right time, and it also plays a crucial role in branching and error detection during instruction execution.

The Arithmetic Logic Unit: The CPU's Computational Core

The Arithmetic Logic Unit (ALU) is the part of the CPU designed to handle the mathematical functions of a computer. It performs basic arithmetic operations such as addition, subtraction, multiplication, and division, as well as logical operations like comparisons. The ALU is also responsible for bitwise operations, which are critical for tasks that require manipulation of individual bits. The performance of the ALU directly impacts the processing power of the CPU and, by extension, the overall speed of the computer.

Registers: Quick Access Storage within the CPU

Registers are the CPU's immediate storage areas, crucial for its operations. They temporarily hold data that the CPU is actively using. The program counter (PC) tracks the address of the next instruction to execute, while the instruction register (IR) holds the instruction itself. General-purpose registers store intermediate results of operations, and the status register indicates the current state of the processor, including condition flags. Efficient register management is key to the CPU's speed and ability to handle complex tasks such as multitasking and pipelining.

Buses: The Data Transmission Highways of the CPU

Buses are the pathways that facilitate data transmission within the CPU and between the CPU and other components of the computer. They are critical for the integrated functioning of the computer's hardware. There are several types of buses, including the data bus, which carries the actual data; the address bus, which carries information about where the data should reside in memory; and the control bus, which carries control signals issued by the CU. The efficiency and width of these buses are important factors in determining the speed of data transfer and the overall performance of the computer system.

The CPU Cache: Accelerating Data Access

The CPU cache is a specialized form of fast memory that improves the efficiency of data retrieval. It stores copies of frequently used data and instructions from the main memory, allowing for quicker access by the CPU. The cache is organized into levels (L1, L2, and sometimes L3), with L1 being the smallest and fastest. Cache management strategies, such as cache coherence protocols and replacement algorithms, are employed to optimize performance. An effective cache system is vital for reducing the time-consuming memory bottleneck and enhancing the overall speed of the computer.

Synthesizing the CPU's Components and Their Interplay

The CPU is a sophisticated assembly of components, each with a specialized role that contributes to the computer's ability to process data. The Control Unit directs operations, the Arithmetic Logic Unit handles computations, registers provide immediate data storage, buses facilitate data transfer, and the cache optimizes memory access. A comprehensive understanding of these elements and how they interact is fundamental to grasping the complexities of CPU design and the performance of computing systems.
