Gravitational Force and Acceleration Due to Gravity

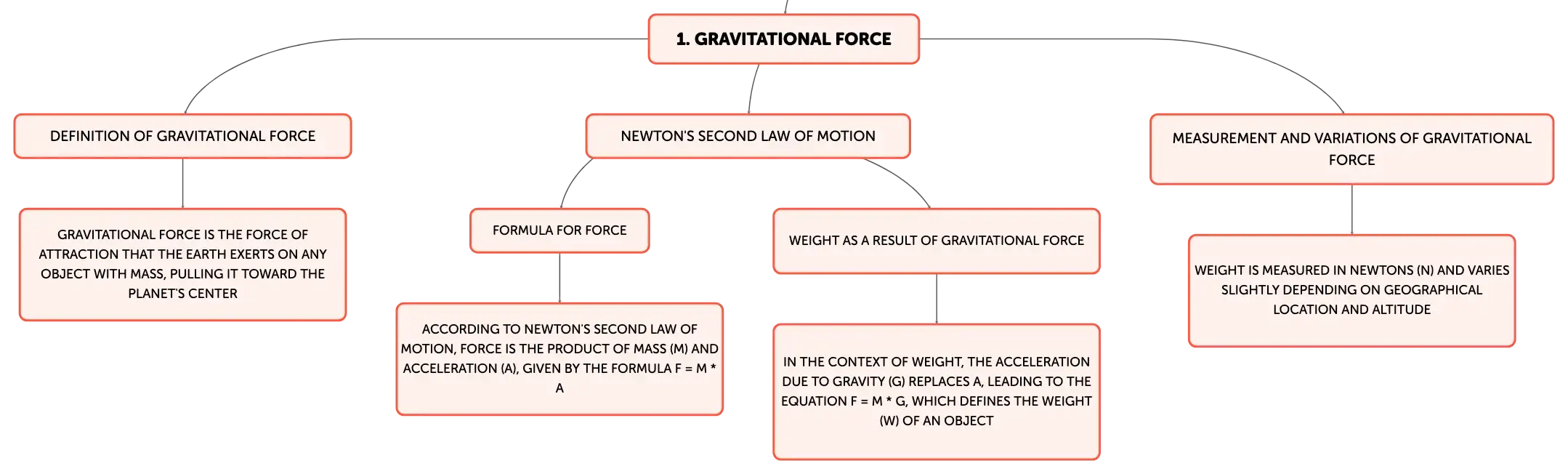

Understanding Gravitational Force and Weight

Gravitational force is the force of attraction that the Earth exerts on any object with mass, pulling it toward the planet's center. This force is what we commonly refer to as weight. According to Newton's second law of motion, force is the product of mass (m) and acceleration (a), given by the formula F = m * a. In the context of weight, the acceleration due to gravity (g) replaces a, leading to the equation F = m * g, which defines the weight (W) of an object. Weight is measured in Newtons (N), which are equivalent to kg * m/s². The value of g varies slightly depending on geographical location, being slightly less at the equator than at the poles, and decreases with altitude, making an object's weight slightly less at higher elevations.

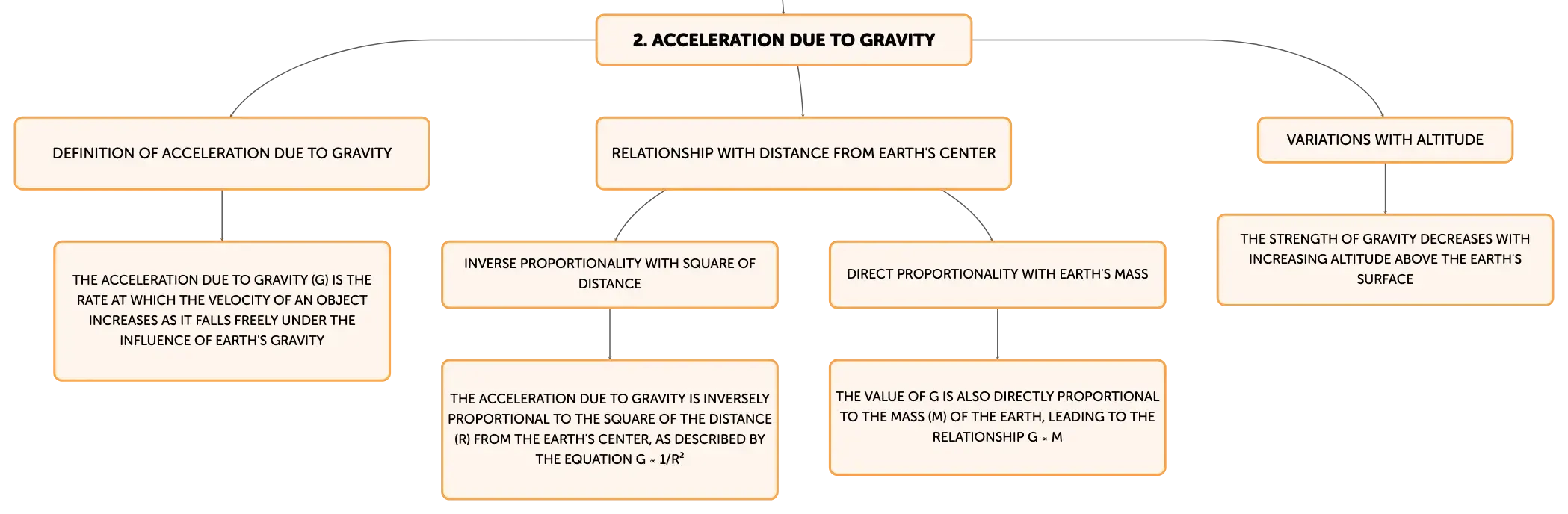

Acceleration Due to Gravity on Earth's Surface

The acceleration due to gravity (g) is approximately constant near the Earth's surface but decreases with increasing altitude. This acceleration is the rate at which the velocity of an object increases as it falls freely under the influence of Earth's gravity. It is inversely proportional to the square of the distance (r) from the Earth's center, as described by the equation g ∝ 1/r². The value of g is also directly proportional to the mass (M) of the Earth, leading to the relationship g ∝ M. When the mass of the object (m) is much smaller than M (m << M), the combined proportionality becomes g ∝ M/r². By incorporating the universal gravitational constant (G), we arrive at the equation g = GM/r², which calculates the acceleration due to gravity, with G having a value of approximately 6.674 * 10⁻¹¹ Nm²/kg².

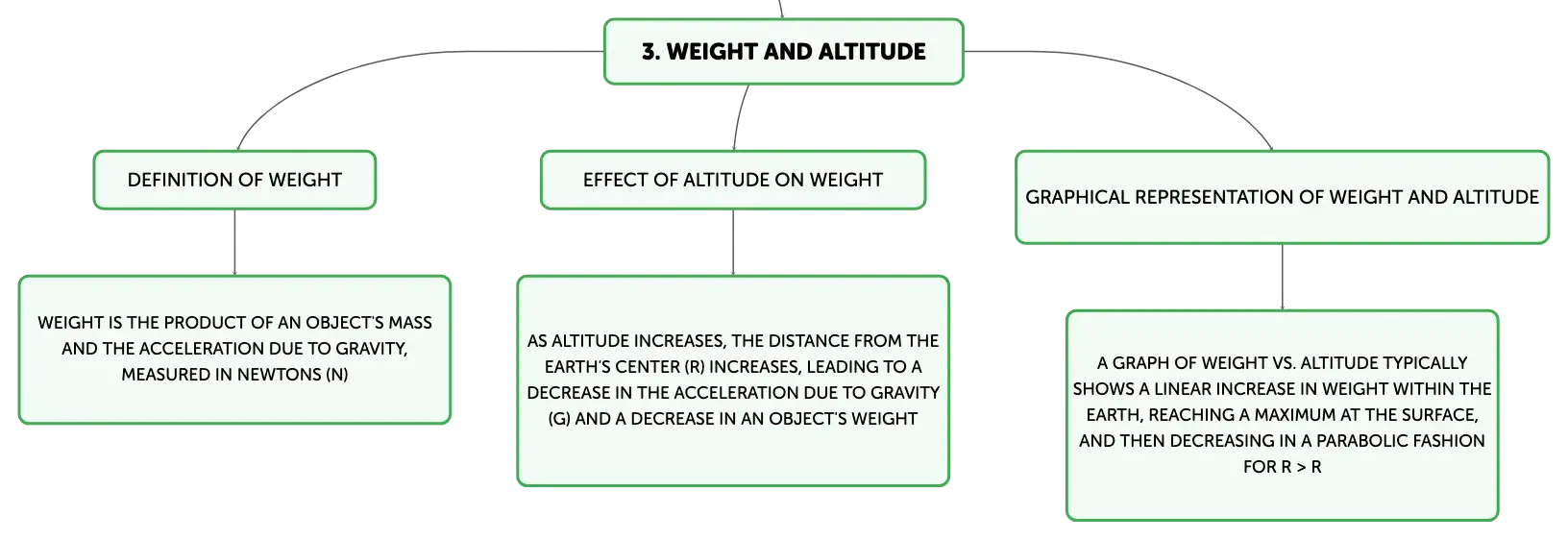

Variation of Gravity with Altitude

The strength of gravity decreases with increasing altitude above the Earth's surface. When an object is at a height (h) above the surface, its distance from the Earth's center is r = R + h, where R is the Earth's radius. By substituting this into the equation for g, we obtain g = GM/(R + h)², which shows that gravity diminishes as altitude increases. This relationship is important for understanding the weight of objects at different altitudes, such as satellites in orbit, which experience significantly less gravitational pull than objects on the Earth's surface.

Acceleration Due to Gravity Below Earth's Surface

The behavior of acceleration due to gravity below the Earth's surface differs from that above the surface. For locations within the Earth, the relationship between g and distance (r) from the center is linear for r < R. The mass of the Earth contributing to g at a point inside the Earth is proportional to the volume of the sphere with radius r, leading to the formula m = (4/3)πr³ρ, where ρ is the average density of the Earth. This results in a linear relationship g ∝ r for r < R, indicating that g increases with depth until reaching the Earth's surface, after which it decreases according to the inverse square law.

Geometric Interpretation and Practical Application

The variation of acceleration due to gravity with distance from the Earth's center can be represented graphically. The graph typically shows a linear increase in g with r within the Earth, reaching a maximum at the surface, and then decreasing in a parabolic fashion for r > R. This graphical representation aids in understanding how gravity varies with distance. In practical applications, such as calculating the weight of objects in orbit, the relevant equations are applied using the known values of mass and the calculated value of g at the orbital altitude. This allows for the determination of the object's weight in orbit, highlighting the importance of understanding how gravity changes with altitude.

Key Takeaways on Acceleration Due to Gravity

In conclusion, the acceleration due to gravity is a vector directed toward the Earth's center of mass and is independent of the mass of the falling object. It reaches its maximum value at the Earth's surface and decreases both with increasing altitude and depth within the Earth. The strength of gravity is determined by the mass of the Earth and the distance from its center, with g approaching zero at the Earth's center and becoming negligible at vast distances from the surface. These principles are foundational in fields such as physics, engineering, and space exploration, and are crucial for addressing problems that involve gravitational forces.
