Electric Fields

Quantifying Electric Fields

The electric field (E) at a point in space is quantified by the equation E = k * q / r^2, where k is Coulomb's constant (approximately 8.9875 × 10^9 N m^2/C^2), q is the charge generating the field, and r is the distance from the charge to the point of interest. This equation reflects the inverse-square law, indicating that the field's intensity decreases with the square of the distance from the charge. When calculating the electric field due to multiple charges, the contributions from each charge are vectorially added, which may involve complex calculations, especially for continuous charge distributions. This mathematical representation is essential for predicting electric forces and understanding the behavior of charges in various contexts.

Depicting Electric Field Lines

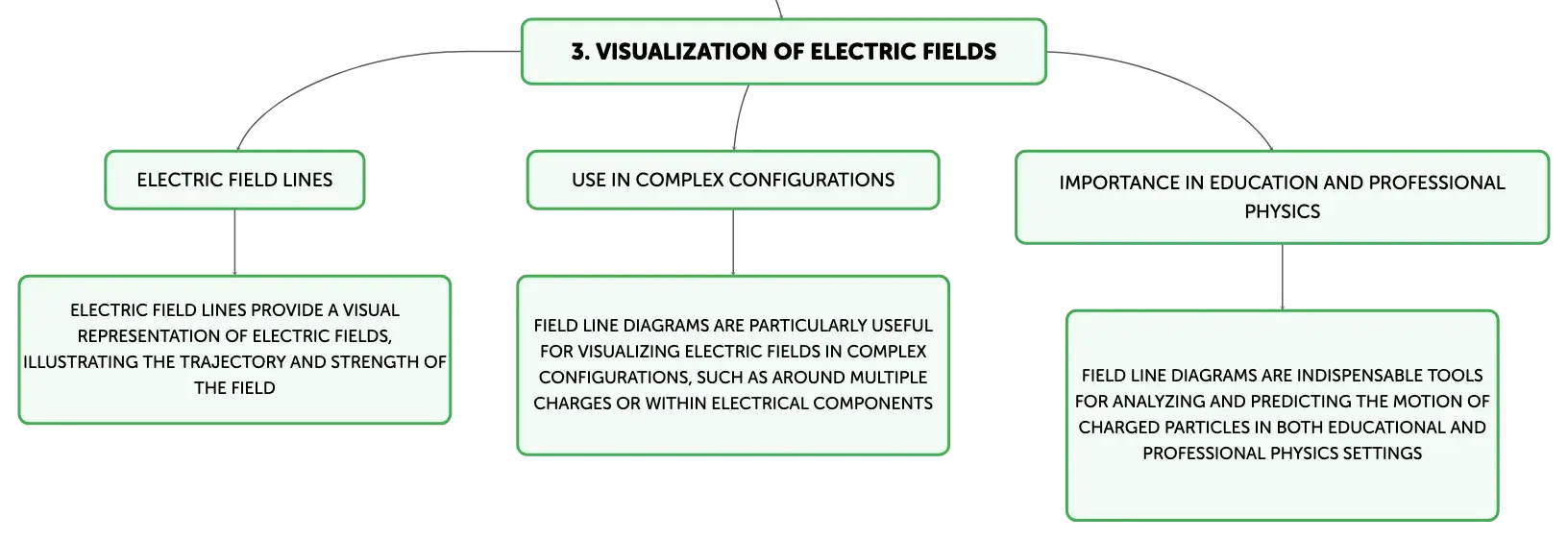

Electric field lines provide a visual representation of electric fields, illustrating the trajectory that a positive test charge would follow. These lines begin at positive charges and terminate at negative charges, with their density reflecting the field's strength—denser lines indicate stronger fields. The lines do not cross, ensuring clarity in the representation of the field's direction and magnitude. These diagrams are particularly useful for visualizing the fields in complex configurations, such as around multiple charges or within electrical components like capacitors. Field line diagrams are indispensable in both educational settings and professional physics for analyzing and predicting the motion of charged particles.

Electric Field Patterns of a Dipole

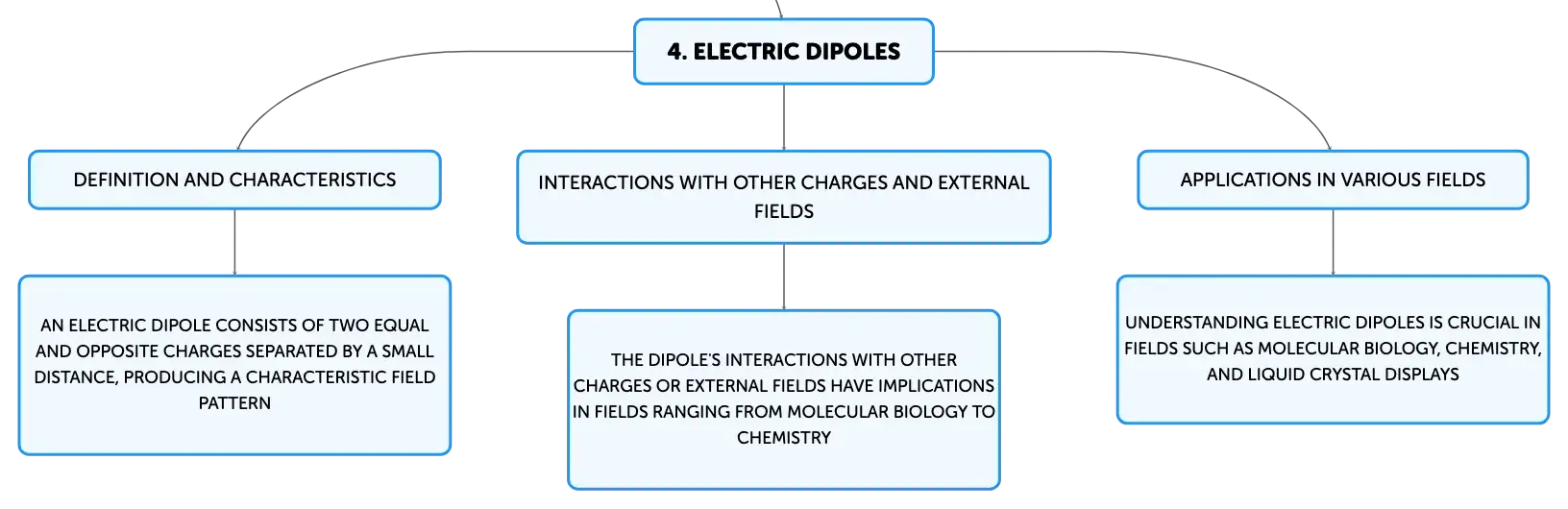

An electric dipole consists of two equal and opposite charges separated by a small distance, producing a characteristic field pattern. The field lines emerge from the positive charge and converge on the negative charge, with a pronounced field strength near the dipole that diminishes with distance. This pattern is essential for understanding the dipole's interactions with other charges or external fields, which has implications in fields ranging from molecular biology to chemistry. For instance, the alignment of water molecules with an electric field due to their dipole moments is critical for understanding solvation processes and the operation of liquid crystal displays.

Applications and Examples of Electric Fields

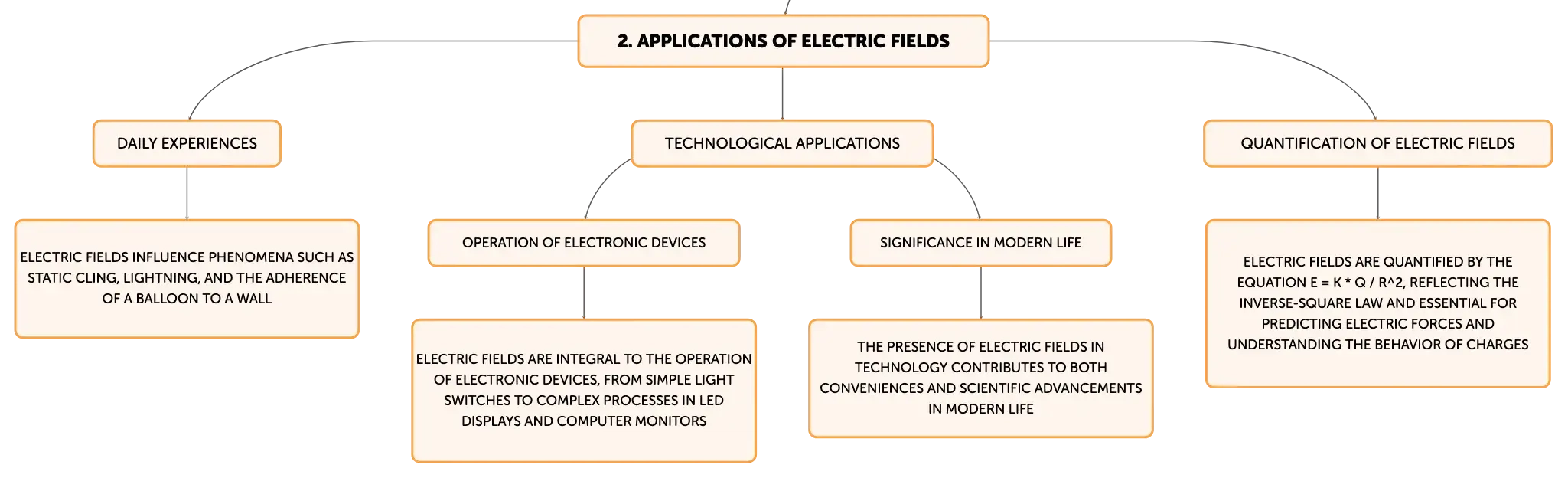

Electric fields have diverse applications that extend beyond theoretical physics into practical realms. The strength of an electric field is expressed in units of Newtons per Coulomb (N/C) or Volts per meter (V/m), which are crucial for calculating the forces exerted on charged particles, designing electrical circuits, and determining potential energy within fields. Electric fields are harnessed in capacitors to store energy in electronic devices, in the atmospheric phenomena leading to lightning, and in electrostatic precipitators that clean industrial emissions. The Earth's natural electric field affects weather and atmospheric charged particles, while medical diagnostics such as Electrocardiography (ECG) rely on detecting the electric fields generated by the heart. These examples illustrate the broad impact of electric fields across various scientific and technological domains.
