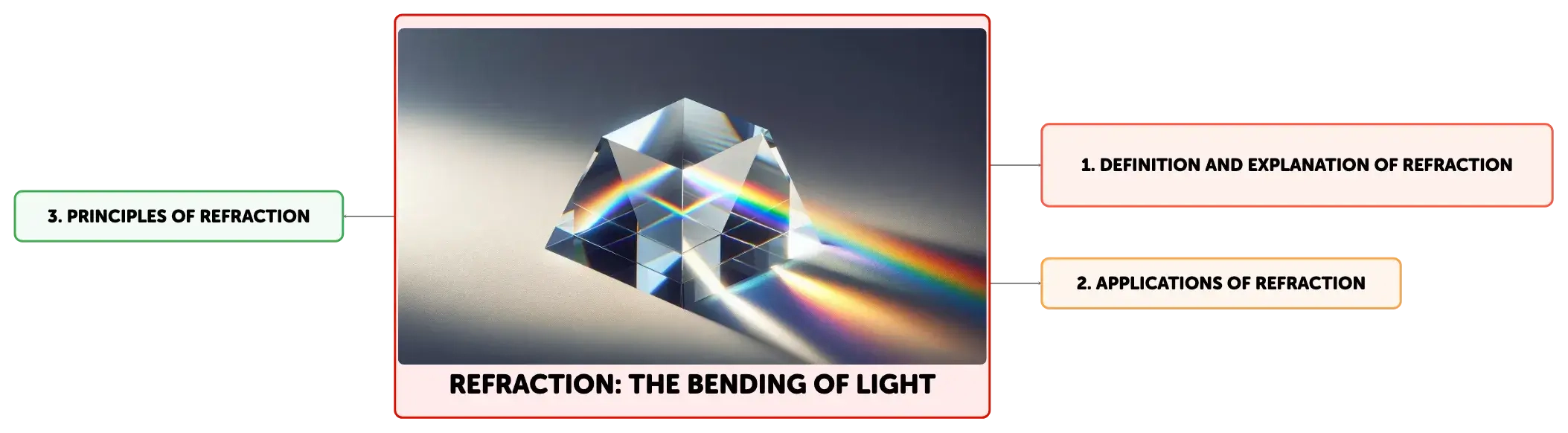

Concept Map

Algorino

Edit available

Light refraction is the bending of light as it passes between different media, influenced by the refractive index. This text explores the fundamental laws of refraction, including Snell's Law, and phenomena such as total internal reflection and the critical angle. It also discusses practical applications in lenses, cameras, and the natural spectacle of rainbows, highlighting the importance of refraction in optical technologies and everyday life.

Summary

Outline

The Principles of Light Refraction

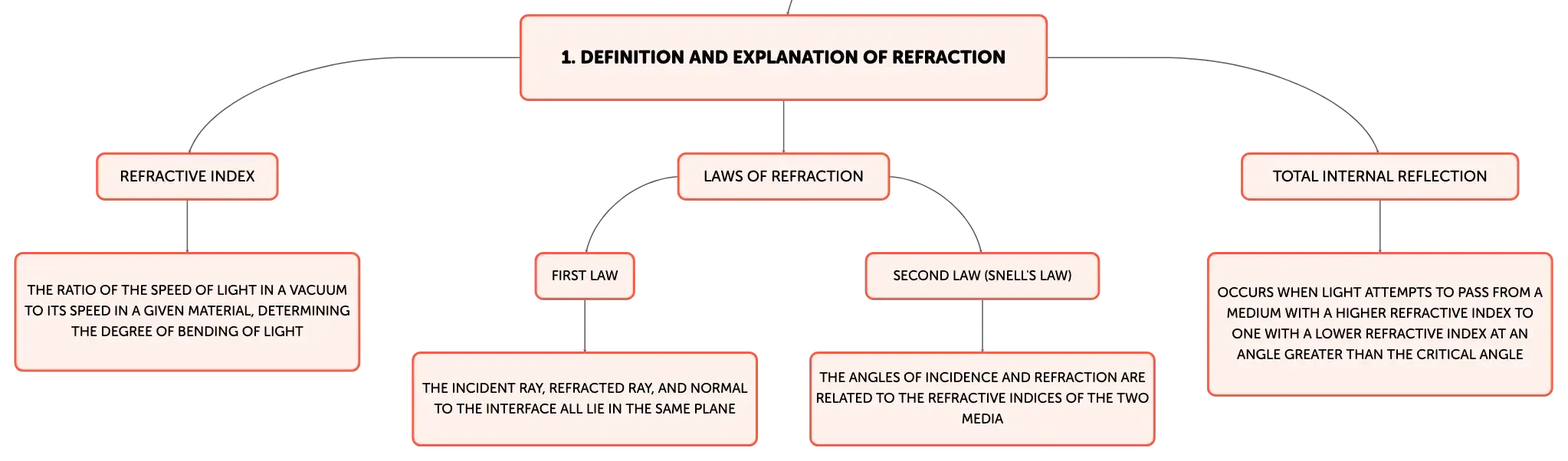

Refraction is the bending of light as it transitions between different media, which occurs due to a change in the light's speed. This change is quantified by the refractive index (n), representing the ratio of the speed of light in a vacuum (c) to its speed in a given material (v). The refractive index is always greater than 1 for materials other than a vacuum, where it is exactly 1. Common refractive indices include approximately 1 for air, 1.33 for water, and 1.52 for typical glass. The degree of bending depends on the original medium's refractive index relative to the new medium's refractive index.

$Glass prism on white surface refracting light into a color spectrum, showcasing a vivid rainbow from red to violet against a neutral gray background.$

Fundamental Laws of Refraction

The path of light during refraction is governed by two laws. The first law states that the incident ray, the refracted ray, and the normal to the interface at the point of incidence all lie in the same plane. The second law, known as Snell's Law, relates the angles of incidence and refraction to the refractive indices of the two media. Specifically, when light passes from a less dense medium (lower refractive index) to a denser medium (higher refractive index), it bends towards the normal, resulting in a smaller angle of refraction. Conversely, light bends away from the normal when transitioning from a denser to a less dense medium.

Snell's Law and the Principle of Least Time

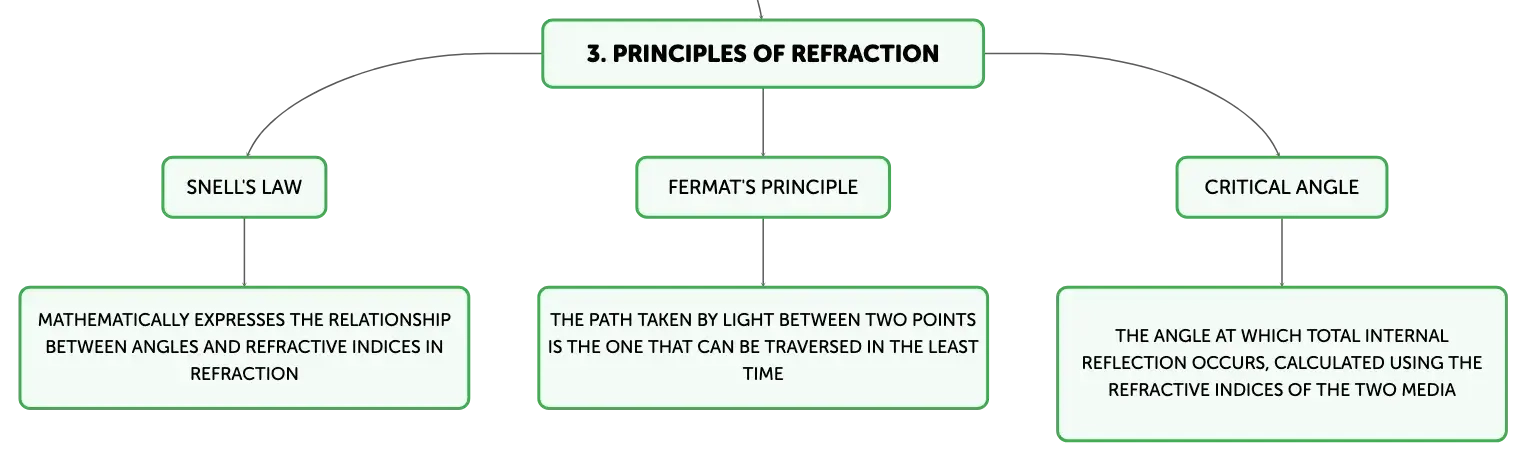

Snell's Law mathematically expresses the relationship between the angles and refractive indices as ni*sin(θi) = nr*sin(θr), where ni and nr are the refractive indices of the initial and second media, respectively, and θi and θr are the corresponding angles of incidence and refraction. This law is a consequence of Fermat's Principle of Least Time, which asserts that the path taken by light between two points is the one that can be traversed in the least time. As a result, light bends towards the normal when entering a medium in which it slows down, minimizing the time spent in the slower medium, and bends away from the normal when entering a faster medium to maximize the time spent in the less resistive medium.

Total Internal Reflection and the Critical Angle

Total internal reflection occurs when light attempts to pass from a medium with a higher refractive index to one with a lower refractive index at an angle greater than the critical angle. At this angle, the refracted ray would travel along the interface, and any greater angle results in the light being reflected back into the original medium. The critical angle can be calculated using the formula sin(θc) = nr/ni, where θc is the critical angle, and nr and ni are the refractive indices of the second and first media, respectively. This phenomenon is observable in fiber optics and is also the reason why a viewer beneath the water surface at a steep angle sees a reflection rather than the world above water.

Applications of Refraction in Daily Life

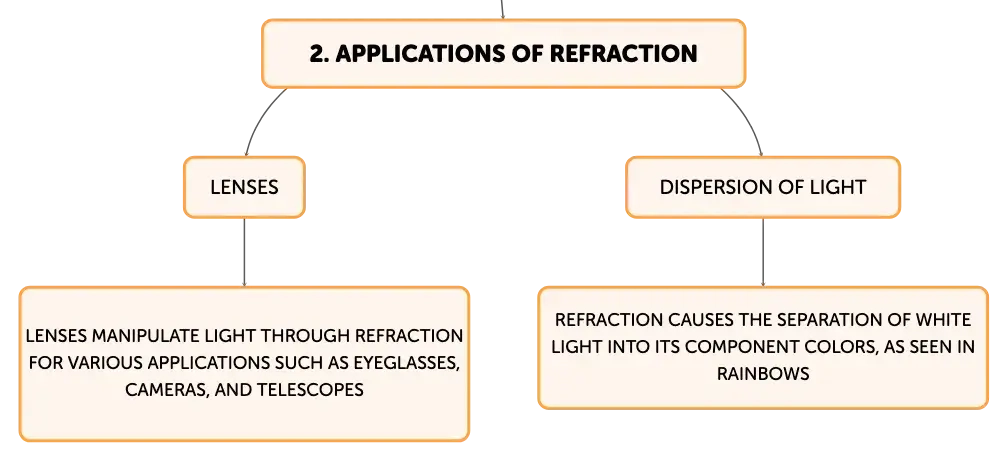

Refraction is integral to the functioning of lenses, which manipulate light to focus or disperse it for various applications, including eyeglasses, cameras, and telescopes. Lenses are designed with precise curvatures to create the necessary refraction at each interface between materials of different refractive indices. Additionally, the dispersion of light into a spectrum of colors, as seen in rainbows, is a result of refraction. Each wavelength of light is refracted by a slightly different amount due to the wavelength-dependent variation in the refractive index of water, separating white light into its component colors.

Concluding Insights on Light Refraction

In conclusion, refraction is a fundamental optical phenomenon resulting from the speed change of light as it moves between media with different refractive indices. The refractive index is a critical factor in determining the extent of light bending. Snell's Law provides the precise calculation for this bending, while Fermat's Principle explains the underlying reason for the light's path. The concept of the critical angle leads to the understanding of total internal reflection. The principles of refraction are not only pivotal in physics but also underpin a wide array of optical technologies and everyday observations, demonstrating the importance of this concept in both scientific understanding and practical applications.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

______ is the phenomenon where light bends when passing from one medium to another, due to a change in speed.

Refraction

01

Incident ray, refracted ray, and normal: same plane?

Yes, all lie in the same plane at the point of incidence.

02

Snell's Law relationship

Relates angles of incidence and refraction to the media's refractive indices.
