Hypergraphs: A Comprehensive Framework for Modeling Complex Relationships

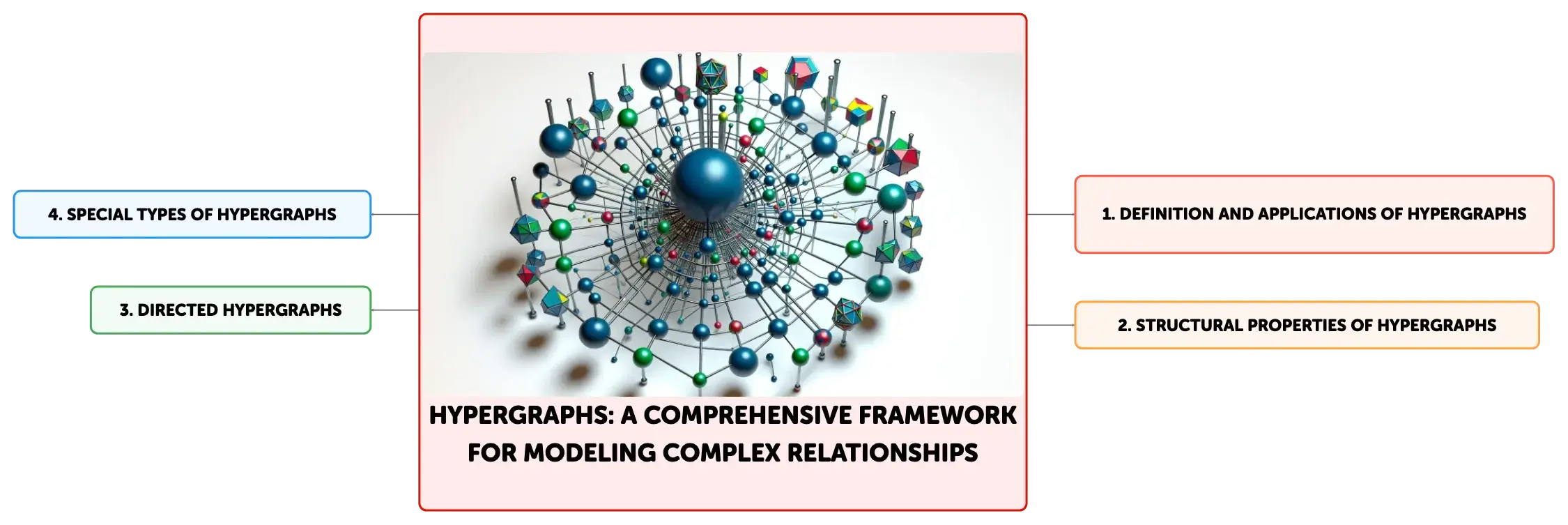

Concept Map
Hypergraphs extend traditional graph theory by allowing edges, or hyperedges, to connect multiple vertices, representing complex relationships. They are utilized in computer science, network theory, and combinatorial optimization. This text delves into uniform, directed, complete, and bipartite hypergraphs, their structural properties, and the concept of hypergraph coloring as a problem-solving tool.
Summary
Outline
Exploring the Complexities of Hypergraphs
Hypergraphs are an extension of traditional graph theory, where edges, known as hyperedges, can connect more than two vertices. This advanced structure allows for the representation of intricate multi-way relationships beyond simple pairwise interactions. Hypergraphs find applications in various domains, including computer science for data organization, combinatorial optimization problems, and network theory for the analysis of interconnected systems. They provide a more comprehensive framework for modeling complex scenarios where multiple entities can be involved in a single relationship.Fundamental Elements of Hypergraph Theory
The fundamental difference between a traditional graph and a hypergraph lies in the nature of their edges. In a hypergraph, a hyperedge can link any number of vertices, not just two. This enables the depiction of complex relational structures. For example, in a social network, a hyperedge could represent a group chat involving several members, while in biological networks, hyperedges can model intricate interactions within an ecosystem, such as pollination involving multiple species.The Role of Uniform Hypergraphs in Simplifying Analysis
Uniform hypergraphs are a special class where each hyperedge connects exactly the same number of vertices, termed 'k-uniform' for hyperedges of size 'k'. This constraint introduces a level of simplicity and regularity, making them easier to analyze. Uniform hypergraphs are particularly useful in situations where relationships are inherently fixed in size, such as in collaborative networks where a task might require a specific number of skills or participants, facilitating the study of team dynamics and resource allocation.Classifying Hypergraphs by Structural Properties
Hypergraphs can be distinguished by various structural properties, such as connectivity, bipartiteness, and acyclicity. A connected hypergraph ensures that any two vertices are linked by a sequence of hyperedges, while a bipartite hypergraph consists of two distinct sets of vertices with hyperedges only between sets. An acyclic hypergraph is one without cycles, meaning there is no closed chain of hyperedges. Understanding these properties is crucial for analyzing the structure and behavior of complex systems modeled by hypergraphs.Directed Hypergraphs and Their Application in System Dynamics
Directed hypergraphs introduce directionality to hyperedges, creating a distinction between source and target vertices. This is essential for representing directional processes such as workflows, data transmission, or ecological energy flows. In project management, directed hypergraphs can illustrate precedence constraints among tasks, clarifying the sequence of operations. This directionality enriches the modeling capabilities of hypergraphs, allowing for a more nuanced representation of systems where the direction of interaction is significant.Complete Hypergraphs for Exhaustive Relationship Modeling
Complete hypergraphs are those in which every possible subset of vertices forms a hyperedge, representing the most extensive interconnectivity. They are particularly useful in scenarios where all possible groupings of elements are of interest, such as in comprehensive security analysis, where every potential interaction between components must be considered to identify vulnerabilities. Complete hypergraphs offer a framework for thorough examination and understanding of all-encompassing relationships within a system.Bipartite Hypergraphs for Two-Category Relationship Analysis
Bipartite hypergraphs are structured to model interactions between two distinct classes of entities, with vertices divided into two separate sets and hyperedges connecting vertices from different sets. This structure is advantageous for analyzing relationships that are naturally divided into two groups, such as customer-product interactions in market analysis, where it can provide insights into consumer behavior and inform targeted marketing strategies.Hypergraph Coloring as a Tool for Problem Solving
Hypergraph coloring is a generalization of graph coloring to hypergraphs, where the goal is to assign colors to vertices such that no hyperedge has all vertices of the same color. This problem promotes critical thinking and requires a comprehensive understanding of hypergraph theory. Practical exercises, such as designing hypergraphs for transportation systems or addressing clustering challenges, can enhance one's grasp of hypergraph applications. Visualization tools can be particularly helpful in illustrating the complex connections within hypergraphs, thereby improving both educational and practical understanding of this mathematical concept.
Show More

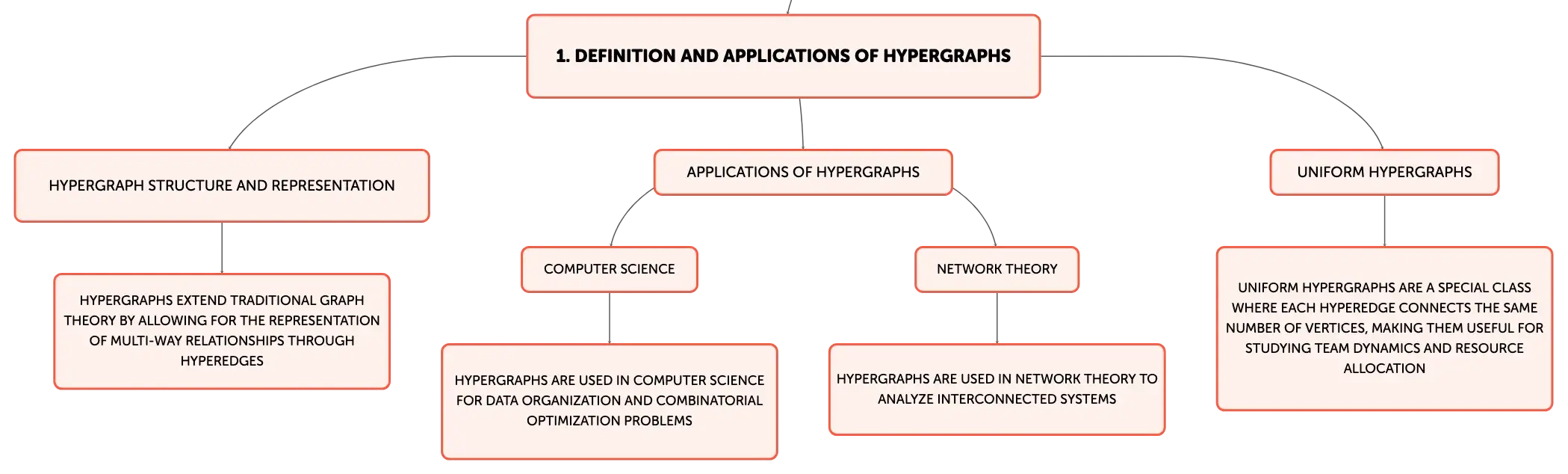

Definition and Applications of Hypergraphs
Hypergraph Structure and Representation
Hypergraphs extend traditional graph theory by allowing for the representation of multi-way relationships through hyperedges
Applications of Hypergraphs
Computer Science
Hypergraphs are used in computer science for data organization and combinatorial optimization problems
Network Theory
Hypergraphs are used in network theory to analyze interconnected systems
Uniform Hypergraphs
Uniform hypergraphs are a special class where each hyperedge connects the same number of vertices, making them useful for studying team dynamics and resource allocation

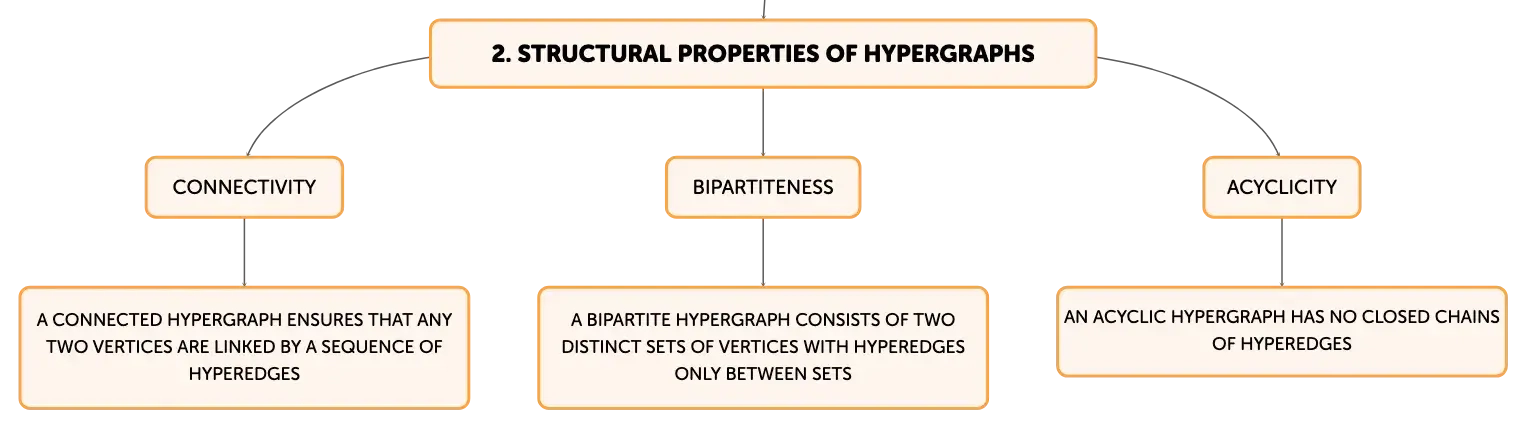

Structural Properties of Hypergraphs
Connectivity
A connected hypergraph ensures that any two vertices are linked by a sequence of hyperedges
Bipartiteness
A bipartite hypergraph consists of two distinct sets of vertices with hyperedges only between sets
Acyclicity
An acyclic hypergraph has no closed chains of hyperedges

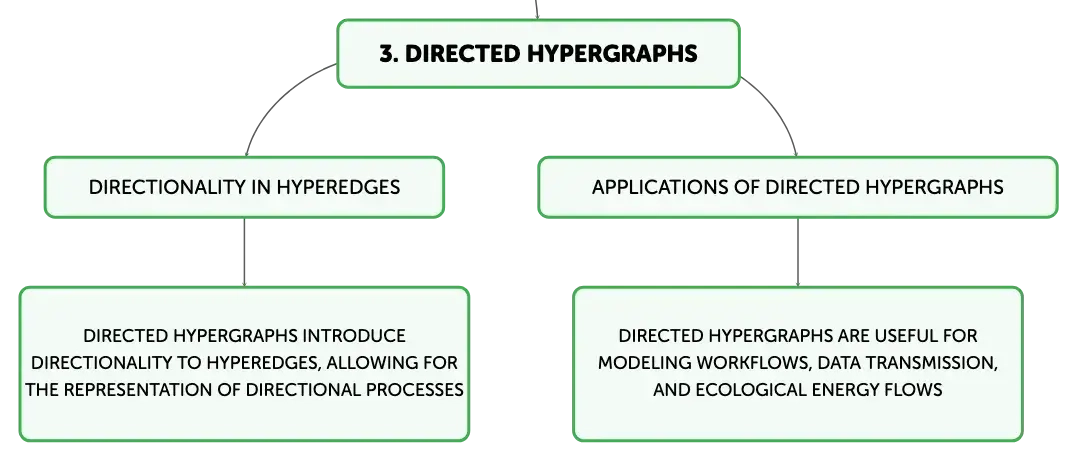

Directed Hypergraphs
Directionality in Hyperedges
Directed hypergraphs introduce directionality to hyperedges, allowing for the representation of directional processes
Applications of Directed Hypergraphs
Directed hypergraphs are useful for modeling workflows, data transmission, and ecological energy flows

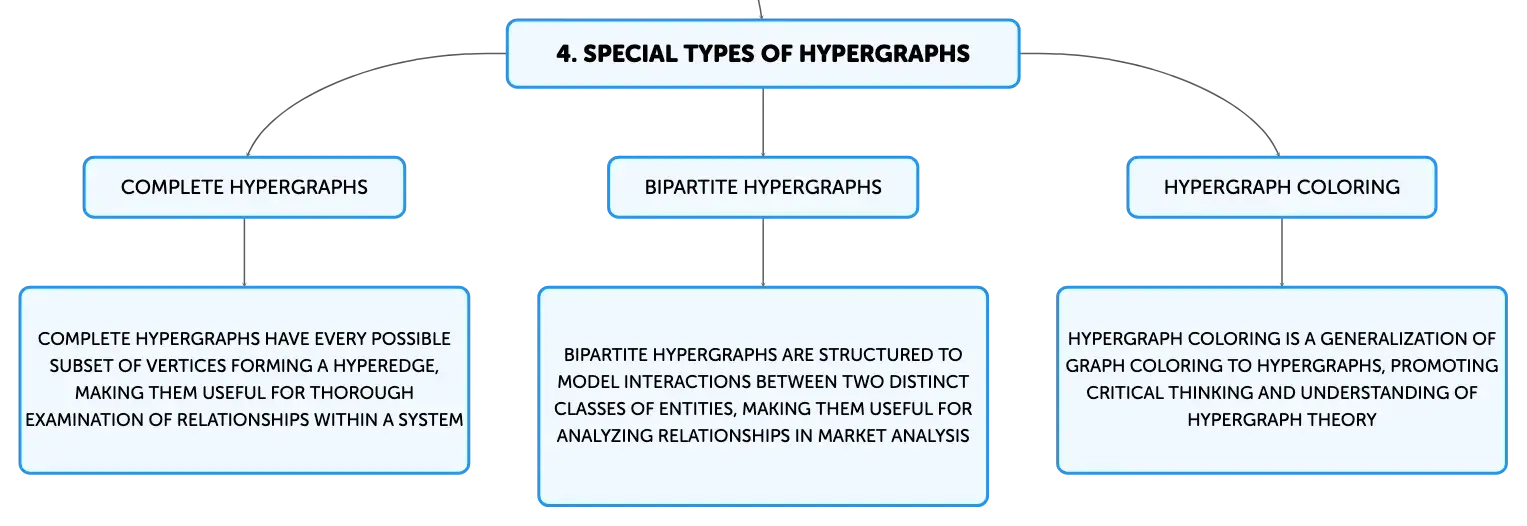

Special Types of Hypergraphs
Complete Hypergraphs
Complete hypergraphs have every possible subset of vertices forming a hyperedge, making them useful for thorough examination of relationships within a system
Bipartite Hypergraphs
Bipartite hypergraphs are structured to model interactions between two distinct classes of entities, making them useful for analyzing relationships in market analysis
Hypergraph Coloring
Hypergraph coloring is a generalization of graph coloring to hypergraphs, promoting critical thinking and understanding of hypergraph theory
Hypergraphs: A Comprehensive Framework for Modeling Complex Relationships
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In ______, hyperedges can link more than two vertices, unlike traditional graph edges.
hypergraphs
01
Hypergraph edge connectivity
Hyperedge can link multiple vertices, not limited to pairs.
02
Hypergraph applications
Used in complex systems, e.g., social networks for group chats, biological networks for species interactions.
