Processors and Their Architecture

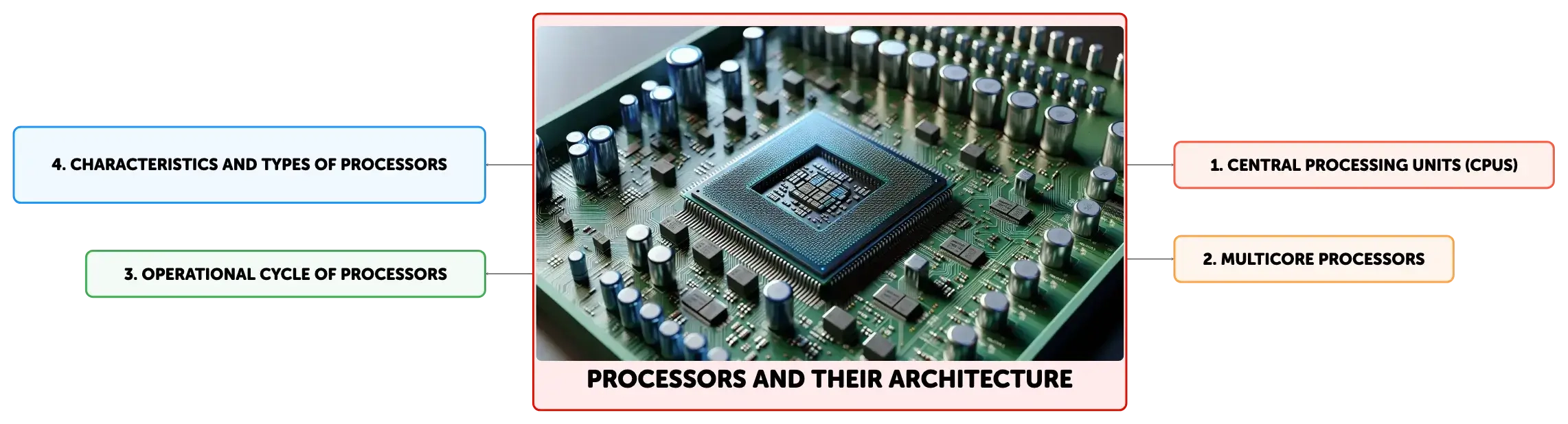

Concept Map
Exploring processor types and architectures, this overview discusses CPUs, GPUs, and specialized AI processors like TPUs and IPUs. It covers multicore configurations, CISC and RISC architectures, and their implications for computational power and efficiency. The text highlights the importance of matching processor capabilities with specific computing tasks, particularly in AI applications.
Summary
Outline
Exploring the Fundamentals of Processor Types and Architectures
Central Processing Units (CPUs), the cornerstone of computing devices, execute instructions and manage data flow. These processors come in various configurations, from single-core to multicore, including dual-core, quad-core, and octa-core, each optimized for different workloads. The evolution of CPUs adheres to Moore's law, which historically observed that the number of transistors on a microchip tends to double roughly every two years, though this trend is slowing. This increase in transistor density has led to significant advancements in processing power and energy efficiency.Understanding Processor Architecture and Its Impact on Performance
The architecture of a processor is its fundamental design that dictates how its components work together to execute instructions. This architecture is pivotal in determining how efficiently a processor handles data and interacts with software. Processor architectures are divided into categories such as accumulator, stack, and register-based, each with unique methods of data management. The distinction between Complex Instruction Set Computer (CISC) and Reduced Instruction Set Computer (RISC) architectures is also significant, with CISC designed to perform complex tasks with fewer instructions, and RISC focusing on simpler, more frequent instructions. Enhancements like superscalar execution, which allows multiple instructions to be processed simultaneously, and vector processing, which performs operations on multiple data points at once, further improve performance. Technologies such as hyper-threading and multi-threading enable processors to handle several threads of instructions concurrently, effectively increasing the core count.The Role of Multicore Processors in Enhancing Computational Power
The advent of multicore processors has been a leap forward in computing, with these CPUs containing several independent processing units (cores) that can execute tasks concurrently. This parallelism can significantly accelerate computational tasks. However, the benefits of additional cores are subject to diminishing returns due to Amdahl's law, which states that the speedup of a program using multiple processors in parallel computing is limited by the sequential fraction of the program. Therefore, the selection of a multicore processor should be based on the specific requirements of the intended applications, such as video editing, gaming, or scientific simulations.Operational Principles of Different Processor Types
All processors follow a basic operational cycle that includes fetching, decoding, executing, and writing back instructions. While these steps are consistent across different types of processors, the way they are implemented can vary, especially between CISC and RISC architectures. CISC processors are built to handle complex instructions directly, reducing the need for numerous assembly language instructions, whereas RISC processors aim for efficiency through a simplified set of instructions that are executed at a consistent rate. These operational differences are evident in processors such as Apple's M1 chip, which uses a RISC-based architecture, and Intel's Core i7 processor, which incorporates CISC principles.Distinguishing Characteristics of Processor Types and Their Impact
Key characteristics that define processor performance include clock speed, core count, cache size, and power consumption. Different types of processors, such as CPUs, Graphics Processing Units (GPUs), Digital Signal Processors (DSPs), and dedicated physics processors, are specialized for various tasks, from general-purpose computing to specific functions like graphics rendering and signal processing. Multicore CPUs and GPUs, in particular, are adept at handling tasks that can be parallelized, making them suitable for applications in artificial intelligence and machine learning.Selecting Processors for Artificial Intelligence Applications
Artificial Intelligence (AI) applications require processors that can manage extensive data sets and perform complex computations efficiently. Specialized processors, such as Google's Tensor Processing Units (TPUs), Graphcore's Intelligence Processing Units (IPUs), and NVIDIA's GPUs with CUDA cores, are engineered for parallel processing capabilities essential for AI tasks. When choosing a processor for AI, considerations should include cost, power efficiency, cooling requirements, and the nature of the workload. As AI technology progresses, the range of processors suitable for these applications is expanding, necessitating careful selection to match specific AI needs.Key Takeaways on Processor Types and Their Applications
To conclude, processors are differentiated by their architecture, including accumulator, stack, and register-based designs, as well as by their instruction set complexity, such as CISC and RISC. Multicore processors, which come in configurations like dual-core, quad-core, hexa-core, and octa-core, enable parallel execution of instructions, enhancing performance for a variety of computing tasks. Understanding the operational principles of processors, their distinctive features, and their appropriateness for particular applications, including AI, is crucial when selecting the right processor for a device or project.
Show More

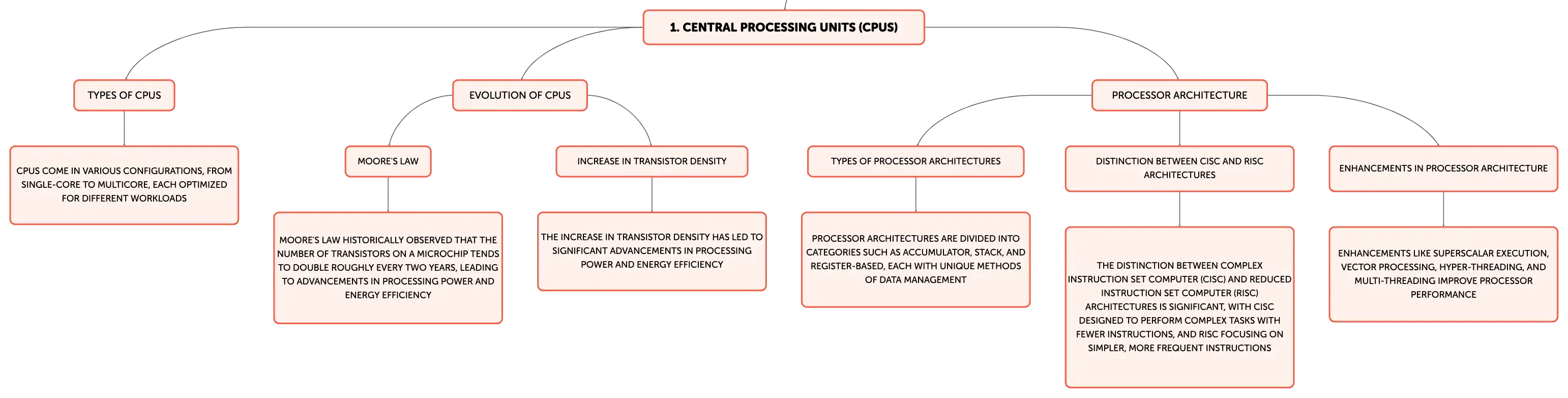

Central Processing Units (CPUs)
Types of CPUs
CPUs come in various configurations, from single-core to multicore, each optimized for different workloads
Evolution of CPUs
Moore's Law
Moore's Law historically observed that the number of transistors on a microchip tends to double roughly every two years, leading to advancements in processing power and energy efficiency
Increase in Transistor Density
The increase in transistor density has led to significant advancements in processing power and energy efficiency
Processor Architecture
Types of Processor Architectures
Processor architectures are divided into categories such as accumulator, stack, and register-based, each with unique methods of data management
Distinction between CISC and RISC Architectures
The distinction between Complex Instruction Set Computer (CISC) and Reduced Instruction Set Computer (RISC) architectures is significant, with CISC designed to perform complex tasks with fewer instructions, and RISC focusing on simpler, more frequent instructions
Enhancements in Processor Architecture
Enhancements like superscalar execution, vector processing, hyper-threading, and multi-threading improve processor performance

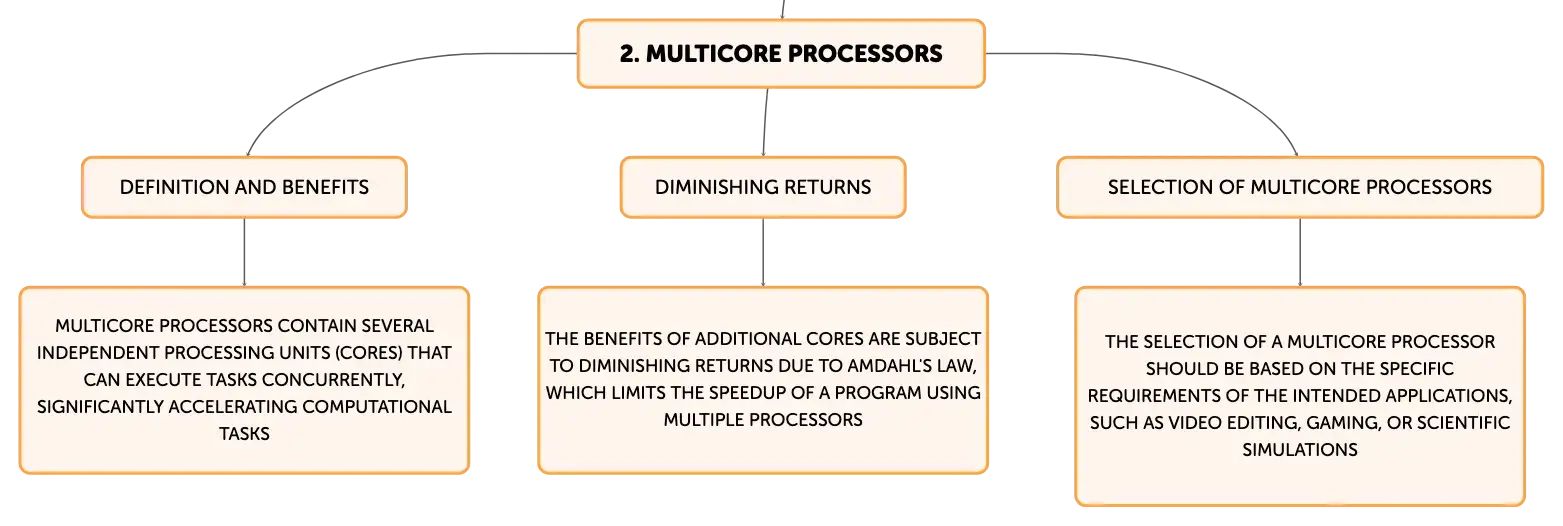

Multicore Processors
Definition and Benefits
Multicore processors contain several independent processing units (cores) that can execute tasks concurrently, significantly accelerating computational tasks
Diminishing Returns
The benefits of additional cores are subject to diminishing returns due to Amdahl's law, which limits the speedup of a program using multiple processors
Selection of Multicore Processors
The selection of a multicore processor should be based on the specific requirements of the intended applications, such as video editing, gaming, or scientific simulations

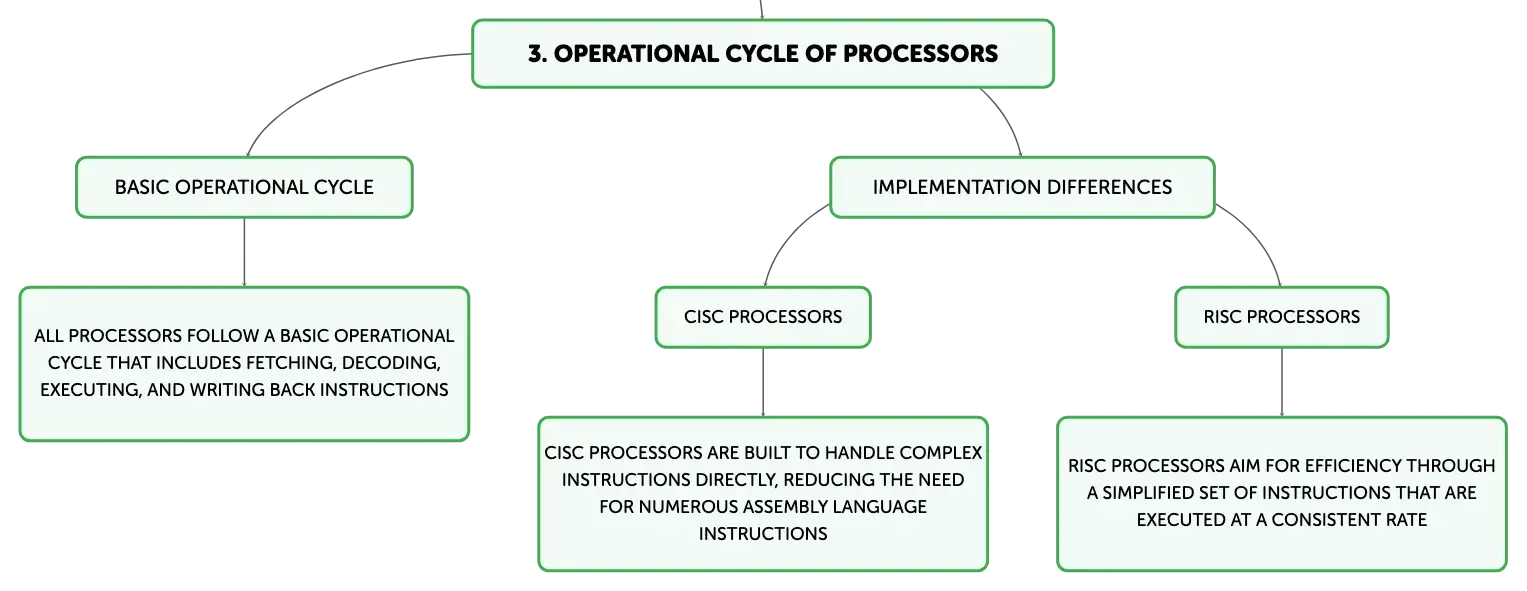

Operational Cycle of Processors
Basic Operational Cycle
All processors follow a basic operational cycle that includes fetching, decoding, executing, and writing back instructions
Implementation Differences
CISC Processors
CISC processors are built to handle complex instructions directly, reducing the need for numerous assembly language instructions
RISC Processors
RISC processors aim for efficiency through a simplified set of instructions that are executed at a consistent rate

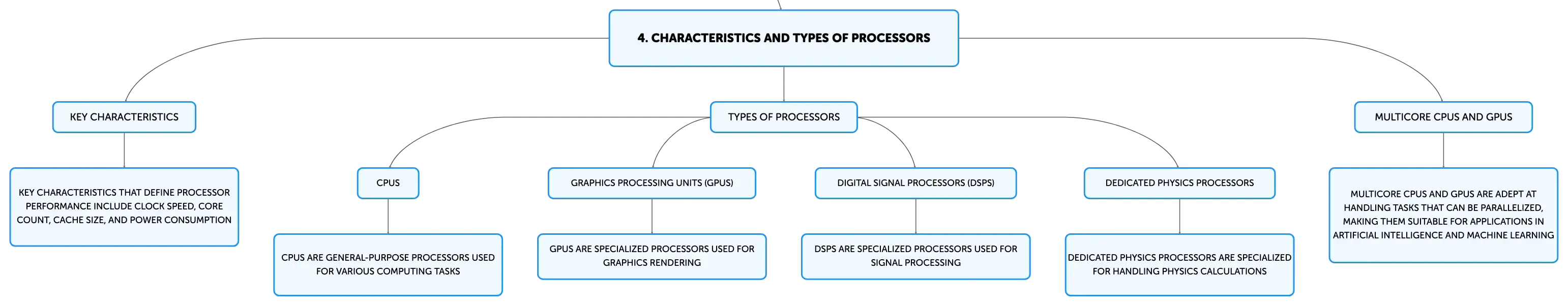

Characteristics and Types of Processors
Key Characteristics
Key characteristics that define processor performance include clock speed, core count, cache size, and power consumption
Types of Processors
CPUs
CPUs are general-purpose processors used for various computing tasks
Graphics Processing Units (GPUs)
GPUs are specialized processors used for graphics rendering
Digital Signal Processors (DSPs)
DSPs are specialized processors used for signal processing
Dedicated Physics Processors
Dedicated physics processors are specialized for handling physics calculations
Multicore CPUs and GPUs
Multicore CPUs and GPUs are adept at handling tasks that can be parallelized, making them suitable for applications in artificial intelligence and machine learning
Processors and Their Architecture
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
CPU Function
Executes instructions, manages data flow in computing devices.
01
CPU Configurations
Variety includes single-core, dual-core, quad-core, octa-core, each for specific workloads.
02
CPU Advancements
Increased transistor density boosts processing power, enhances energy efficiency.
