Principles of Light Reflection

Light reflection is a key optical phenomenon that enables us to observe the world. It occurs when light rays encounter a boundary between two distinct media, such as air and water, and are redirected back into the original medium. The surface where this occurs is known as the reflective surface. Reflection is responsible for various optical effects, including the ability to see images in a mirror and the occurrence of sound echoes in enclosed spaces. The phenomenon adheres to specific principles and can be divided into two primary categories based on the nature of the reflective surface.

Serene lake at sunset with vibrant sky reflections, a solitary rowboat, and pebbles causing diffuse reflection on the water's edge.

Fundamental Laws of Light Reflection

The behavior of light during reflection is governed by three fundamental laws. The first law states that the incident ray, the reflected ray, and the normal to the reflection surface at the point of incidence all lie in the same plane. The second law, known as the law of reflection, asserts that the angle of incidence is equal to the angle of reflection. The third law indicates that the reflected ray and the incident ray are on opposite sides of the normal. These laws are essential for predicting and understanding the behavior of light when it interacts with a reflective surface.

Specular and Diffuse Reflection

Light reflection is categorized into specular and diffuse reflection. Specular reflection occurs on smooth, polished surfaces where the surface normals are parallel or consistently oriented, resulting in reflected rays that are parallel and can produce clear, sharp images. These images, known as virtual images, appear to be located behind the reflective surface. In contrast, diffuse reflection takes place on rough, irregular surfaces where the surface normals are randomly oriented, causing reflected rays to scatter in multiple directions. This scattering prevents the formation of a clear image and is responsible for the perceived texture and color of objects.

Color Perception and Light Reflection

The perceived color of objects is a result of selective light reflection. An object appears green, for instance, because it reflects the green portion of the light spectrum while absorbing other frequencies. The reflected light is what our eyes detect, giving the object its characteristic color. The selective absorption and reflection of different light frequencies are fundamental to the visual identification of materials and objects in our surroundings.

Importance of Reflection in Visual Perception

Reflection is crucial for vision in animals, including humans. Most objects are visible because they reflect light from sources such as the sun or artificial lighting. This reflected light enters the eyes and is processed, allowing us to discern the shapes, colors, and textures of objects. Without reflection, we would be unable to see non-luminous objects, which would greatly diminish our visual experience.

Reflection in Other Wave Phenomena

Although this discussion has centered on light reflection, the principles of reflection are applicable to other wave types as well. Sound waves, for example, can reflect off surfaces, producing echoes and reverberations that contribute to our auditory experience. Water waves also exhibit reflection when they encounter obstacles, illustrating the universal application of reflection principles across various wave phenomena. Reflection, therefore, is integral to our perception and interaction with the world in multiple sensory domains.

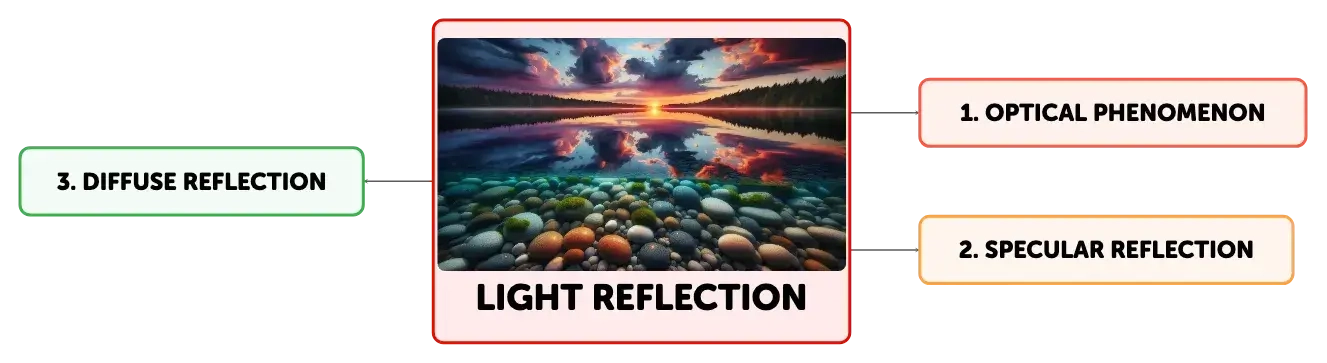

Light Reflection

Concept Map

Summary

Outline

Light Reflection

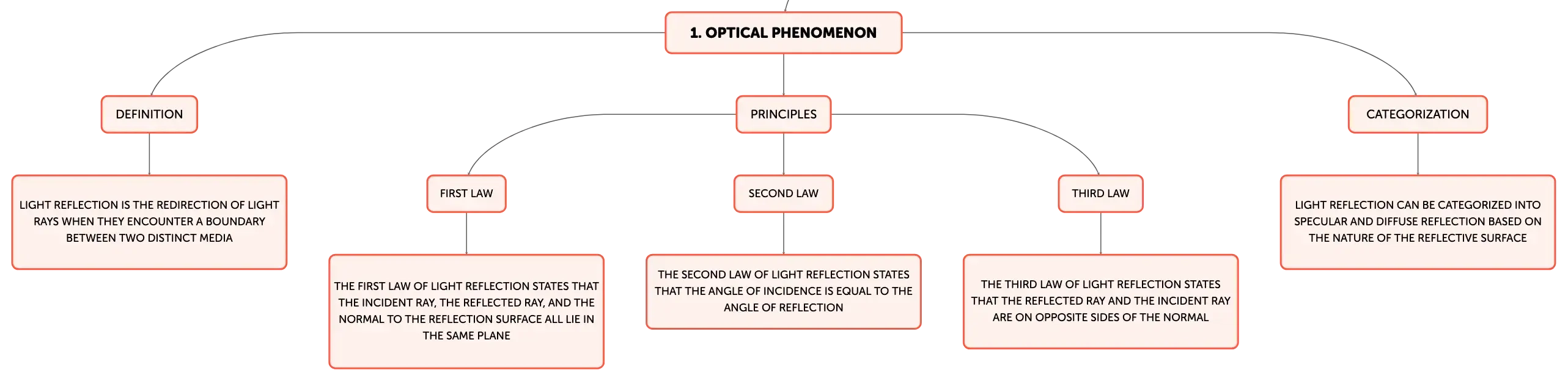

Optical Phenomenon

Definition

Principles

Categorization

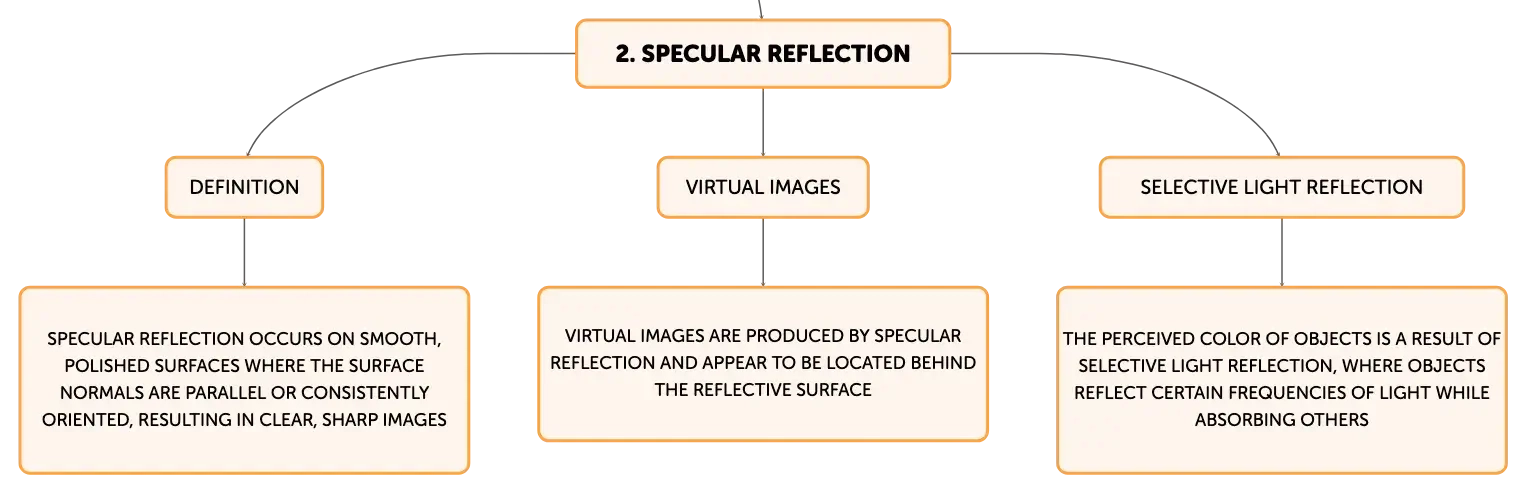

Specular Reflection

Definition

Virtual Images

Selective Light Reflection

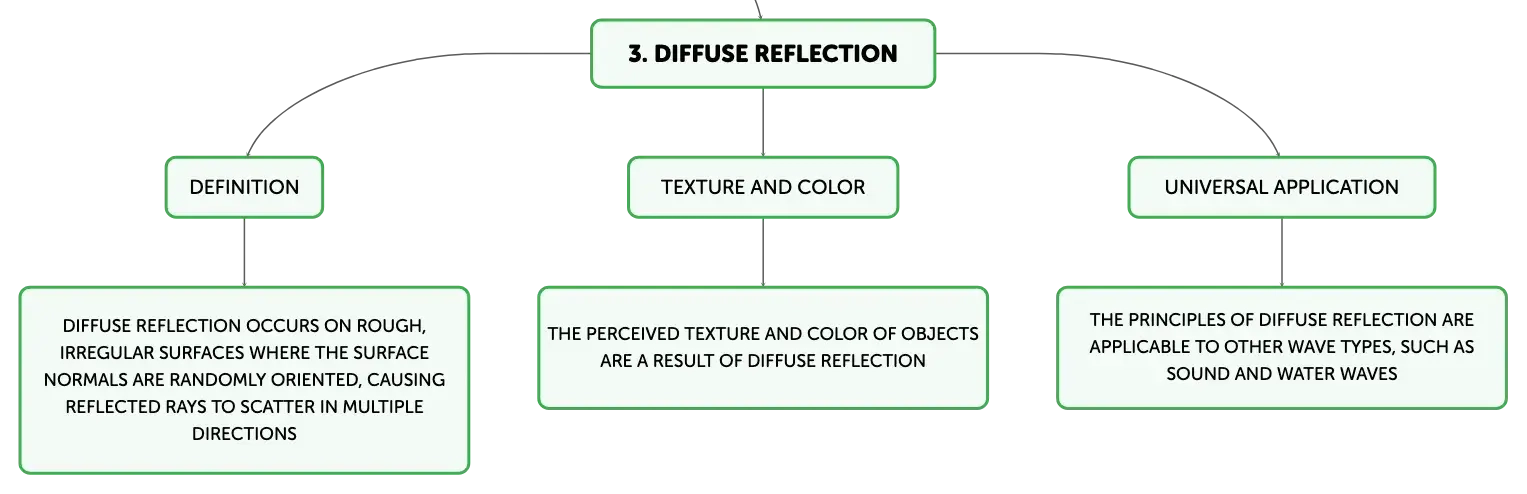

Diffuse Reflection

Definition

Texture and Color

Universal Application
