Coordinate Systems

Exploring the Fundamentals of Coordinate Systems

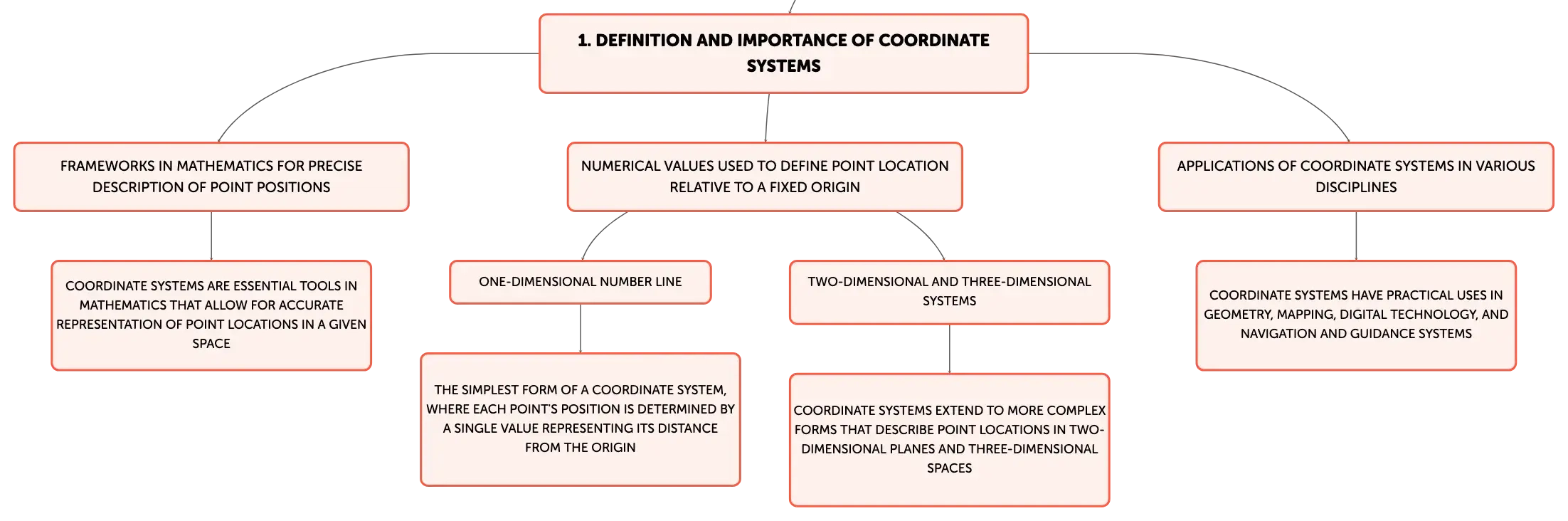

Coordinate systems are indispensable frameworks in mathematics that facilitate the precise description of the positions of points within a specified space. These systems employ numerical values to define the location of a point relative to a fixed origin—the central reference point. The simplest form of a coordinate system is the one-dimensional number line, where each point's position is determined by a single value representing its distance from the origin. This concept is foundational and extends to more complex systems that describe locations in two-dimensional planes and three-dimensional spaces.

The Cartesian Coordinate System: A Two-Dimensional Framework

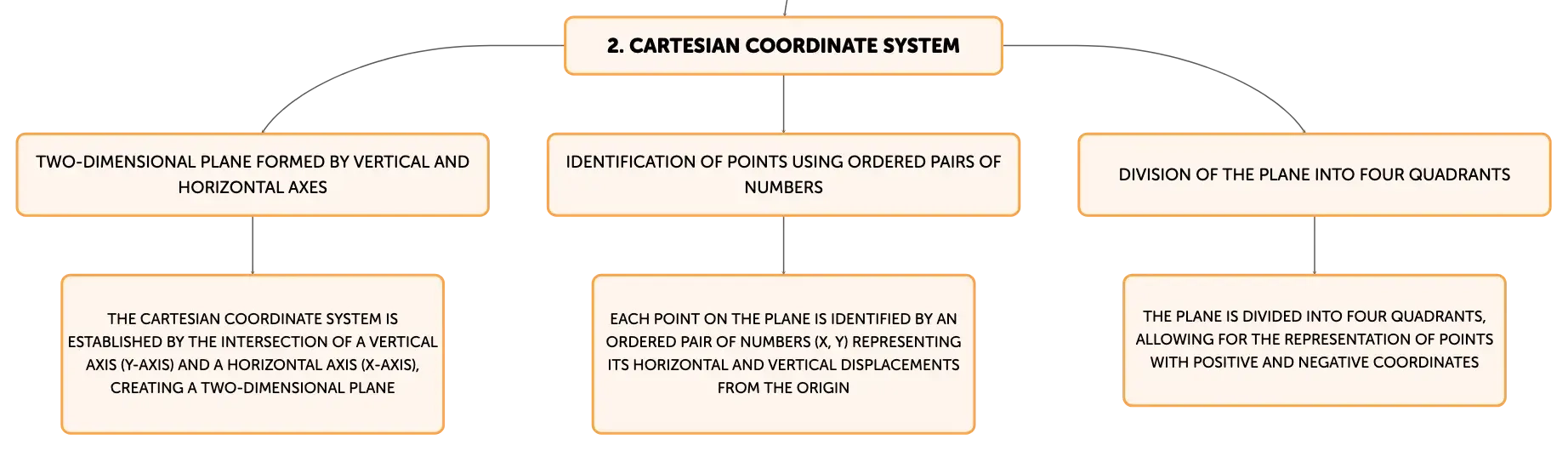

The Cartesian coordinate system, established by the intersection of a vertical axis (y-axis) and a horizontal axis (x-axis), forms a two-dimensional plane. Each point on this plane is identified by an ordered pair of numbers (x, y), which correspond to the point's horizontal and vertical displacements from the origin. The plane is divided into four quadrants, allowing for the representation of points with both positive and negative coordinates. Points in the upper-right quadrant have positive x and y coordinates, while those in the other quadrants have a combination of positive and negative values, depending on their location relative to the axes.

Identifying Points on the Cartesian Plane

To determine the coordinates of a point on the Cartesian plane, one must measure its perpendicular distances from the x-axis and y-axis. A point located in the upper-left quadrant, for instance, will have a negative x-coordinate and a positive y-coordinate. Points that lie directly on an axis present special cases: a point on the y-axis has an x-coordinate of zero, and similarly, a point on the x-axis has a y-coordinate of zero. These rules are essential for accurately identifying points that are aligned with the axes.

The Polar Coordinate System: Radial and Angular Dimensions

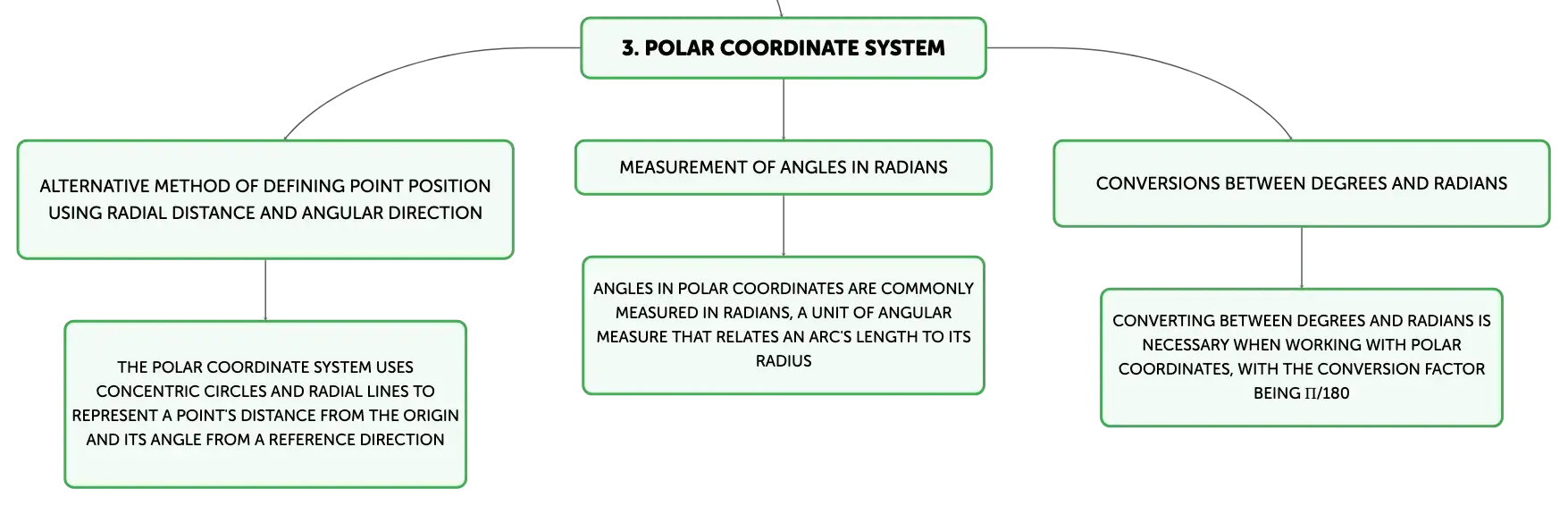

The polar coordinate system offers an alternative method of defining a point's position using radial distance and angular direction from a central origin. This system is characterized by concentric circles that represent different radii and radial lines that denote angles from a reference direction, typically the positive x-axis. To locate a point in polar coordinates, one specifies its distance from the origin (radius) and the angle it makes with the reference direction. Angles in polar coordinates are commonly measured in radians, a unit of angular measure that relates an arc's length to its radius.

Converting Between Degrees and Radians in Polar Coordinates

Conversions between degrees and radians are often necessary when working with polar coordinates. To convert an angle from degrees to radians, one multiplies the degree measurement by π/180. This conversion is essential for consistency in mathematical calculations and for expressing angles in a unit that is inherently related to the properties of a circle.

Translating Between Cartesian and Polar Coordinate Systems

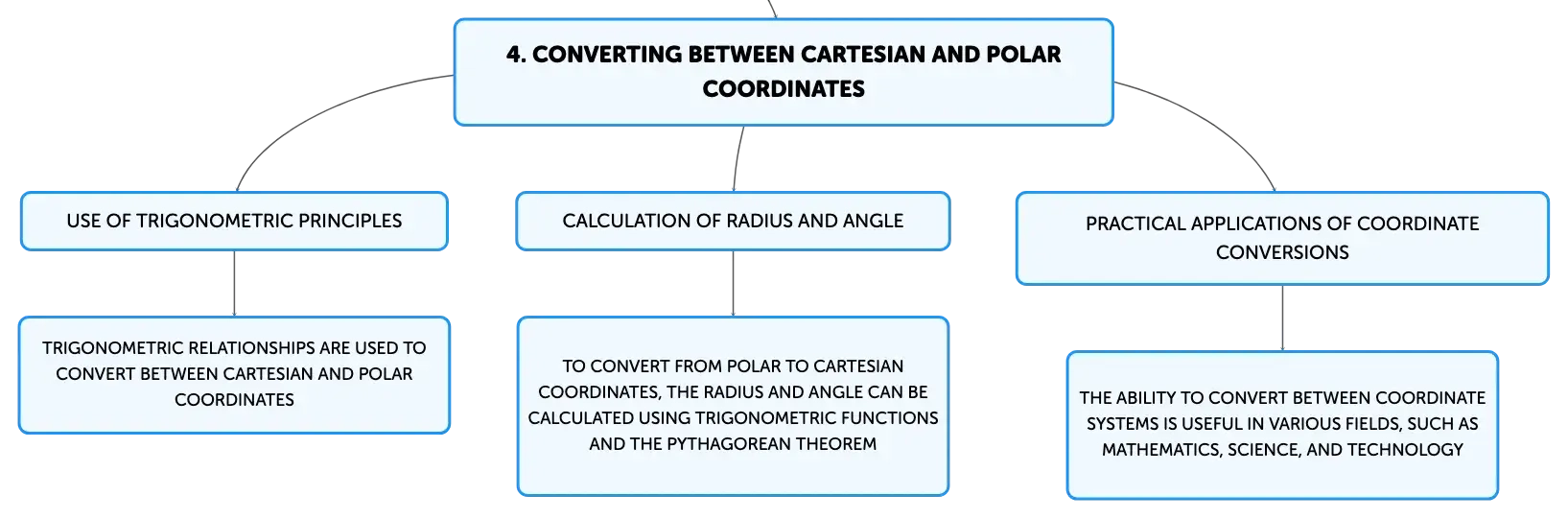

The translation between Cartesian and polar coordinates involves trigonometric principles. Given a point with Cartesian coordinates (x, y) and polar coordinates (r, θ), the relationships x = r cos(θ) and y = r sin(θ) facilitate the conversion from polar to Cartesian coordinates. To convert in the opposite direction, one can calculate the radius r as r = √(x² + y²), and the angle θ can be determined using inverse trigonometric functions, such as arctan(y/x), taking into account the quadrant in which the point lies.

Practical Applications of Coordinate Systems

Coordinate systems have a wide range of practical applications across various disciplines. They are instrumental in defining the positions of points, lines, and planes in geometry and in mapping the Earth's surface using geographic coordinates of latitude and longitude. In digital technology, the positioning of screen pixels is managed through a coordinate system that assigns a distinct address to each pixel. Furthermore, modified polar coordinate systems play a crucial role in navigation and guidance systems, such as the radial and angular measurements used in missile guidance technology, underscoring the real-world significance of coordinate systems.

Key Takeaways on Coordinate Systems

In conclusion, coordinate systems are vital for representing the location of points in a space, with each point denoted by a unique set of numerical coordinates. The Cartesian and polar systems are the most prevalent, each with distinct methods for defining positions. The ability to convert between these systems using trigonometry and the Pythagorean theorem enhances our understanding of spatial relationships in mathematics, science, and various technological applications.
