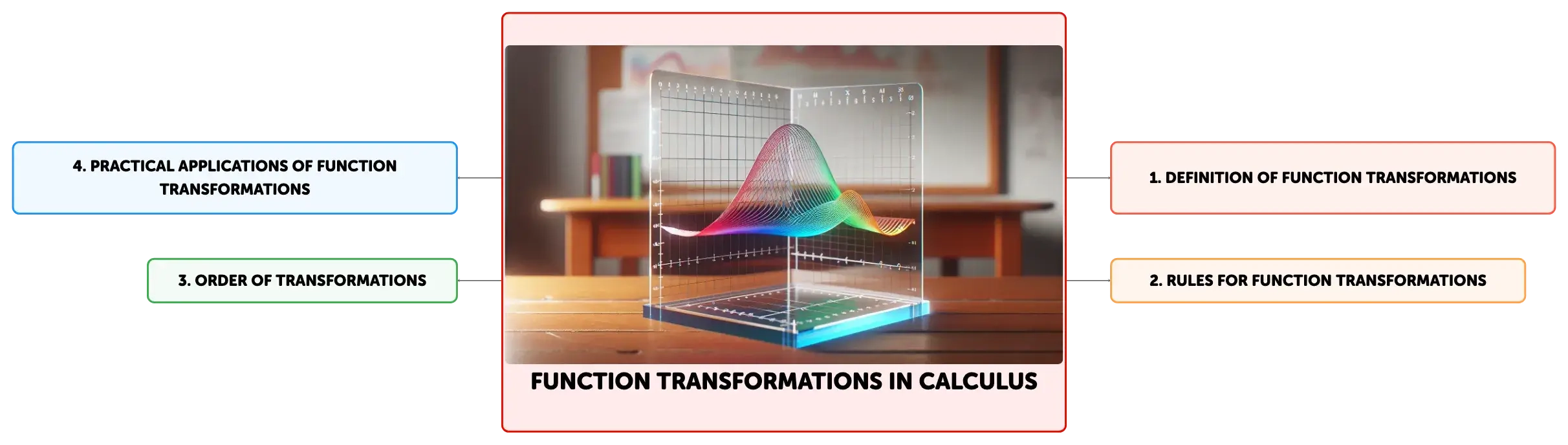

Function Transformations in Calculus

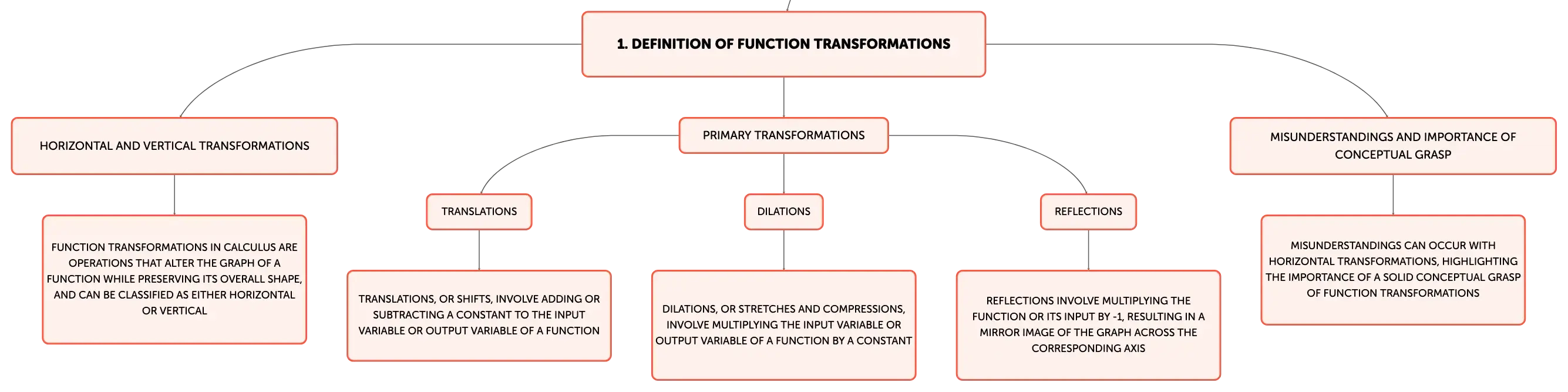

Exploring the Basics of Function Transformations

In the study of calculus, function transformations are essential operations that alter the graph of a function while preserving its overall shape. These transformations can be classified as either horizontal or vertical, depending on whether they modify the \(x\)-coordinates or \(y\)-coordinates of the graph, respectively. The primary transformations include translations (shifts), dilations (stretches and compressions), and reflections. It is crucial to recognize that horizontal transformations, with the exception of reflections, have an inverse effect; for example, adding a positive constant to \(x\) results in a leftward shift, contrary to what might be expected.

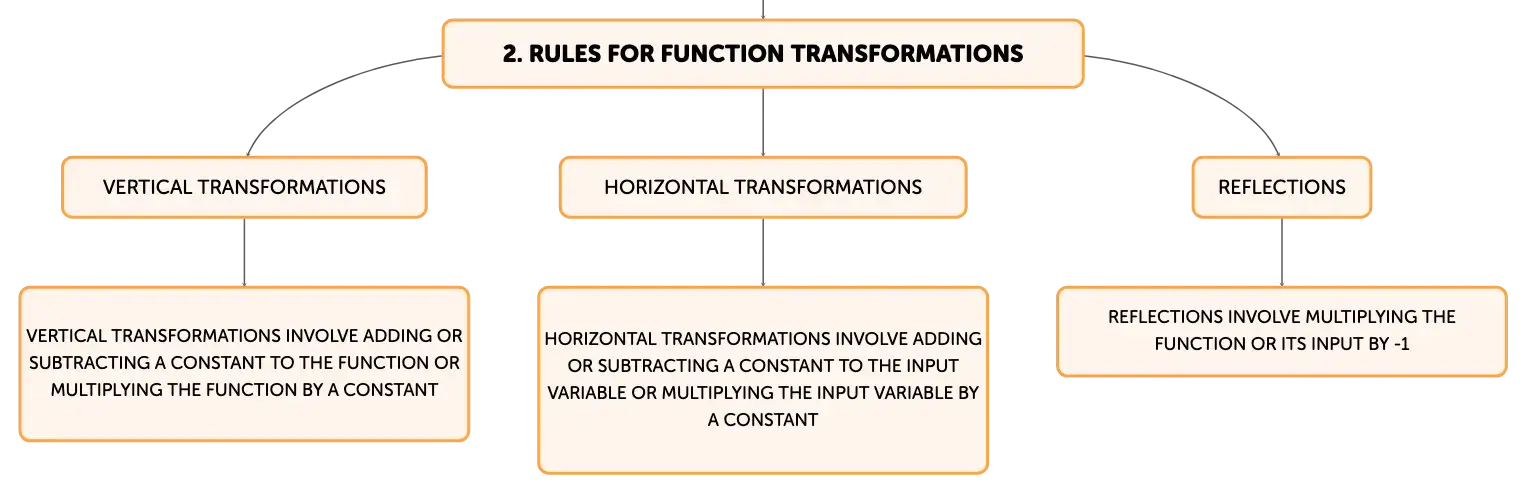

The Mechanics of Function Transformations

To adeptly manipulate function transformations, one must grasp the rules that dictate the resultant changes to a function's graph. A vertical transformation of a function \( f(x) \) can be achieved by adding or subtracting a constant \( c \), which translates the graph up or down, respectively. Multiplying \( f(x) \) by a constant \( c \) results in a vertical dilation: a stretch if \( c > 1 \) or a compression if \( 0 < c < 1 \). Horizontal transformations are performed by adding or subtracting a constant from the input variable \( x \), or by multiplying \( x \) by a constant, leading to horizontal translations and dilations. Reflections occur by multiplying the function or its input by \(-1\), mirroring the graph across the corresponding axis.

Avoiding Common Errors in Function Transformations

Misunderstandings frequently occur with horizontal transformations, particularly with the direction of shifts. Contrary to intuition, adding a constant to the input variable \( x \) shifts the graph leftward, not rightward. This highlights the importance of a solid conceptual grasp of function transformations. Moreover, it is important to note that transformations applied to the input variable \( x \) result in horizontal changes only when \( x \) is to the first power. Misjudging the exponent of \( x \) can lead to incorrect conclusions about the transformation's effect.

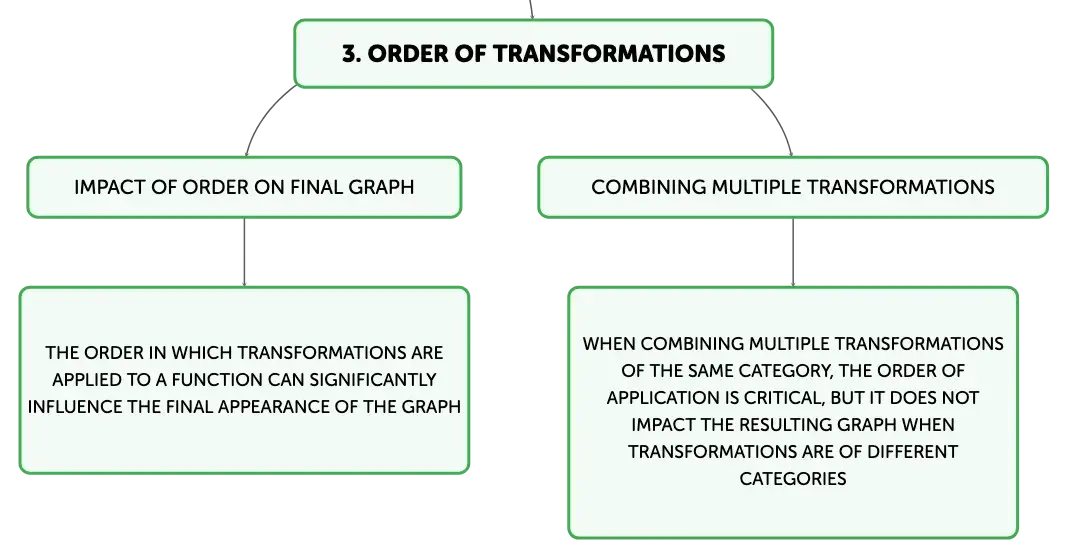

Sequencing Transformations Correctly

The order in which transformations are applied to a function is critical, as it can significantly influence the final appearance of the graph. This is especially true when combining multiple transformations of the same category (horizontal or vertical) but different types (translations, dilations). For instance, performing a vertical dilation before a vertical translation will produce a different graph than if the translation were applied first. However, when transformations are of the same type or belong to different categories, the order of application does not impact the resulting graph.

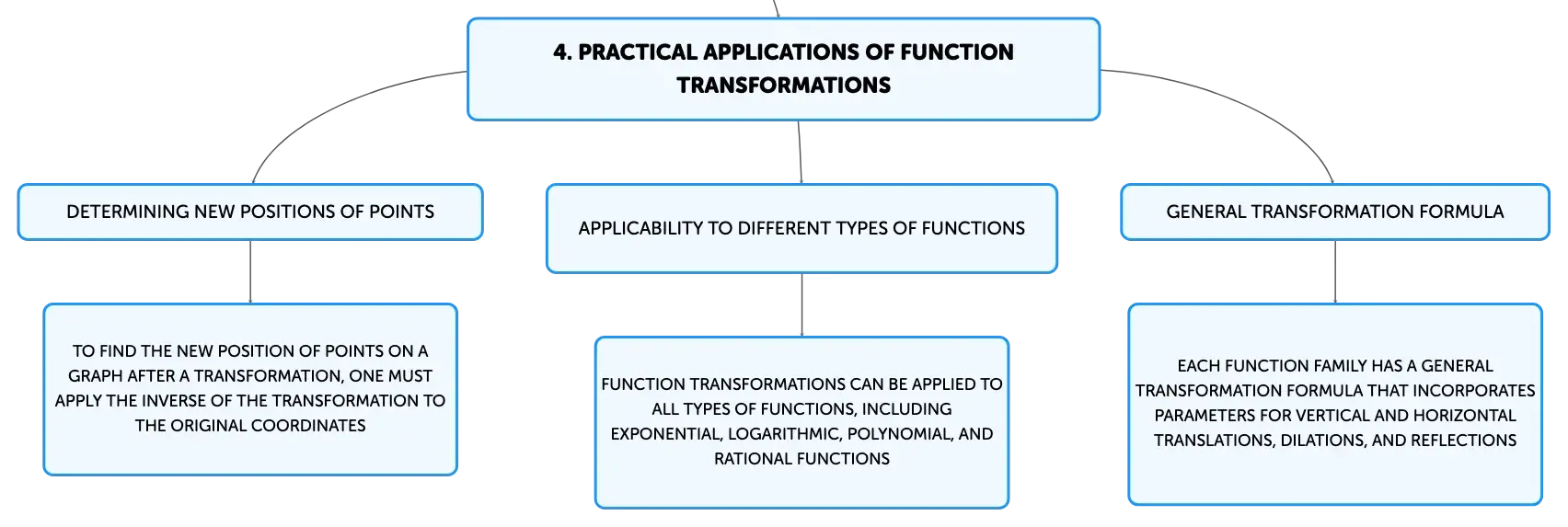

Transforming Points on Function Graphs

A practical aspect of function transformations is the ability to determine the new position of points on a graph. To find the new \(x\)-coordinate after a horizontal transformation, one must apply the inverse of the horizontal transformation to the original \(x\)-value. For vertical transformations, the new \(y\)-coordinate is calculated by applying the vertical transformation directly to the original \(y\)-value. This method enables the accurate relocation of points from the original function to the transformed function, facilitating a clear understanding of the transformation's impact.

Function Transformations Across Various Function Families

Function transformations are applicable to all types of functions, including but not limited to exponential, logarithmic, polynomial, and rational functions. Each function family has a general transformation formula that incorporates parameters for vertical and horizontal translations, dilations, and reflections. Familiarity with these parameters allows one to graphically depict the transformation from a parent function to its altered state. Such graphical representations serve as an invaluable tool for visualizing the influence of transformations on the position and contour of a function's graph.
