Software Design Patterns

Concept Map

Software Design Patterns are frameworks that offer repeatable solutions to common programming challenges. They are categorized into Creational, Structural, and Behavioral patterns, each serving a different aspect of software design. Patterns like Singleton and Observer streamline development, ensure code quality, and facilitate maintenance. The Adapter Pattern exemplifies interface compatibility, while Architectural Patterns like Layered and Microservices address system structuring.

Summary

Outline

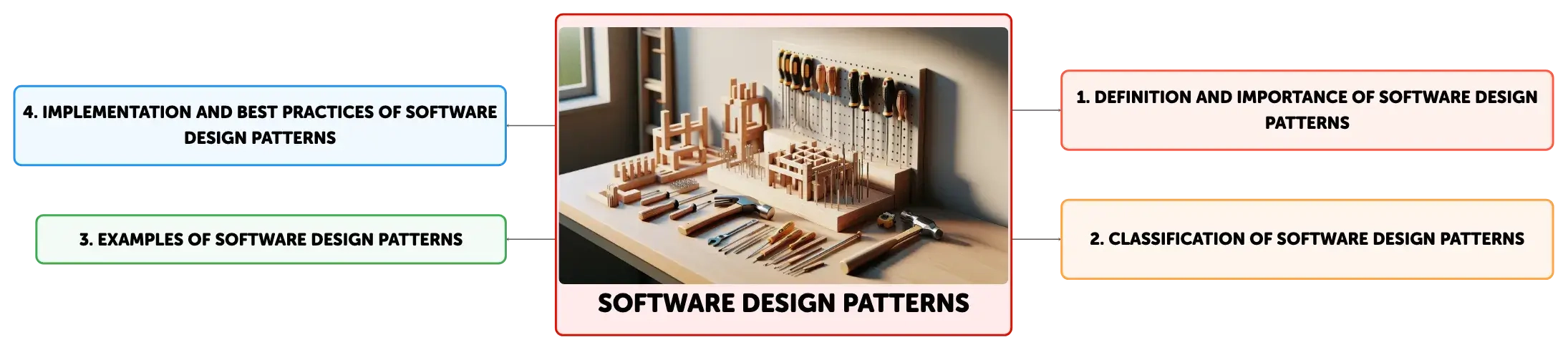

Software Design Patterns

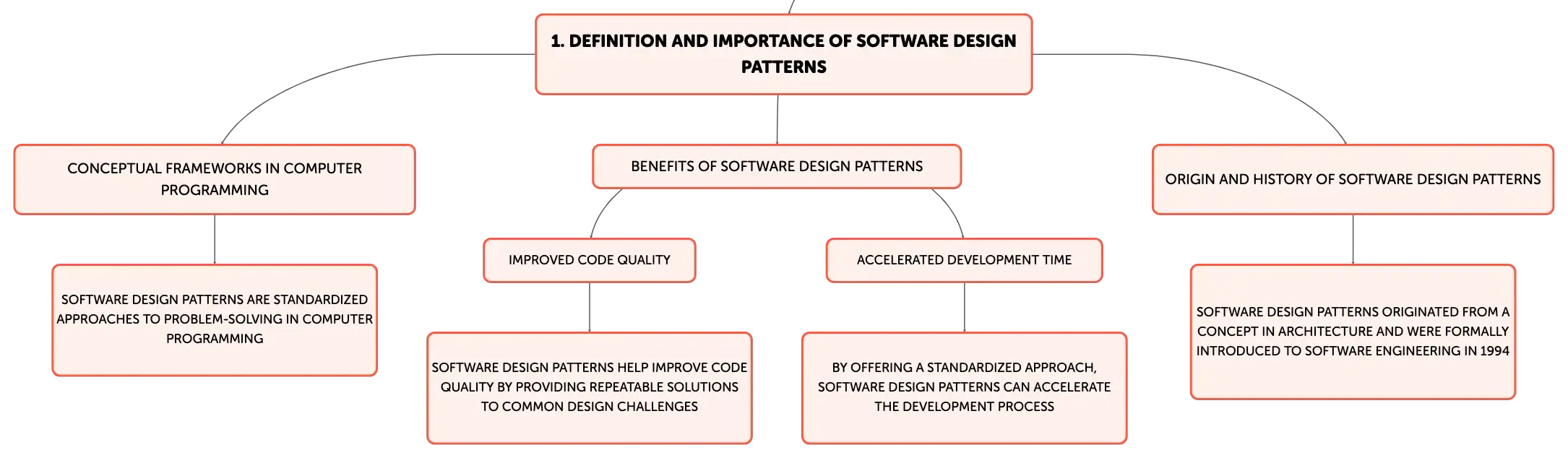

Definition and Importance of Software Design Patterns

Conceptual Frameworks in Computer Programming

Software Design Patterns are standardized approaches to problem-solving in computer programming

Benefits of Software Design Patterns

Improved Code Quality

Software Design Patterns help improve code quality by providing repeatable solutions to common design challenges

Accelerated Development Time

By offering a standardized approach, Software Design Patterns can accelerate the development process

Origin and History of Software Design Patterns

Software Design Patterns originated from a concept in architecture and were formally introduced to software engineering in 1994

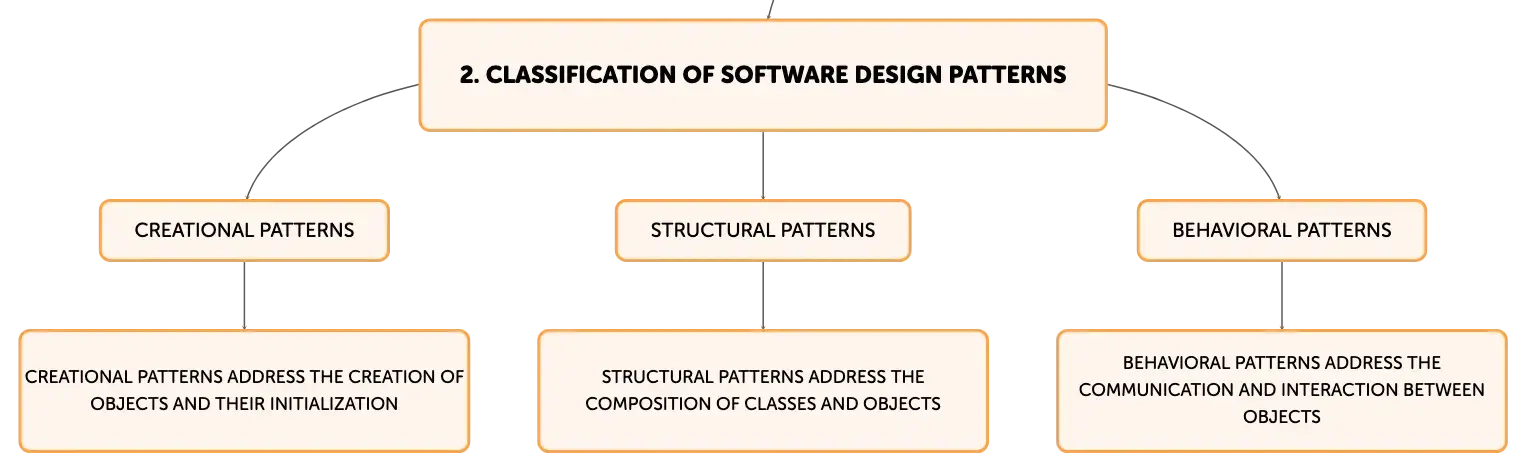

Classification of Software Design Patterns

Creational Patterns

Creational Patterns address the creation of objects and their initialization

Structural Patterns

Structural Patterns address the composition of classes and objects

Behavioral Patterns

Behavioral Patterns address the communication and interaction between objects

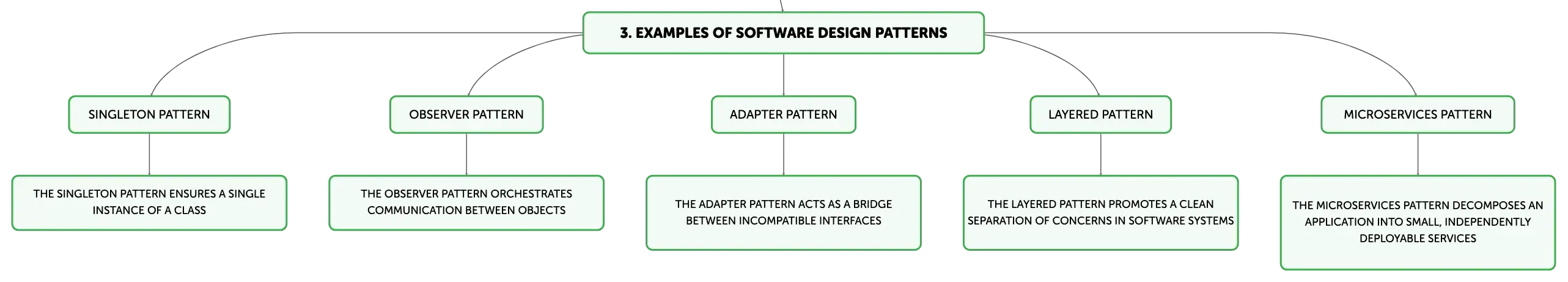

Examples of Software Design Patterns

Singleton Pattern

The Singleton Pattern ensures a single instance of a class

Observer Pattern

The Observer Pattern orchestrates communication between objects

Adapter Pattern

The Adapter Pattern acts as a bridge between incompatible interfaces

Layered Pattern

The Layered Pattern promotes a clean separation of concerns in software systems

Microservices Pattern

The Microservices Pattern decomposes an application into small, independently deployable services

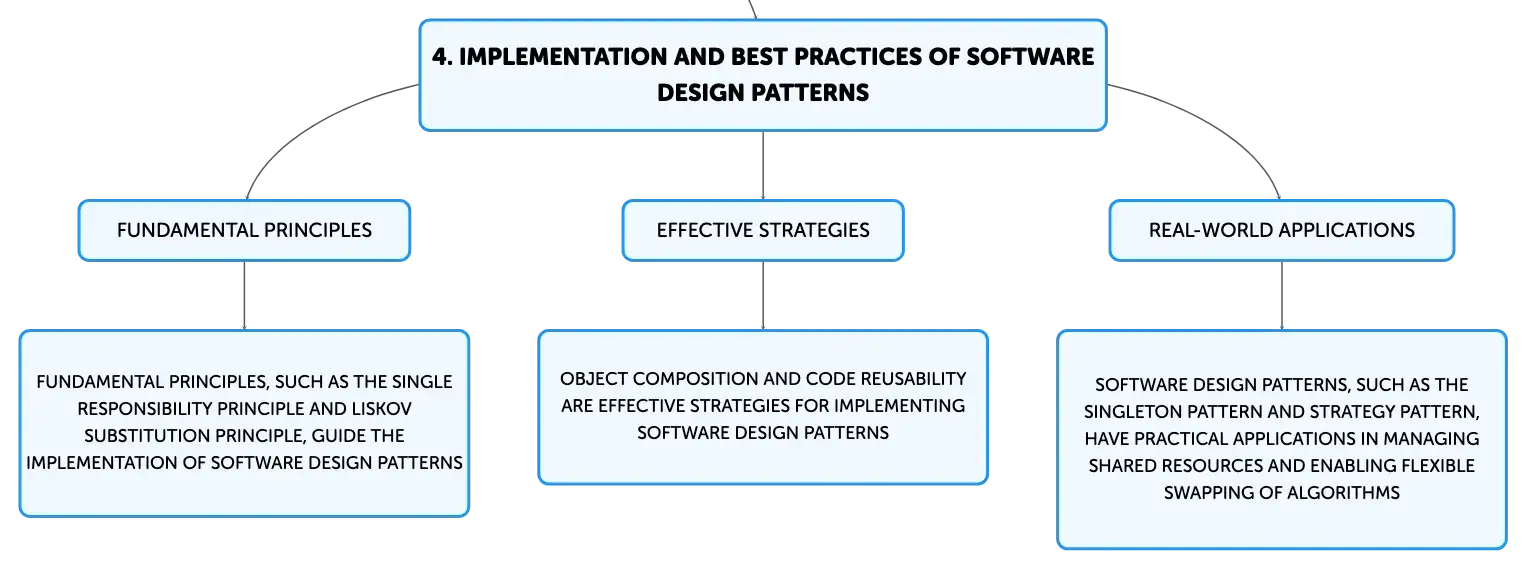

Implementation and Best Practices of Software Design Patterns

Fundamental Principles

Fundamental principles, such as the Single Responsibility Principle and Liskov Substitution Principle, guide the implementation of Software Design Patterns

Effective Strategies

Object composition and code reusability are effective strategies for implementing Software Design Patterns

Real-World Applications

Software Design Patterns, such as the Singleton Pattern and Strategy Pattern, have practical applications in managing shared resources and enabling flexible swapping of algorithms

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

The book '______: ______ of Reusable Object-Oriented Software' by Gamma et al., published in ______, introduced these patterns to software engineering.

Design Patterns

Elements

1994

______, ______, and ______ are the three main categories of design patterns, each targeting different software design facets.

Creational

Structural

Behavioral

Purpose of Observer Pattern

Enables objects to receive updates from other objects to reflect changes, used in event-driven systems.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Modern data center with rows of black servers illuminated by colored LEDs, symmetrical corridors and soft blue light reflecting on the glossy white floor.

The Significance of Terabytes in Digital Storage

Close-up of a silicon microchip with intricate circuitry reflecting metallic colors, highlighting the complex network of electrical pathways.

The Importance of Bits in the Digital World

Close-up of a computer motherboard with CPU, integrated circuits, capacitors and memory slots on green circuit board.

Bitwise Shift Operations in Computer Science

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring the Fundamentals of Software Design Patterns

Software Design Patterns are essential conceptual frameworks in computer programming that provide generalized, repeatable solutions to common design challenges. These patterns facilitate the development process by offering a standardized approach to problem-solving, which improves code quality and accelerates development time. They originated from a concept in architecture and were formally introduced to software engineering in the seminal work "Design Patterns: Elements of Reusable Object-Oriented Software" by Gamma et al. in 1994. The patterns are broadly classified into Creational, Structural, and Behavioral categories, each addressing different aspects of software design. For example, the Singleton pattern ensures a single instance of a class, and the Observer pattern, a Behavioral design, orchestrates communication between objects.

Light wooden workbench with hammer, screwdrivers, pliers, red tape measure and wooden texture template, background with pegboard.

The Significance and Advantages of Software Design Patterns

Software Design Patterns are instrumental in achieving clean, maintainable, and scalable code. They help avoid redundancy and facilitate a more efficient debugging process. By leveraging these patterns, developers can draw from a collective pool of knowledge, avoiding the pitfalls of trial-and-error coding and focusing on higher-level aspects of software design. The Observer pattern, for instance, is particularly useful in event-driven systems where changes in one object need to be reflected in others, such as in the model-view-controller (MVC) architectural pattern commonly used in web applications. The widespread application of these patterns in various domains, including game development and user interface design, underscores their utility in creating robust and flexible software systems.

The Adapter Pattern: Facilitating Interface Compatibility

The Adapter Pattern, a Structural design pattern, addresses the challenge of incompatible interfaces between classes. It acts as a bridge, allowing two unrelated interfaces to work together by converting the interface of one class into another expected by the clients. This pattern is particularly useful when integrating new features with existing code or when working with third-party libraries and APIs. It demonstrates the use of polymorphism and delegation, enabling objects to use their existing interfaces while interfacing with others through an adapter. This pattern is a practical solution for maintaining backward compatibility while progressing with modern development practices.

Benefits of the Adapter Pattern in Software Development

The Adapter Pattern enhances software development by enabling the reuse of existing code, simplifying complex interfaces, and promoting loose coupling between components. It aligns with the Open-Closed Principle, one of the five SOLID principles of object-oriented design, which encourages extending software behavior without modifying existing code. This principle is crucial for maintaining system stability and preventing regression issues during the addition of new features. By using adapters, developers can introduce new functionality with minimal impact on the existing system architecture, thereby improving the system's resilience to change and facilitating long-term maintenance.

Architectural Design Patterns in Software Engineering

Architectural Design Patterns provide high-level solutions for structuring software systems. They address concerns such as system organization, data management, and communication between components. The Layered Pattern, for example, separates concerns into distinct layers, each with a specific responsibility, promoting a clean separation of concerns. The Microservices Pattern decomposes an application into a suite of small, independently deployable services, each running in its own process and communicating with lightweight mechanisms. The choice of an architectural pattern is influenced by the specific requirements of the project, including scalability, performance, and team dynamics. Selecting an appropriate pattern is a critical decision that can significantly impact the success and maintainability of a software system.

Core Principles and Implementation Strategies for Design Patterns

The implementation of Software Design Patterns is guided by fundamental principles and best practices. The Single Responsibility Principle advocates that a class should have only one reason to change, promoting a clear separation of concerns. The Liskov Substitution Principle ensures that objects of a superclass shall be replaceable with objects of a subclass without altering the desirable properties of the program. Effective implementation strategies include favoring object composition over class inheritance and emphasizing code reusability. These principles and strategies are the bedrock of sound software design, ensuring that systems are robust, adaptable, and easy to maintain as they evolve over time.

Insights from Practical Applications of Software Design Patterns

Examining real-world applications of Software Design Patterns provides valuable lessons in their practical utility. The Singleton Pattern is commonly used for managing shared resources, such as a database connection pool. The Strategy Pattern allows for the flexible swapping of algorithms or behaviors at runtime. The Composite Pattern enables clients to treat individual objects and compositions of objects uniformly, facilitating the management of tree-like structures. The Observer Pattern is widely used in implementing event handling systems. These patterns, when correctly applied, address specific design issues and contribute to a solid foundation for software architecture. Case studies, such as the application of the Facade Pattern to simplify complex subsystems in e-commerce platforms, demonstrate the transformative impact of design patterns on software development processes.
