Free-Body Diagrams in Physics
Free-body diagrams are crucial in physics for understanding the forces acting on an object. They depict forces as vectors and are used to analyze motion and equilibrium. Key forces include gravity, normal force, friction, and tension. Newton's second law is fundamental in these diagrams, which are vital for students learning mechanics and solving complex physics problems.
See moreFundamentals of Free-Body Diagrams in Physics

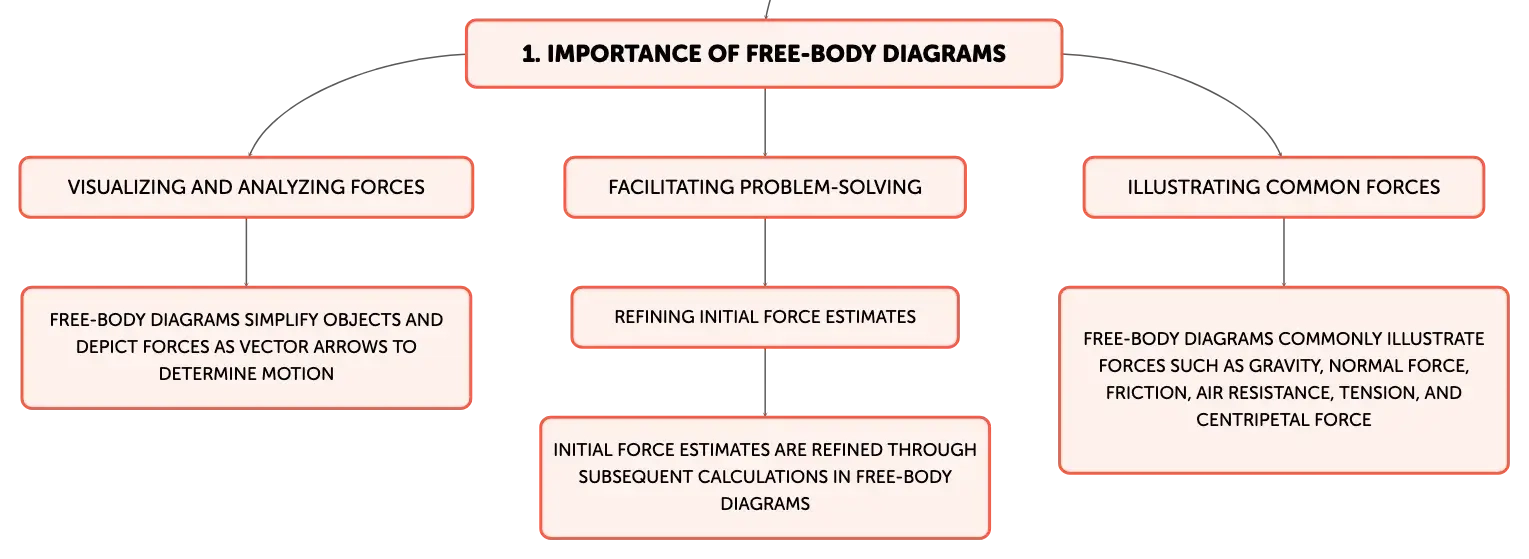

Free-body diagrams are pivotal in physics for visualizing and analyzing the forces exerted on an object. These diagrams simplify the object to a dot or a basic shape and depict forces as vector arrows, with lengths proportional to the forces' magnitudes and directions indicating where the forces are applied. By focusing solely on the object and the forces it experiences, free-body diagrams facilitate the determination of the object's motion—whether it is accelerating or in static equilibrium, where the sum of all forces equals zero. This simplification is vital for problem-solving in physics, and while initial force estimates may be approximate, they are refined through subsequent calculations.Essential Forces in Free-Body Diagrams
Free-body diagrams commonly illustrate forces such as gravity, normal force, friction, air resistance (drag), tension, and centripetal force. Gravity acts downward toward the Earth's center, and the normal force acts perpendicularly from the contact surface, providing support. Friction and drag oppose relative motion, tension is a pulling force exerted by strings or cables, and centripetal force keeps an object moving in a circular path. It is crucial to represent only the external forces acting on the object of interest in these diagrams, not the forces it exerts. For example, a box on a surface should show the normal force exerted by the surface on the box, but not the force the box exerts on the surface.Crafting Precise Free-Body Diagrams

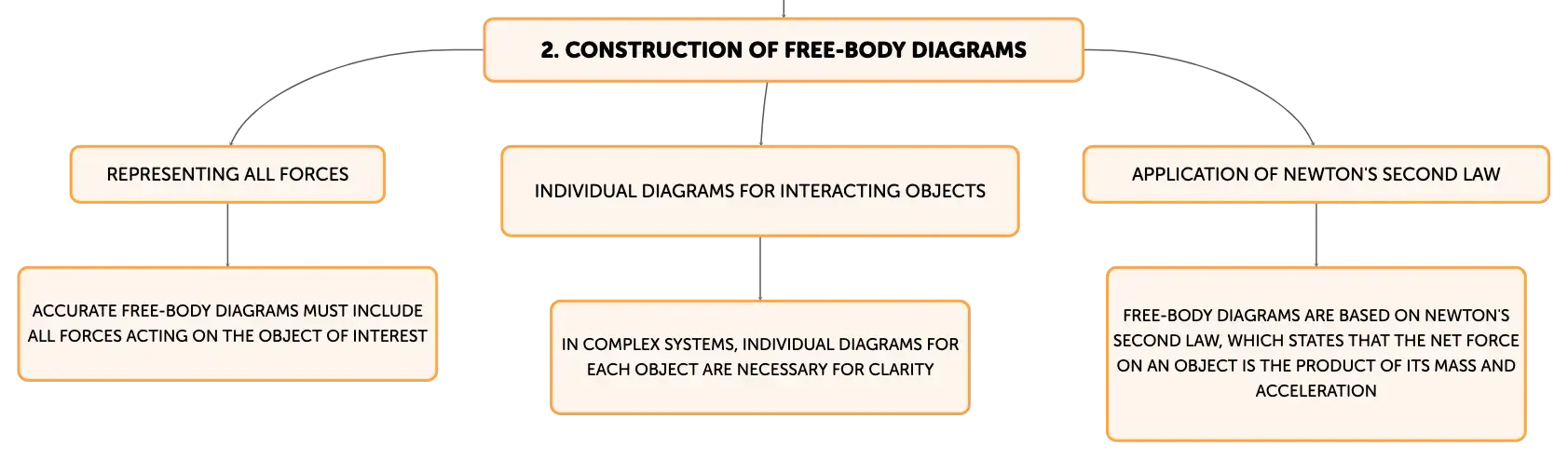

To construct an accurate free-body diagram, one must represent all the forces acting on the object under consideration. When multiple objects interact, individual diagrams for each object are necessary to maintain clarity. This is particularly important in complex systems, such as when blocks are stacked or in pulley systems. In a stacked block scenario, each block's diagram would display the gravitational force and the normal forces from the surfaces in contact. In pulley systems, the tension in the rope is consistent throughout and affects each mass connected by the pulley.Newton's Second Law and Free-Body Diagrams
Newton's second law of motion underpins free-body diagrams, asserting that the net force on an object is the product of its mass and acceleration (F_net = ma). This principle is instrumental in balancing forces in static scenarios or computing acceleration when forces are not balanced. It is imperative to understand the physical context, such as whether forces are in equilibrium or if an object is moving with constant velocity, to interpret free-body diagrams accurately.Free-Body Diagrams in Diverse Situations

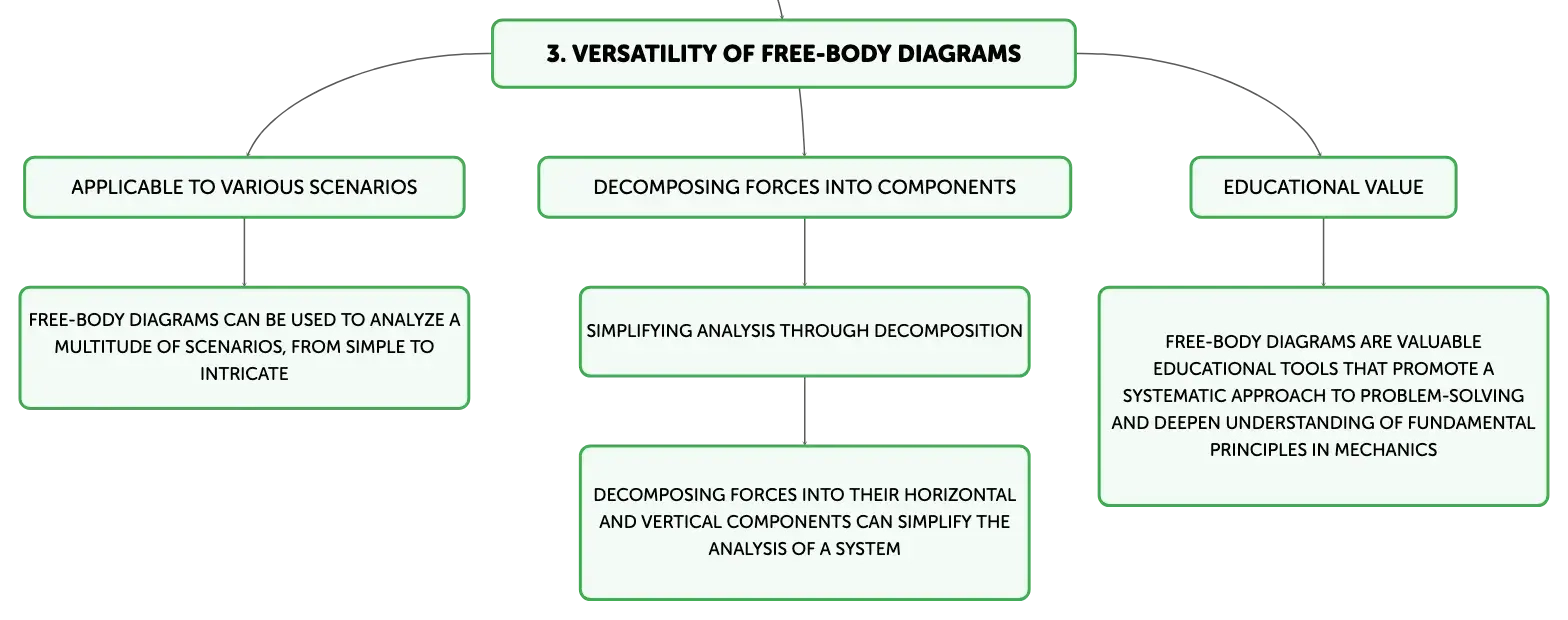

Free-body diagrams are versatile, applicable to a multitude of scenarios from elementary to intricate. For instance, a block descending a slope is subject to gravity, normal force, and friction, which can be resolved into components parallel and perpendicular to the slope's surface to simplify analysis. In uniform circular motion, like a ball on a string, the centripetal force is the net inward force maintaining the circular path. Decomposing the tension in the string into radial and tangential components reveals the centripetal force component, elucidating its role in circular motion.Decomposition of Forces in Free-Body Diagrams
Decomposing forces into their horizontal (x) and vertical (y) components is often necessary for effectively solving physics problems. Aligning the coordinate system with the direction of significant forces, such as along a ramp's incline or in the direction of motion, minimizes the need for decomposition and simplifies the analysis. Whether it involves calculating friction on an inclined plane or determining the tension in a string during circular motion, breaking forces into components is a fundamental step in analyzing the dynamics of a system.The Educational Significance of Free-Body Diagrams
Free-body diagrams are invaluable educational tools, distilling complex physical interactions into clear visual representations. They promote a systematic approach to problem-solving, where forces are identified, categorized, and analyzed in an orderly fashion. Proficiency in constructing and interpreting free-body diagrams equips students with a deeper understanding of mechanics' fundamental principles, enabling them to confidently address a broad spectrum of physics problems.Want to create maps from your material?
