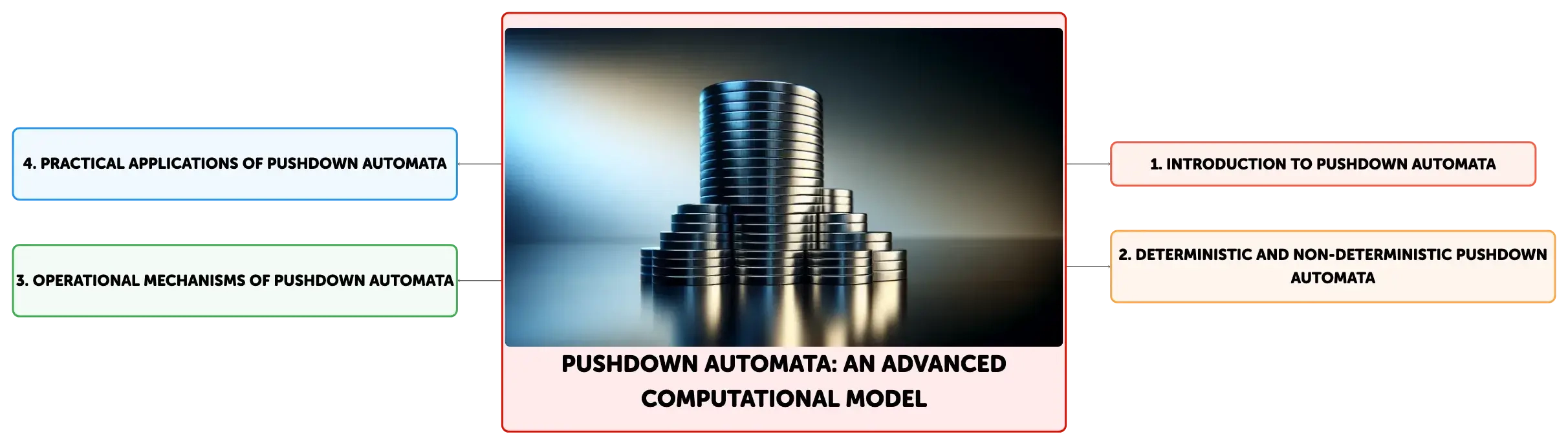

Pushdown Automata: An Advanced Computational Model

Pushdown Automata (PDA) are computational models crucial for processing Context-Free Languages, often used in compilers and parsers. They extend finite automata with a stack, adhering to a Last In, First Out principle, enabling them to manage nested structures and parse expressions. The text explores the structure, function, and types of PDAs, including deterministic and non-deterministic variants, and their practical applications in computer science.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

PDA vs. Finite Automata: Key Difference

Click to check the answer

PDAs have a stack; Finite Automata do not. Stack allows PDAs to handle nested structures and Context-Free Grammars.

2

Stack Principle in PDAs

Click to check the answer

PDAs use a LIFO stack to store symbols, enabling them to manage nested structures and parse expressions.

3

PDAs and Context-Free Grammars

Click to check the answer

PDAs are capable of recognizing languages generated by CFGs, essential for syntactic analysis of programming languages.

4

Pushdown Automata begin their computation from the ______ state and accept input strings if they reach one of the ______ states.

Click to check the answer

initial accept

5

The ______ function in Pushdown Automata dictates the rules for changing states based on the current state, input symbol, and stack's top symbol.

Click to check the answer

transition

6

Primary function of Pushdown Automata

Click to check the answer

Recognize and accept Context-Free Languages using a stack.

7

Stack usage in Pushdown Automata

Click to check the answer

Handles computational states dynamically for operations like parsing.

8

Balanced parentheses verification by PDA

Click to check the answer

Pushes opening parenthesis onto stack, pops for closing. Empty stack means balanced and accepted.

9

______ Automata can be either deterministic (DPDA) or non-deterministic (NPDA).

Click to check the answer

Pushdown

10

An NPDA differs from a DPDA as it permits ______ transitions for the same state and input symbol.

Click to check the answer

multiple

11

Purpose of diagrams in Pushdown Automata

Click to check the answer

Visualize operational mechanisms and facilitate understanding of automaton behavior.

12

Interpreting states in Pushdown Automata diagrams

Click to check the answer

States are represented as circles, each depicting a unique condition of the automaton.

13

Determining input string acceptance in Pushdown Automata

Click to check the answer

Input is accepted by reaching an accept state or emptying the stack during computation.

14

______ Pushdown Automata (VPA) are specialized with clear push and pop operations based on ______.

Click to check the answer

Visibly input symbols

15

______ Automata are a variant that use numerical ______ instead of a symbol stack.

Click to check the answer

Counter counters

16

DPDA vs NPDA in Parsing

Click to check the answer

DPDAs parse deterministic context-free languages efficiently; NPDAs handle complex, non-deterministic context-free languages.

17

Significance of PDAs in Compilers

Click to check the answer

PDAs are crucial in compiler construction for syntax analysis and ensuring code adheres to language grammar.

18

Role of PDAs in Programming Language Analysis

Click to check the answer

PDAs interpret and analyze programming languages' structures, aiding in the development of computational tools.

19

The difference between ______ and ______ PDAs illustrates the trade-off between ease of computation and the ability to express complex ideas.

Click to check the answer

deterministic non-deterministic

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Understanding Processor Cores

View document

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Computer Memory

View document

Computer Science

Secondary Storage in Computer Systems

View document

Fundamentals of Pushdown Automata

Pushdown Automata (PDA) are an advanced class of computational models used in the field of theoretical computer science, specifically within the domain of automata theory. They are an extension of finite automata with the addition of a stack, which is a memory structure adhering to a Last In, First Out (LIFO) principle. This stack enables PDAs to process a wider range of computational problems, particularly those associated with Context-Free Grammars (CFGs). The stack's capacity to store an indefinite number of symbols allows PDAs to effectively manage nested structures, which is crucial for the syntactic analysis of programming languages and the parsing of expressions.
Conical tower of metal discs shaded from dark to light silver, reflected on shiny surface with shaded blue background.

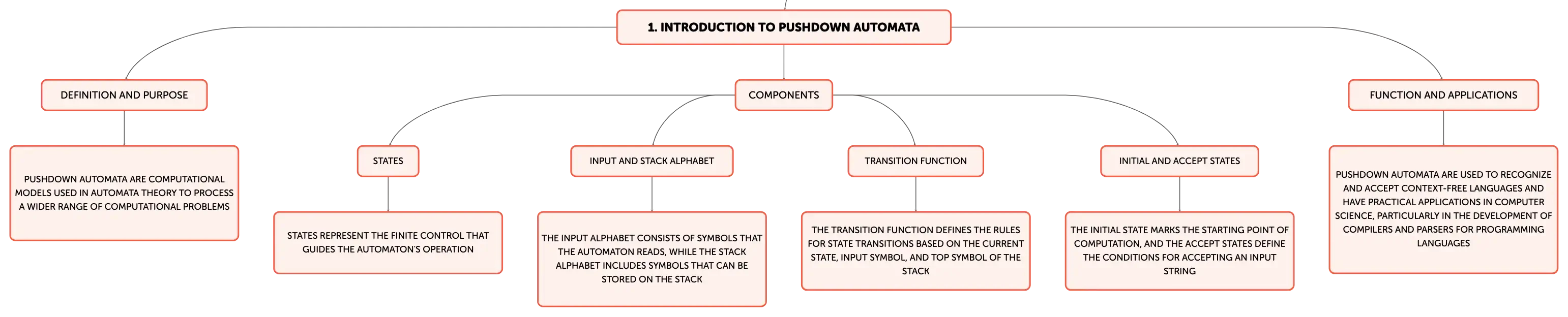

Structural Elements of Pushdown Automata

Pushdown Automata are composed of several fundamental components: a finite set of states, input alphabet, stack alphabet, the stack, a transition function, an initial state, and a set of accept states. The states represent the finite control that guides the automaton's operation. The input alphabet consists of symbols that the automaton reads, while the stack alphabet includes symbols that can be stored on the stack. The transition function defines the rules for state transitions, considering the current state, the current input symbol, and the top symbol of the stack. The initial state marks the starting point of computation, and the accept states define the conditions under which an input string is considered accepted by the automaton.

Acceptance of Context-Free Languages by Pushdown Automata

The primary function of Pushdown Automata is to recognize and accept Context-Free Languages (CFLs). This is achieved by utilizing the stack to handle the computational states dynamically. For instance, in parsing tasks, a PDA can verify the proper nesting of parentheses in an expression by pushing each opening parenthesis onto the stack and popping a parenthesis for each corresponding closing parenthesis. If the stack is empty upon processing the entire input string, the sequence of parentheses is balanced, and the input is accepted, indicating that the string belongs to the CFL defined by the PDA.

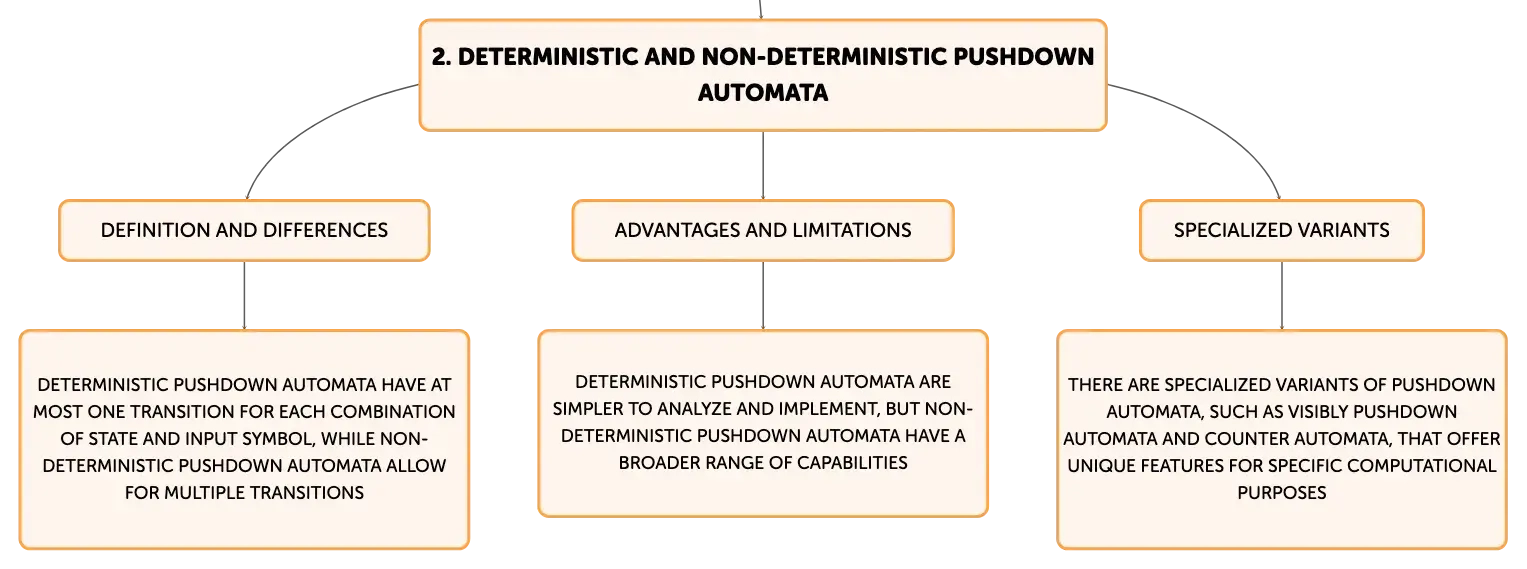

Deterministic and Non-Deterministic Pushdown Automata

Pushdown Automata are classified into two types: deterministic (DPDA) and non-deterministic (NPDA). A DPDA is characterized by having at most one transition for each combination of state and input symbol, which makes its behavior predictable and its implementation straightforward. However, the deterministic nature of DPDAs restricts them from recognizing certain CFLs. On the other hand, an NPDA allows for multiple transitions for the same state and input symbol, granting it the capability to recognize a broader class of CFLs. This flexibility makes NPDAs more powerful, though they are inherently more complex to analyze than DPDAs.

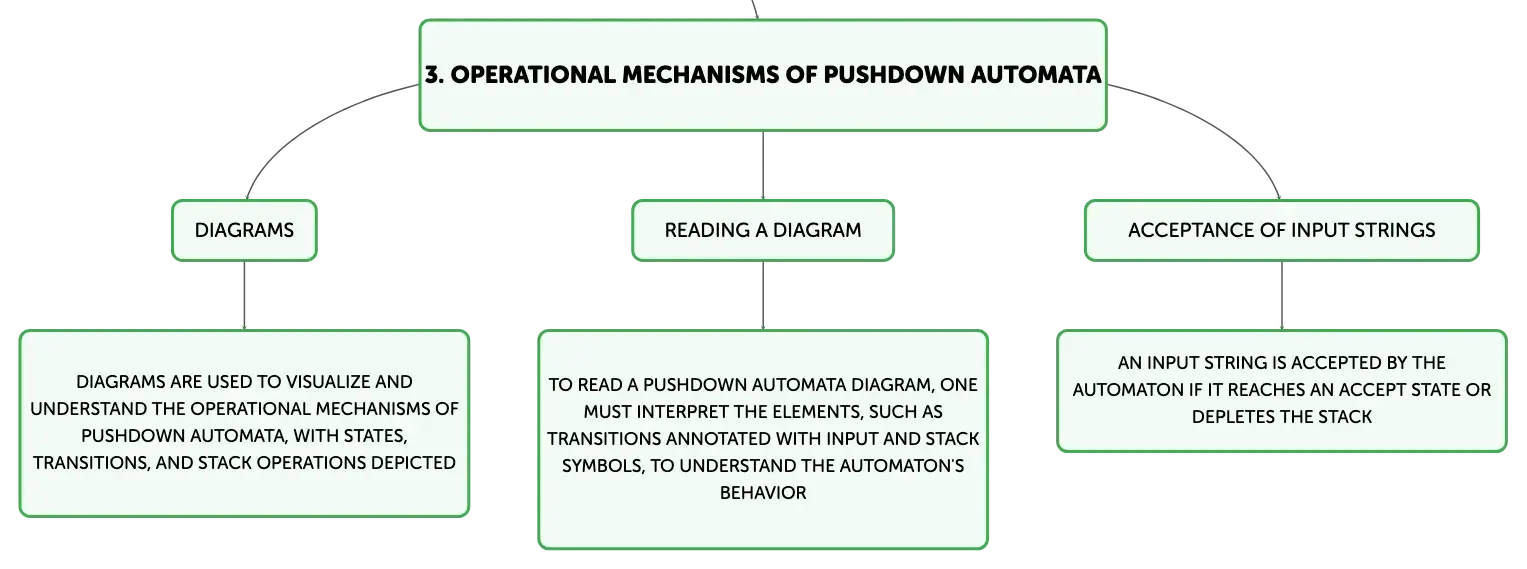

Diagrammatic Representation of Pushdown Automata

Diagrams serve as an effective means to visualize and understand the operational mechanisms of Pushdown Automata. In these diagrams, states are depicted as circles, transitions as directed arrows, and stack operations are annotated alongside the arrows. To read a Pushdown Automata diagram, one must interpret these elements to comprehend the automaton's behavior. For example, a transition might be annotated as \(a, b \rightarrow c\), signifying that if the automaton reads an input symbol \(a\) and the top of the stack is \(b\), it will replace \(b\) with \(c\) on the stack. The acceptance of an input string by the automaton can be determined by either reaching an accept state or by depleting the stack.

Variants of Pushdown Automata

In addition to the standard DPDA and NPDA models, there exist specialized variants of Pushdown Automata tailored for particular computational purposes. These include Visibly Pushdown Automata (VPA), Input-driven Pushdown Automata, and Counter Automata. Each variant exhibits distinct features, such as VPAs which have clearly delineated push and pop operations based on the input symbols, or Counter Automata that utilize numerical counters in place of a symbol stack. While these specialized automata are less commonly encountered, they offer insightful perspectives into the adaptability and breadth of automata theory.

Practical Applications of Pushdown Automata

Pushdown Automata find significant practical applications in the realm of computer science, especially in the development of compilers and parsers for programming languages. DPDAs are employed for parsing deterministic context-free languages, where they provide a balance of simplicity and efficiency. NPDAs, with their capacity for multiple transitions, are more suitable for complex parsing tasks that involve non-deterministic context-free languages. A comprehensive understanding of both deterministic and non-deterministic PDAs is essential for creating sophisticated computational tools capable of interpreting and analyzing the structural intricacies of programming languages.

Concluding Insights on Pushdown Automata

In conclusion, Pushdown Automata represent a pivotal concept in automata theory, equipped with a stack to effectively process Context-Free Languages. They are indispensable for grasping the computational strategies and methodologies prevalent in computer science, particularly in the analysis and processing of language syntax. The distinction between deterministic and non-deterministic PDAs underscores the balance between computational simplicity and expressive power. Through the use of diagrams and practical applications, the complex operations of PDAs are rendered more comprehensible, highlighting their significance in the study of theoretical computer science.
