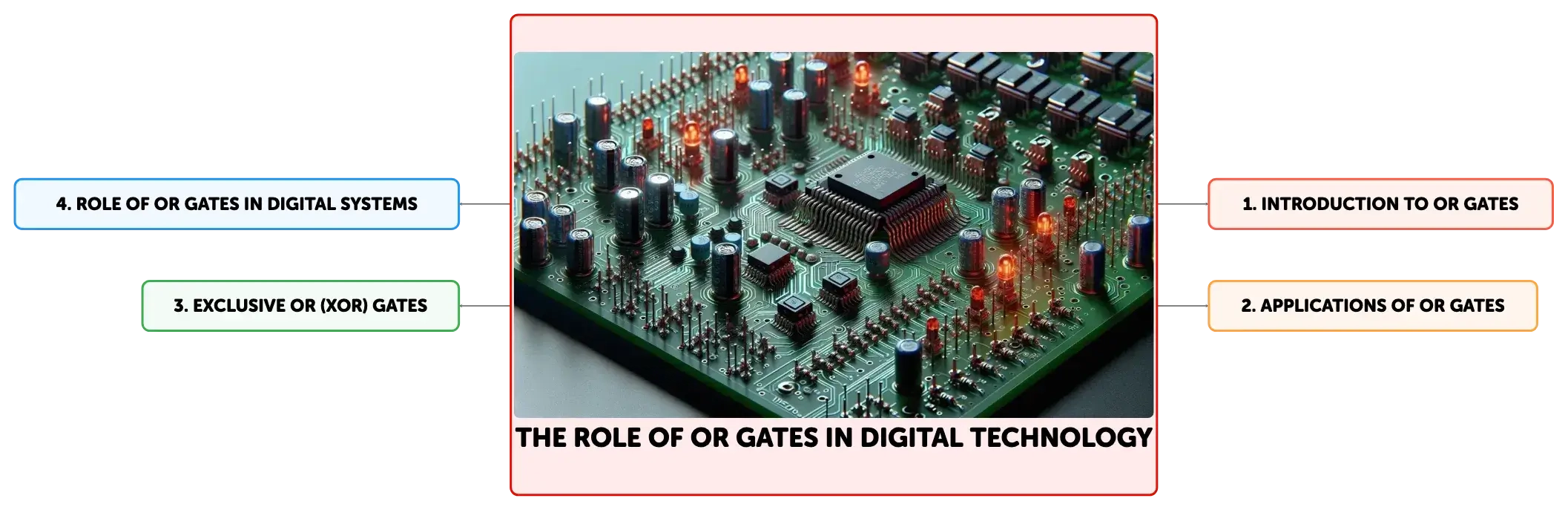

The Role of OR Gates in Digital Technology

The OR gate is a fundamental component in digital logic, performing logical disjunction based on Boolean algebra. It outputs '1' if any input is '1', and '0' only if all inputs are '0'. This principle is crucial in computing, from binary addition to security systems. OR gates also differ from XOR gates, which output '1' only with an odd number of '1' inputs. Understanding OR gates is essential for digital circuit design and various applications in technology.

see more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Origin of Boolean algebra

Click to check the answer

Developed by George Boole, it's a math branch underpinning digital logic and circuits.

2

Boolean expression for OR gate

Click to check the answer

Expressed as Y = A + B, where Y is output and A, B are inputs; '1' if any input is '1'.

3

Output of OR gate when all inputs are '0'

Click to check the answer

The output is '0' (False); OR gate outputs true only if one or more inputs are true.

4

In integrated circuits, ______ are commonly used to build OR gates because they function as ______.

Click to check the answer

transistors electronic switches

5

Commutative Law for OR gates

Click to check the answer

Input order irrelevant: A + B equals B + A.

6

Associative Law in OR operations

Click to check the answer

Input grouping doesn't affect outcome: (A + B) + C equals A + (B + C).

7

Idempotent Law application to OR gates

Click to check the answer

Input combined with itself unchanged: A + A equals A.

8

An OR gate's truth table has ______ rows to represent all possible states of inputs A and B.

Click to check the answer

four

9

Function of OR gate in binary addition

Click to check the answer

OR gate combines carry-in and one addend bit for sum calculation in adder circuits.

10

Role of OR gates in encoders

Click to check the answer

OR gates output high signal when any input is high, used in encoders to encode multiple inputs into a simpler output form.

11

Use of OR gates in search algorithms

Click to check the answer

OR operators expand search criteria by returning results that meet any of the specified conditions.

12

In digital arithmetic and communication, the XOR gate is crucial for operations such as binary ______ and error ______.

Click to check the answer

addition detection

13

Components needed for DIY OR gate

Click to check the answer

Switches, LEDs, resistors, power source, wires, breadboard.

14

Purpose of hands-on OR gate construction

Click to check the answer

Demonstrates truth table operation, reinforces digital logic theory.

15

______ gates are integral in digital clocks for controlling the time display and creating synchronization pulses.

Click to check the answer

OR

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

The Importance of Bits in the Digital World

View document

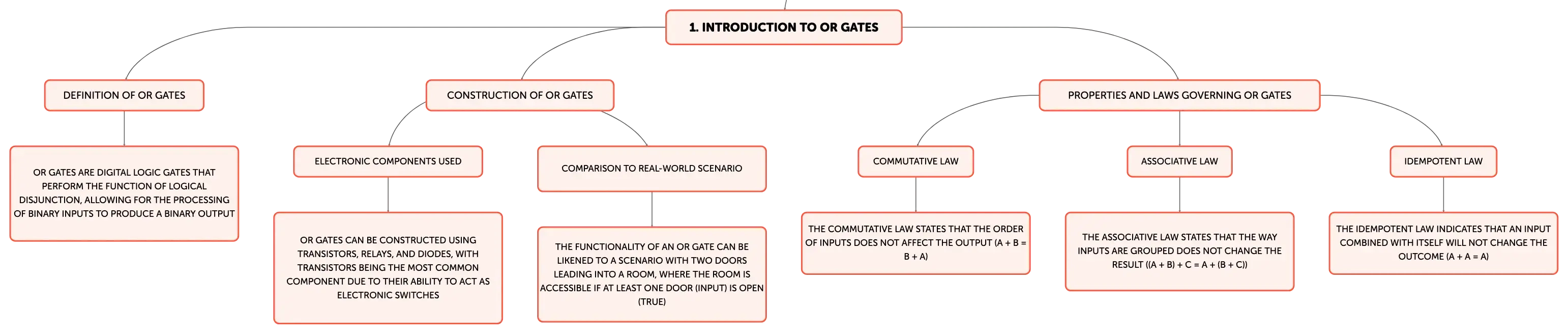

The Role of the OR Gate in Digital Logic

The OR gate is a critical digital logic gate that performs the function of logical disjunction, which is a fundamental operation in the realm of computer science, particularly in digital circuit design. It is based on Boolean algebra, established by George Boole, and operates under a simple rule: if any of its binary inputs are '1' (True), the output is '1' (True); the output is '0' (False) only if all inputs are '0' (False). This is encapsulated in the Boolean expression Y = A + B, where Y represents the output and A and B are the inputs.
Close-up of a green electronic circuit board with black integrated circuits, blue and orange capacitors and red and yellow LEDs, with no visible text.

Constructing an OR Gate with Electronic Components

An OR gate can be constructed using a variety of electronic components, including transistors, relays, and diodes. Transistors are the most common components for creating OR gates in integrated circuits due to their ability to act as electronic switches. Relays, which switch outputs using an electromagnet, and diodes, which allow current to flow in only one direction, can also be used to implement OR gates. The functionality of an OR gate can be likened to a scenario with two doors leading into a room: the room is accessible if at least one door (input) is open (True).

Key Properties and Laws Governing OR Gates

OR gates are governed by several important properties and laws that dictate their behavior. The Commutative Law asserts that the order of inputs does not affect the output (A + B = B + A). The Associative Law states that the way inputs are grouped does not change the result ((A + B) + C = A + (B + C)). The Idempotent Law indicates that an input combined with itself will not change the outcome (A + A = A). These principles are essential for predicting the behavior of OR gates in complex digital circuits.

Deciphering the OR Gate Truth Table

The truth table for an OR gate is a tabular representation that shows the output for every possible combination of binary inputs. In a 2-input OR gate, the truth table has four rows, corresponding to the four possible states of inputs A and B. The output column shows a '1' whenever at least one input is '1', and a '0' when both inputs are '0'. This table is a practical reference for understanding how the OR gate processes binary inputs to produce a binary output.

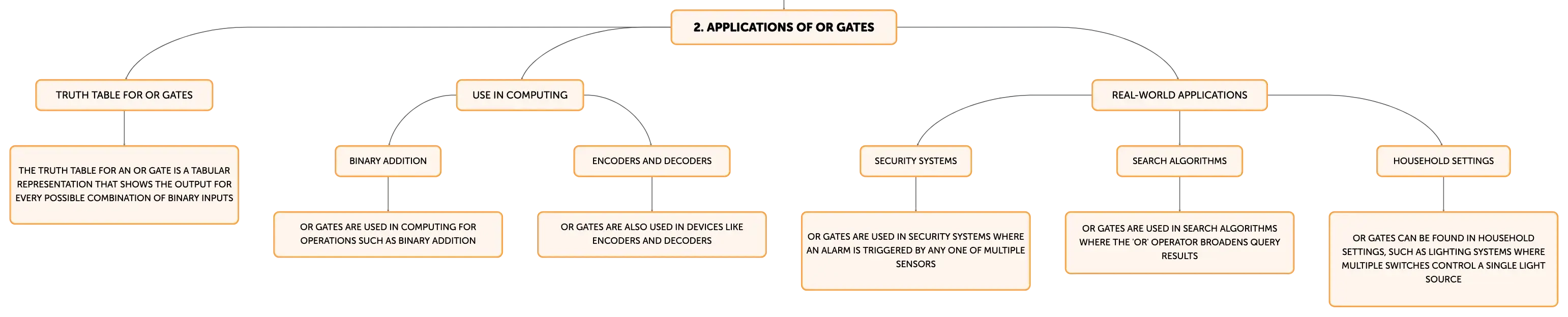

Utilizing OR Gates in Computing and Everyday Applications

OR gates are widely used in computing for operations such as binary addition and in devices like encoders and decoders. Their real-world applications are equally diverse, including security systems where an alarm is triggered by any one of multiple sensors, and in search algorithms where the 'OR' operator broadens query results. In household settings, OR gates can be found in lighting systems where multiple switches control a single light source, allowing the light to be activated from different locations.

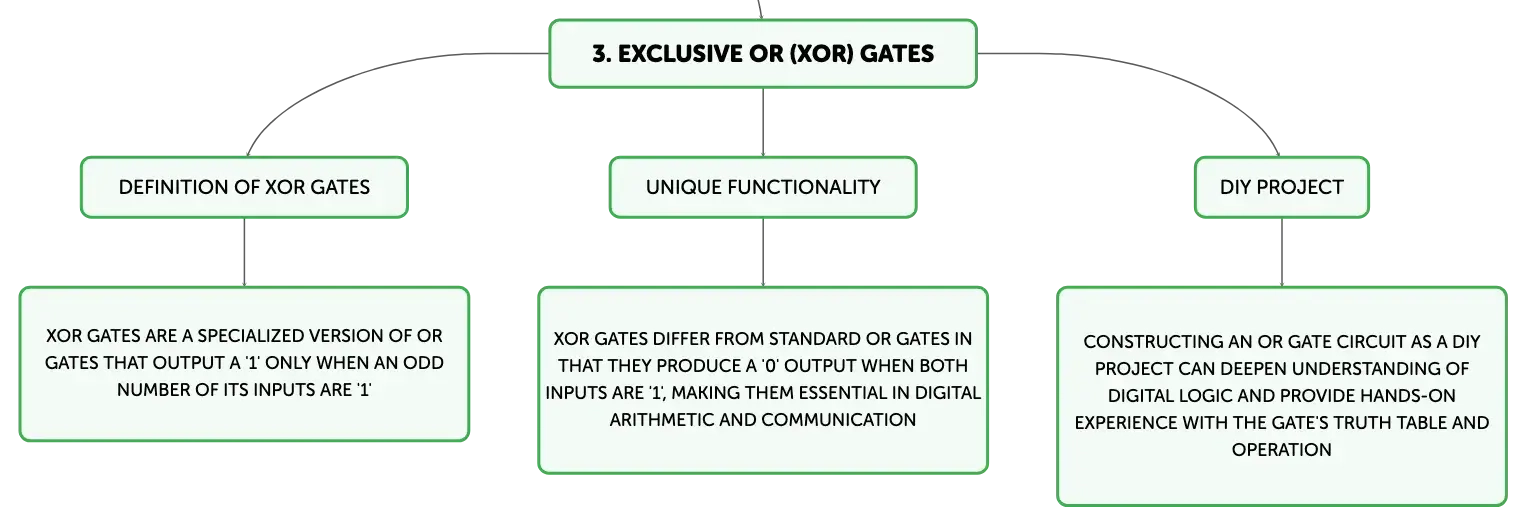

Distinguishing the Exclusive OR (XOR) Gate

The Exclusive OR (XOR) gate is a specialized version of the OR gate that outputs a '1' only when an odd number of its inputs are '1'. It differs from the standard OR gate in that it produces a '0' output when both inputs are '1'. This unique behavior is essential in digital arithmetic for operations like binary addition and subtraction, and in digital communication for error detection and correction. The XOR gate's distinctive functionality makes it a vital component in various computer science applications.

Building and Experimenting with OR Gate Circuits

Constructing an OR gate circuit as a DIY project can deepen understanding of digital logic. Using basic components such as switches, LEDs, resistors, a power source, wires, and a breadboard, one can create a working model of an OR gate. This hands-on experience provides a concrete demonstration of the gate's truth table and operation, reinforcing the theoretical concepts and enhancing educational engagement with digital electronics.

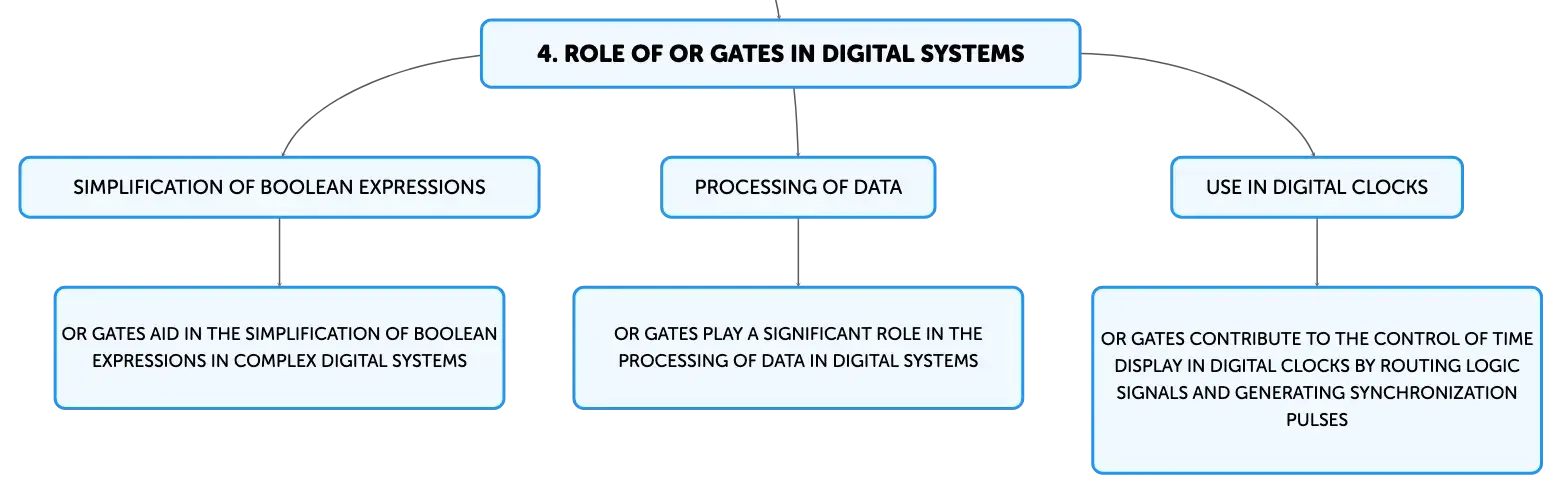

OR Gates in Advanced Digital Systems

OR gates play a significant role in complex digital systems, aiding in the simplification of Boolean expressions and the processing of data. In digital clocks, they contribute to the control of time display by routing logic signals to the appropriate segments of a seven-segment display and generating synchronization pulses. The pervasive presence of OR gates in computer systems, from basic logic operations to specific applications like timekeeping, demonstrates their indispensable role in the field of digital technology.
