Huffman Coding: An Essential Algorithm for Data Compression

Concept Map

Algorino

Edit available

Huffman Coding is a pivotal algorithm for lossless data compression, invented by David A. Huffman in 1952. It assigns shorter binary codes to frequent characters and longer ones to less frequent, using a binary tree for efficient, prefix-free encoding. This technique optimizes data storage and transmission, significantly reducing file sizes while maintaining original information integrity. Practical implementation examples, particularly in Python, demonstrate its real-world applications in various digital domains.

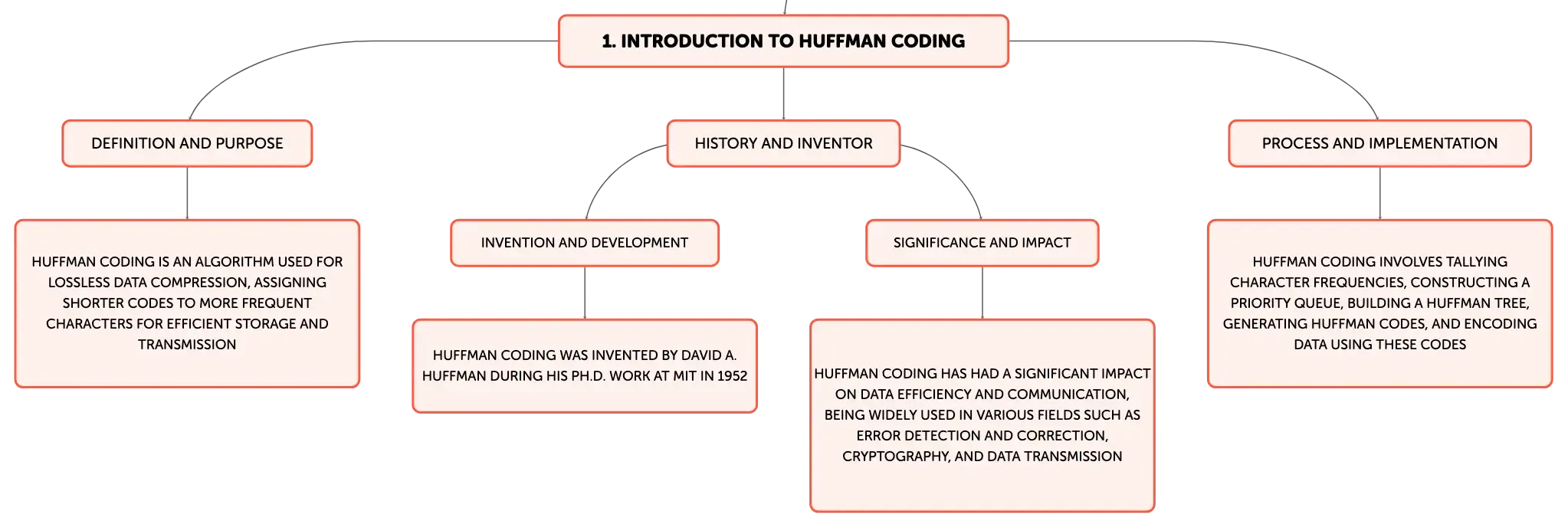

Introduction to Huffman Coding: Essential Technique in Lossless Compression

Huffman Coding is an essential algorithm in computer science, particularly in the field of lossless data compression. Invented by David A. Huffman during his Ph.D. work at MIT in 1952, this algorithm efficiently compresses data by assigning shorter binary codes to more frequently occurring characters and longer codes to less frequent ones. The Huffman Coding technique utilizes a frequency-sorted binary tree to facilitate this variable-length code assignment, ensuring that no code is a prefix of another, which is crucial for the accurate decoding of the compressed data. This process results in a significant reduction in data size while preserving the original information, making Huffman Coding a widely used method in data storage and transmission.
Close-up of multi-colored smooth pebbles on sandy surface, arranged in triangular shape with light shadows and color gradients.

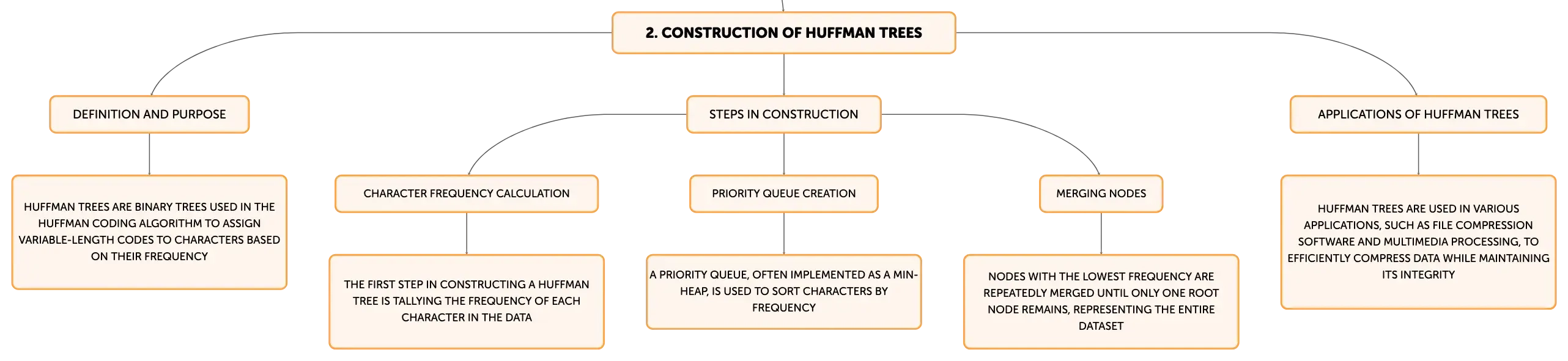

The Huffman Coding Algorithm: Step-by-Step Explanation

The Huffman Coding algorithm begins by tallying the frequency of each character in the data. These characters are then inserted into a priority queue, often implemented as a min-heap, where they are sorted by frequency. The construction of the Huffman tree is the next step, which involves repeatedly removing the two nodes with the lowest frequency from the queue, combining them into a new node whose frequency is the sum of the two, and reinserting this new node back into the queue. This process continues until there is only one node left, which becomes the root of the Huffman tree. Huffman codes are then derived by tracing the path from the root to each leaf node, with left edges labeled '0' and right edges labeled '1'. The resulting Huffman codes are prefix-free, meaning no code is the prefix of another, which allows for unambiguous decoding.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Inventor of Huffman Coding

David A. Huffman during his Ph.D. at MIT in 1952.

01

Huffman Coding's tree structure

Frequency-sorted binary tree used for variable-length code assignment.

02

Prefix condition in Huffman Coding

No code is a prefix of another, ensuring accurate data decoding.
