The Principle of Superposition

The principle of superposition in wave theory explains how waves combine when they meet, leading to interference patterns. This concept is crucial for understanding phenomena in sound, light, and quantum mechanics. It applies to mechanical, electromagnetic, and matter waves, influencing technologies like noise-cancelling headphones, radio communication, and optical instruments. The text delves into the conditions for superposition, the importance of phase and frequency, and its everyday applications.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______ wave at a given location is the ______ sum of the individual waves' displacements at that point.

Click to check the answer

resultant vector

2

Superposition Principle

Click to check the answer

States that when two or more waves overlap, their amplitudes combine at each point in space.

3

Constructive Interference Condition

Click to check the answer

Occurs when waves are in phase; crests and troughs align, resulting in a wave with amplitude equal to the sum of individual amplitudes.

4

Destructive Interference Condition

Click to check the answer

Occurs when waves are half a wavelength out of phase; crests align with troughs of another wave, leading to reduced or zero resultant amplitude.

5

According to the Law of Superposition, the resulting wave's displacement is the ______ sum of the displacements of each individual wave.

Click to check the answer

algebraic

6

Coherent vs. Incoherent Waves

Click to check the answer

Coherent waves have constant phase relationship, produce stable interference. Incoherent waves have random phases, create complex patterns.

7

Stable Interference Patterns

Click to check the answer

Stable patterns result from coherent waves with matching frequencies, as in lasers.

8

Interference Pattern Shift

Click to check the answer

Mismatched frequencies lead to shifting interference patterns, exemplified by acoustic beats.

9

______ in radio communication and noise-cancelling headphones technology depend on wave interactions in ______ media.

Click to check the answer

Antennas linear

10

Electromagnetic spectrum components

Click to check the answer

Range from radio waves to gamma rays, varying in frequency and wavelength.

11

Superposition principle application

Click to check the answer

Enables multiple signal transmission in wireless communication, interference pattern creation in optics.

12

Importance of superposition in design

Click to check the answer

Crucial for designing/analyzing systems using electromagnetic wave interactions.

13

In ______, the principle of superposition allows multiple signals to be sent simultaneously and ______ at the destination.

Click to check the answer

telecommunications decoded

14

Role of experiments and simulations in wave superposition

Click to check the answer

Provide visualization and understanding of wave interference patterns through practical demonstrations.

15

Impact of wave variables on superposition

Click to check the answer

Frequency, phase, and amplitude influence constructive and destructive interference, affecting sound intensity.

16

Understanding wave characteristics like ______, ______, and ______ is crucial for grasping their interactions.

Click to check the answer

amplitude phase frequency

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Wave Equations and Their Applications

Physics

Spherical Aberration and its Effects on Optical Systems

Physics

Optical Aberrations

Physics

Radiation Pressure

The Principle of Superposition in Wave Interactions

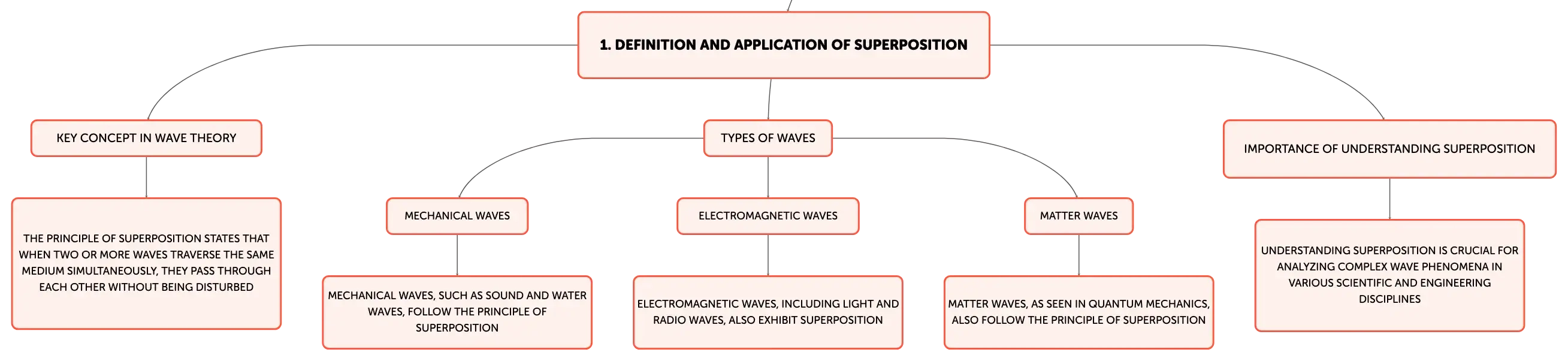

The principle of superposition is a key concept in wave theory, which states that when two or more waves traverse the same medium simultaneously, they pass through each other without being disturbed. The resultant wave at any point is the vector sum of the individual wave displacements at that point. This principle is applicable to all types of waves, such as mechanical (sound and water waves), electromagnetic (light and radio waves), and matter waves (as in quantum mechanics). Understanding superposition is crucial for analyzing complex wave phenomena in various scientific and engineering disciplines.
Double-slit experiment demonstrating wave interference, with a laser beam creating bright and dark fringes on a screen, showcasing quantum physics principles.

Constructive and Destructive Interference

When waves superpose, their amplitudes combine at each point in space where they coincide. If the waves are in phase—that is, their crests and troughs align—they will interfere constructively, resulting in a wave with an amplitude equal to the sum of the individual amplitudes. If the waves are out of phase by half a wavelength, their crests will coincide with the troughs of the other, leading to destructive interference and a resultant wave with reduced or zero amplitude. The nature of the interference depends on the phase difference and the relative amplitudes of the interacting waves.

Conditions for the Law of Superposition

The Law of Superposition holds under certain conditions: the waves must be in the same medium and of the same nature (both longitudinal or both transverse), and the medium must be linear and non-dispersive, meaning the waves do not change form as they propagate. The resultant wave is the algebraic sum of the individual waves' displacements, and this superposition is independent of the number or complexity of the waves involved. This law is fundamental for predicting the behavior of wave systems in various contexts.

Phase and Frequency in Wave Superposition

The phase relationship between interacting waves is crucial in determining the type of interference that occurs. Coherent waves, which maintain a constant phase relationship, can produce stable interference patterns, such as those seen in laser applications. Incoherent waves, with random phase relationships, result in complex and rapidly changing interference patterns. The frequency of the waves must also match for sustained interference; otherwise, the interference pattern will shift over time, as seen with beats in acoustics.

Linear Superposition and Its Real-World Applications

Linear superposition occurs in systems where the response to multiple stimuli is the direct sum of the responses that would have been caused by each stimulus individually. This principle is fundamental in understanding the behavior of linear systems, such as the production of harmonics in musical instruments, the operation of antennas in radio communication, and the technology behind noise-cancelling headphones. These applications rely on the predictable nature of wave interactions in linear media.

Superposition in Electromagnetic Wave Phenomena

Electromagnetic waves, which encompass a broad spectrum from radio waves to gamma rays, exhibit superposition. When these waves intersect, their electric and magnetic field vectors combine according to the principle of superposition. This underpins the operation of various technologies, including the simultaneous transmission of multiple signals in wireless communication and the creation of interference patterns in optical instruments. Understanding superposition is essential for the design and analysis of systems that rely on electromagnetic wave interactions.

Observing Superposition in Everyday Life

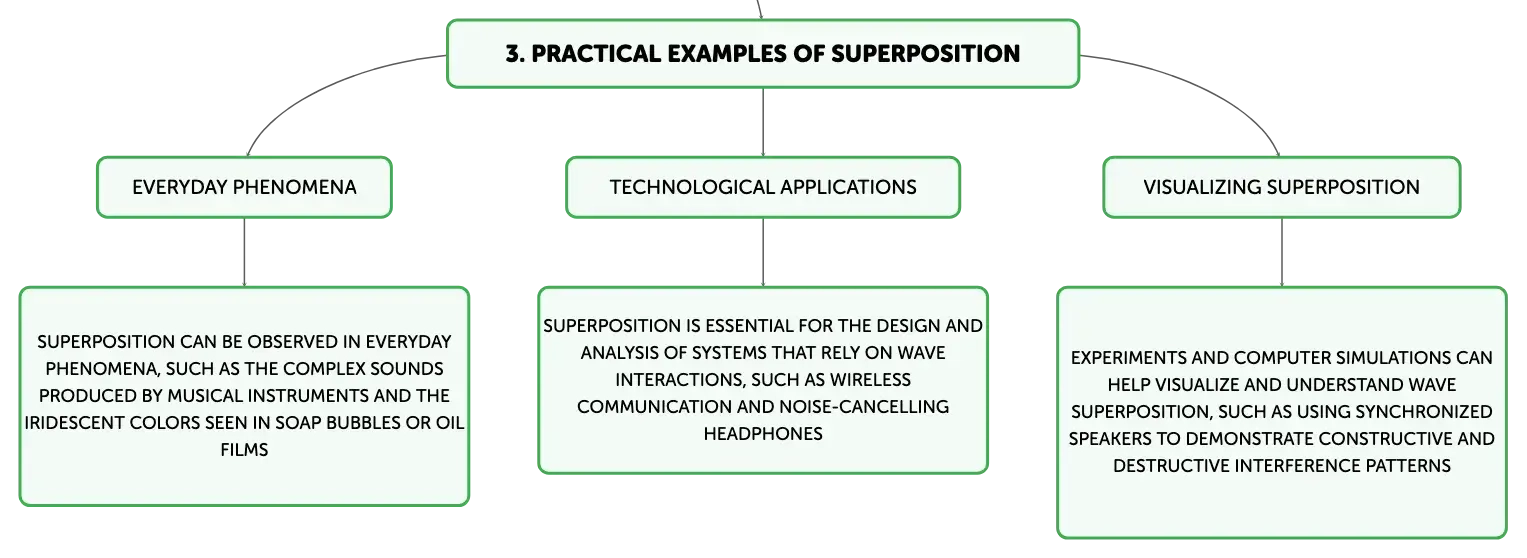

The principle of superposition manifests in many everyday phenomena. For example, the complex sounds produced by musical instruments are the result of superposition of sound waves. Optical effects such as the iridescent colors seen in soap bubbles or oil films are due to light wave interference. In the realm of telecommunications, superposition enables the concurrent transmission of signals, which can be separated and decoded at the receiver end without mutual interference, illustrating the principle's practical significance.

Demonstrating Superposition Through Experiments and Simulations

Experiments and computer simulations play a vital role in visualizing and understanding wave superposition. For instance, using two synchronized speakers to generate sound waves of the same frequency can demonstrate constructive and destructive interference patterns, which can be heard as variations in sound intensity. Such demonstrations help students grasp the effects of wave variables on superposition and provide a hands-on approach to learning complex wave phenomena.

Concluding Insights on Wave Superposition

The superposition of waves is a fundamental concept in physics that explains how individual waves combine to form complex wave patterns. This principle is integral to a wide array of phenomena across different wave types and has significant practical applications in technology, communication, and the arts. It highlights the importance of understanding wave properties such as amplitude, phase, and frequency, and their role in wave interactions. Superposition is not only a theoretical cornerstone but also a practical tool that shapes our interaction with the world through sound, light, and beyond.
