Center of Mass and Center of Gravity in Physics

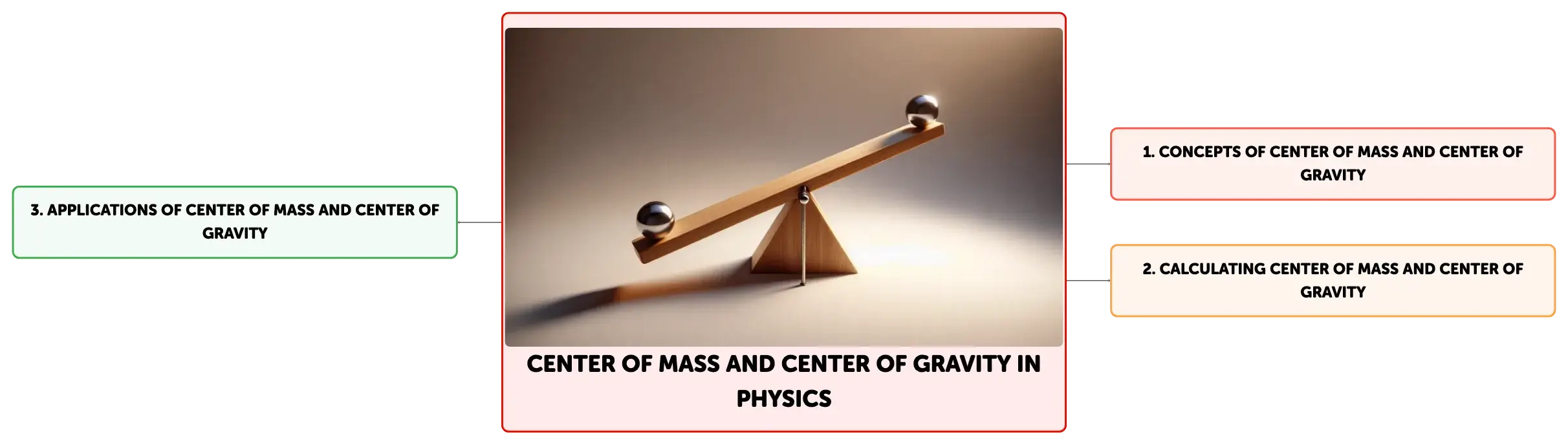

Concept Map
The main topic of the text is the exploration of the center of mass and center of gravity in physics. It explains how the center of mass is the weighted average of all mass elements in an object, while the center of gravity is the point where gravitational torque is zero. The text delves into the calculation methods for both, their relationship, and their significance in practical scenarios such as engineering design and stability assessments. It also highlights the differences between these concepts in uniform and non-uniform gravitational fields.
Summary
Outline
Understanding the Center of Mass and Center of Gravity
In physics, the center of mass and center of gravity are pivotal concepts for analyzing the motion and stability of objects. The center of mass is the point in an object or system of particles where all the mass can be considered to be concentrated. Mathematically, it is the weighted average of the positions of all the mass elements, which allows for the simplification of complex motion into translational motion of a single point. The center of gravity, on the other hand, is the point where the total gravitational torque on the body is zero; it is the point that serves as an application point for the gravitational force. In a uniform gravitational field, the center of gravity is aligned with the center of mass, but in a non-uniform field, these points may not coincide due to the differential gravitational forces acting on different parts of the object.Gravitational Force and Its Calculation
Gravitational force is the force of attraction that exists between any two masses. According to Newton's law of universal gravitation, the force can be calculated using the equation \(F_g = G\frac{m_1 m_2}{r^2}\), where \(G\) is the gravitational constant (6.674×10^-11 N(m/kg)^2), \(m_1\) and \(m_2\) are the masses of the two objects, and \(r\) is the distance between their centers of mass. This force is always directed along the line joining the centers of mass of the two bodies. Near the Earth's surface, where the gravitational field is approximately uniform, the gravitational force on an object (its weight) can be calculated using the equation \(w = mg\), with \(g\) being the acceleration due to gravity (approximately 9.81 m/s^2 on Earth's surface).The Relationship Between Center of Mass and Center of Gravity
The center of mass and center of gravity are closely related but are not identical except in a uniform gravitational field. The center of mass is a point that depends solely on the distribution of mass within an object or system and is unaffected by external gravitational fields. In contrast, the center of gravity is influenced by the gravitational field and is the point where the gravitational forces can be considered to act. On Earth's surface, where the gravitational field is nearly uniform, the center of gravity and the center of mass typically coincide, making it convenient to treat them as the same for most practical purposes. However, in varying gravitational fields, such as those experienced in space or at different altitudes on Earth, the center of gravity may shift relative to the center of mass.Calculating the Center of Mass and Center of Gravity
The center of mass for a discrete system of particles is determined using the equation \(x_{\mathrm{cm}} =\frac{\sum m_i x_i}{\sum m_i}\), where \(x_{\mathrm{cm}}\) represents the center of mass, \(m_i\) is the mass of each particle, and \(x_i\) is the position of each particle relative to a chosen reference point. For continuous objects, the center of mass is found by integrating the mass distribution over the volume of the object. The center of gravity is calculated similarly, but in non-uniform gravitational fields, the weight of each mass element (which varies with the gravitational field strength) is used instead of the mass. In symmetrical objects, the center of mass and center of gravity are located at the geometric center, assuming uniform material density and gravitational field.Practical Examples of Center of Gravity Calculations
Practical applications of center of gravity calculations include engineering and safety assessments. For instance, in designing a stable structure, engineers must ensure that the center of gravity is within the base of support to prevent tipping. In the case of a jungle gym with children playing on it, the center of gravity can be found by calculating the weight of each child (factoring in the gravitational force) and their positions relative to a reference point. The center of gravity of the system is then determined using the equation \(x_{\mathrm{cg}} =\frac{\sum w_i x_i}{\sum w_i}\), where \(x_{\mathrm{cg}}\) is the center of gravity, \(w_i\) is the weight of each child, and \(x_i\) is the position of each child. For objects like a long rod extending from Earth's surface, the center of gravity will not be at the geometric center due to the non-uniform gravitational field, which causes a variation in weight along the length of the rod.Key Takeaways on Center of Gravity
The center of mass is a fundamental concept in physics that simplifies the analysis of motion by representing the entire mass of a system as concentrated at a single point. The center of gravity builds upon this concept by considering the effect of gravitational forces and is the point where the system's weight is effectively balanced. In uniform gravitational fields, the center of mass and center of gravity coincide, but they may differ in non-uniform fields. Mastery of these concepts is essential for a wide range of applications, from basic physics problems to advanced engineering designs, where stability and motion prediction are critical.
Show More
Concepts of Center of Mass and Center of Gravity
Definition of Center of Mass
The center of mass is the point in an object or system of particles where all the mass can be considered to be concentrated
Definition of Center of Gravity
The center of gravity is the point where the total gravitational torque on the body is zero; it is the point that serves as an application point for the gravitational force
Relationship between Center of Mass and Center of Gravity
The center of mass is a point that depends solely on the distribution of mass within an object or system, while the center of gravity is influenced by the gravitational field and is the point where the gravitational forces can be considered to act

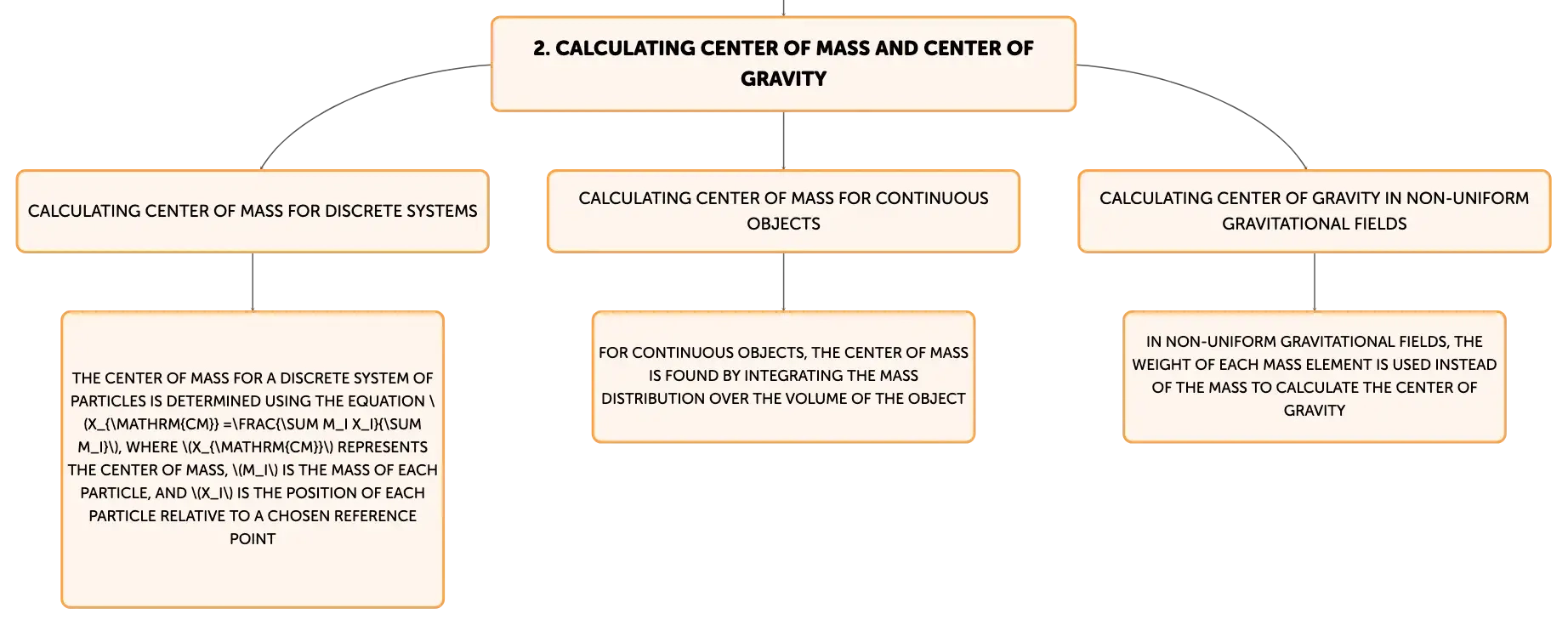

Calculating Center of Mass and Center of Gravity
Calculating Center of Mass for Discrete Systems
The center of mass for a discrete system of particles is determined using the equation \(x_{\mathrm{cm}} =\frac{\sum m_i x_i}{\sum m_i}\), where \(x_{\mathrm{cm}}\) represents the center of mass, \(m_i\) is the mass of each particle, and \(x_i\) is the position of each particle relative to a chosen reference point
Calculating Center of Mass for Continuous Objects
For continuous objects, the center of mass is found by integrating the mass distribution over the volume of the object
Calculating Center of Gravity in Non-Uniform Gravitational Fields
In non-uniform gravitational fields, the weight of each mass element is used instead of the mass to calculate the center of gravity

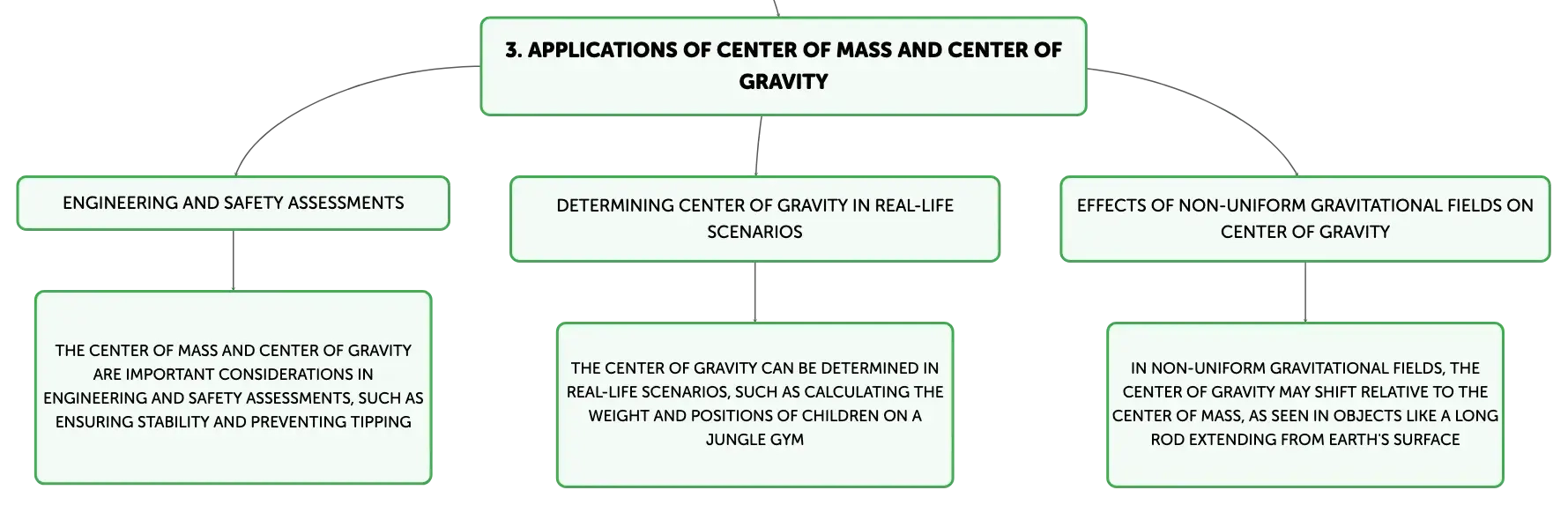

Applications of Center of Mass and Center of Gravity
Engineering and Safety Assessments
The center of mass and center of gravity are important considerations in engineering and safety assessments, such as ensuring stability and preventing tipping
Determining Center of Gravity in Real-Life Scenarios
The center of gravity can be determined in real-life scenarios, such as calculating the weight and positions of children on a jungle gym
Effects of Non-Uniform Gravitational Fields on Center of Gravity
In non-uniform gravitational fields, the center of gravity may shift relative to the center of mass, as seen in objects like a long rod extending from Earth's surface
Center of Mass and Center of Gravity in Physics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Define center of mass.
Point where all mass in an object/system is concentrated; weighted average of all mass elements' positions.
01
Explain mathematical significance of center of mass.
Enables simplification of complex motion into translational motion of a single point.
02
Describe center of gravity in a uniform gravitational field.
Point where gravitational torque is zero; coincides with center of mass in uniform field.
