Embedded Systems

Embedded systems are computing units tailored for specific functions within larger systems. They are built from hardware, application software, and often an RTOS. These systems are crucial in various industries, from automotive safety to industrial automation, and require specialized knowledge in programming and design. Career opportunities in this field are diverse, ranging from engineering to software development.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of embedded systems

Click to check the answer

Computing units with specific functions within larger systems, not general-purpose.

2

Key attributes of embedded systems

Click to check the answer

Purpose-built, real-time operation, minimal power, compact, economically efficient.

3

Applications of embedded systems

Click to check the answer

Found in household electronics, industrial tools, and avionics systems.

4

The ______ in an embedded system includes the microcontroller or microprocessor, memory, and ______.

Click to check the answer

hardware input/output interfaces

5

Role of embedded systems in airbag deployment

Click to check the answer

Embedded systems process sensor data to trigger airbags during collisions in vehicles.

6

Embedded systems' contribution to energy efficiency

Click to check the answer

Embedded systems optimize performance and control, reducing energy consumption in various applications.

7

Importance of real-time computing in embedded systems

Click to check the answer

Real-time computing in embedded systems ensures timely task execution, critical for applications like medical diagnostics.

8

Embedded systems often need ______ operation, requiring advanced ______ management to meet timing constraints.

Click to check the answer

real-time task

9

Key professionals in embedded system design

Click to check the answer

System architects, hardware engineers, software developers, integrators, QA professionals.

10

Importance of collaboration in embedded system design

Click to check the answer

Ensures resilience and effective performance of the final product through specialized expertise.

11

Outcome of effective embedded system design process

Click to check the answer

Final product that is resilient and performs intended functions effectively.

12

The kernel, central to any ______, oversees core functions such as resource management and process scheduling.

Click to check the answer

Embedded Operating System (EOS)

13

Embedded systems in consumer products

Click to check the answer

Drive gadgets like digital watches, smart thermostats, security systems, intelligent appliances.

14

Role of embedded systems in industrial automation

Click to check the answer

Key for robotic precision, efficiency of automated vehicles, process control, enhancing productivity and safety.

15

Impact of embedded systems on manufacturing

Click to check the answer

Contribute to advanced functionality, improved productivity, and increased safety in manufacturing processes.

16

Individuals interested in embedded systems should learn about ______, ______, and ______ among other subjects.

Click to check the answer

microcontroller programming real-time system design peripheral interfacing

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Technology

BODE Diagrams: A Tool for System Analysis

Technology

Optical Storage Technologies

Technology

Integrated Circuits: The Building Blocks of Modern Technology

Technology

Solid State Storage

Introduction to Embedded Systems

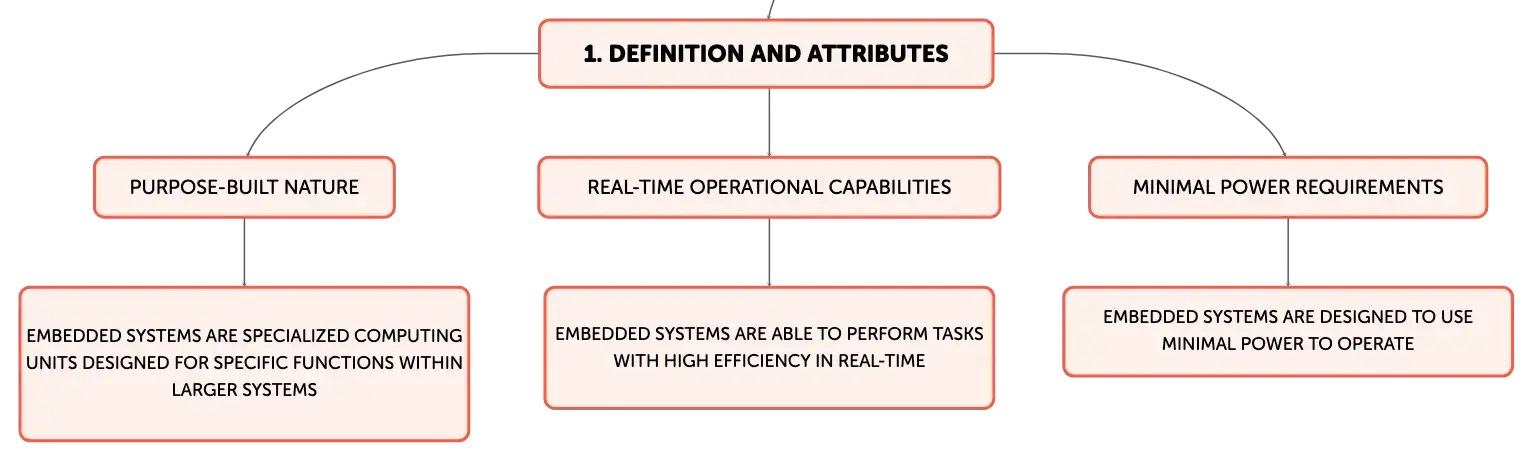

Embedded systems are specialized computing units that serve specific functions within larger systems, whether mechanical, electrical, or combined. These systems are distinct from general-purpose computers due to their singular focus on particular tasks, which they perform with high efficiency. Key attributes of embedded systems include their purpose-built nature, real-time operational capabilities, minimal power requirements, compact form factors, and economic efficiency. Embedded systems are pervasive, underpinning the functionality of a diverse array of devices from common household electronics like smartphones and microwaves to sophisticated industrial tools such as robotic assembly lines and avionics systems.

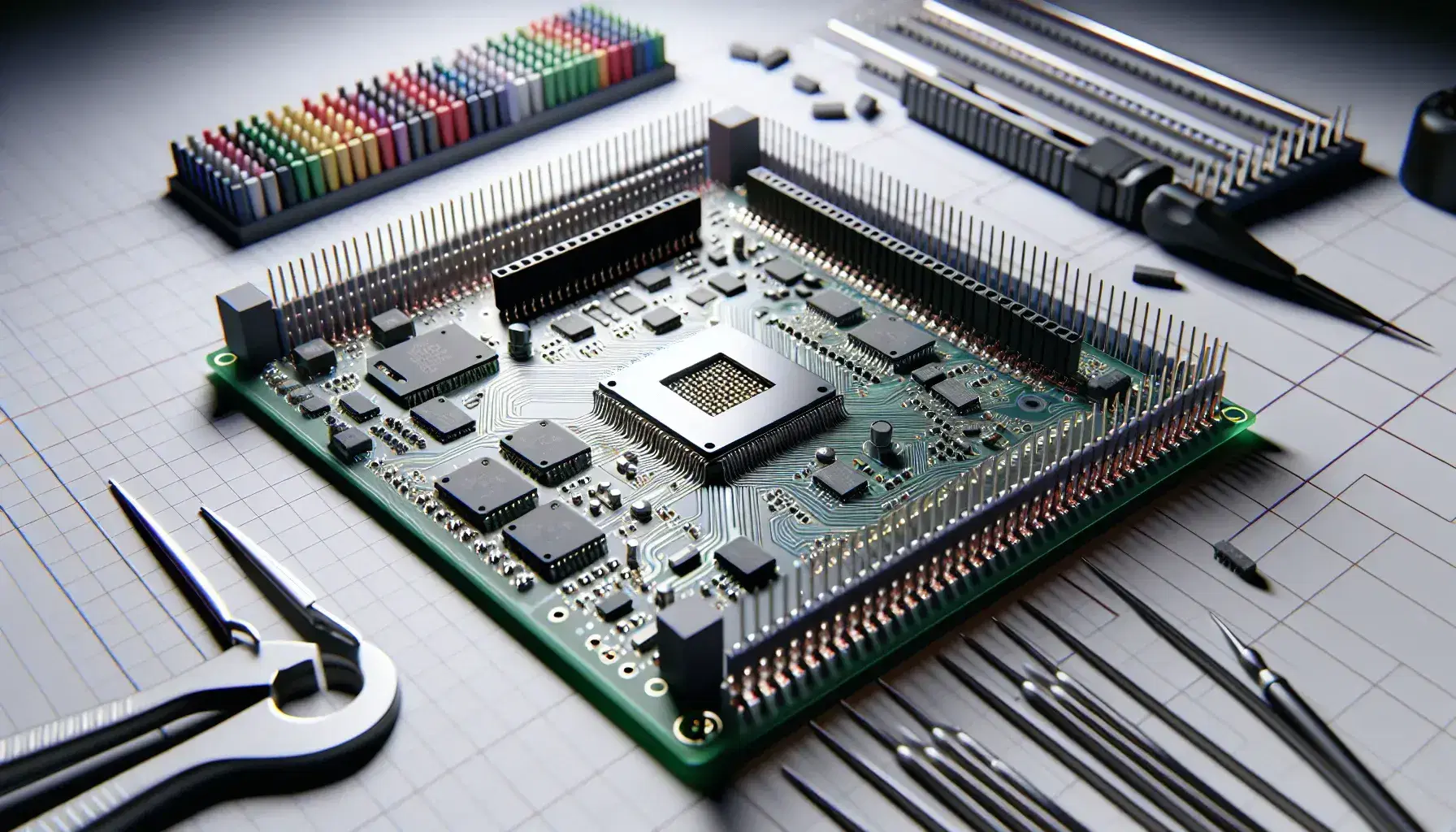

Opened hardware development board with central CPU, memory chips and colored connectors on illuminated workbench.

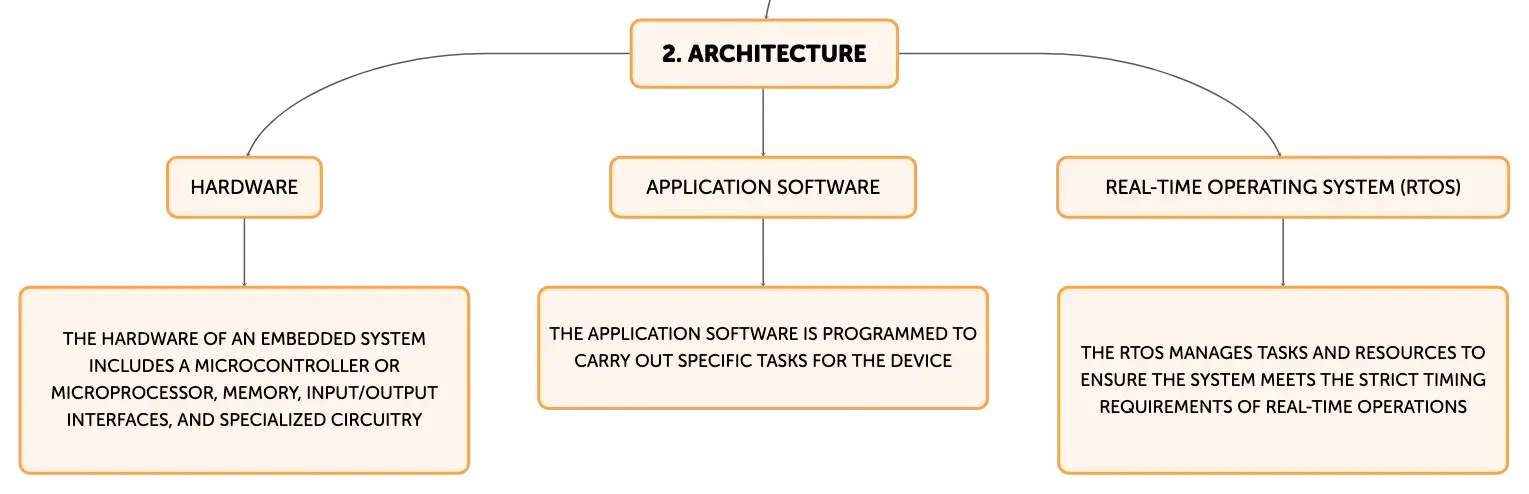

Fundamental Components of Embedded Systems

An embedded system's architecture is built around three core elements: the hardware, the application software, and often, a real-time operating system (RTOS). The hardware encompasses the microcontroller or microprocessor, memory, input/output interfaces, and any specialized circuitry tailored to the application's needs. The application software is programmed to carry out the specific tasks of the device. When present, the RTOS orchestrates the execution of software components, managing tasks and resources to ensure that the system meets the stringent timing requirements of real-time operations.

Embedded Systems in Contemporary Technology

Embedded systems are integral to the fabric of modern technology, providing specialized, real-time computing capabilities across a broad spectrum of applications. In the automotive industry, for instance, embedded systems are responsible for the critical functions of airbag deployment systems, which rely on precise sensor data to trigger in the event of a collision. Beyond automotive safety, embedded systems are central to telecommunications, smart home devices, medical diagnostics, and industrial automation, offering tailored performance, energy efficiency, and control that is essential for the reliability and functionality of these applications.

Programming Considerations for Embedded Systems

The development of software for embedded systems is a nuanced discipline that demands a thorough understanding of both hardware limitations and software design. Developers must navigate constraints such as restricted memory capacity and processing power, crafting code that is both resource-efficient and highly optimized. Real-time operation is a critical requirement for many embedded applications, necessitating sophisticated task management and scheduling to adhere to strict timing constraints. Key programming languages for embedded systems include C and C++ for their balance of control and efficiency, with assembly language used in scenarios demanding the utmost optimization, and higher-level languages like Java for more flexible application requirements.

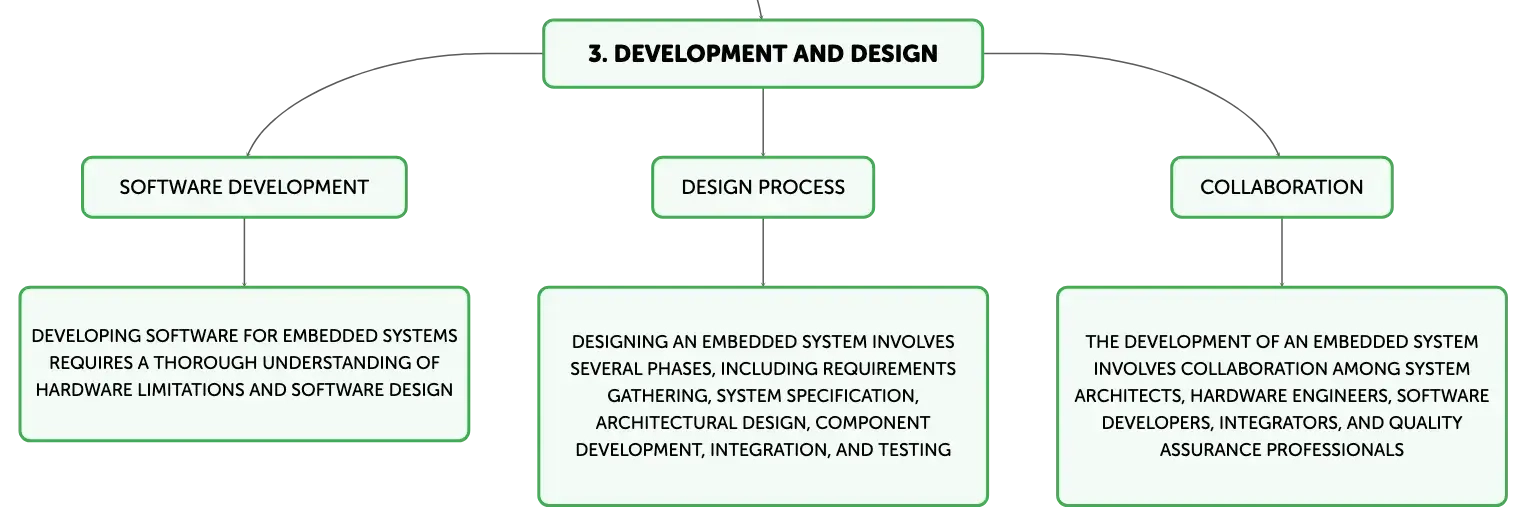

The Embedded System Design Process

Designing an embedded system is a methodical endeavor that progresses through several phases, including requirements gathering, system specification, architectural design, component development, integration, and rigorous testing. This multifaceted process involves collaboration among system architects, hardware engineers, software developers, integrators, and quality assurance professionals. Each contributor brings specialized knowledge and skills to the table, working in concert to ensure the final product is both resilient and capable of performing its intended functions effectively.

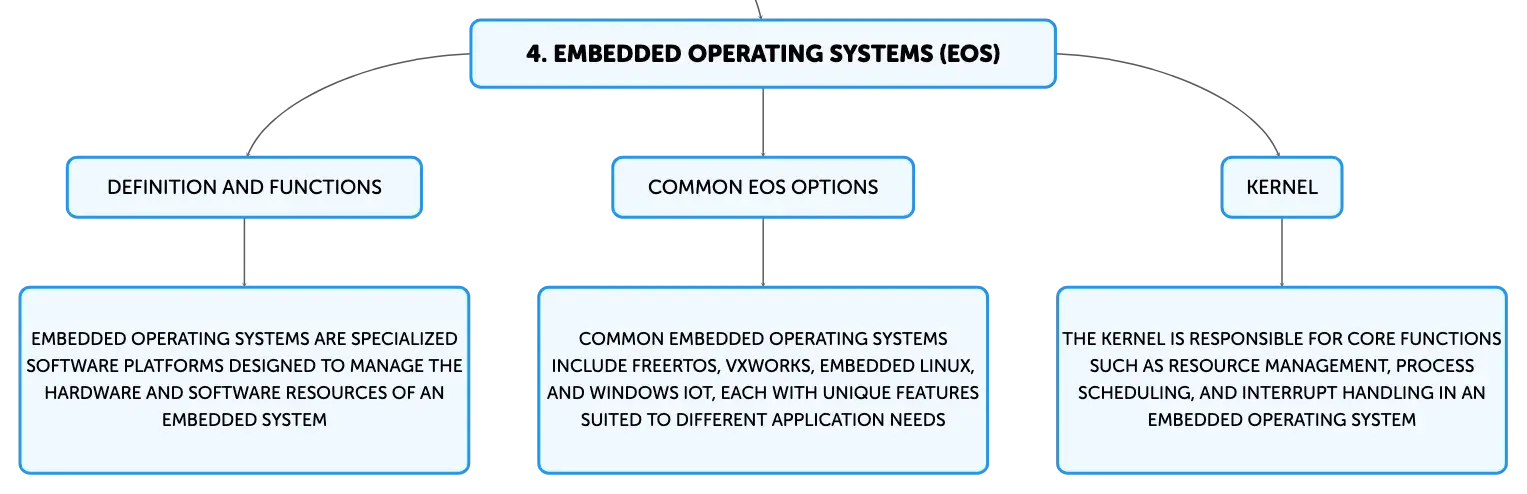

Embedded Operating Systems and Kernel Functions

Embedded Operating Systems (EOS) are specialized software platforms designed to manage the hardware and software resources of an embedded system. They facilitate critical operations such as task scheduling, memory allocation, device control, and data processing. Common EOS options include FreeRTOS, VxWorks, Embedded Linux, and Windows IoT, each with unique features suited to different application needs. At the heart of any EOS is the kernel, which is responsible for core functions like resource management, process scheduling, and interrupt handling, ensuring the system's real-time responsiveness and stability.

The Impact of Embedded Systems Across Industries

Embedded systems play a pivotal role in a multitude of sectors, enabling advanced functionality in consumer, commercial, and industrial products. In the consumer market, they are the driving force behind gadgets such as digital watches, smart thermostats, residential security systems, and intelligent appliances. In the industrial realm, embedded systems are crucial for the precision and efficiency of robotic systems, automated guided vehicles, and sophisticated process control mechanisms, contributing to enhanced productivity and safety in manufacturing and other sectors.

Career Paths and Education in Embedded Systems

Aspiring professionals in the field of embedded systems can explore a variety of educational resources and career opportunities. Foundational knowledge in areas such as microcontroller programming, real-time system design, peripheral interfacing, energy management, firmware development, and device driver creation is essential. Career options range from embedded system engineers and software developers to firmware specialists and hardware designers. A wealth of educational materials, including textbooks, online tutorials, and certification programs, are available to equip individuals with the necessary expertise to excel in this dynamic and specialized area of technology.
