Logo
Log in
Logo
Log inSign up
Logo

Tools

AI Concept MapsAI Mind MapsAI Study NotesAI FlashcardsAI QuizzesAI Transcriptions

Resources

BlogTemplate

Info

PricingFAQTeam

info@algoreducation.com

Corso Castelfidardo 30A, Torino (TO), Italy

Algor Lab S.r.l. - Startup Innovativa - P.IVA IT12537010014

Privacy PolicyCookie PolicyTerms and Conditions

Conceptual Blueprint for Computer Systems

Von Neumann Architecture is a foundational concept in computer systems design, integrating CPU, memory, and I/O devices via a single system bus. This architecture, conceptualized by John von Neumann, allows for program instructions and data to be stored in the same memory space, facilitating streamlined design and flexible programming. Despite its widespread adoption and benefits, it encounters limitations such as the 'Von Neumann bottleneck', which restricts data throughput and processing speed, and challenges in parallel processing.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______ Architecture, developed by John von Neumann in ______, is known for its single system bus connecting the CPU, memory, and I/O devices.

Click to check the answer

Von Neumann 1945

2

Function of CPU in Von Neumann Architecture

Click to check the answer

Processes data/instructions via ALU for arithmetic/logic operations and CU for task control.

3

Role of Memory Hierarchy

Click to check the answer

Stores data/program code with volatile RAM for quick access and non-volatile drives for long-term storage.

4

Purpose of System Bus

Click to check the answer

Facilitates information flow among CPU, memory, and I/O devices using data, address, and control lines.

5

The ______ Architecture is known for its interconnected components such as the CPU, memory, and I/O devices.

Click to check the answer

Von Neumann

6

In the CPU of this architecture, the ______ handles arithmetic and logic, while the ______ oversees program execution order.

Click to check the answer

ALU CU

7

Von Neumann bottleneck: What is it?

Click to check the answer

Limitation due to shared bus between CPU and memory, restricting data flow and speed.

8

Von Neumann Architecture: Sequential or Parallel?

Click to check the answer

Sequential processing model, not optimized for parallel tasks.

9

Thermal management in Von Neumann Architecture: Why necessary?

Click to check the answer

Continuous operation of components increases power use and heat, requiring cooling.

10

In Von Neumann Architecture, ______ memory offers quick storage for active processes, whereas ______ memory ensures long-term storage for programs and data.

Click to check the answer

Primary secondary

11

Von Neumann Architecture versatility

Click to check the answer

Suitable for general-purpose computing and specific applications like industrial automation.

12

Von Neumann Architecture in supercomputers

Click to check the answer

Used with enhancements such as parallel processing and advanced interconnects to overcome bottlenecks.

13

Von Neumann Architecture bottleneck issues

Click to check the answer

Performance can be limited by sequential processing, leading to enhancements in high-performance computing.

14

The ______ Architecture uses a single memory space for instructions and data, potentially causing bottlenecks.

Click to check the answer

Von Neumann

15

Limitations of Von Neumann Architecture

Click to check the answer

Bottleneck issue due to separate storage and processing, sequential processing limits, and difficulty scaling with increasing data demands.

16

Emerging alternatives to Von Neumann Architecture

Click to check the answer

Quantum computing for parallelism at quantum scale, parallel processing for simultaneous data handling, memory-centric architectures for faster access.

17

Influence of Von Neumann principles in modern computing

Click to check the answer

Foundational design for CPUs, memory hierarchy concept, control unit and arithmetic logic unit's role in processing.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

Computer Science

Computer Memory

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

Computer Science

Understanding Processor Cores

Exploring the Fundamentals of Von Neumann Architecture

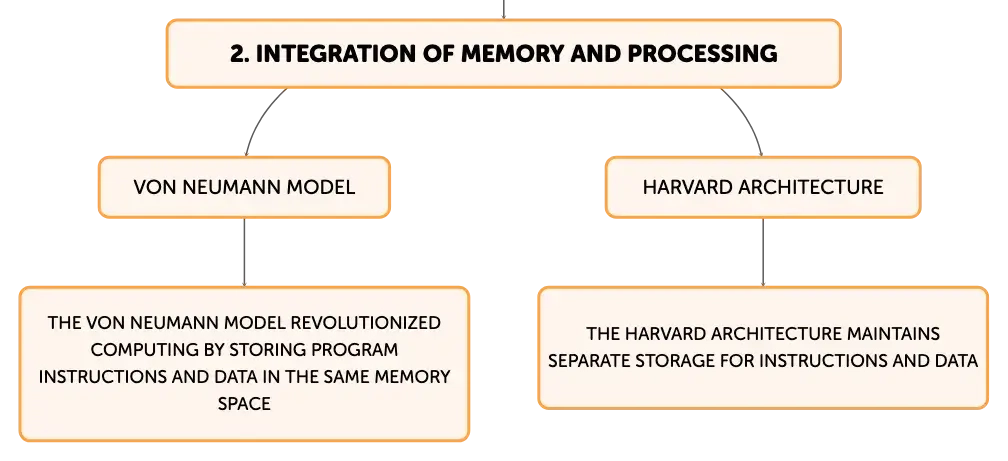

Von Neumann Architecture is a conceptual blueprint for constructing computer systems, characterized by a single system bus connecting the central processing unit (CPU), memory, and input-output (I/O) devices. Conceived by mathematician and physicist John von Neumann in 1945, this architecture revolutionized computing by storing program instructions and data in the same memory space. This approach contrasts with the Harvard Architecture, which maintains separate storage for instructions and data. The Von Neumann model's integration of memory and processing facilitates a more streamlined and flexible computer design, enabling easier programming and system expansion.
Close-up of a motherboard with silver CPU in the center, black memory modules, system bus and various electronic components on green circuit board.

Key Elements of Von Neumann Architecture

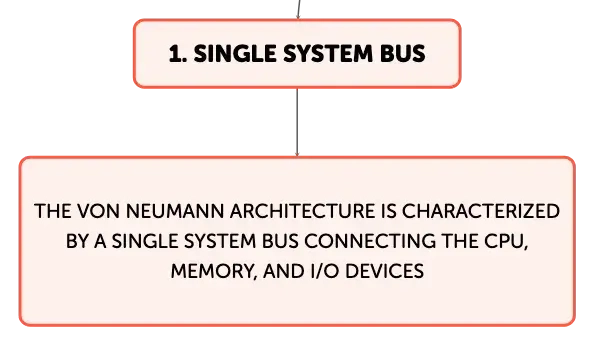

The Von Neumann Architecture is composed of four primary elements that collaborate to execute computational tasks. The CPU, the brain of the computer, processes data and instructions through its arithmetic logic unit (ALU) and control unit (CU). The memory hierarchy, which includes volatile primary memory (RAM) and non-volatile secondary storage (such as hard drives and solid-state drives), holds both the data and the program code. I/O devices serve as the interface for human interaction and external communication, while the System Bus, comprising data, address, and control lines, orchestrates the flow of information among these components. The harmonious operation of these elements is essential for the computer's performance and efficiency.

Visualizing Von Neumann Architecture

A diagram of the Von Neumann Architecture typically depicts the interconnectivity of its main components: the CPU, memory, I/O devices, and the System Bus. The System Bus is further divided into the data bus, which carries the actual data, the address bus, which specifies memory locations, and the control bus, which manages the timing and coordination of operations. Within the CPU, the ALU performs mathematical and logical operations, while the CU directs the sequence of program execution. Memory acts as a central repository for both instructions and data, enabling dynamic allocation and program flexibility. I/O devices facilitate user interaction, with data and control signals transmitted through the System Bus.

Advantages and Challenges of Von Neumann Architecture

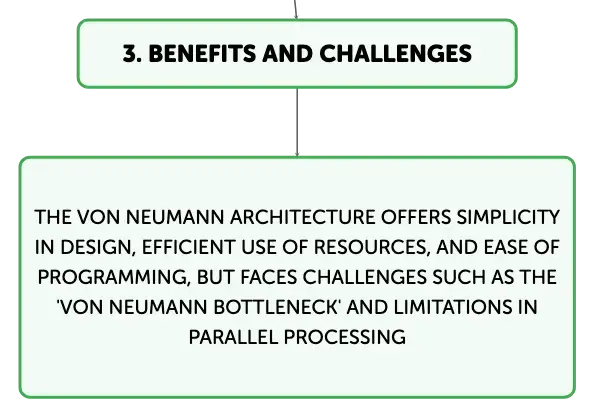

The Von Neumann Architecture offers several benefits, such as simplicity in design, efficient use of resources, and ease of programming, which have contributed to its widespread adoption. It also supports a wide range of software due to its general-purpose nature. However, it faces challenges like the 'Von Neumann bottleneck,' a limitation caused by the shared bus that can restrict data throughput and processing speed. The architecture's sequential processing model can impede parallel execution, and the continuous operation of its components may lead to increased power consumption and thermal output, necessitating effective cooling solutions.

Memory and Input/Output Devices in Von Neumann Architecture

Memory and I/O devices are critical in Von Neumann Architecture for the seamless execution of programs and user interaction. Primary memory, or RAM, provides fast, temporary storage for active processes, while secondary memory offers persistent storage for programs and data. The shared memory architecture enhances efficiency and programming flexibility but can also contribute to the Von Neumann bottleneck. I/O devices are integral for interfacing with users and external systems, and their performance is heavily dependent on the System Bus's ability to manage data transfers efficiently between these devices, the CPU, and memory.

Von Neumann Architecture in Practice

Von Neumann Architecture is the foundation for a diverse array of computing systems, ranging from everyday personal computers and smartphones to specialized microcontrollers and embedded systems. Its versatility makes it suitable for both general-purpose computing and application-specific tasks, such as in industrial automation. Even in the realm of supercomputers and high-performance computing, where the bottleneck can be a significant concern, the architecture is often employed, albeit with enhancements like parallel processing and advanced interconnects to boost performance.

Von Neumann vs. Harvard Architectures

The Von Neumann and Harvard Architectures represent two distinct approaches to computer system design. The Von Neumann model utilizes a single memory space and bus system for both instructions and data, which can lead to bottlenecks and limit parallel processing capabilities. In contrast, the Harvard Architecture employs separate storage and buses for instructions and data, enabling simultaneous access and potentially faster processing. The choice between these architectures depends on various factors, including performance needs, memory efficiency, design complexity, and application requirements, with each offering unique advantages and trade-offs.

The Evolution and Prospects of Von Neumann Architecture

Over the years, Von Neumann Architecture has undergone significant enhancements, such as the introduction of pipelining, cache memory, multi-core processors, and dedicated I/O controllers, to mitigate its inherent limitations and improve overall performance. As the computing landscape continues to evolve, emerging technologies like quantum computing, parallel processing innovations, and memory-centric architectures are being explored to address the challenges posed by the traditional Von Neumann model. Nevertheless, the core principles of this architecture remain influential in contemporary computing, underscoring its lasting impact and adaptability to future advancements.
