Exploring Direction Fields in Differential Equations

Direction fields, also known as slope fields, are invaluable in the study of differential equations, particularly for visualizing the behavior of their solutions. These fields are composed of numerous line segments or vectors, each indicating the slope of the solution curve at that specific point in the plane. By examining a direction field, one can gain an intuitive understanding of how solutions to a first-order differential equation might look, even without finding an explicit solution. This graphical approach is especially useful for understanding the qualitative behavior of solutions over a range of values.

Hand holding a glass sphere with a miniature landscape featuring a green hill, trees, a blue pond, and a suspended metallic pendulum.

The Role of Graphs in Interpreting Mathematical Concepts

Graphical representations are fundamental in mathematics for conveying complex concepts in a visual format. For instance, plotting the quadratic function \( f(x) = x^2-1 \) reveals its parabolic shape, providing insights into its roots and vertex. Similarly, direction fields graphically represent differential equations by displaying the slopes of potential solutions at various points in the plane. This visual tool does not solve the equation but offers a way to predict the behavior of solutions and understand the equation's influence on their shapes.

Understanding the Slope in Differential Equations

In differential equations, the derivative \( y' \) signifies the rate of change of the function \( y \) with respect to \( x \), or the slope of the tangent line to the curve at any point. For example, the differential equation \( xy' = 2y \) can be rearranged to \( y' = \frac{2y}{x} \), which indicates the slope of the tangent line at any point \( (x, y) \) on the curve. By plotting these slopes at selected points, a direction field is formed, providing a visual map of the solution's behavior across the coordinate plane.

Analytical and Graphical Approaches to Solving Differential Equations

Solving a differential equation involves finding a function or set of functions that satisfy the given equation. This process often requires integrating the equation and applying initial conditions to determine the integration constant. The resulting family of solution curves can be graphed in conjunction with the direction field. The line segments in the direction field are designed to be tangent to these solution curves, demonstrating the alignment between the graphical representation and the analytical solutions.

Constructing Direction Fields

Constructing a direction field involves selecting a grid of points in the plane and computing the slope at each point using the given differential equation. These slopes are then depicted as short line segments or vectors. The length and direction of each segment correspond to the magnitude and sign of the slope, respectively. Horizontal segments indicate zero slope, while vertical segments suggest an undefined or infinite slope. This process results in a field that visually represents the tendencies of the differential equation's solutions.

Sketching Solution Curves with the Aid of Direction Fields

Direction fields not only depict the slopes of potential solutions but also assist in manually sketching the solution curves. By tracing the direction and inclination of the slope segments, one can approximate the path of the solution curves. For example, the direction field for the differential equation \( y' = y \) implies that the solutions are exponential functions, which is confirmed by the general solution \( y(x) = Ae^x \), where \( A \) is the constant of integration.

Practical Examples of Direction Fields in Use

Direction fields can be applied to a variety of differential equations to illustrate their unique characteristics. For instance, the direction field for \( y' = \frac{1}{2}y \) indicates that the slope is proportional to the \( y \)-value, resulting in different behaviors for positive and negative \( y \)-values. Another example is the equation \( y' - 1 = x \), where the slope is directly related to the \( x \)-value. These examples showcase the diversity of direction fields and underscore the importance of understanding the specific relationships between variables in differential equations.

Summarizing the Significance of Direction Fields

Direction fields serve as a crucial graphical tool in the realm of first-order differential equations, offering a visual representation of the slopes at various points in the plane. These fields enable the prediction of solution behavior and facilitate the sketching of solution curves, thereby enhancing the understanding of the dynamics governing differential equations. While they do not provide explicit solutions, direction fields are instrumental in analyzing the qualitative features of differential equations and in guiding the exploration of their solutions.

Direction Fields in Differential Equations

Concept Map

Summary

Outline

Direction Fields in Differential Equations

Definition and Purpose of Direction Fields

Direction Fields as Graphical Representations

Role of Direction Fields in Understanding Solutions

Construction of Direction Fields

Solving Differential Equations

Definition and Role of Derivatives

Process of Solving Differential Equations

Relationship between Direction Fields and Analytical Solutions

Applications of Direction Fields

Illustrating Unique Characteristics of Differential Equations

Assisting in Manual Sketching of Solution Curves

Enhancing Understanding of Differential Equations

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Exploring Direction Fields in Differential Equations

The Role of Graphs in Interpreting Mathematical Concepts

Understanding the Slope in Differential Equations

Analytical and Graphical Approaches to Solving Differential Equations

Constructing Direction Fields

Sketching Solution Curves with the Aid of Direction Fields

Practical Examples of Direction Fields in Use

Summarizing the Significance of Direction Fields

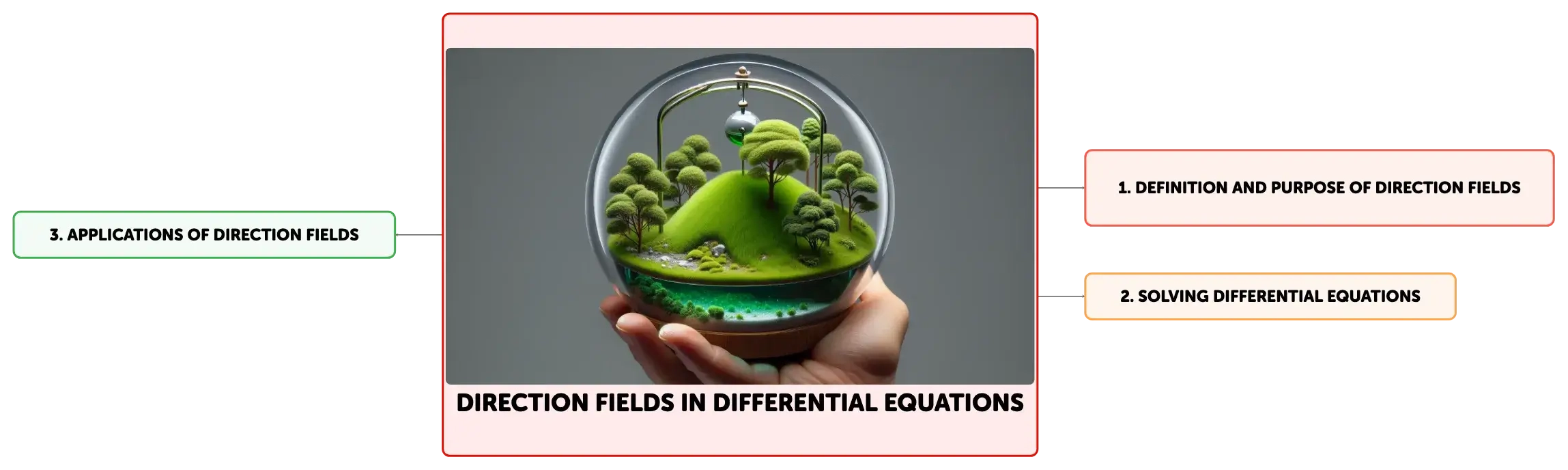

Direction Fields in Differential Equations

Concept Map

Summary

Outline

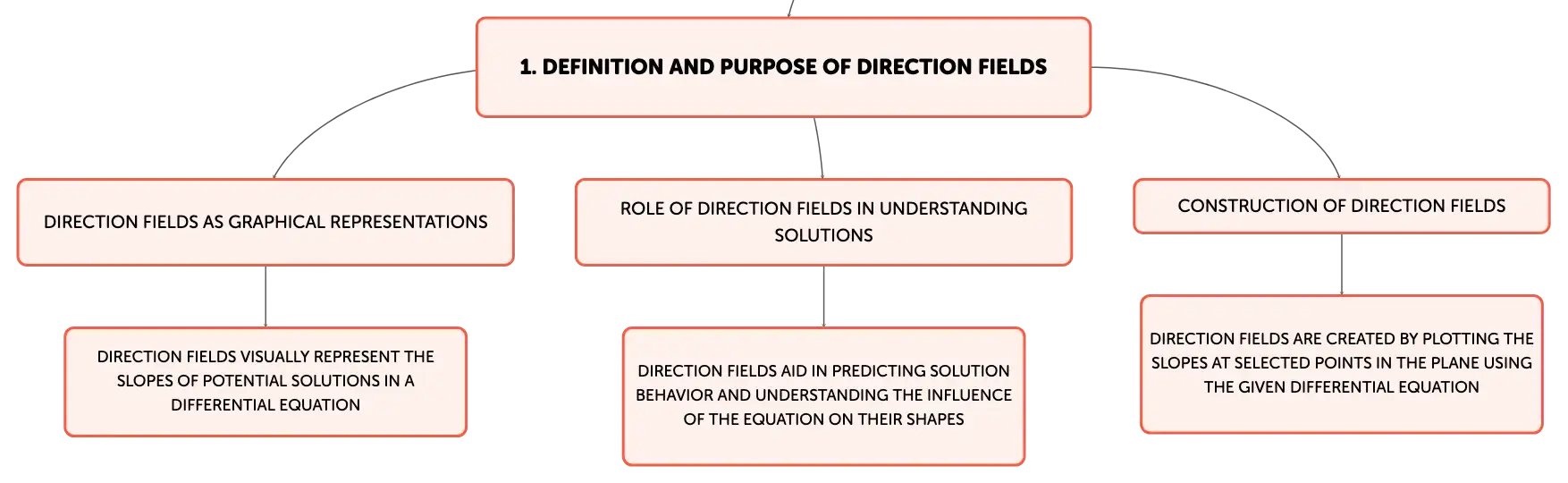

Direction Fields in Differential Equations

Definition and Purpose of Direction Fields

Direction Fields as Graphical Representations

Role of Direction Fields in Understanding Solutions

Construction of Direction Fields

Solving Differential Equations

Definition and Role of Derivatives

Process of Solving Differential Equations

Relationship between Direction Fields and Analytical Solutions

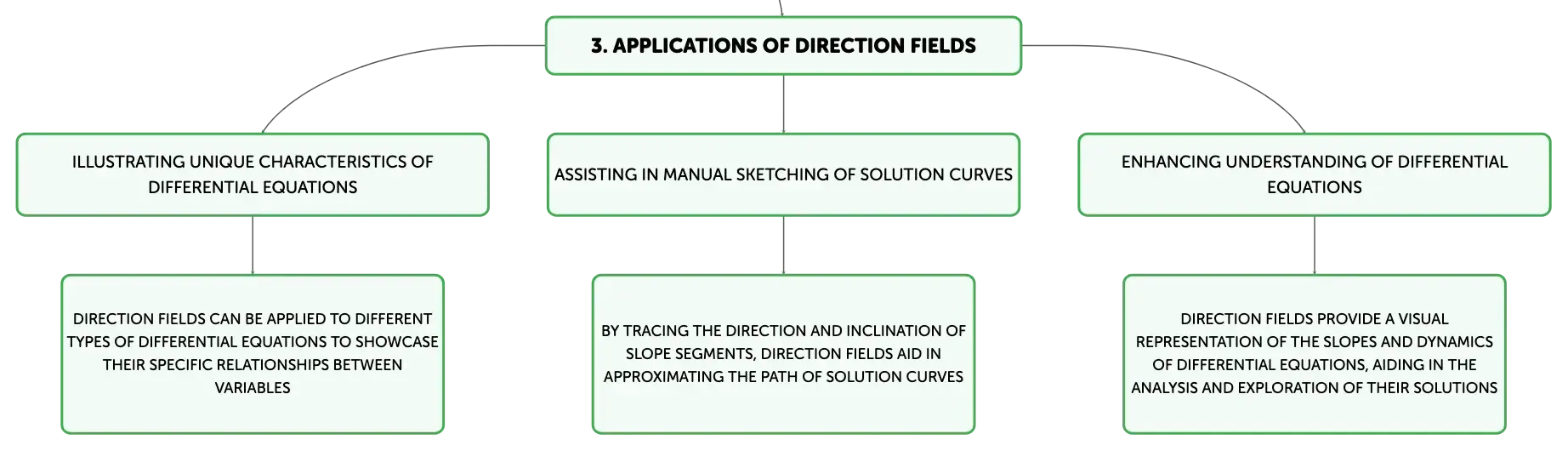

Applications of Direction Fields
