The Fundamentals of Inductors in Series

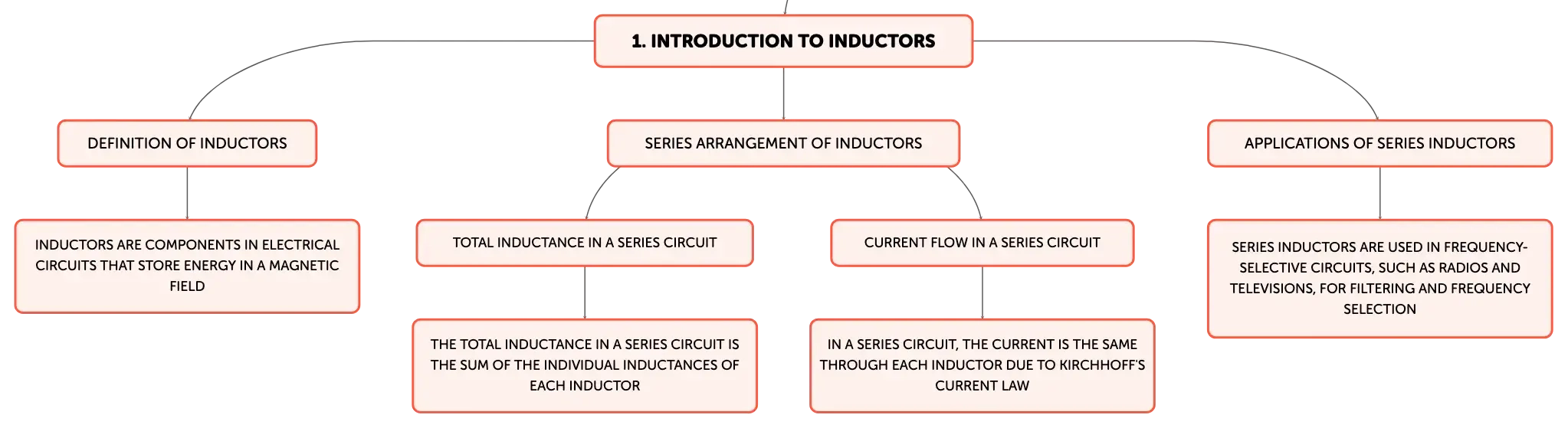

Inductors are key components in electrical circuits, designed to store energy in a magnetic field. When inductors are connected in a series arrangement, the total inductance of the circuit is the sum of the individual inductances of each inductor. This is analogous to the way resistances add up in series, but it's important to note that inductors store energy through magnetic fields, while resistors dissipate energy as heat. The total inductance in a series circuit is given by the formula \( L_{total} = L_{1} + L_{2} + ... + L_{n} \), which is essential for predicting the circuit's energy storage capacity and its overall reactance to alternating current.

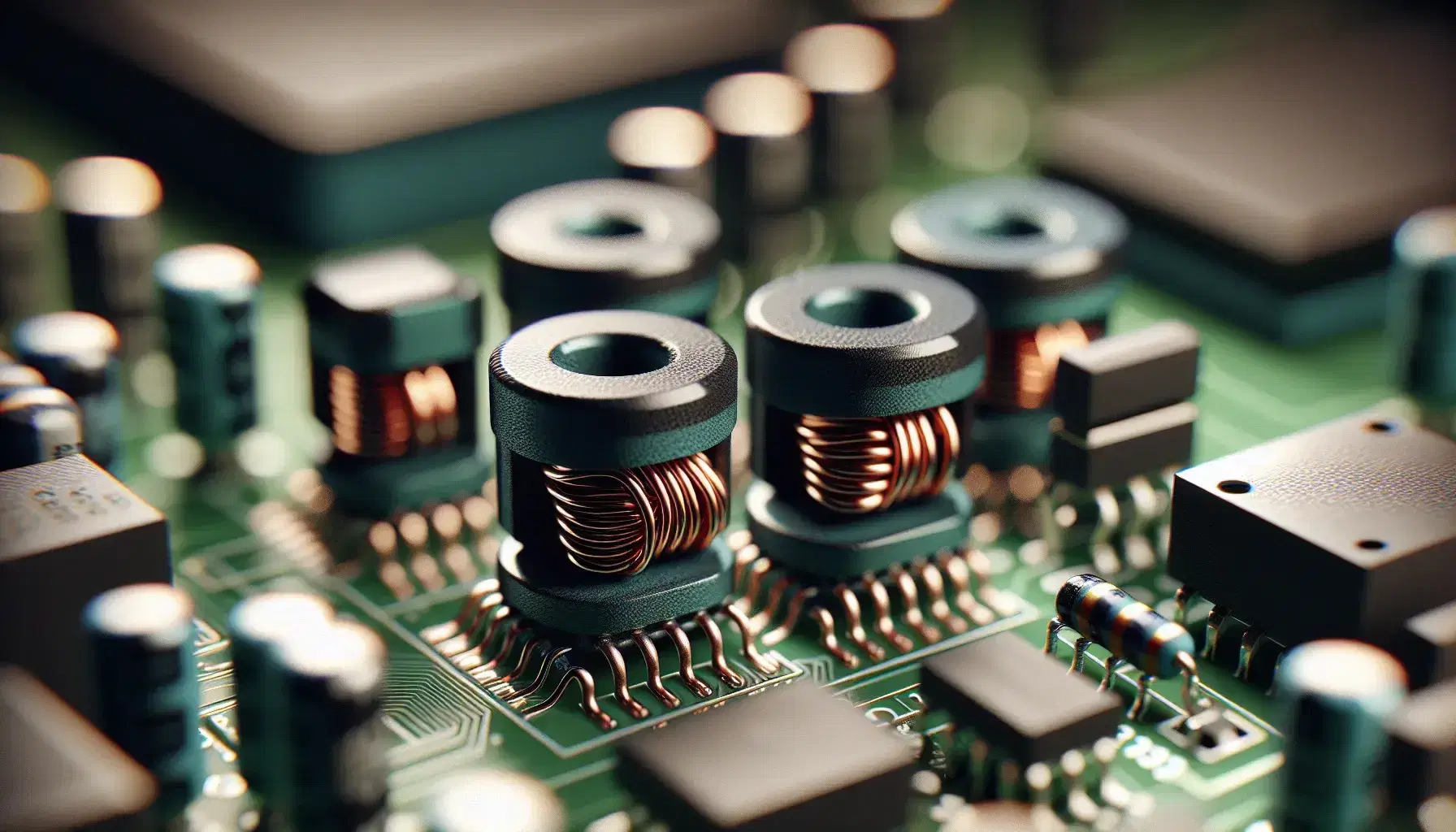

Close-up of electronic circuit board with three black cylindrical inductors connected by zigzag copper traces, against a blurred background of various components.

Current Characteristics in Series Inductor Circuits

In a series inductor circuit, the current flowing through each inductor is the same. This is a consequence of Kirchhoff's current law, which states that the total current entering a junction must equal the total current leaving the junction. In a series circuit, there are no junctions between the inductors, so the current is the same through each component. This uniformity of current is a critical aspect of series circuits and is similar to the behavior of resistors in series, although inductors and resistors affect the circuit in different ways.

Utilizing Series Inductors in Electronic Devices

Series inductors are utilized in a variety of electronic devices, particularly in frequency-selective circuits such as those found in radios and televisions. These circuits, often called tuned circuits, use a combination of inductors and capacitors to select a specific frequency from a range of frequencies. For example, when tuning a radio, adjusting the dial changes the resonant frequency of the circuit, which includes inductors in series, to match the frequency of the desired radio station. This demonstrates the practical application of series inductors in filtering and frequency selection.

Series Inductor Circuit Design Techniques

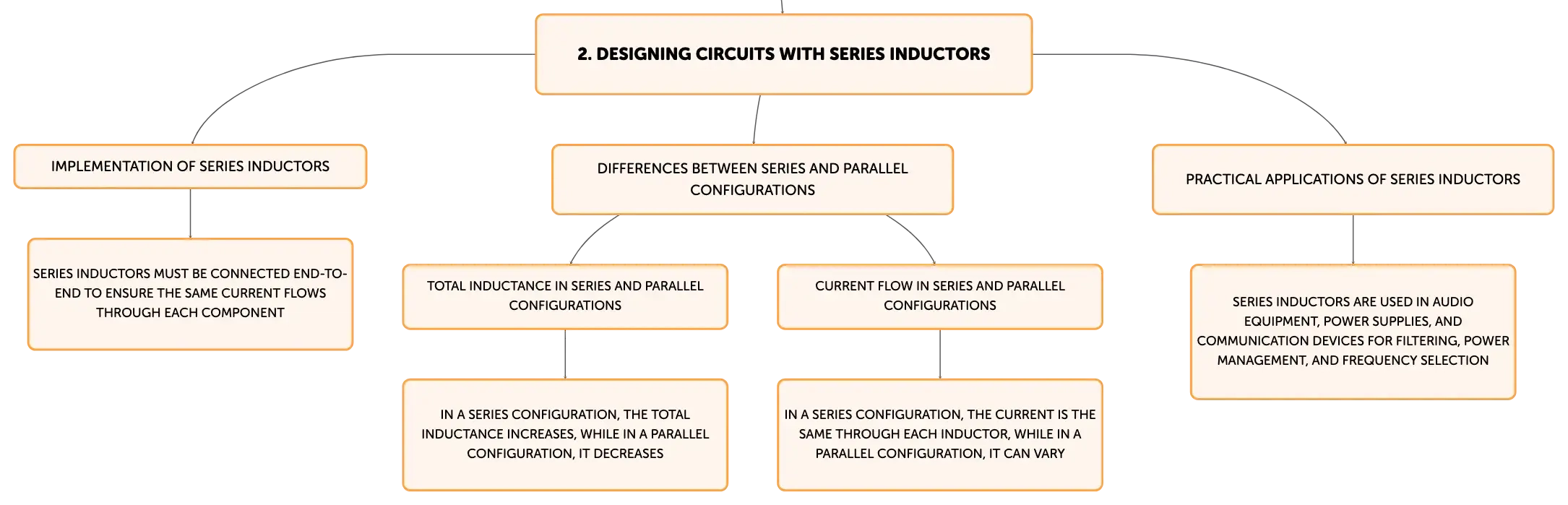

Designing circuits with inductors in series requires careful planning and execution. The inductors must be connected end-to-end, ensuring that the same current flows through each component. This series arrangement can be used to control electronic signals, tune frequencies, and manage energy storage in a circuit. Proper implementation is crucial for achieving the desired total inductance and ensuring the circuit performs as intended.

Comparing Series and Parallel Inductor Configurations

Inductors can be arranged in series or parallel configurations, each affecting the circuit's behavior in distinct ways. In a series configuration, the total inductance increases, and the current through each inductor is the same. Conversely, a parallel configuration results in a reduced total inductance, with the potential for different currents through each inductor. Circuit designers must understand these differences to optimize circuit performance based on the specific requirements of the application.

Practical Applications of Series Inductors

Inductors in series find practical applications in a range of technologies. In audio equipment, they are used as part of low-pass filters, which allow signals with low frequencies to pass while blocking higher frequencies. In power supplies, series inductors help to smooth out the DC output, ensuring a more stable power delivery. They are also essential in the tuned circuits of communication devices, where they enable the selection of signals at precise frequencies, illustrating their broad impact on modern electronics.

Calculating Total Inductance with the Series Formula

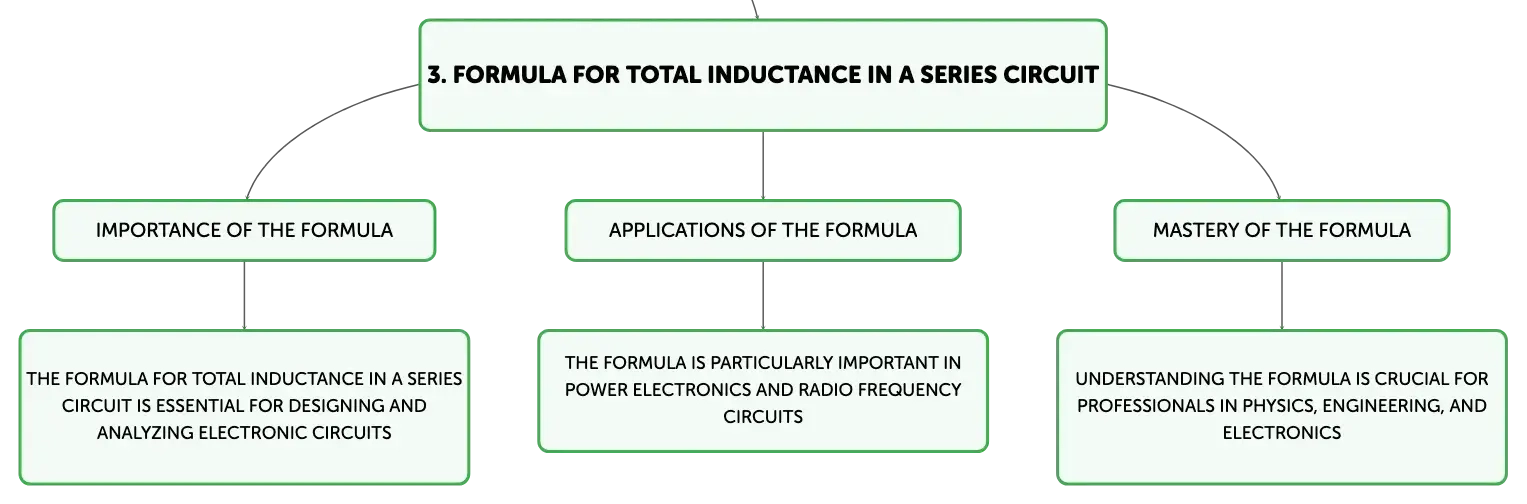

The formula for total inductance in a series circuit, \( L_{total} = L_{1} + L_{2} + ... + L_{n} \), is a vital tool for both the design and analysis of electronic circuits. It is particularly important in power electronics to maintain stable circuit operation and in radio frequency circuits for precise tuning. This formula is fundamental to the mathematical analysis of circuits with series inductors, underscoring its importance in both theoretical and practical electronics.

Key Insights on Series Inductors in Electronics

In conclusion, series inductors play a crucial role in electronics, enhancing total inductance and ensuring consistent current flow. Their applications range from frequency tuning to power management, making them indispensable in many devices. Mastery of the series inductance formula is essential for professionals in physics, engineering, and electronics. Understanding the distinctions between series and parallel configurations is key to designing effective circuits for specific purposes, highlighting the adaptability and importance of series inductors in the field of electronics.
