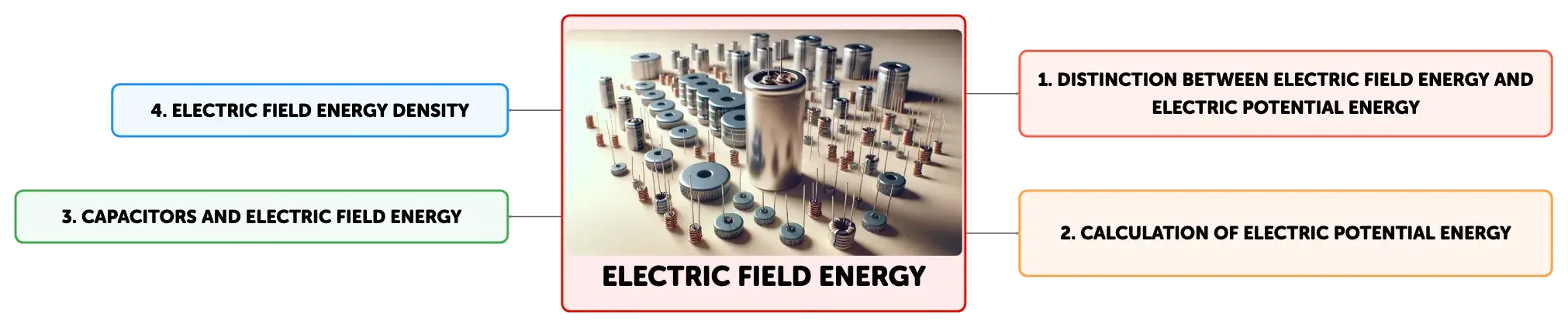

Electric Field Energy

Exploring the Concept of Electric Field Energy

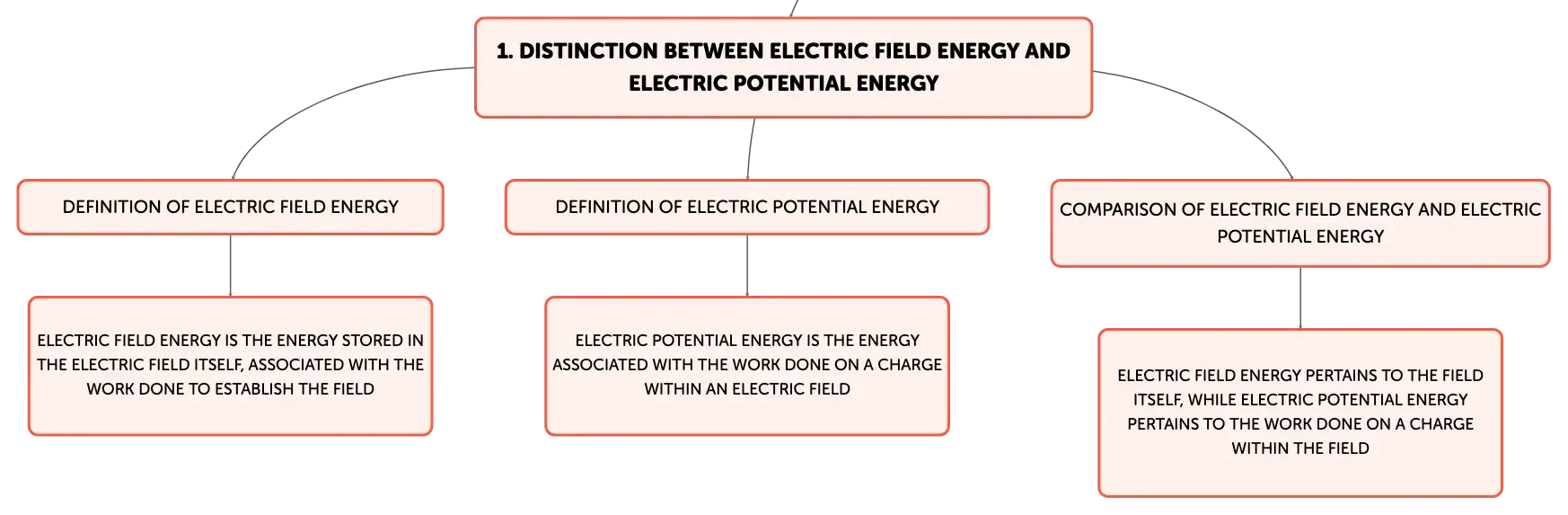

Electric field energy, distinct from electric potential energy, pertains to the energy stored in the electric field itself. This energy is associated with the work done to establish the field, rather than the work done on a charge within the field. An electric field is a vector field surrounding a charged object, where the force exerted on other charges can be detected. The field lines emanating from a charge depict the direction and strength of the field; for a positive charge, these lines extend outward, indicating the repulsive force exerted on other positive charges.

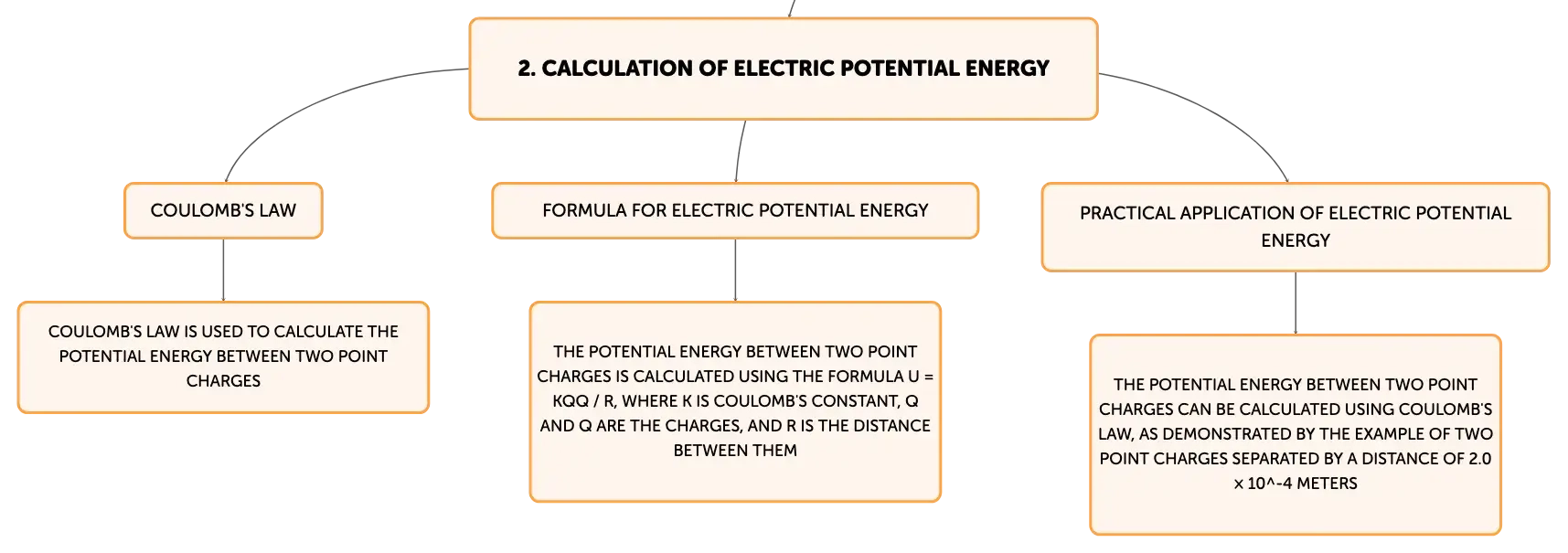

Calculating Electric Potential Energy

The electric potential energy (U) between two point charges is calculated using Coulomb's law. The potential energy for charges Q and q separated by a distance r is given by U = kQq / r, where k is Coulomb's constant (k = 1 / (4πε0)), and ε0 is the permittivity of free space, approximately 8.85 × 10^-12 F/m. The charges are measured in coulombs (C), and the distance r in meters (m). The unit for electric potential energy is the joule (J). This formula demonstrates that the potential energy is inversely proportional to the distance between the charges, meaning it decreases as the charges move farther apart.

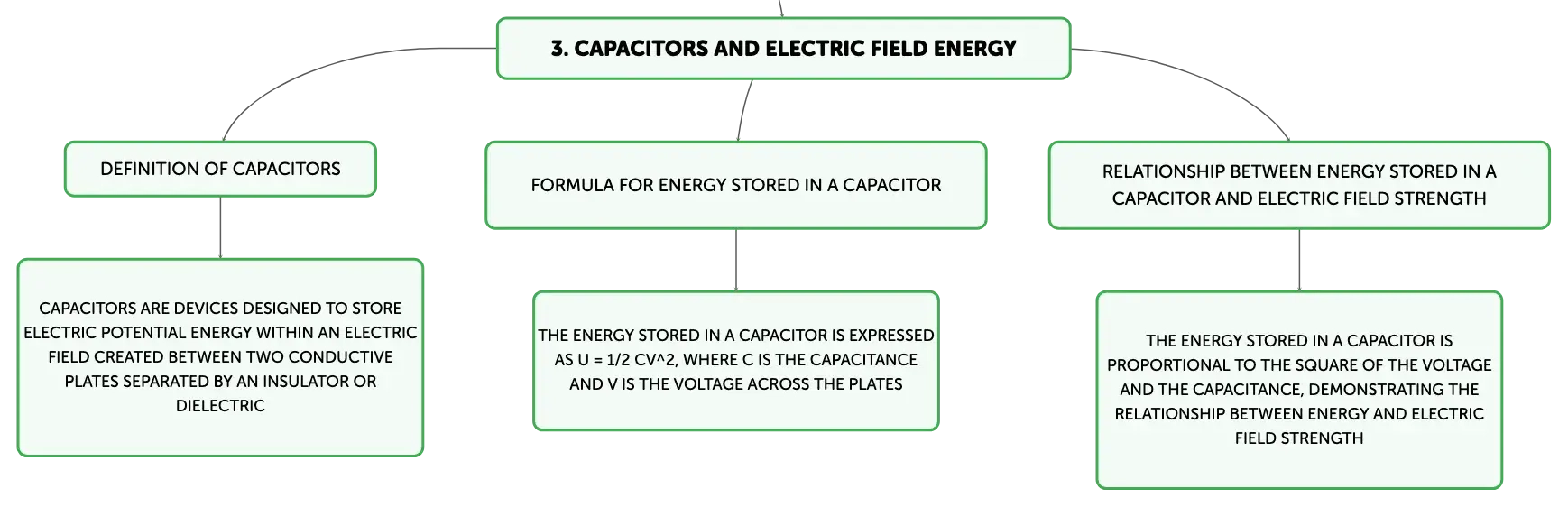

Capacitors and Energy Storage

Capacitors are devices designed to store electric potential energy within an electric field created between two conductive plates separated by an insulator or dielectric. The energy (U) stored in a capacitor is expressed as U = 1/2 CV^2, where C is the capacitance and V is the voltage across the plates. The capacitance is a measure of the capacitor's ability to store charge per unit voltage. This formula indicates that the energy stored in a capacitor is proportional to the square of the voltage and the capacitance.

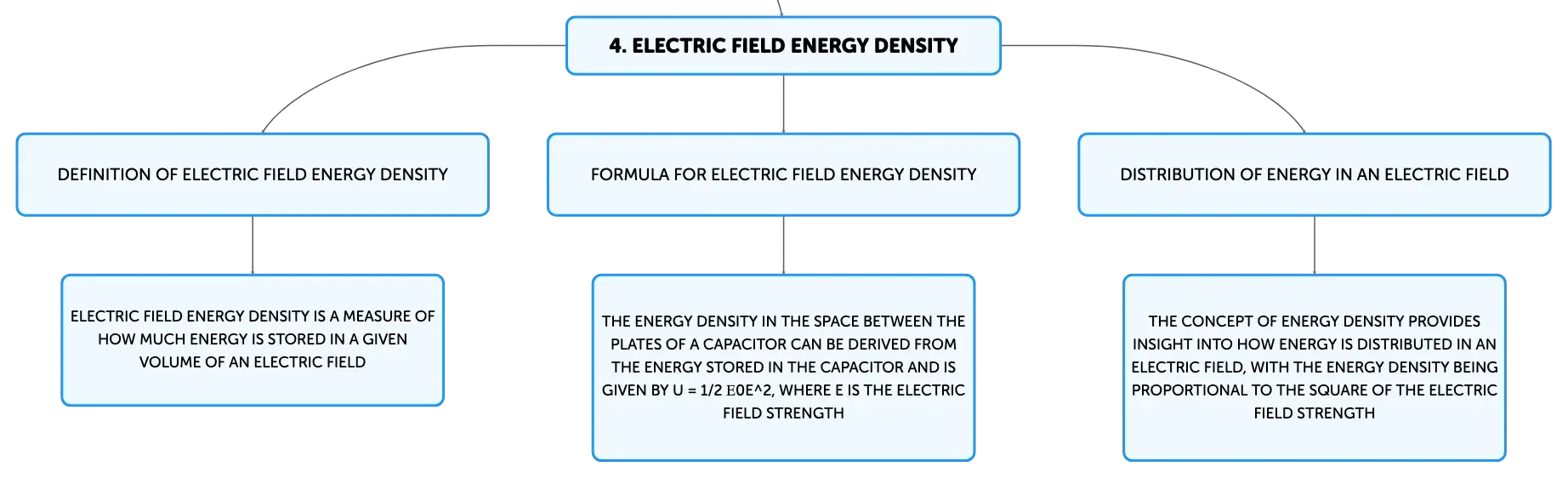

Understanding Electric Field Energy Density

Electric field energy density is a measure of how much energy is stored in a given volume of an electric field. The energy density (u) in the space between the plates of a capacitor can be derived from the energy stored in the capacitor and is given by u = 1/2 ε0E^2, where E is the electric field strength. This relationship shows that the energy density is proportional to the square of the electric field strength, providing insight into how energy is distributed in an electric field.

Practical Calculation of Electric Potential Energy

To illustrate the calculation of electric potential energy, consider two point charges, each with a magnitude of 1.60 × 10^-19 coulombs, separated by a distance of 2.0 × 10^-4 meters. By applying Coulomb's law, we find that the electric potential energy between these charges is approximately 1.44 × 10^-24 joules. This calculation demonstrates the practical application of theoretical principles to determine the potential energy in an electric field.

Summarizing Electric Field Energy Insights

Electric field energy is a key concept in understanding the interactions within an electric field, distinct from the work done on a charge, which is described by electric potential energy. The energy stored in an electric field is inversely proportional to the distance between charges and is exemplified by capacitors, which store energy in the field between their plates. The concept of energy density further elucidates the distribution of energy in an electric field. These principles are foundational in physics and have significant applications in technology and engineering, enabling the effective use and control of electrical energy.
