Kinematics in Physics
Exploring the fundamentals of kinematics, this content delves into how displacement-time, velocity-time, and acceleration-time graphs are used to analyze and interpret the motion of objects. It explains how the slope of a displacement-time graph reveals velocity, the significance of the area under a velocity-time graph for total displacement, and how a constant line on an acceleration-time graph indicates uniform acceleration or deceleration. Complex motion scenarios, such as vertical projection and return, are also covered.
See more1
4
Analyzing Motion with Graphs

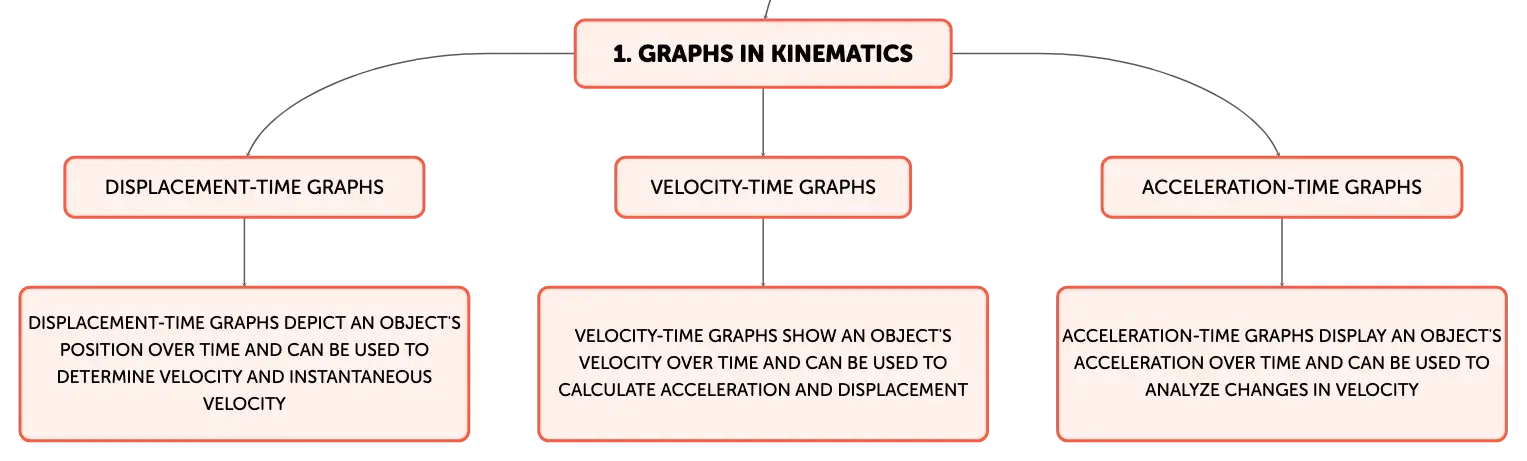

In the study of kinematics within physics, graphs serve as fundamental tools for depicting and interpreting the motion of objects. The primary graphs used to represent linear motion include displacement-time, velocity-time, and acceleration-time graphs. A displacement-time graph, with displacement on the vertical axis and time on the horizontal, allows us to visualize the object's position relative to a starting point at any given moment. The slope of this graph indicates the object's velocity, with steeper slopes representing higher velocities. Instantaneous velocity can be determined by finding the slope of the tangent to the curve at any point.Displacement-Time Graphs for Uniform Motion and Stationary Objects

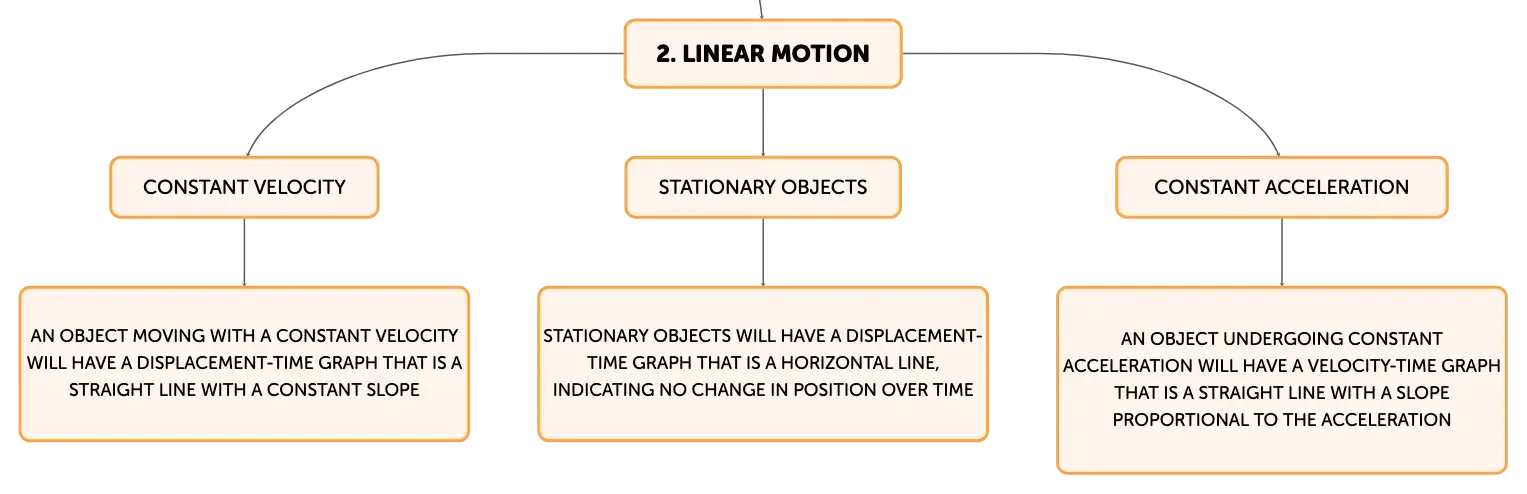

For an object moving with a constant velocity, the displacement-time graph is a straight line with a constant slope, reflecting steady motion. The slope of this line corresponds to the object's velocity. In contrast, a stationary object produces a displacement-time graph that is a horizontal line, indicating no change in position over time. These graphs provide immediate visual indicators of an object's motion: a horizontal line denotes rest, while a sloped line signifies uniform motion.Velocity-Time Graphs for Steady Motion and Accelerated Motion
Velocity-time graphs plot velocity on the vertical axis against time on the horizontal axis. A constant velocity is represented by a horizontal line, showing that the velocity remains unchanged as time progresses. The slope of a velocity-time graph indicates the object's acceleration; therefore, a horizontal line reflects zero acceleration. For an object undergoing constant acceleration, the graph is a straight line with a slope proportional to the acceleration. The area under the velocity-time graph is particularly significant, as it represents the total displacement of the object during the measured time interval.Acceleration-Time Graphs for Uniform Acceleration
Acceleration-time graphs display acceleration on the vertical axis and time on the horizontal axis. A constant acceleration is depicted as a horizontal line, which may be above, below, or on the zero line, representing positive, negative, or zero acceleration, respectively. The area under an acceleration-time graph indicates the object's change in velocity over the time interval. For an object at rest or moving with a constant velocity, the acceleration-time graph will show a horizontal line at zero, signifying no acceleration. A constant non-zero line indicates uniform acceleration or deceleration.Complex Motion Scenarios in Graphical Analysis

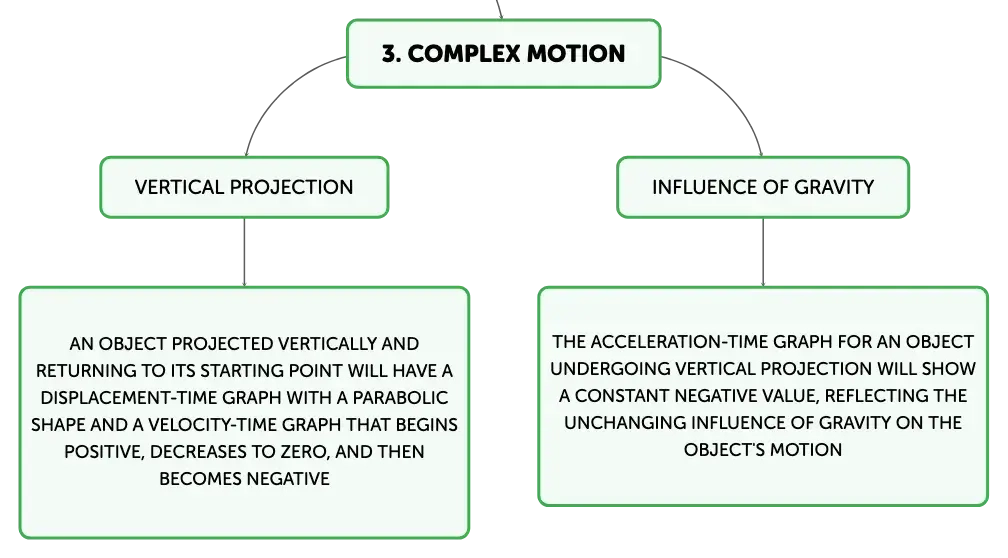

Motion graphs can also illustrate more intricate movements, such as an object projected vertically and returning to its starting point. The displacement-time graph for this motion would exhibit a parabolic shape, peaking at the highest point of the object's path. The corresponding velocity-time graph would begin with a positive value, decrease to zero at the peak of the trajectory, and then become negative as the object descends. Throughout this motion, the acceleration-time graph would show a constant negative value if we consider the acceleration due to gravity as negative, reflecting the unchanging influence of gravity on the object's motion.Conclusions Drawn from Motion Graphs
Motion graphs are indispensable in physics for their ability to provide a clear and concise representation of an object's motion over time. Displacement-time graphs are useful for determining velocities, velocity-time graphs for understanding acceleration and calculating displacement, and acceleration-time graphs for examining changes in velocity. Through careful analysis of these graphs, students can develop a comprehensive understanding of kinematic concepts and apply this knowledge to a variety of physical situations.Want to create maps from your material?
