Fundamentals of Linear Transformations in Matrix Algebra

Linear transformations are pivotal operations in matrix algebra that apply to geometric figures within a coordinate plane or space. These transformations, which include operations such as reflection, rotation, scaling, and shearing, are characterized by their ability to be represented by matrices. For a transformation to be considered linear, it must satisfy two primary conditions: it must preserve vector addition and scalar multiplication. This means that the transformation of the sum of two vectors is equal to the sum of their transformations, and the transformation of a scalar multiple of a vector is the scalar multiple of the transformation of the vector. The concept of an invariant point, line, or plane is also important, as these are elements that remain unchanged under the transformation.

Red sphere, blue cube, and green pyramid on a grid with shadows and a gradient blue background, showcasing depth and perspective.

The Matrix Equation for Linear Transformations

The matrix equation for a linear transformation is an expression where a matrix multiplies a vector to produce another vector, signifying the transformed entity. For a two-dimensional transformation, the transformation of a point with coordinates (x, y) can be represented by the matrix equation [a b; c d][x; y] = [ax+by; cx+dy], where 'a', 'b', 'c', and 'd' are matrix elements that define the specific transformation. This matrix equation encapsulates the transformation rules and allows for the computation of new coordinates after the transformation is applied.

Matrix Representation of Linear Transformations

To express a linear transformation as a matrix, one constructs a matrix 'A' using the coefficients that define the transformation. For instance, a transformation T that maps (x, y) to (3x + 2y, 5y) can be represented by the matrix A = [3 2; 0 5]. Multiplying this matrix by a vector [x; y] yields the new coordinates of the transformed point. The matrix multiplication process involves taking the dot product of the rows of the matrix with the column vector to produce the resulting vector.

Classifying Linear Transformations by Their Matrices

Different linear transformations are distinguished by their respective matrix representations. Reflections are typified by matrices that contain '1's and '-1's to mirror an image across a line or plane, which remains invariant. Rotations, which leave the origin fixed, are described by orthogonal matrices that include trigonometric functions of the rotation angle, indicating a counterclockwise rotation for positive angles. Scaling transformations are represented by diagonal matrices with scaling factors along the principal axes, altering the size of the geometric figures, while shearing matrices contain non-zero off-diagonal elements that skew the figure.

Determining Area Changes and Composite Transformations

The area of a shape changes under certain linear transformations, such as scaling. The determinant of the transformation matrix, denoted as det(A), quantifies the area scaling factor. A positive determinant indicates a preservation of orientation and a scaling of the area by the determinant's absolute value, while a negative determinant reflects a change in orientation, such as a reflection. For multiple transformations applied in succession, the overall transformation can be represented by the product of the matrices corresponding to each transformation. This resultant matrix, known as the composite matrix, provides a single-step transformation that is equivalent to the sequential application of the original transformations.

Applying Linear Transformations to Geometric Figures

Linear transformations are practically applied to geometric figures by transforming the coordinates of their vertices. For example, applying the matrix A = [1.2 0; 0 -2] to the vertices of a triangle will stretch it horizontally by a factor of 1.2 and reflect it vertically. The new vertex coordinates are obtained through matrix multiplication, and the change in area is determined by the determinant of A. Successive transformations, such as a reflection followed by a rotation, can be combined into a single matrix, streamlining the process of calculating the final position of the figure.

Extending Linear Transformations to Higher Dimensions

The principles of linear transformations in two dimensions extend naturally to three dimensions, where they are represented by 3×3 matrices. This extension allows for a broader range of transformations, including translations, which require the use of homogeneous coordinates and 4×4 matrices to be represented linearly. Rotations in three dimensions can occur around any axis, and these are described by matrices that incorporate the sine and cosine of the rotation angles. Understanding 3D transformations requires a grasp of concepts such as eigenvectors and eigenvalues, which are essential in analyzing the properties of these transformations.

Linear Transformations in Matrix Algebra

Concept Map

Summary

Outline

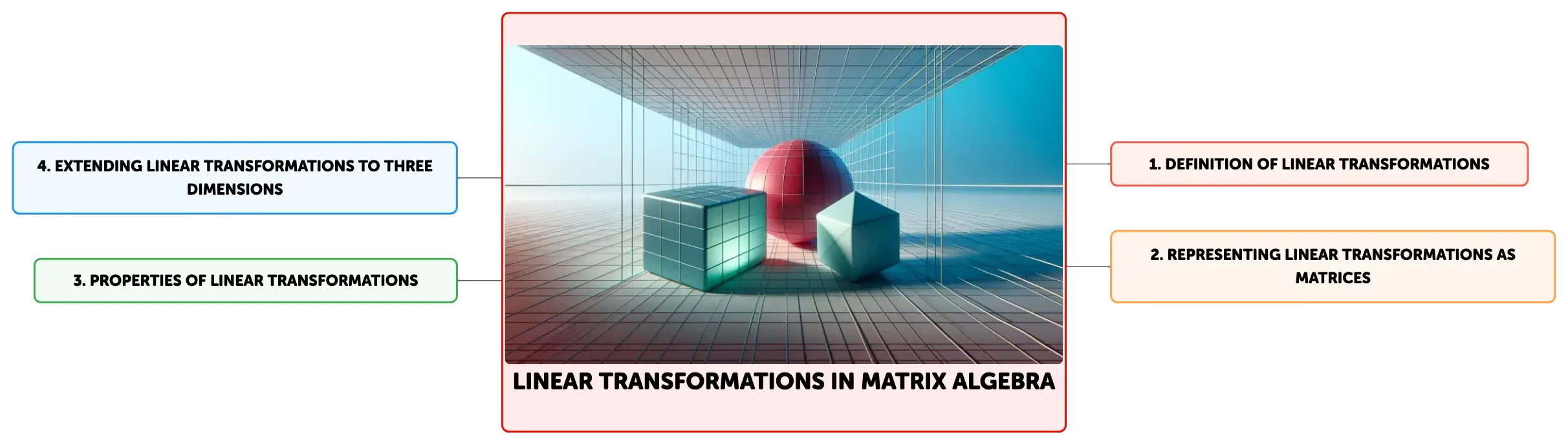

Linear Transformations in Matrix Algebra

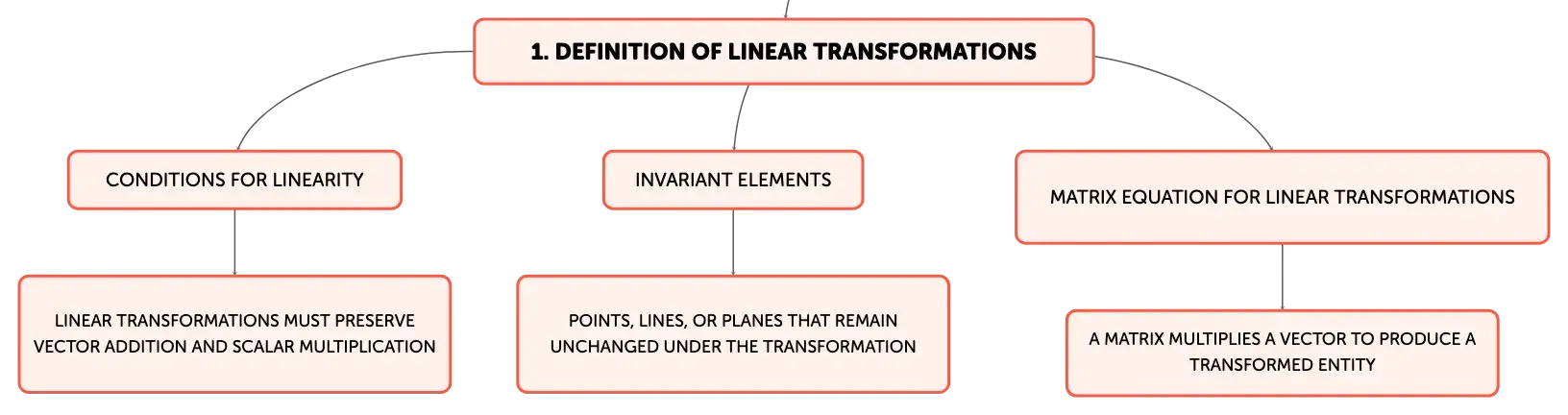

Definition of Linear Transformations

Conditions for Linearity

Invariant Elements

Matrix Equation for Linear Transformations

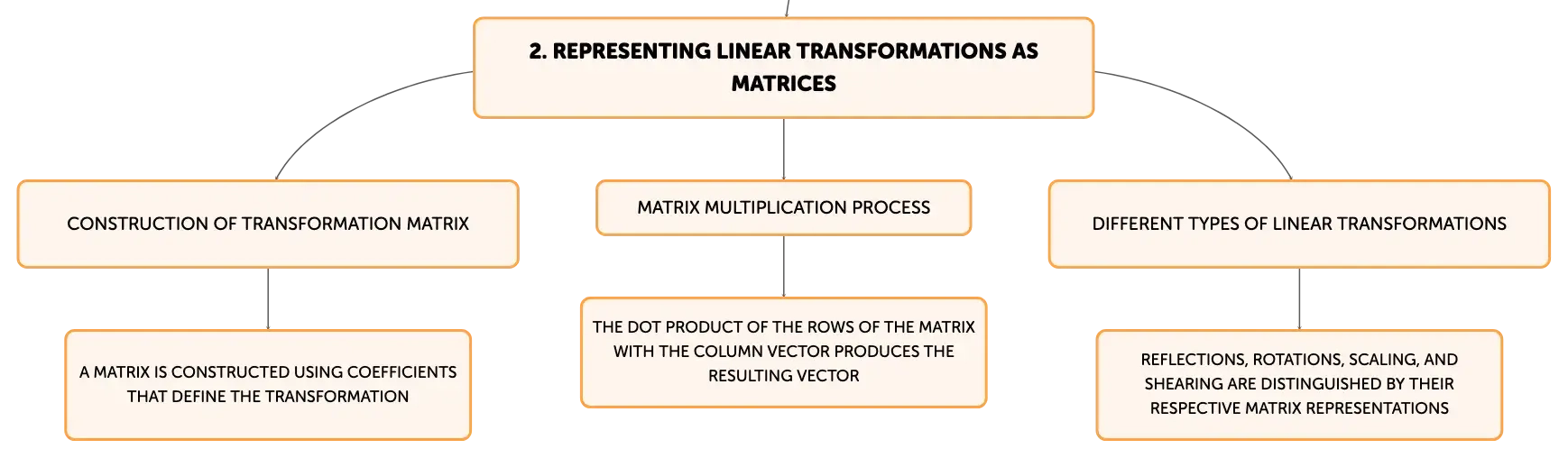

Representing Linear Transformations as Matrices

Construction of Transformation Matrix

Matrix Multiplication Process

Different Types of Linear Transformations

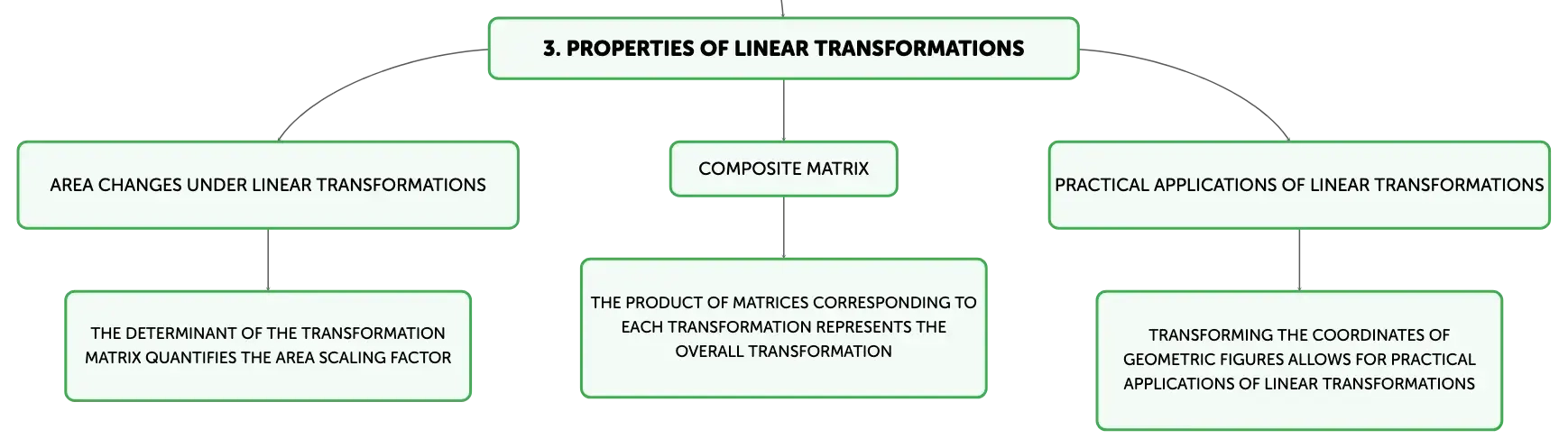

Properties of Linear Transformations
