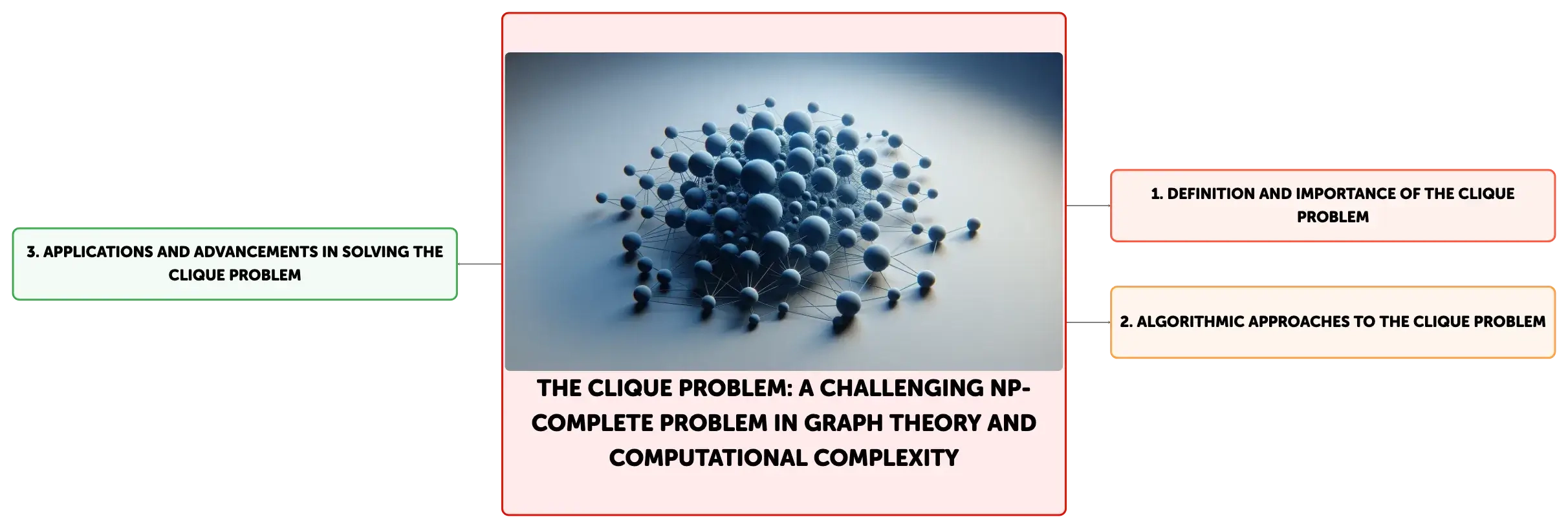

The Clique Problem: A Challenging NP-Complete Problem in Graph Theory and Computational Complexity

The Clique Problem in graph theory is an NP-complete challenge that involves finding the largest complete subgraph within an undirected graph. This problem has significant applications in social network analysis, bioinformatics, and network security. Advanced algorithmic strategies, including heuristic and approximation methods, are essential for solving this complex issue, especially in large graphs. Continuous computational advancements, such as parallel processing and potential quantum computing applications, are key to improving efficiency in detecting cliques.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

A ______ in graph theory is a subset of vertices that are all interconnected, forming a complete ______.

Click to check the answer

clique subgraph

2

The ______ number is the size of the largest ______ that can be found within a graph.

Click to check the answer

clique clique

3

Clique Problem Computational Difficulty

Click to check the answer

Inherently hard, requires complex algorithms, not solvable by simple methods for large graphs.

4

Exhaustive Search Applicability

Click to check the answer

Feasible only for small graphs, checks all possible combinations, impractical for large datasets.

5

Heuristic Algorithms Purpose

Click to check the answer

Find satisfactory solutions quickly, not guaranteed optimal, suitable for large graphs.

6

Clique detection in ______ can lead to better understanding of ______ functions and pathways related to diseases.

Click to check the answer

bioinformatics cellular

7

Heuristic Algorithms in Clique Problem

Click to check the answer

Utilize educated guesses to narrow search space for cliques.

8

Role of Approximation Algorithms

Click to check the answer

Provide near-optimal solutions with solution quality guarantee.

9

Bloom Filters for Candidate Cliques

Click to check the answer

Quickly eliminate unlikely candidate cliques to expedite search.

10

______ computing may transform how we solve NP-complete challenges like the ______ ______ by processing many options simultaneously.

Click to check the answer

Quantum Clique Problem

11

Clique Problem Definition

Click to check the answer

Finding largest clique in a graph; key in computational complexity, graph theory.

12

Clique Problem Applications

Click to check the answer

Analyzing social networks, biological systems; impacts data analysis, complex networks.

13

Clique Problem Algorithmic Approaches

Click to check the answer

Exhaustive search for small graphs; heuristics, approximation for large graphs.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

The Importance of Bits in the Digital World

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Exploring the Complexity of the Clique Problem in Graph Theory

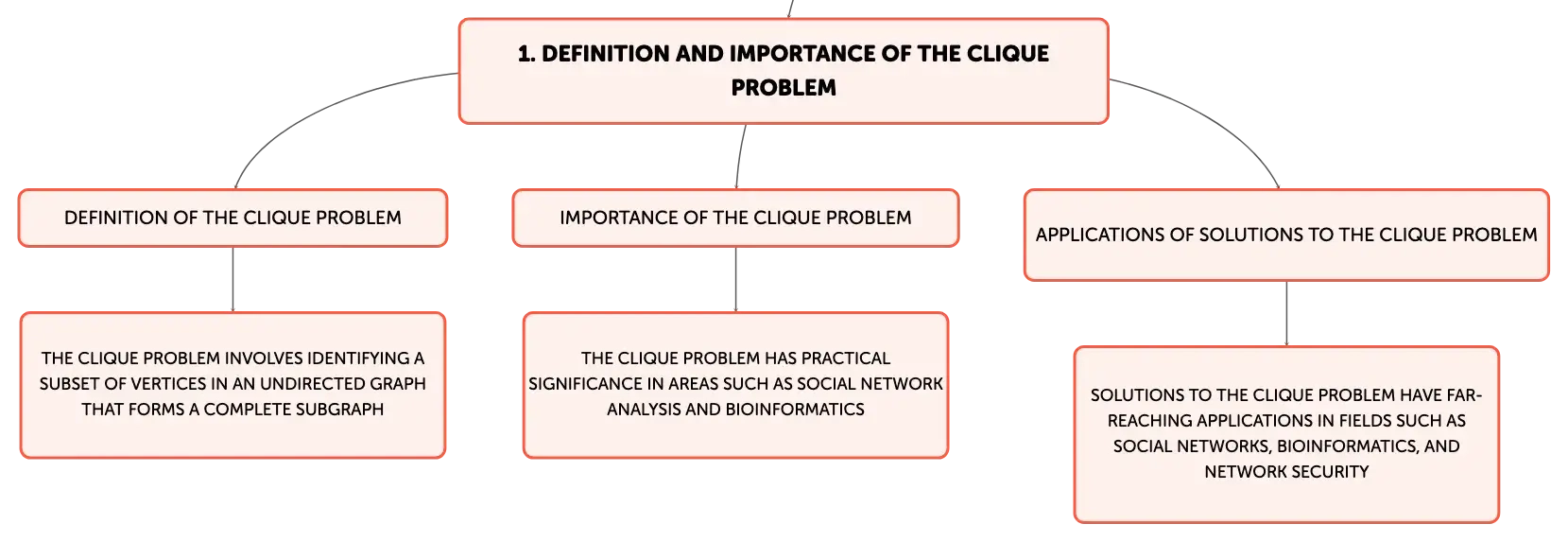

In the realm of graph theory and computational complexity, the Clique Problem stands out as a particularly challenging NP-complete problem. It entails identifying a clique, which is a subset of vertices within an undirected graph that forms a complete subgraph; in other words, every pair of vertices in the clique is connected by an edge. The size of the largest possible clique in a graph is known as the clique number. As the number of vertices in a graph increases, the number of potential cliques grows exponentially, making exhaustive search methods impractical for large graphs. This problem has practical significance in areas such as social network analysis, where cliques may represent groups of closely connected individuals, and in bioinformatics, where they can indicate functionally related groups of genes or proteins.
Network of blue interconnected nodes on a gray background, with thin connections and a dense central cluster that fades towards the edges.

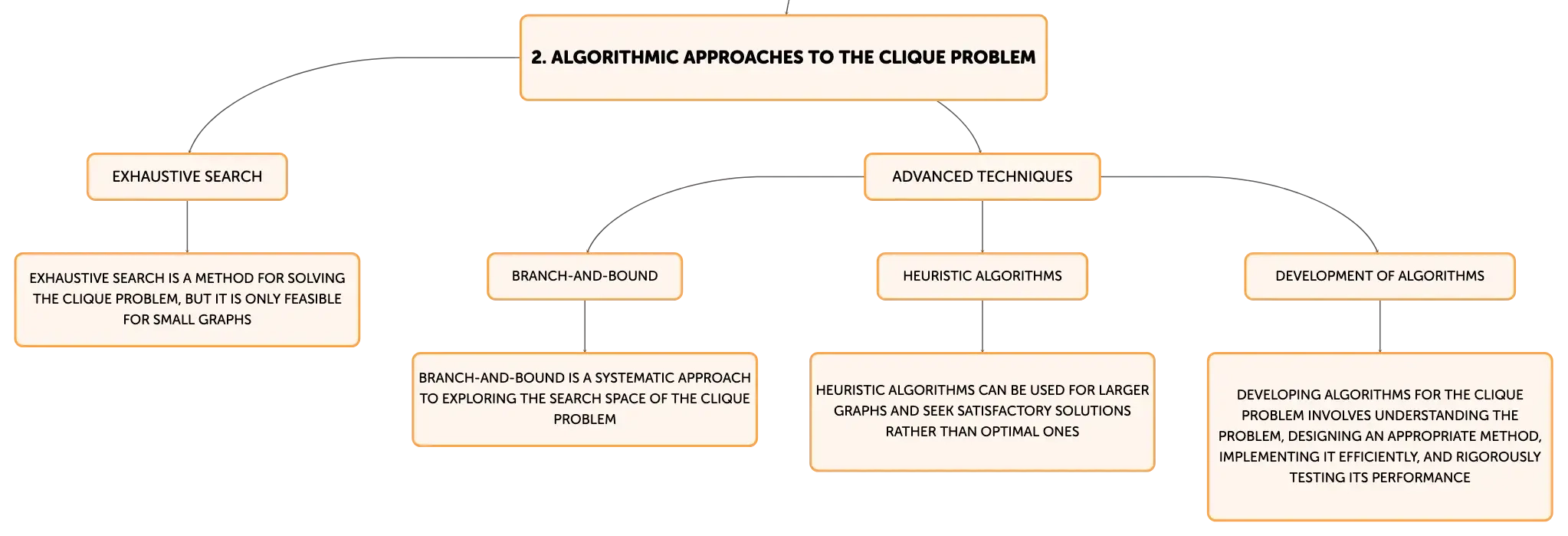

Algorithmic Strategies for Tackling the Clique Problem

Addressing the Clique Problem requires sophisticated algorithmic approaches due to its inherent computational difficulty. Algorithms for this problem range from exhaustive search, which is only feasible for small graphs, to more advanced techniques such as branch-and-bound, which systematically explores the search space by dividing it into smaller subproblems. Heuristic algorithms, which seek satisfactory solutions rather than guaranteed optimal ones, can also be employed for larger graphs. The development of these algorithms is a meticulous process that involves understanding the problem's structure, designing an appropriate method, implementing it efficiently, and rigorously testing its performance. These algorithms are indispensable for analyzing large datasets where the identification of cliques can reveal important structural properties.

Practical Implications of Clique Detection in Various Fields

The solutions to the Clique Problem have far-reaching applications across multiple disciplines. In social networks, clique detection algorithms can uncover groups with high levels of interaction, which is valuable for targeted marketing and community detection. In the field of bioinformatics, identifying cliques among proteins or genes can provide insights into cellular functions and disease pathways. The problem also has implications in network security, where detecting cliques can help in identifying potential threats or vulnerabilities. The practical utility of these algorithms demonstrates the importance of developing efficient methods for clique detection, as they enable the analysis of complex systems and contribute to our understanding of intricate network dynamics.

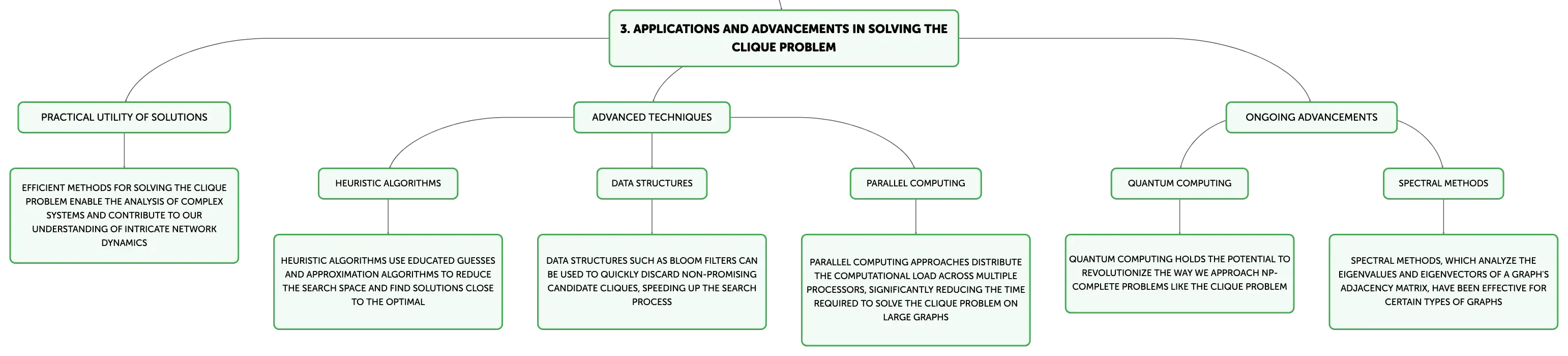

Enhancing Efficiency in Solving the Clique Problem

The quest for more efficient solutions to the Clique Problem has led to the development of various advanced techniques. Heuristic algorithms, for instance, use educated guesses to reduce the search space, while approximation algorithms aim to find solutions that are close to the optimal with a guarantee on the quality of the solution. Data structures such as Bloom filters can be used to quickly discard non-promising candidate cliques, thus speeding up the search process. Parallel computing approaches distribute the computational load across multiple processors, significantly reducing the time required to solve the problem on large graphs. These techniques are crucial for managing the complexity of the Clique Problem and are continuously refined to handle ever-larger graphs.

Cutting-Edge Computational Methods in Clique Problem Research

The field of computational research on the Clique Problem is marked by continuous innovation. Parallel and distributed computing techniques divide the problem into smaller parts that can be solved concurrently, offering substantial performance gains. Quantum computing, though still in its nascent stages, holds the potential to revolutionize the way we approach NP-complete problems like the Clique Problem by exploring multiple solutions in parallel. Spectral methods, which analyze the eigenvalues and eigenvectors of the adjacency matrix of a graph, have also been effective for certain types of graphs. These state-of-the-art methods reflect the ongoing efforts to push the boundaries of what is computationally feasible and to develop more efficient algorithms for solving the Clique Problem.

Concluding Insights on the Clique Problem

The Clique Problem is a pivotal issue in the study of computational complexity and graph theory, with the objective of finding the largest clique within a graph. Addressing this problem is crucial for a variety of fields, from analyzing social networks to understanding biological systems. The complexity of the problem necessitates a diverse array of algorithmic approaches, ranging from exhaustive search for small graphs to sophisticated heuristics and approximation methods for larger ones. The continuous advancement in computational strategies, including the exploration of parallel processing and quantum computing, underscores the active research dedicated to enhancing the efficiency of solutions. Mastery of the Clique Problem is essential for computer scientists and mathematicians alike, as it has profound implications for data analysis and the study of complex networks.
