The Decorator Pattern in Software Design

The Decorator Pattern is a structural design pattern that allows for the dynamic addition of behaviors to objects, adhering to software design principles like the Open/Closed Principle and Single Responsibility Principle. It's used in GUI development and Java's I/O streams, offering flexibility and maintainability while considering performance trade-offs.

See more

1/6

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Decorator Pattern: Structural or Behavioral?

Click to check the answer

Structural design pattern - organizes system components.

2

Decorator Pattern: Class Modification Needed?

Click to check the answer

No class modification - adds behavior dynamically.

3

Decorator Pattern: Interface Conformance Necessary?

Click to check the answer

Yes, decorators must match the enhanced object's interface.

4

The ______ Pattern allows for extending behavior without changing existing code, adhering to the / Principle.

Click to check the answer

Decorator Open Closed

5

According to the ______ Responsibility Principle, a class should have only a single reason to ______.

Click to check the answer

Single change

6

Decorator Pattern: Flexible Feature Addition

Click to check the answer

Enables adding features to objects without altering their code, ensuring system extensibility.

7

Decorator Pattern: Non-intrusive Enhancements

Click to check the answer

Allows for the dynamic addition of new functionalities to existing objects, preserving their original structure.

8

Decorator Pattern: Third-party Code Adaptation

Click to check the answer

Facilitates the extension of third-party library or framework features without direct modification of the source code.

9

In Java, a basic GUI window can be improved by adding features such as ______ or ______.

Click to check the answer

scroll bars decorative borders

10

Java's I/O streams use the Decorator Pattern to enhance functionality with features like ______ and ______.

Click to check the answer

buffering data transformation

11

Decorator Pattern: Open/Closed Principle support

Click to check the answer

Enables software extension without modification, promoting maintainability and modularity.

12

Decorator Pattern: Dynamic feature addition

Click to check the answer

Allows runtime assignment of new behaviors, enhancing flexibility without altering existing code.

13

Decorator Pattern: Performance overhead concern

Click to check the answer

Introduces extra layers that can lead to increased latency and resource usage, impacting efficiency.

14

The ______ Pattern is a design strategy in software engineering that allows for the dynamic improvement of object behaviors without altering the original code.

Click to check the answer

Decorator

15

This pattern supports important software development principles like the / Principle and the ______ Responsibility Principle.

Click to check the answer

Open Closed Single

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

Computer Science

Understanding Processor Cores

Computer Science

The Significance of Terabytes in Digital Storage

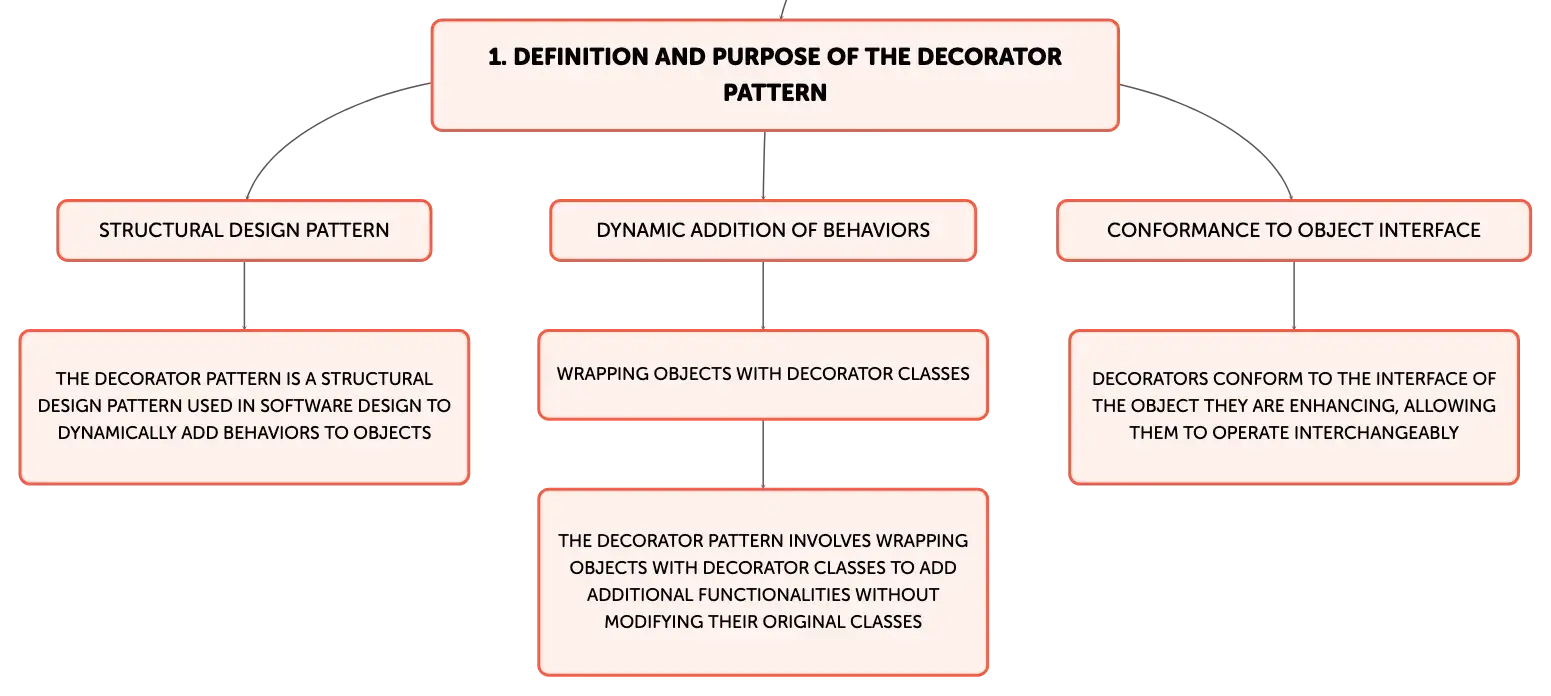

Exploring the Decorator Pattern in Software Design

The Decorator Pattern is a structural design pattern essential in software design, allowing for the dynamic addition of behaviors to individual objects without modifying their original classes. This pattern involves wrapping an object with one or more decorator classes that provide additional functionalities. These decorators conform to the interface of the object they are enhancing, enabling them to operate interchangeably. The pattern can be visualized as wrapping a present, where each layer of wrapping symbolizes new features added to the original item, without changing the item itself.
Tidy desk with turned on modern laptop, cup of steaming coffee, green plant, black headphones and vase of fresh flowers on whiteboard background.

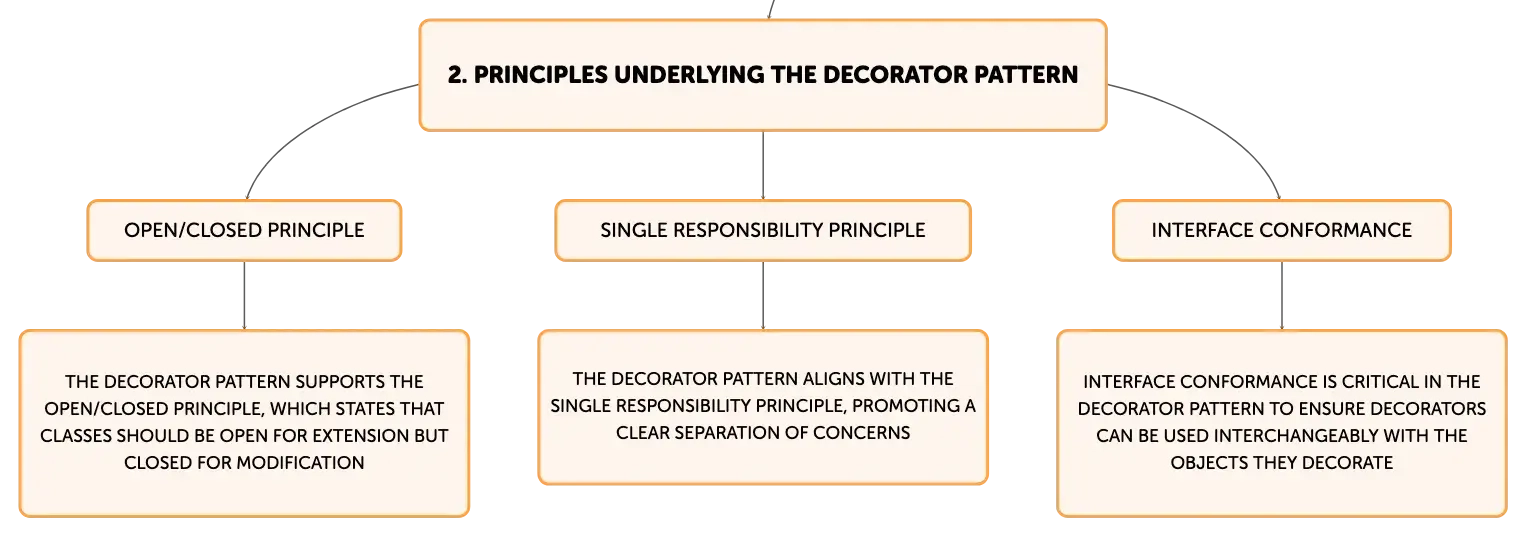

Core Principles of the Decorator Pattern

The Decorator Pattern is underpinned by fundamental software design principles. The Open/Closed Principle, which states that classes should be open for extension but closed for modification, is pivotal to the pattern's ability to extend behavior without altering existing code. The Single Responsibility Principle asserts that a class should have only one reason to change, promoting a clear separation of concerns. Interface Conformance is critical as well, ensuring that the decorators can be used interchangeably with the objects they decorate, thus preserving the object's interface contract.

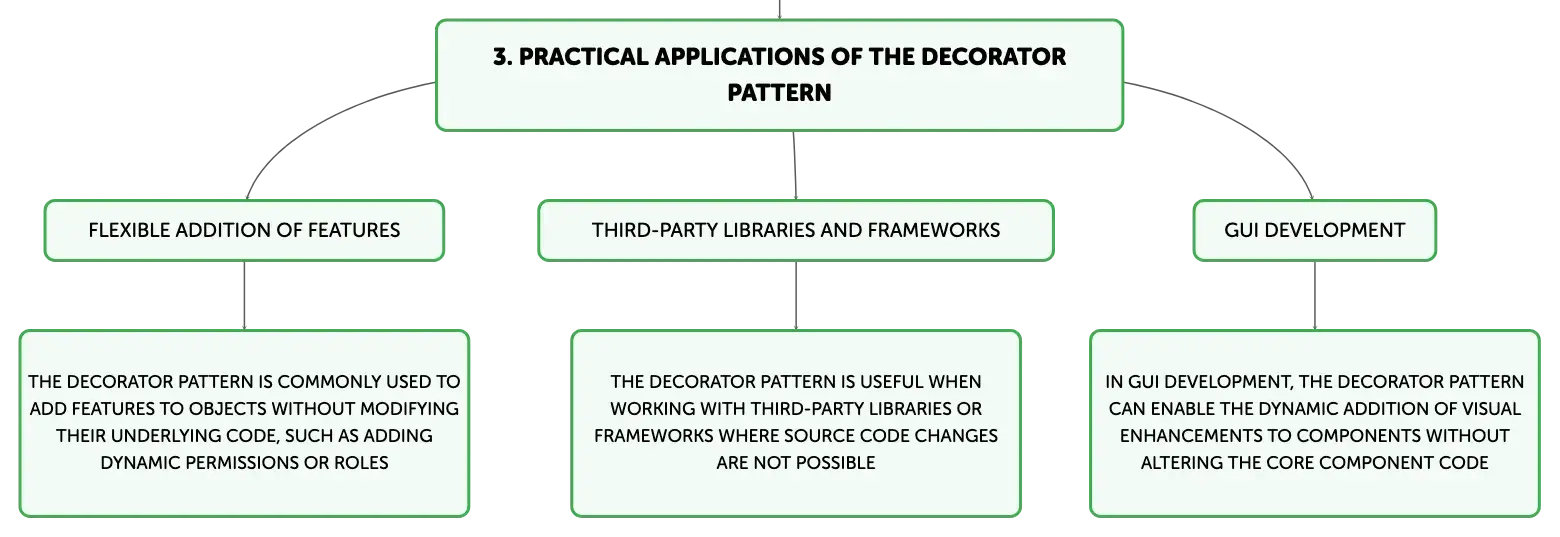

Real-World Usage of the Decorator Pattern

The Decorator Pattern finds practical use in scenarios requiring the flexible addition of features to objects. It is commonly applied to extend the capabilities of objects in a system without modifying their underlying code, such as adding dynamic permissions or roles. It is also useful when working with third-party libraries or frameworks where source code changes are not possible. For instance, in graphical user interface (GUI) development, the Decorator Pattern can enable the dynamic addition of visual enhancements to components, such as borders or scroll bars, without altering the core component code.

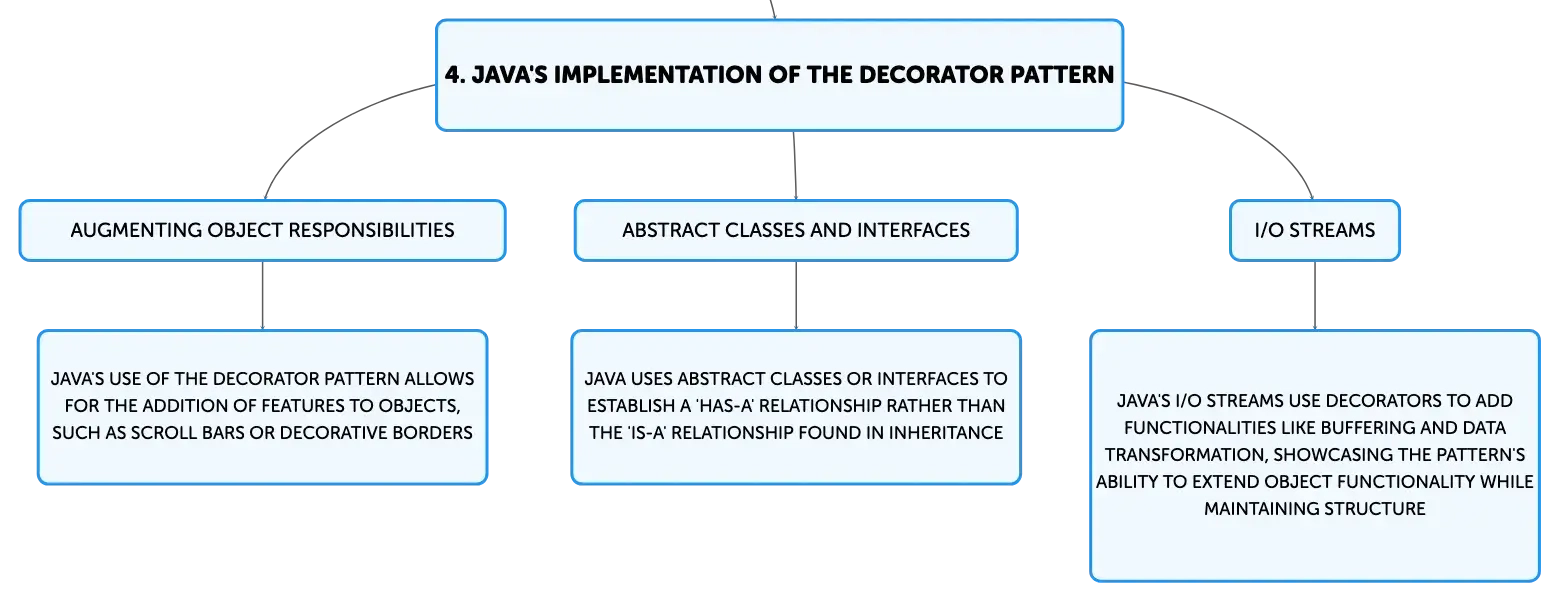

Implementing the Decorator Pattern in Java

Java's application of the Decorator Pattern demonstrates its value in augmenting object responsibilities. For example, a simple GUI window can be enhanced with additional features like scroll bars or decorative borders. Java achieves this through the use of abstract classes or interfaces, establishing a 'has-a' relationship rather than the 'is-a' relationship found in inheritance. This pattern is also evident in Java's I/O streams, where decorators can add functionalities like buffering and data transformation, illustrating the pattern's capacity to extend object functionality while maintaining the original object's structure.

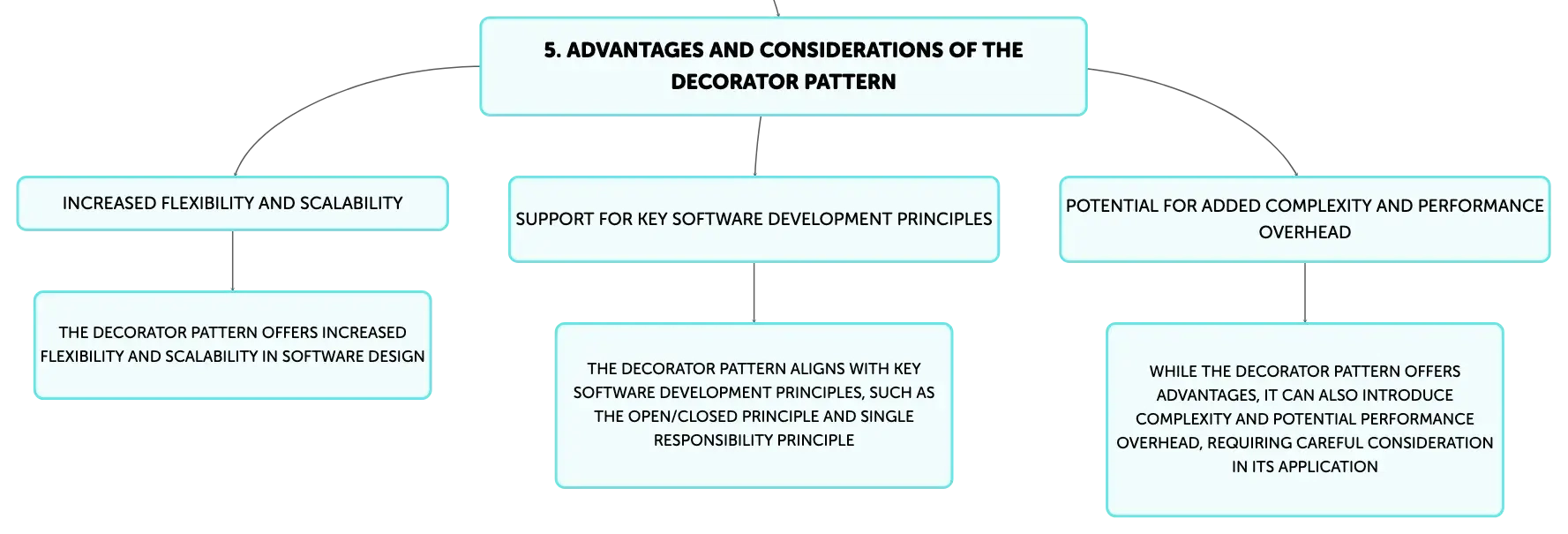

Benefits and Trade-offs of the Decorator Design Pattern

The Decorator Pattern offers significant advantages, such as increased flexibility and scalability, and it supports the Open/Closed Principle, leading to more maintainable and modular software. It enables the dynamic addition of features and can alleviate the complexity that comes with extensive inheritance hierarchies. However, it can also introduce complexity in the code and potential performance overhead due to the multiple layers of wrapping. These trade-offs require careful consideration in the pattern's application to ensure that the benefits outweigh the potential for increased maintenance overhead.

Concluding Insights on the Decorator Pattern

The Decorator Pattern is a strategic structural design pattern in software engineering that enables the dynamic enhancement of object behaviors without changing existing code structures. It aligns with key software development principles, such as the Open/Closed Principle and Single Responsibility Principle, and is versatile in its applications, from GUI enhancements to complex data stream processing. While it offers increased flexibility and scalability, developers must balance its advantages with the potential for added complexity and performance costs to achieve effective implementation in software projects.
