Disjoint Sets: Efficient Data Management and Analysis

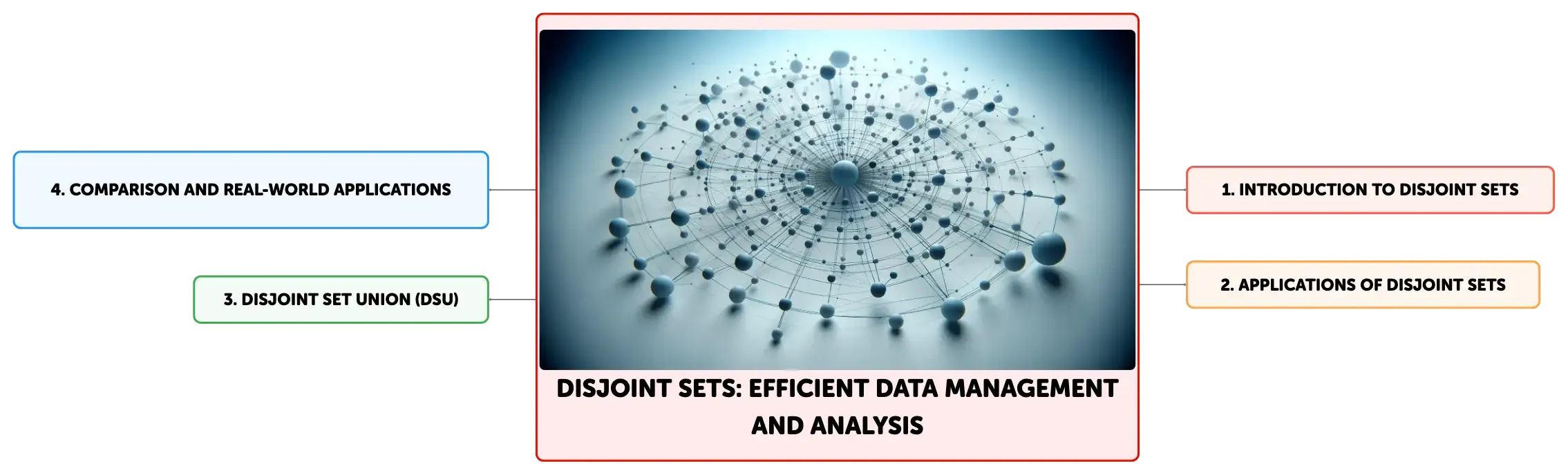

Concept Map
Disjoint sets, or union-find structures, are pivotal in computer science for managing non-intersecting subsets. They ensure efficient data management through 'Find' and 'Union' operations, optimizing performance with 'Union by Rank' and 'Path Compression'. These sets are crucial in network connectivity, graph algorithms like Kruskal's minimum spanning tree, and image processing, showcasing their versatility in solving complex problems.
Summary
Outline
Exploring the Concept of Disjoint Sets
Disjoint sets, also known as union-find data structures, are essential in computer science for managing collections of non-intersecting subsets. Each element within a disjoint set system is unique to one subset, ensuring clear partitioning. The system is primarily governed by two operations: 'Find', which locates the subset a particular element belongs to, and 'Union', which fuses two subsets into one. These sets are typically represented by a forest of trees, where each tree is a subset, and the root node is the subset's representative. Disjoint sets are highly valued for their ability to perform quick and efficient lookups and updates, especially when dealing with large data sets, and for their space efficiency, as they prevent duplicate storage of elements.The Critical Operations of Disjoint Sets
The efficiency of disjoint sets hinges on two pivotal operations: 'Find' and 'Union'. The 'Find' operation identifies the root of the tree to which an element belongs, effectively determining the subset's representative. The 'Union' operation combines two distinct subsets into a single one. These operations are designed to be efficient, with a nearly constant amortized time complexity, often expressed as \( O(\alpha(n)) \), where \( \alpha(n) \) is the inverse Ackermann function, which grows very slowly and is practically constant for all reasonable values of \( n \). Performance enhancements such as 'Union by Rank' and 'Path Compression' optimize these operations. 'Union by Rank' keeps the trees shallow by linking the root of the smaller tree to the larger one, while 'Path Compression' flattens the tree during the 'Find' operation, allowing for almost direct access to the root in subsequent operations.Real-World Applications of Disjoint Sets
Disjoint sets have a wide array of practical uses in various fields. They are particularly useful in network connectivity to manage the connections between components efficiently. In graph theory, disjoint sets are integral to Kruskal's algorithm for finding a graph's minimum spanning tree. They are also employed in image processing for tasks like image segmentation and are utilized in statistical physics to model and analyze percolation thresholds. These diverse applications demonstrate the practical significance of disjoint sets in efficiently solving complex problems in data management and analysis.The Role of Disjoint Set Union (DSU) in Data Structures
Disjoint Set Union (DSU) is a strategy that supports the disjoint set data structure, enabling the efficient management of complex data sets. DSU excels in scenarios that require dynamic grouping of elements, facilitating quick and effective manipulation of these groups. It is vital for data structures that need to perform rapid lookups, union operations, and set updates. DSU's capabilities include grouping elements, identifying relationships, and providing connectivity information. For instance, in a computer network, DSU can swiftly ascertain whether two computers are connected by representing each as a node within a disjoint set and using 'Union' to join nodes and 'Find' to verify connectivity.Fundamental Properties of Disjoint Sets
Disjoint sets are characterized by several fundamental properties that define their operation and efficiency. They consist of distinct, non-overlapping subsets, guaranteeing the exclusivity of each element to a single subset. The operations 'MakeSet', 'Find', and 'Union' are central to the creation, identification, and merging of subsets. Disjoint sets are depicted as a collection of rooted trees, with each tree representing a disjoint set and the root serving as the identifier. The optimizations 'Union by Rank' and 'Path Compression' are crucial for enhancing the performance of disjoint set operations by maintaining shallow trees and shortening the path to the root, thus enabling faster execution of operations.Comparing Disjoint Sets with Other Data Structures
Disjoint sets offer a unique approach to data management, and when compared with other data structures, their advantages become evident. In graph data structures, disjoint sets are invaluable for detecting cycles and are used in algorithms to construct minimum spanning trees. They facilitate traversal algorithms by keeping track of connected components. Additionally, disjoint sets are used in maze generation algorithms to ensure the creation of a solvable maze without loops by managing the union of maze cells. These comparisons showcase the adaptability of disjoint sets to various algorithmic challenges and their role in the efficient organization and manipulation of data.Case Studies in the Use of Disjoint Sets
The practicality of disjoint sets is illustrated through their application in real-world scenarios. In graph algorithms like Kruskal's algorithm, disjoint sets begin with each vertex or edge as a separate set and employ 'Find' and 'Union' operations to avoid cycles while constructing a minimum spanning tree. In maze generation, each cell starts as an individual disjoint set, and as walls are removed to create a path, 'Union' operations merge cells to form a single interconnected set, ensuring the maze is solvable. These case studies highlight the effectiveness of disjoint sets in providing efficient solutions to complex problems, emphasizing their value in data structure applications.
Show More

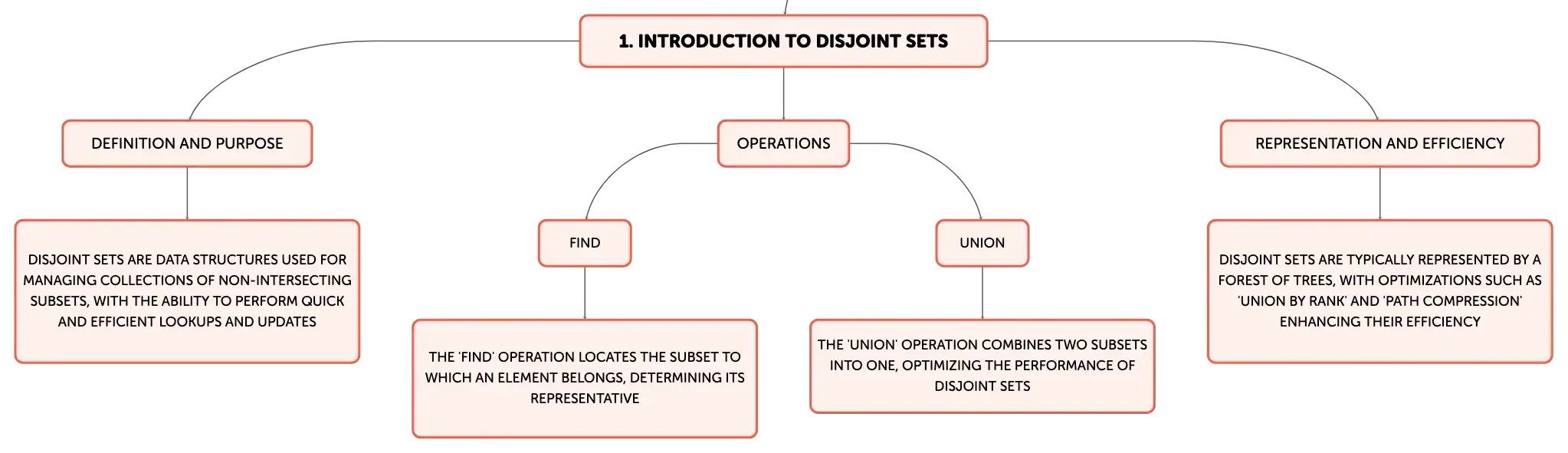

Introduction to Disjoint Sets
Definition and Purpose
Disjoint sets are data structures used for managing collections of non-intersecting subsets, with the ability to perform quick and efficient lookups and updates
Operations
Find
The 'Find' operation locates the subset to which an element belongs, determining its representative
Union
The 'Union' operation combines two subsets into one, optimizing the performance of disjoint sets
Representation and Efficiency
Disjoint sets are typically represented by a forest of trees, with optimizations such as 'Union by Rank' and 'Path Compression' enhancing their efficiency

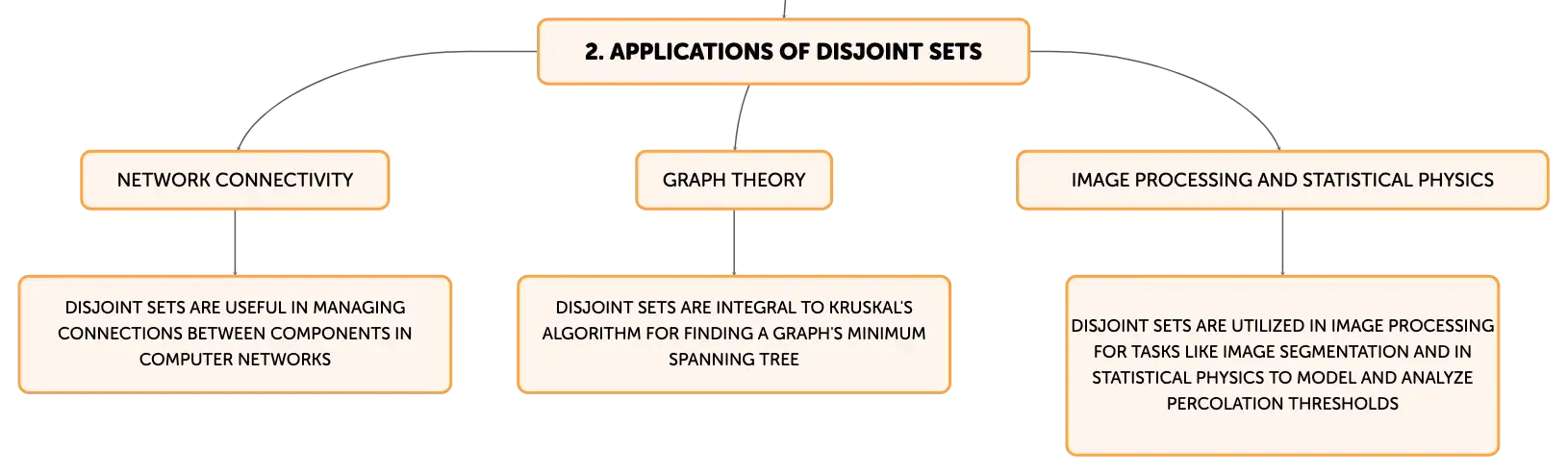

Applications of Disjoint Sets
Network Connectivity
Disjoint sets are useful in managing connections between components in computer networks
Graph Theory
Disjoint sets are integral to Kruskal's algorithm for finding a graph's minimum spanning tree
Image Processing and Statistical Physics
Disjoint sets are utilized in image processing for tasks like image segmentation and in statistical physics to model and analyze percolation thresholds

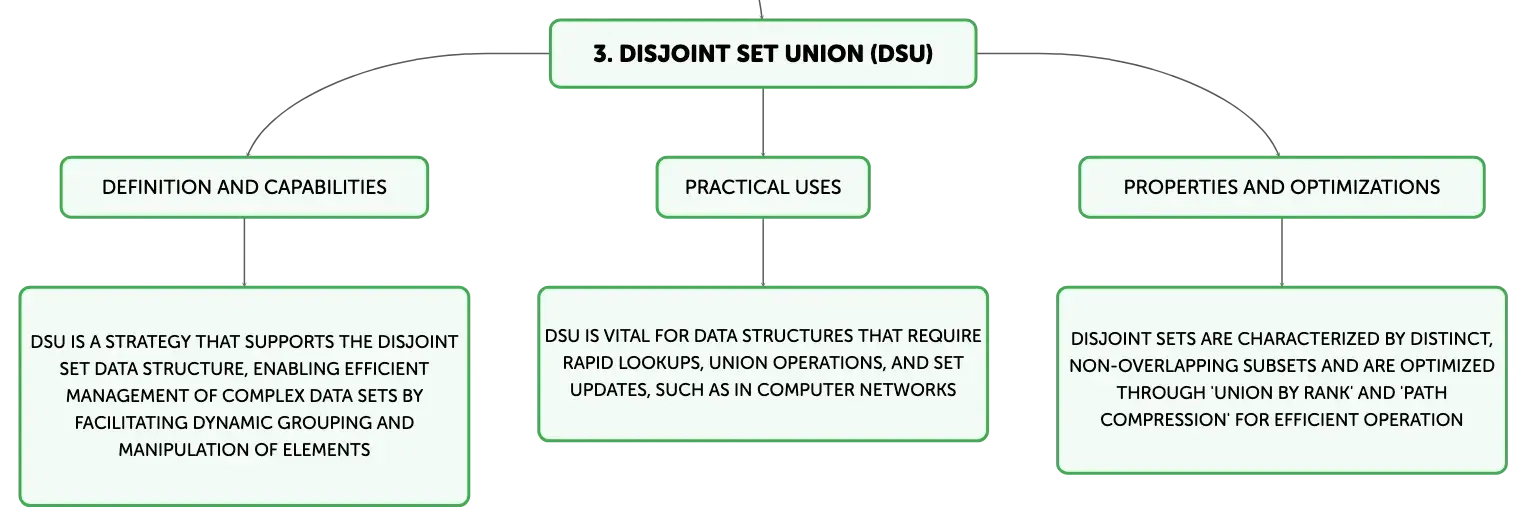

Disjoint Set Union (DSU)
Definition and Capabilities
DSU is a strategy that supports the disjoint set data structure, enabling efficient management of complex data sets by facilitating dynamic grouping and manipulation of elements
Practical Uses
DSU is vital for data structures that require rapid lookups, union operations, and set updates, such as in computer networks
Properties and Optimizations
Disjoint sets are characterized by distinct, non-overlapping subsets and are optimized through 'Union by Rank' and 'Path Compression' for efficient operation

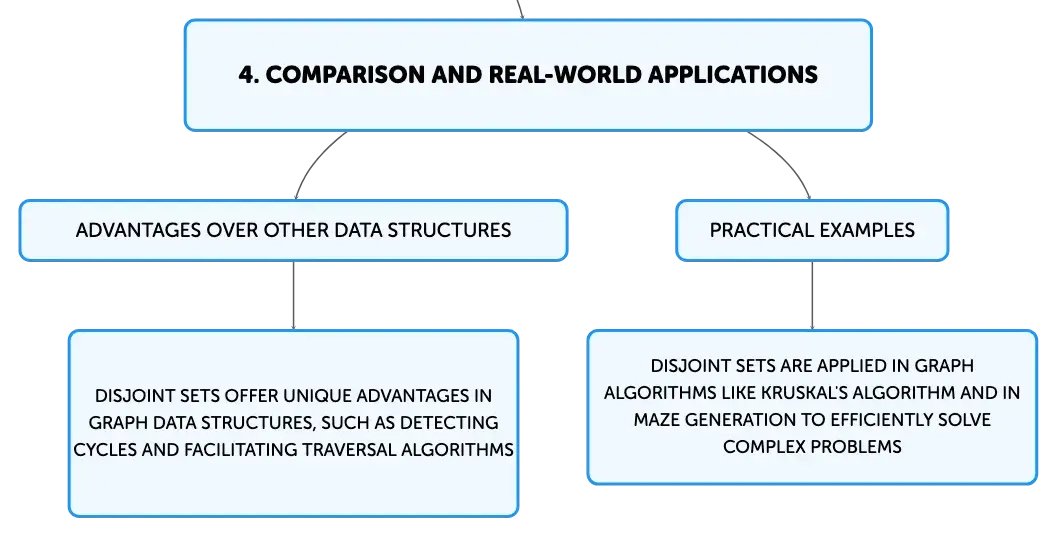

Comparison and Real-World Applications
Advantages over Other Data Structures
Disjoint sets offer unique advantages in graph data structures, such as detecting cycles and facilitating traversal algorithms
Practical Examples
Disjoint sets are applied in graph algorithms like Kruskal's algorithm and in maze generation to efficiently solve complex problems
Disjoint Sets: Efficient Data Management and Analysis
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In computer science, ______ sets are used to manage groups of non-overlapping subsets.
Disjoint
01
Purpose of 'Find' operation in disjoint sets
Identifies tree root for an element, determining subset's representative.
02
Purpose of 'Union' operation in disjoint sets
Merges two distinct subsets into a single subset.
