Logo
Logo
Log inSign up
Logo

Info

PricingFAQTeam

Resources

BlogTemplate

Tools

AI Concept MapsAI Mind MapsAI Study NotesAI FlashcardsAI Quizzes

info@algoreducation.com

Corso Castelfidardo 30A, Torino (TO), Italy

Algor Lab S.r.l. - Startup Innovativa - P.IVA IT12537010014

Privacy PolicyCookie PolicyTerms and Conditions

The Control Unit: Orchestrator of Computer Operations

The Control Unit (CU) is central to CPU functionality, orchestrating operations by interpreting instructions and coordinating with the Arithmetic Logic Unit (ALU) and registers. It ensures efficient execution through the fetch-decode-execute cycle. The CU's design, whether Hardwired or Microprogrammed, impacts processing speed and system flexibility, influencing its use in PCs and IoT devices.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The CU's responsibilities include fetching, decoding, and overseeing the execution of instructions, working closely with the ______ and registers.

Click to check the answer

Arithmetic Logic Unit (ALU)

2

Purpose of CU in computers

Click to check the answer

Coordinates activities of all computer components, manages fetch-decode-execute cycle.

3

Role of ALU during execute phase

Click to check the answer

Performs arithmetic and logical operations as instructed by CU.

4

Function of memory in fetch phase

Click to check the answer

Stores instructions that CU retrieves for processing.

5

The CU is a crucial component of the CPU, working alongside the ______ and ______ to manage instruction flow.

Click to check the answer

ALU registers

6

Characteristics of Hardwired Control Units

Click to check the answer

Use fixed logic circuits, faster operation, more reliable, less error-prone, not easily modified.

7

Characteristics of Microprogrammed Control Units

Click to check the answer

Use microcode for instructions, easier to update, more flexible, potentially slower, more complex.

8

Impact of Control Unit Design on System Performance

Click to check the answer

Hardwired offers speed and reliability, Microprogrammed provides flexibility and ease of updates.

9

For rapid processing in a computer system, a ______ Control Unit is often selected due to its speed and efficiency.

Click to check the answer

Hardwired

10

A ______ Control Unit is favored for computer systems that prioritize flexibility and ease of implementing updates.

Click to check the answer

Microprogrammed

11

CU Function in Personal Computing

Click to check the answer

Manages system operations, processes inputs, executes instructions, coordinates hardware.

12

CU Role in IoT Devices

Click to check the answer

Embedded in microcontrollers, oversees sensor data, network communication, power management.

13

Importance of CU Precision

Click to check the answer

Critical for real-time applications, ensures accurate timing and synchronization.

14

Control Units are key in various computing settings, including ______ and ______ devices, promoting efficiency and energy saving.

Click to check the answer

PCs IoT

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Computer Memory

View document

Computer Science

Understanding Processor Cores

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

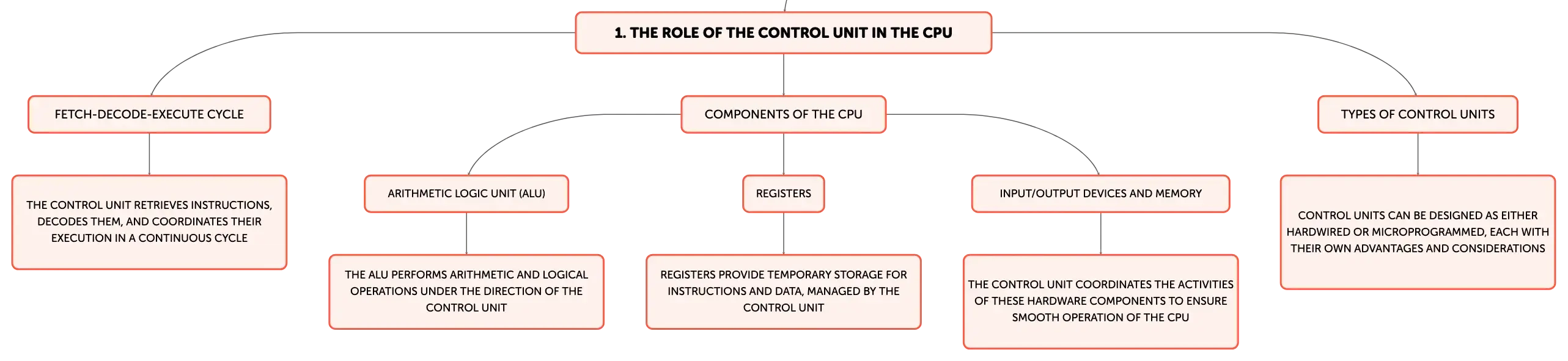

The Role of the Control Unit in CPU Functionality

The Control Unit (CU) is a pivotal component within the Central Processing Unit (CPU) of a computer, serving as the orchestrator of operations. It is tasked with interpreting CPU instructions from the computer's memory and converting them into control signals that guide the rest of the computer's hardware. The CU fetches the instruction code, decodes it to determine the necessary action, and then oversees the execution of these instructions by coordinating with the Arithmetic Logic Unit (ALU) and registers. It plays a crucial role in maintaining the order and timing of operations, ensuring that the system functions efficiently and effectively.

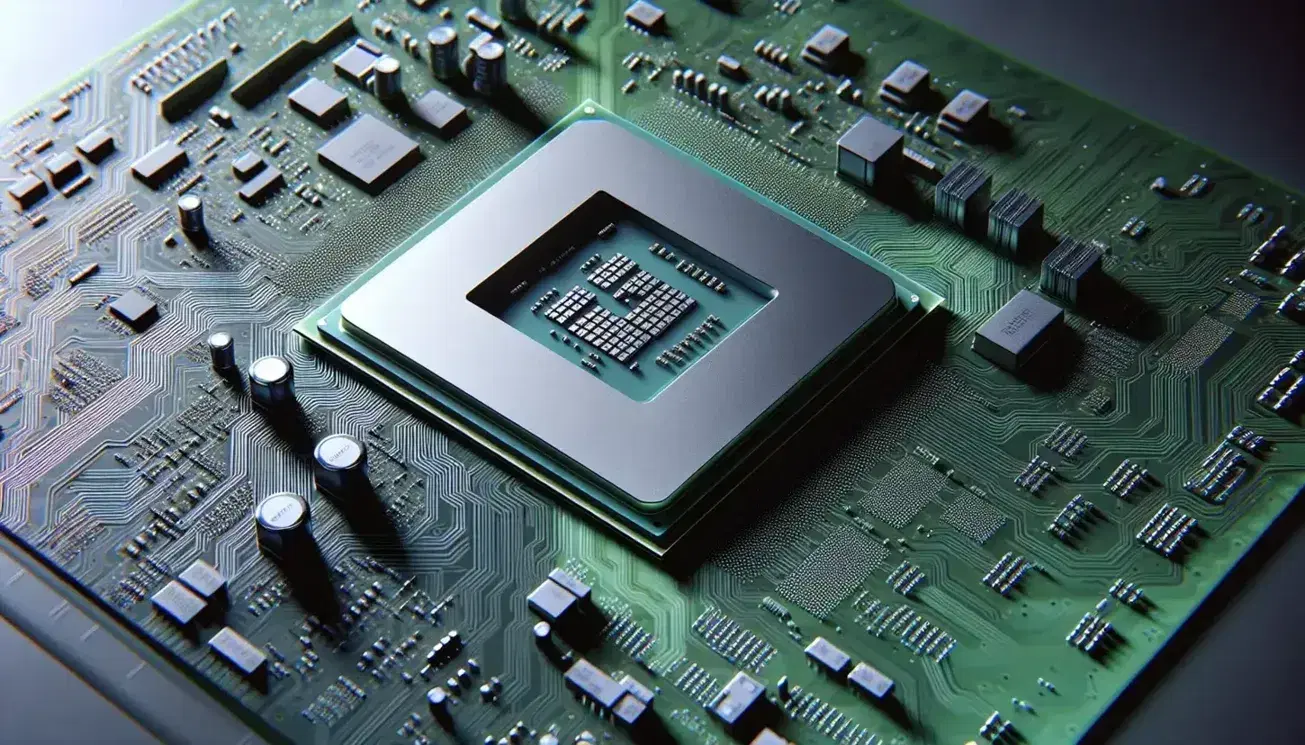

Close up of a modern CPU on green motherboard with visible electronic components and highlighted control unit section.

The Fetch-Decode-Execute Cycle Explained

Central to the CU's operation is the fetch-decode-execute cycle, a fundamental process in the functioning of a computer. During the fetch phase, the CU retrieves an instruction from the system's memory. It then decodes the instruction, ascertaining the operation to be performed and the data involved. In the execute phase, the CU issues the necessary control signals to the relevant components, such as the ALU for arithmetic operations or memory for data storage, to carry out the instruction. This cycle is repeated continuously as long as the computer is in operation, forming the basis of program execution.

Interplay Between the Control Unit and Other CPU Components

The CU is an integral part of the CPU architecture, which also encompasses the ALU and various registers. The ALU is responsible for carrying out arithmetic and logical operations, while the registers provide temporary storage for instructions and data. The CU's efficiency in managing the flow of instructions and data between these components is vital for the overall performance of the computer. It ensures that the CPU operates smoothly by coordinating the activities of the ALU, registers, and other hardware, such as input/output devices and memory.

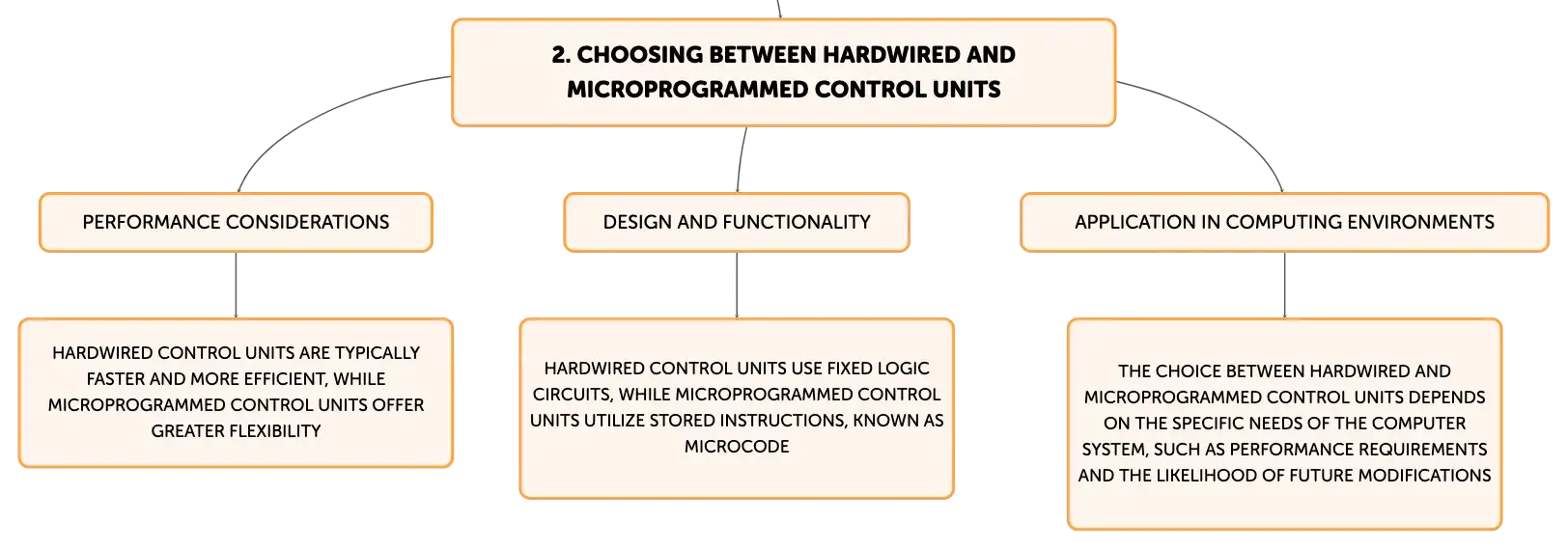

Hardwired Versus Microprogrammed Control Unit Designs

Control Units can be designed as either Hardwired or Microprogrammed. Hardwired Control Units are characterized by their use of fixed logic circuits to produce control signals, which typically results in faster operation due to the direct nature of the signal generation. They are often more reliable and less prone to errors, but they lack the flexibility to be easily modified or updated. On the other hand, Microprogrammed Control Units utilize a set of stored instructions, known as microcode, to generate control signals. This design allows for easier updates and modifications, providing greater flexibility but potentially at the cost of slower processing speeds and increased complexity.

Selecting the Appropriate Control Unit Design

The decision between Hardwired and Microprogrammed Control Units should be informed by the specific needs of the computer system. Hardwired Control Units are typically chosen for their speed and efficiency, making them ideal for applications where rapid processing is paramount. Conversely, Microprogrammed Control Units are preferred when flexibility and the ability to implement updates or changes are required. Factors such as the system's performance specifications, budget constraints, and the likelihood of needing future modifications should all be considered when selecting the type of Control Unit.

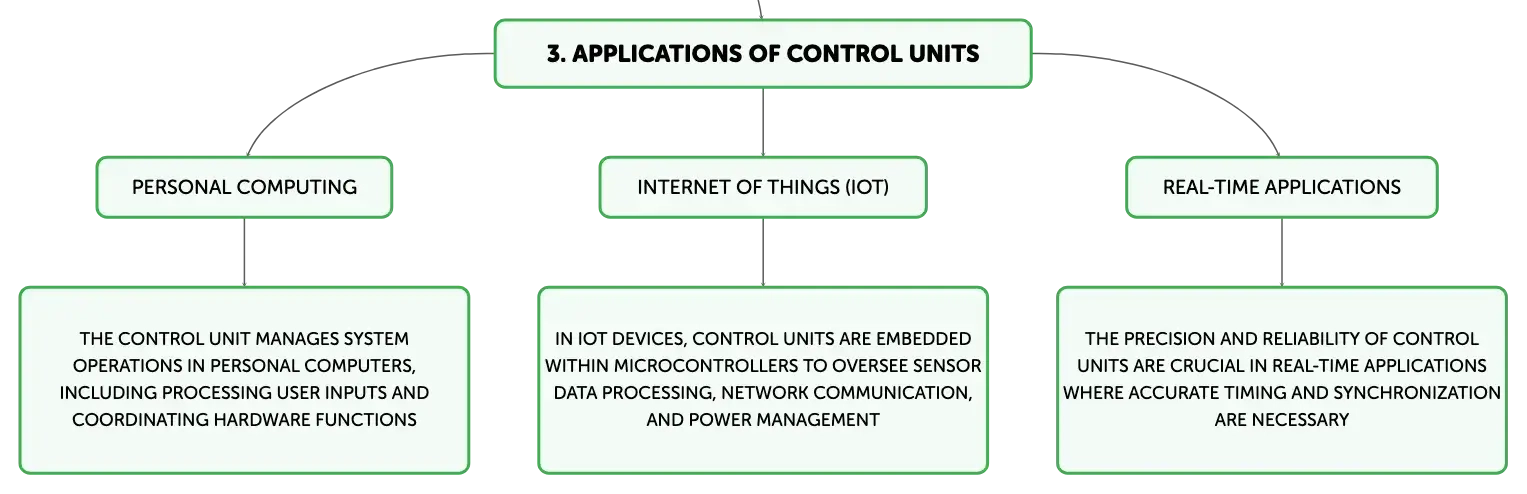

Control Units in Modern Computing and the Internet of Things

Control Units are essential in a wide array of computing applications, extending from traditional personal computers to the burgeoning field of the Internet of Things (IoT). In personal computing, the CU is responsible for managing system operations, including processing user inputs, executing software instructions, and coordinating hardware functions. In IoT devices, CUs are embedded within microcontrollers to oversee sensor data processing, network communication, and power management. The precision and reliability of CUs are particularly critical in real-time applications where accurate timing and synchronization are necessary.

Concluding Insights on Control Units

In conclusion, the Control Unit is a cornerstone of the CPU, facilitating the seamless execution of instructions and the management of data flows within a computer system. It operates through the fetch-decode-execute cycle and is instrumental in synchronizing the CPU's various components. The choice between Hardwired and Microprogrammed Control Units hinges on the system's performance needs and the desired balance between speed and flexibility. Control Units play a vital role in diverse computing environments, from PCs to IoT devices, ensuring operational efficiency, effective communication, and energy conservation. A comprehensive understanding of Control Unit functions and designs is essential for grasping their impact on the evolution of computing technology.
